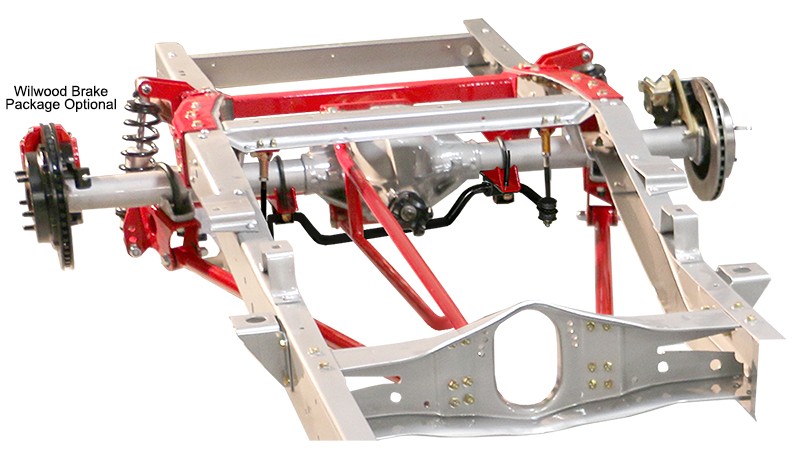

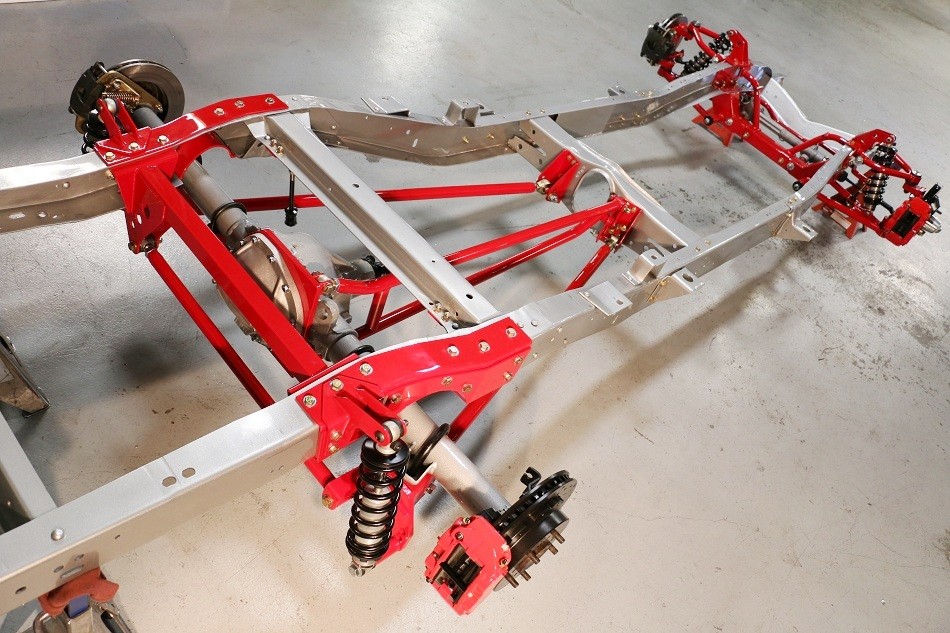

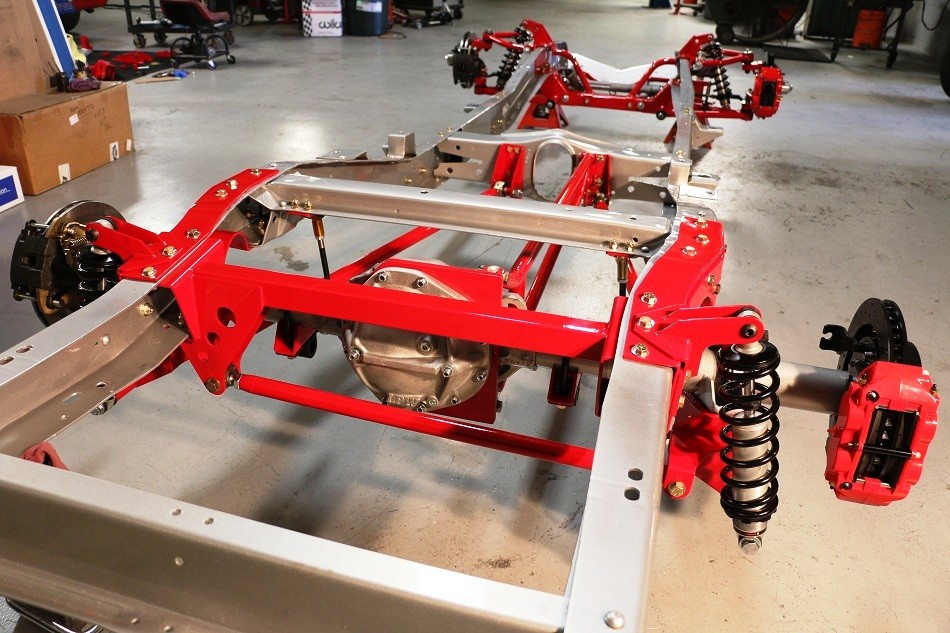

NEW! TCI 63-72 Chevy C10 Truck Torque Arm 3 Link Rear Suspension Kit

$2,987.00

(0) Review this Product

Untitled document

NEW 63-72 C-10 Total Cost Involved 63-72 Chevy Truck C-10 KitPICKUP PRO TOURING SUSPENSION! SHIPS FREE IF PURCHAESD WITH IFS!



THIS IS A BOLT IN KIT! Coil over rear torque arm suspension for ½ ton trucks. This product is designed for: street driving, autocross and pro touring applications.  Order this product if you would like C6 Corvette quality G-Machine handling!

This highly engineered kit lowers the truck about 5″ (with front IFS kit installed), drastically improves body roll and ride quality and uses many OE holes for simple installation. The system is designed to work with aftermarket gas tanks and will include brackets for the most popular axle combinations including the GM truck corporate12 bolt. 5x 5″ Chevy Truck Bolt Pattern is standard.

Viewable printable instructions above. Click on the PDF logo!



BASE KIT INCLUDES THE FOLLOWING:

• RideTech– 5” Stroke Single Adjust Aluminum Coil-Over Shocks

• Energy Suspension – Urethane Greasable Bushings

• Bolt-On Torque Arm Differential Plate for Multiple Rear End Applications

• 1-1/2” x .156w U.S. DOM Trailing Arms w/Adjustable & Greasable 2” Johnny Joints

• Crossmember & Brackets

• 1-1/4” x .120w U.S. DOM Panhard Bar

• Bolt-on C-Notch Plate

• Black Powder Coated Springs

• Detailed Installation Manual

Shipping – Select “Torque Arm Fed Ex Flat Rate”. Kit is 4 oversized packages 200 lbs. Axles will be charged an additional shipping fee! You can check out and we will contact you with an axle freight pricing.



  • Summary
  • Details
  • Review

Description



THIS KIT IS A FULLY BOLT IN SYSTEM!



The TCI Torque Arm features a unique slider on the front of the arm that slides for and aft and rotates as the car goes through suspension travel thus allowing the cars handling to be controlled by the coil-over shocks and the rear sway bar with no suspension binding variables.



Additional information

Weight 150 lbs

Reviews

There are no reviews yet.

Be the first to review “NEW! TCI 63-72 Chevy C10 Truck Torque Arm 3 Link Rear Suspension Kit”

Your email address will not be published.

Please Select Intended Axle *

Show Chrome and Stainless Steeel Upgrades

Shock Options

Add A Currie Built Ford 9" Axle Assembly To Your Kit. Axle Comes With All Brackets Welded In Place

Upgrade Above Axle Housing or Complete Axle To FAB 9

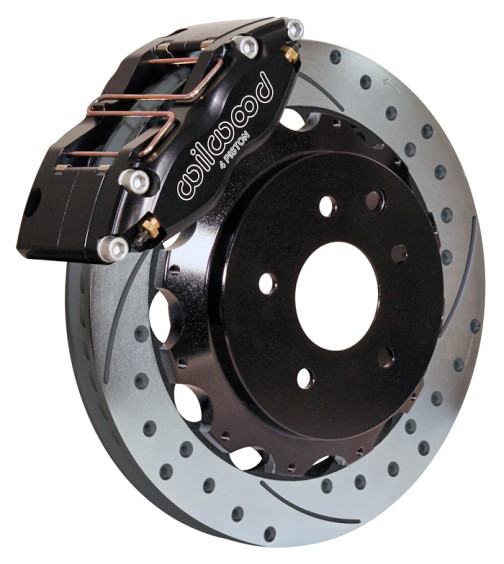

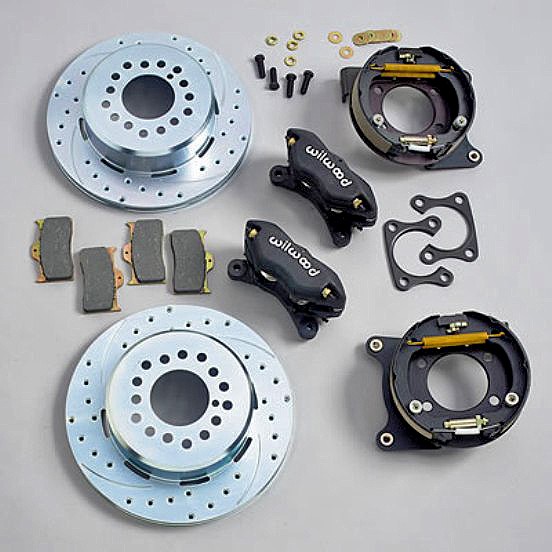

Brake Options For TCI Ford 9" Axle

Performance Rear Sway Bar

Product price
Additional options total:
Order total:
