TCI 49-54 Chevy Car Mustang II IFS Front End Kit

$2,755.00

(0) Review this Product

Untitled document

SPECIALFREE TCI 49-54 Chevy Car Mustang II Front EndBRAIDED BRAKE LINES

NEW SOLID ALIGNMENT SYSTEM! DISCOUNT PRICING AND THE MOST FREE UPGRADES!

  • FREE 2″ DROP SPINDLES
  • FREE 1″ SWAY BAR
  • CPP BIG BORE SINGLE PISTON CALIPERS
  • FREE BRAIDED BRAKE HOSES
  • FREE SHIPPING
  • THIS CROSSMEMBER IS A BOLT IN UNIT!



PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON BOTH PLUS MORE UPGRADES!



Why buy a Mustang II IFS? CLICK HERE!

TCI 49-54 Chevy Car Mustang II IFS Front Suspension Kit



 M-II Crossmember:  Custom designed per application; the 49-54 Chevy crossmember is a BOLT IN unit! It’s made of 3/16″ laser cut U.S. steel plate, TIG welded in-house, Heavy 1.25″ gusted lower A arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are welded in place. Spring towers need to be welded in place.



Tubular Control Arms: Heavy duty 5/8″ narrowed 1″ DOM steel welded/formed in house. Indexed spring pockets, corrected spring angle. US made ball joints/Urethane bushings installed. Options include Stainless Steel, a “Coil Over Shock” design as well as a very affordable air spring set up.



Spindles: 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes for “screw in” type heavy duty ball joints. Stock height available as no cost swap.





Kit Details:



  • Kit Utilizes Your OEM Radiator

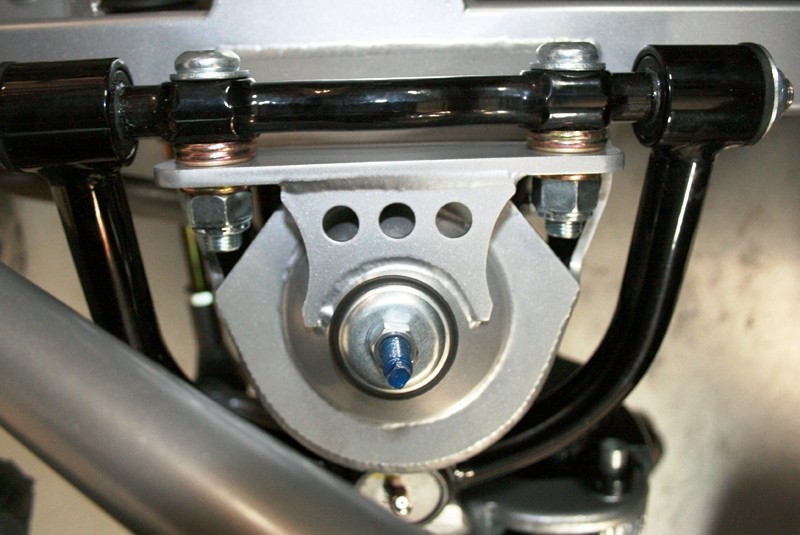

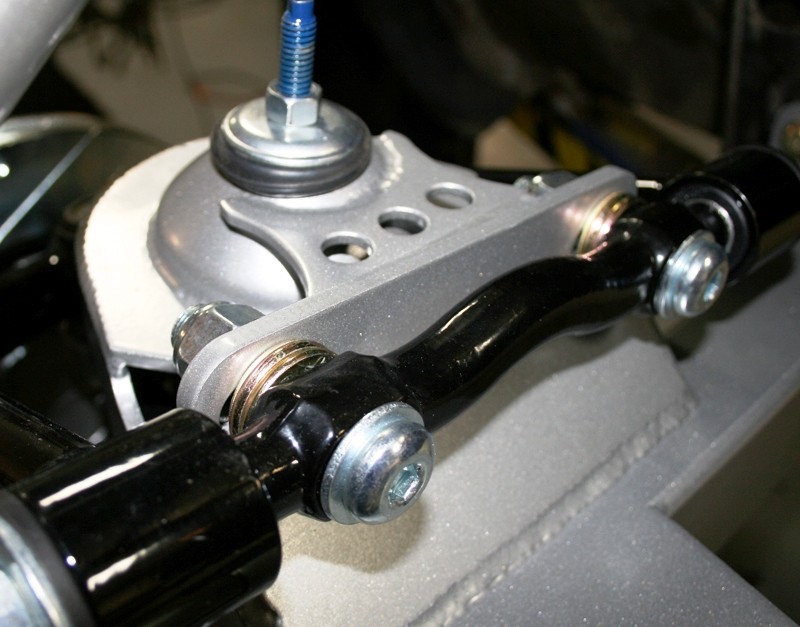

  • NEW Solid Alignment System
  • Bolt In 3/16″ Laser Cut Fixture Welded Custom Steel Crossmember
  • 3/8″ Narrowed Tube Control Arms
  • Forged Drop or Stock Height Spindles
  • Black Powder Coated 350# Springs and Painted Steel Gas Shocks

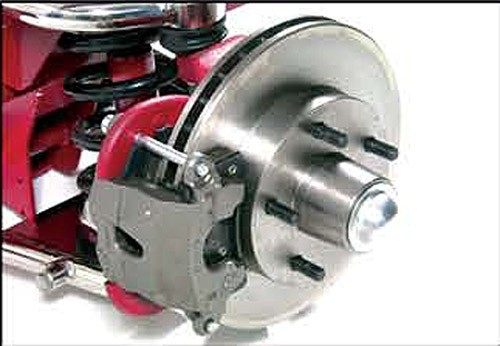

  • Assembled 11″ GM  Disc Brakes w/CPP Large Calipers
  • New Manual Rack and Pinion
  • 1″ Sway Bar w/Heim Style Drop Links
  • All Hardware and Detailed Instructions
  • 5x 4.75″ Chevy Bolt Pattern Standard

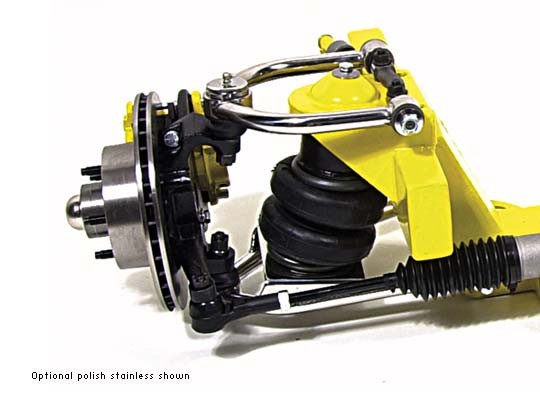

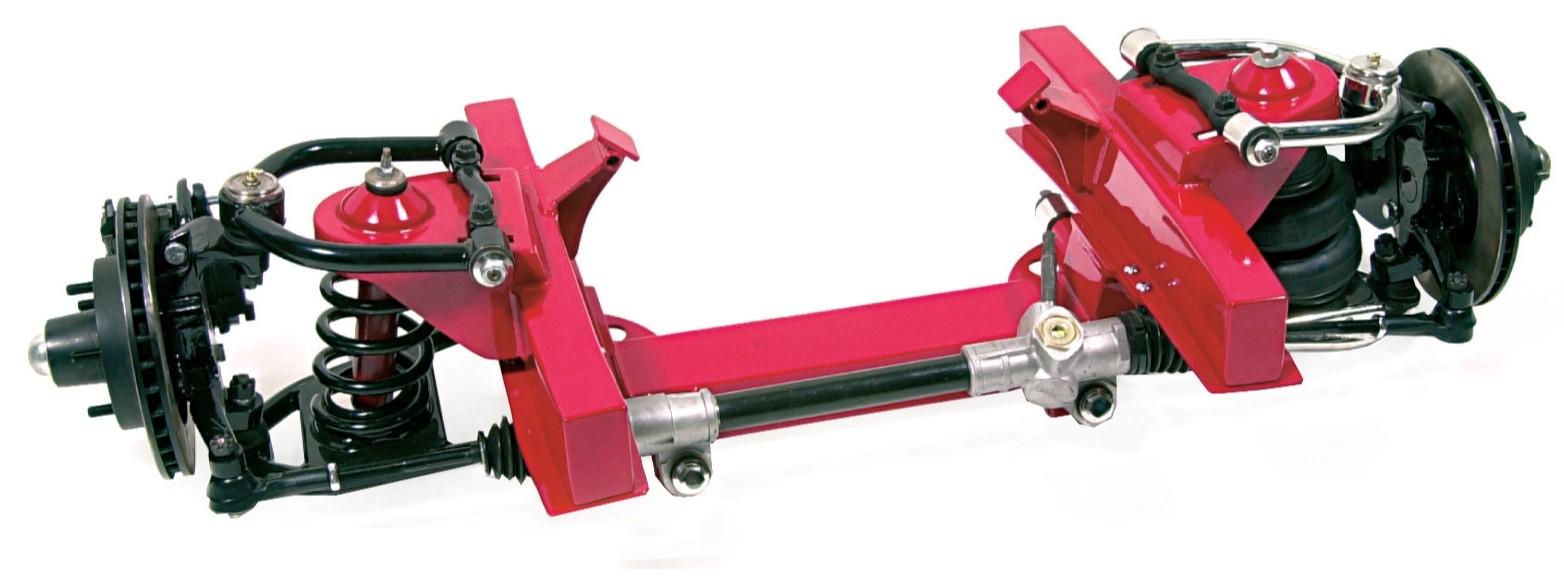

Main photo shows optional engine brackets and air springs. Kit ships as raw steel. Spring Towers will need to be welded in place.



SCROLL DOWN! Powder coating, polishing and many hardware options available below

  • Summary
  • Details
  • Review

Description

NEW Solid Alignment System – TCI 49 50 51 52 53 54 Chevy Car Mustang II IFS Front End Suspension Kit

Additional information

Weight 150 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 49-54 Chevy Car Mustang II IFS Front End Kit”

Your email address will not be published.

Swap to Stock Spindles

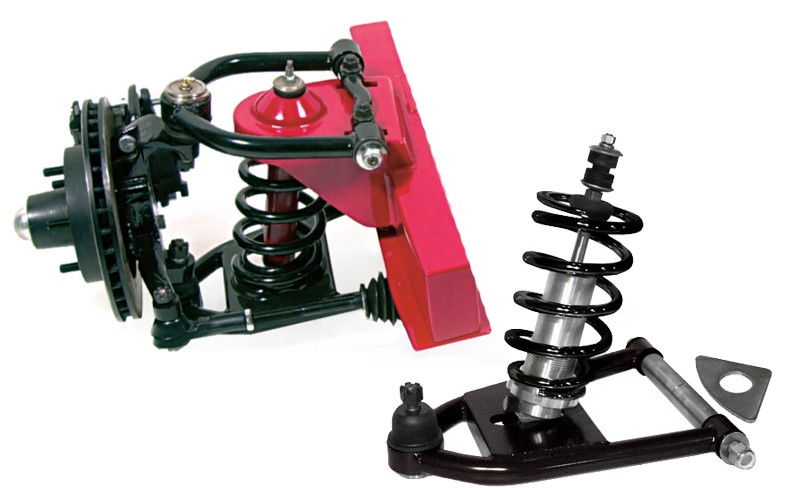

Change To "Coil Over" Style Shocks or Air Bags

Coil Spring Options

Rack Options – Power and or Right Hand Drive

Braided Power Steering Line Kit

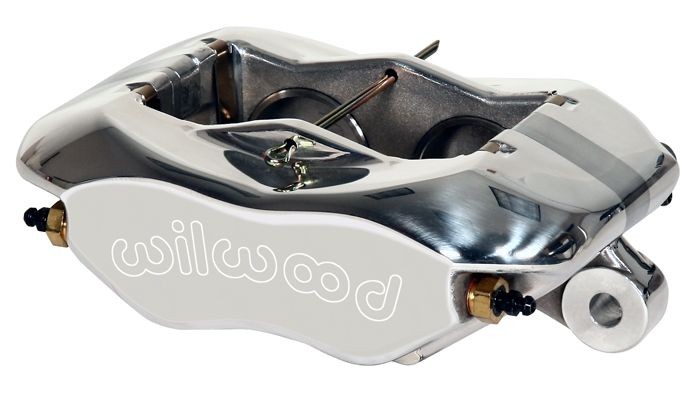

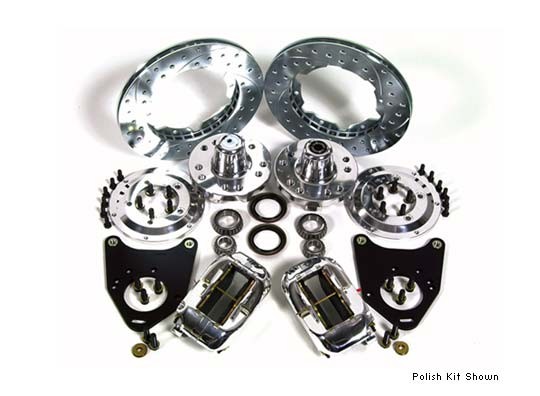

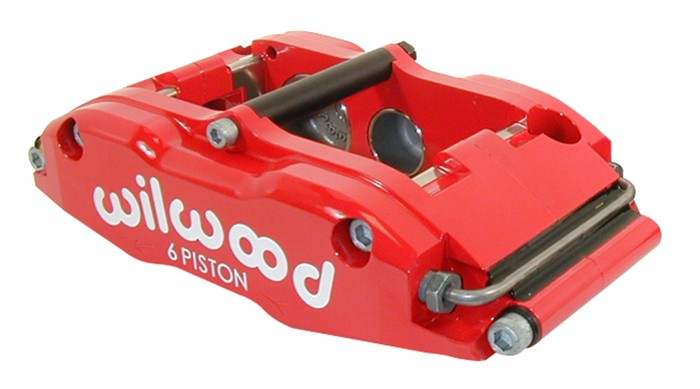

Disc Brake Upgrade

Add Braided Steel Brake Lines

Weld In Engine Brackets – Specific Fit For 49-54 Chevy Cars

Bolt On LS Engine Bracket Set – Works With Weld In Brackets Shown Above!

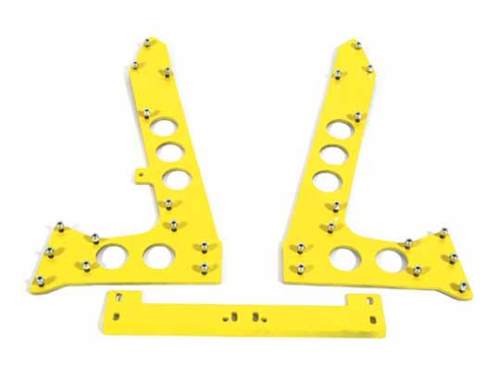

Bolt In Transmision and Brake Pedal Crossmember

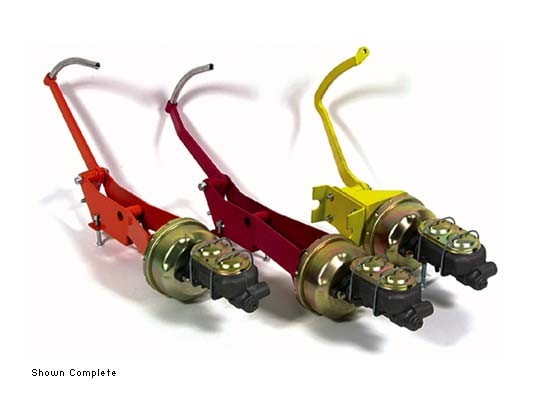

Add A TCI Power Brake Pedal
