TCI Universal Pro Street 4 Link Rear Suspension Kit

PN: 525-5170-00-UN

$1,870.00

Untitled document

Totoal Cost Involved InstructionsEASY INSTALL, GREAT  PRO STREET QUALITY/LOOKS AND $99 OFF!

Application: Universal Pro Street Cars & Trucks

TCI Universal Pro Street 4 Link Rear Suspension Kit: Total Cost Involved’s performance 4-Link kit is an adjustable, “Pro Style” weld-in kit with cut to fit cross members. The forward link bar brackets are left unattached allowing you to slide them from full width to super narrow thus accommodating many axle widths. In general, link bars eliminate wheel hop while the “coil over shocks” provide a superior suspension design when compared to leaf springs. This kit gives the driver the ability to adjust the suspension for changing track conditions as well as improving your street manners. Included link bars are beefy 1.250″ diam. seamless US tube steel.  This kit uses poly bushed rod ends making for a quiet and reliable street or track driven vehicle. Standard kit includes a cut to fit panhard bar with Ford 9″ bracket. Rated to 900 HP on street tires with extra gusseting of cross member. If running full slicks you may want to swap the poly bushed ends for spherical rod ends (TCI does not offer the rod ends). Spherical ends are track only pieces.

Key features: Sliding forward link bar bracket system. Ride height adjustability with multiple mounting holes for the rear shocks, spring preload adjustability, multiple forward upper and lower link mounting points for “instant center” tuning plus threaded link ends to allow pinion angle set-up. Many options below. Need a sway bar? See our “cut to fit” splined high mount bar or call.

Kit Includes:

  • Heavy Adjustable 1.250″ Link Bars With Stainless Adjustors
  • 40″ Cut to Fit Front Crossmember With Drive Shaft Loop
  • Sliding Forward Link Bar Brackets
  • Weld On Axle Brackets
  • 40″ Cut to Fit Coil-Over Shock Crossmember
  • Pre-Load Adjustable Steel Coil-Over Shocks With Springs
  • Cut to Fit Track Bar
  • All Hardware
  • Instructions



If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact. 4 Link ships as raw, unpainted steel – 2 Boxes 105 Lbs – Options Below

  • Summary
  • Details
  • Review

Description







Additional information

Weight 100 lbs

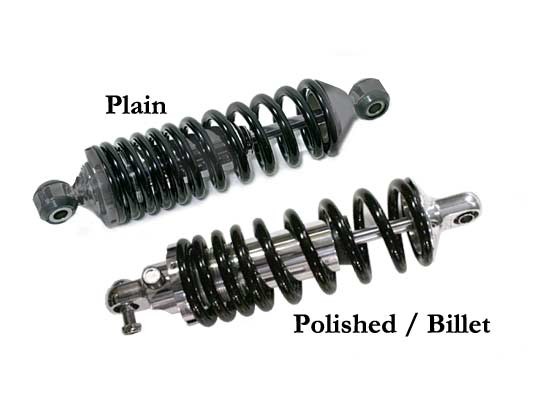

Shock Options

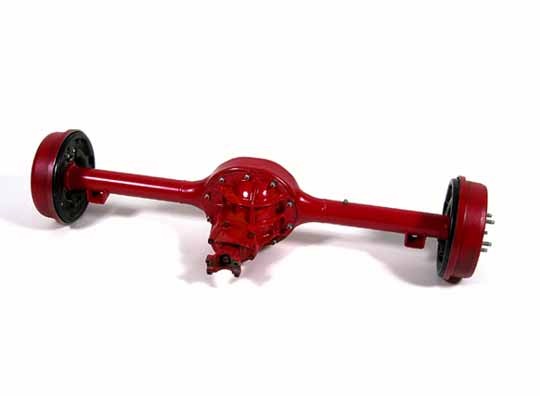

Add A Currie Built Ford 9" Axle Assembly To Your Kit. Axle Comes With All Brackets Welded In Place - Complete Axles Now Include 12" Smooth GM Disc Brakes!

Upgrade Above Axle Housing or Complete Axle To FAB 9 (must choose axle above)

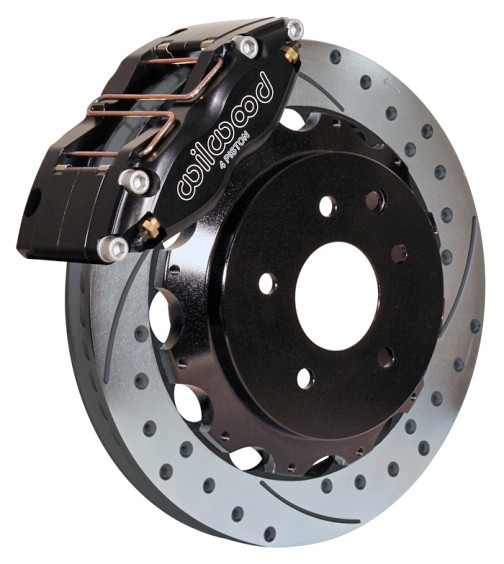

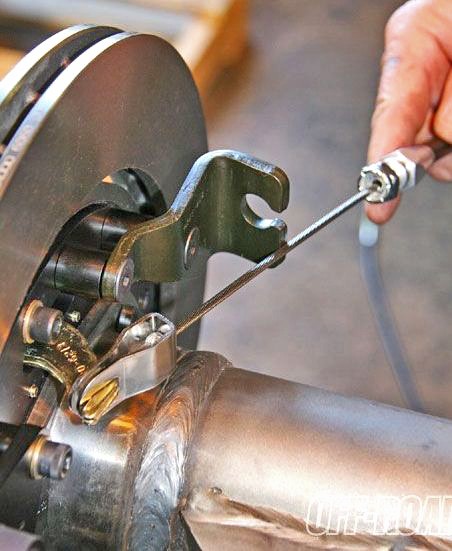

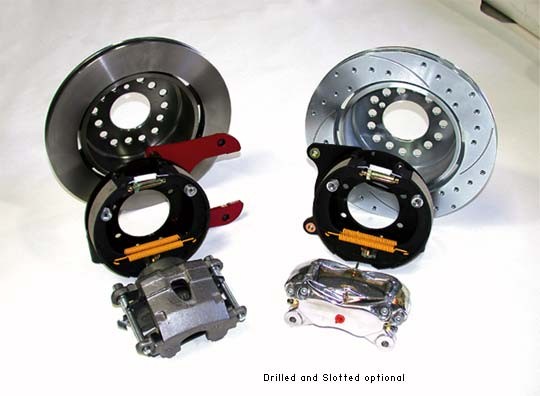

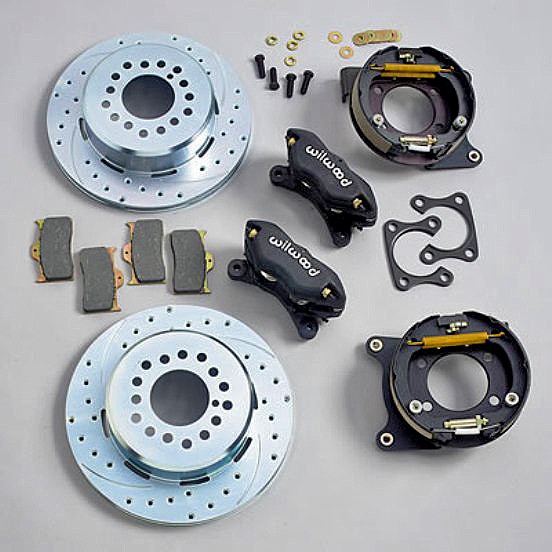

Brake Options For TCI Currie 9" Complete Axle - NOT AVAILABLE FOR AXLE HOUSING OPTON ABOVE - CALL IF YOUR ORDERING A HOUSING ONLY!

Add a Braided Brake Line Kit

Splined High Mount Sway Bar (not available on 55-57 Chevy or Universal 4 Link)
