TCI 70-81 Camaro or Firebird Pro Touring IFS Front Suspension Clip

PN: 237-2202-00

$7,589.00

Untitled document

TCI 70-81 Camaro IFS InstructionsFREE POWER RACK, TRANS CM, BRAIDED BRAKE LINES & FREE WILWOOD CALIPERS!

FINALLY THE NEW CLIP IS HERE & WITH TONS OF INCLUDED OPTIONS

  • FREE  1″ SWAY BAR
  • FREE DROP SPINDLES
  • FREE TRANSMISSION CROSS MEMEBER
  • FREE UPGRADE TO ALUMINUM INNER SHEET METAL
  • ZINC COATED/DRILLED ROTORS
  • FREE BRAIDED FRONT LINES & POWER RACK



PURCHASE FRONT AND REAR KITS AND RECIEVE A FREE REAR SWAY BAR!

Application:70-81 Camaro, Firebird & Trans AM

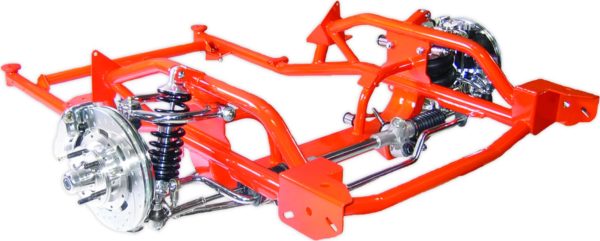

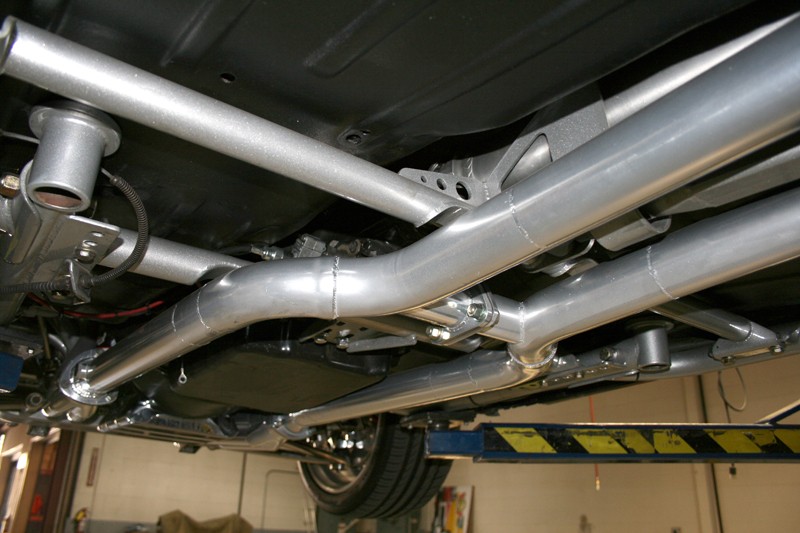

This highly anticipated high performance clip is constructed out of superior strength DOM steel tubing. It is 120 lbs lighter than the stock clip! The double cradle/ double cross member mandrel bent design will elevate your handling to near race car specs. Each fully “bolt in” clip includes welded in core support brackets, body mounts and engine pads capable of locating a SBC, BBC or LS-1. Multi position trans mount (C notched for max exhaust clearance), 2″ drop spindles & Power Rack are standard.



Total Cost Involved’s Pro Touring IFS clip has been engineered with an aggressive camber rate through its entire 5.5″ of travel! With the included RideTech HQ series monotube shocks you can achieve the stance you’re looking for, keep the tires flat while cornering and still maintain proper front end alignment.

Every Custom IFS Includes:

  • Mandrel Bent TIG Welded Clip
  • 1″ Upper and 1 1/8″ Lower Tubular Steel Control Arms With Urethane Bushings Installed
  • Power Rack & Pinion
  • 11″ Drilled and Slotted GM Disc Brakes w/Large CPP Calipers
  • Ridetech HQ Adjustable Coil Over Shocks w/400# Black Springs
  • 1″ Sway Bar
  • Aluminum Inner Fender Sheet Metal
  • All Hardware
  • Detailed Instructions w/Tech Support!



5x 4.75″ Chevy bolt pattern standard. The main photo includes the optional show package.



This item ships as a 377 lbs. pallet by way of truck Freight. You can checkout now without paying for shipping but please CALL FOR A FREIGHT QUOTE! We will then make a 2nd charge for freight only.



  • Summary
  • Details
  • Review

Description

Total Cost Involved 70-81 Camaro or Firebird / Tans AM Pro Touring IFS Front Suspension Clip

Additional information

Weight 150 lbs

Tell Us About Your Car

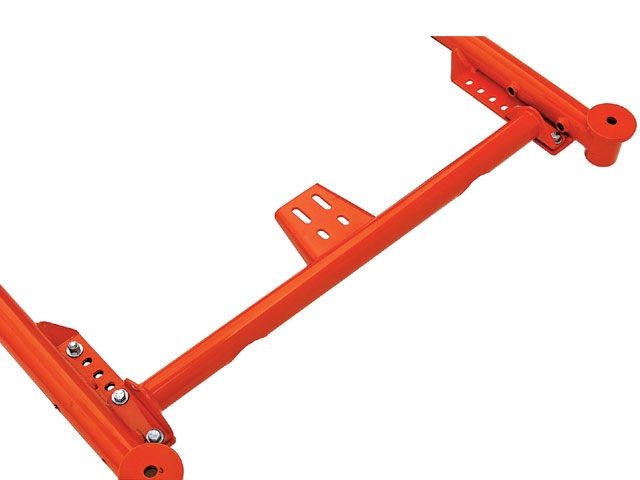

FREE Transmission Crossmember

LS-1 Engine Mounts

Add Braided Steel Brake Lines

Disc Brake Upgrade

Braided Power Steering Line Kits

Rack And Pinion Options

Spring Options

Upgade to RideTech Shockwaves

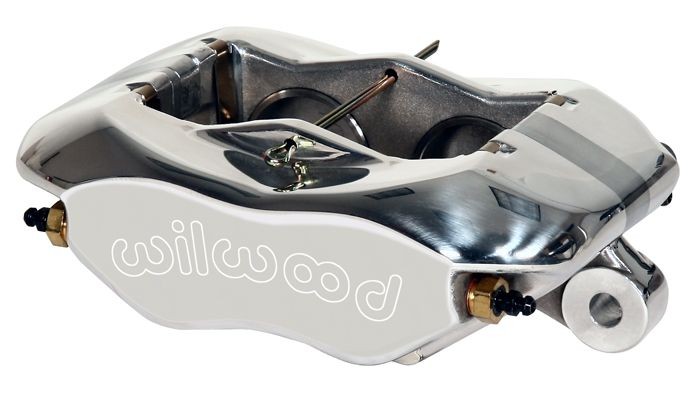

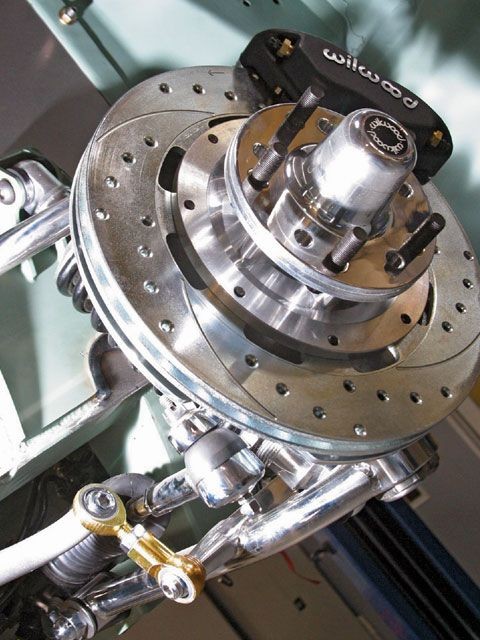

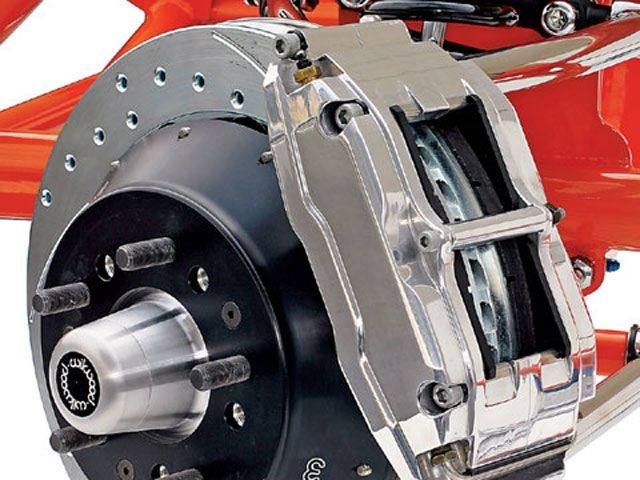

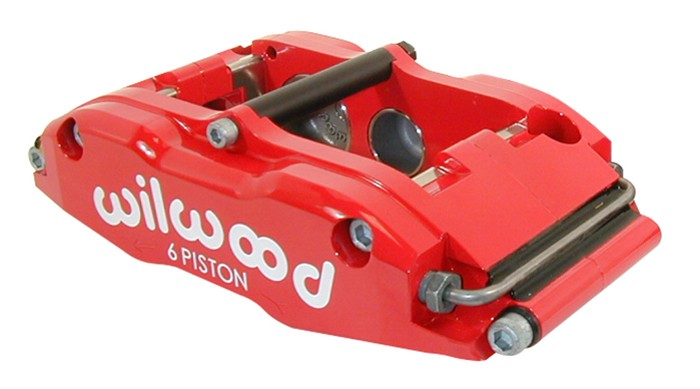

SHOW POLISH AND CHROME EVERYTHING! THIS IS THE BEST DEAL GOING. INCLUDES WILWOOD BRAKE UPGRADE, 2 PIECE POLSIHED HUB/ROTORS, BILLET BACKING PLATES, SWAY BAR AND MORE !

Choose Your Spindle Type

TCI Ceramic Coated Headers

Product price: $7,589.00
