TCI 55-59 Chevy Pickup Truck Mustang II IFS Front Suspension

PN: 233-2354-00

$2,755.00

(0) Review this Product

Total Cost Involved 55-59 Chevy Truck M-II IFSUntitled document

SPECIALFREE  BRAIDED BRAKE LINES



NEW SOLID ALIGNMENT SYSTEM! DISCOUNT PRICING AND THE MOST FREE UPGRADES!

    • FREE 2″ DROP SPINDLES
    • FREE 1″ SWAY BAR
    • CPP BIG BORE SINGLE PISTON CALIPERS
    • FREE BRAIDED BRAKE LINES
    • FREE SHIPPING







PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON BOTH PLUS MORE UPGRADES!



Why buy a Mustang II IFS? CLICK HERE!

TCI 55-59 Chevy Pickup Truck Mustang II IFS Front End Susppension Kit

 M-II Crossmember: Custom designed per application, 3/16″ laser cut plate, TIG welded in-house, Heavy 1.25″ gusted lower A arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are welded in place. Upper spring hats are of an aggreissive anit-dive design. Boxing plate is included in this pickup truck kit



Tubular Control Arms: Heavy duty 5/8″ narrowed 1″ DOM steel welded/formed in house. Indexed spring pockets, corrected spring angle. US made ball joints/Urethane bushings installed. Options include Stainless Steel, a “Coil Over Shock” design as well as a very affordable air spring set up.



Spindles: 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes for “screw in” type heavy duty ball joints. OEM attachment points and bolt patterns so that stock Mustang II components can be used. Stock height available as no cost swap.




Chevy Pick Up Kit Details:

  • Kit Utilizes Your OEM Radiator Suppport

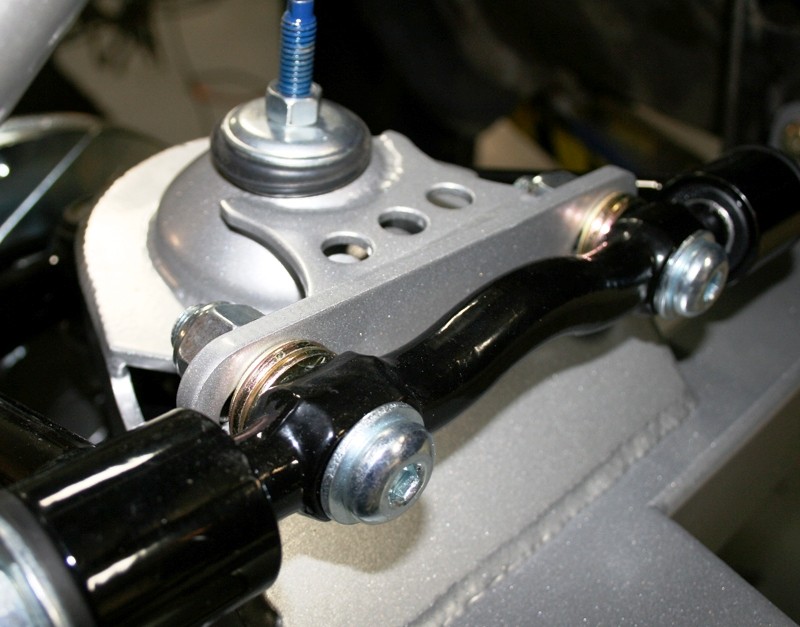

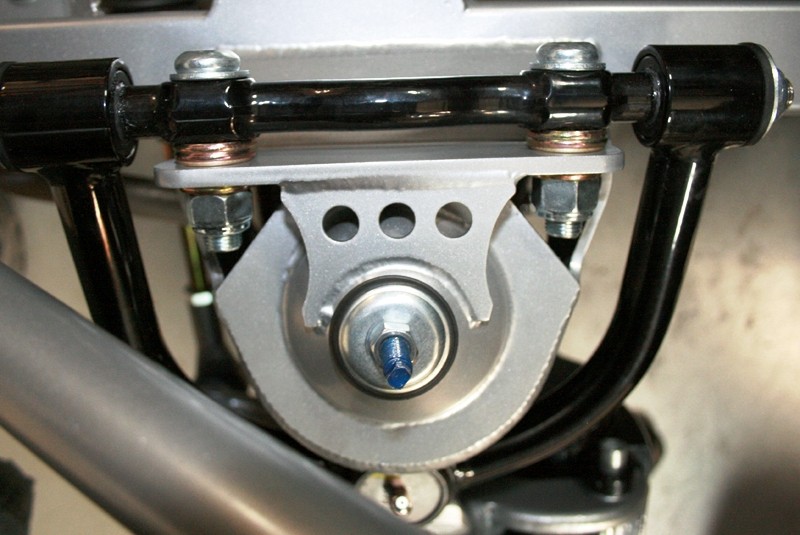

  • NEW Solid Alignment System
  • Drop or Stock Height Forged Spindles
  • Tubular Control Arms
  • Black Powder Coated 350# Springs and Painted Steel Gas Shocks

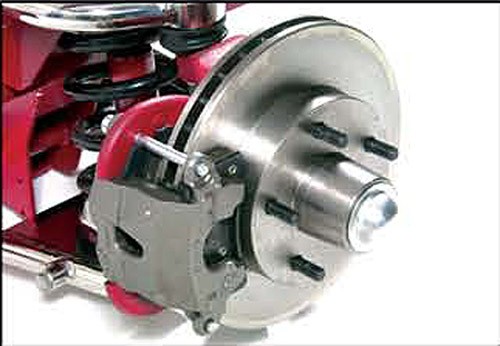

  • Assembled 11″ GM  Disc Brakes w/CPP Large Calipers
  • New Manual Rack and Pinion

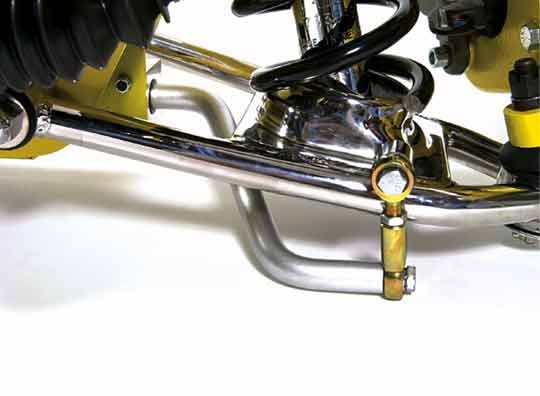

  • 1″ Sway Bar w/Heim Style Drop Links
  • Boxing Plate Specific For Your Truck
  • All Hardware and Detailed Instructions
  • 5x 4.75″ Chevy Bolt Pattern Standard – Truck Patterns Available



SCROLL DOWN! Custom configure your kit, many hardware options available below.

All TCI accessories ship for FREE with IFS purchase!



  • Summary
  • Details
  • Review

Description





TCI 55-59 Chevy Pickup Truck Mustang II IFS Front Suspension

Additional information

Weight 150 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 55-59 Chevy Pickup Truck Mustang II IFS Front Suspension”

Your email address will not be published. Required fields are marked *

Please Tell Us About Your Truck *

Swap to Stock Height Spindles

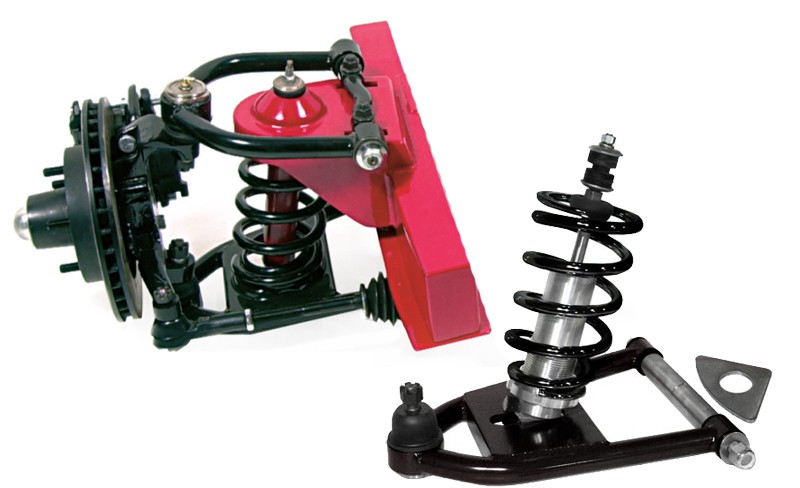

Change To "Coil Over" Style Shocks

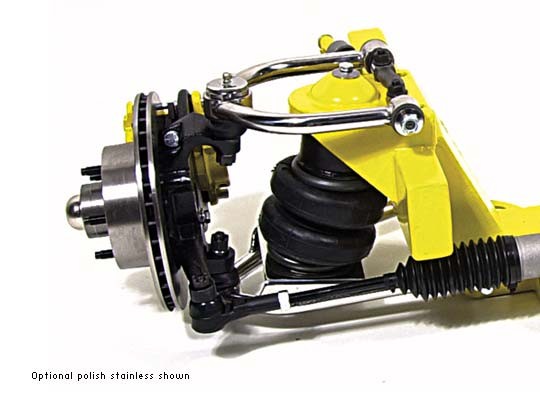

SALE! Upgrade from Shocks to Air Spring

Coil Spring Options

Rack Options – Power and or Right Hand Drive

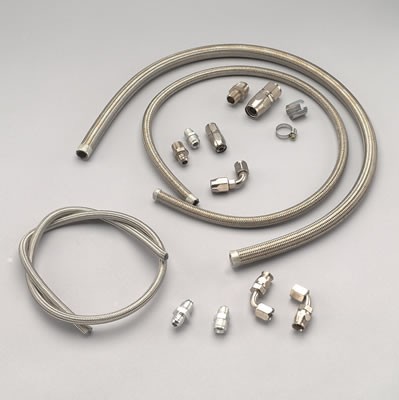

Braided Power Steering Line Kit

Truck Wheel Lug Pattern Options – Includes Custom Slip Over 12′ Vented Rotor

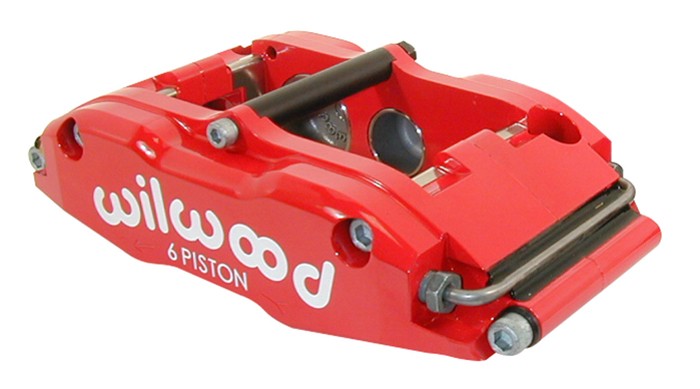

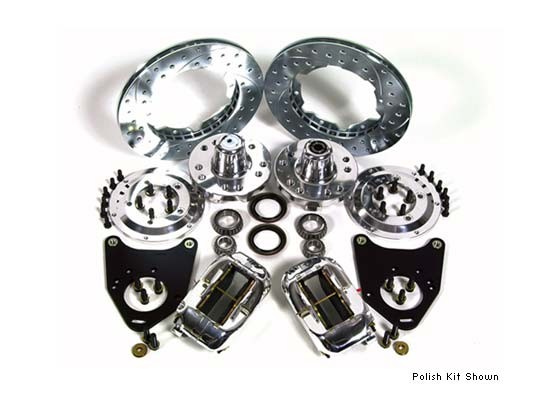

Disc Brake Upgrade

Add Braided Steel Brake Lines

Add A TCI Power Brake Pedal – For Stock Frames

Bolt In Tube Style Transmission Crossmember – Most Manual and Auto

Weld In Engine Mounts – Uses OE Style Motor Mounts – BB or SB

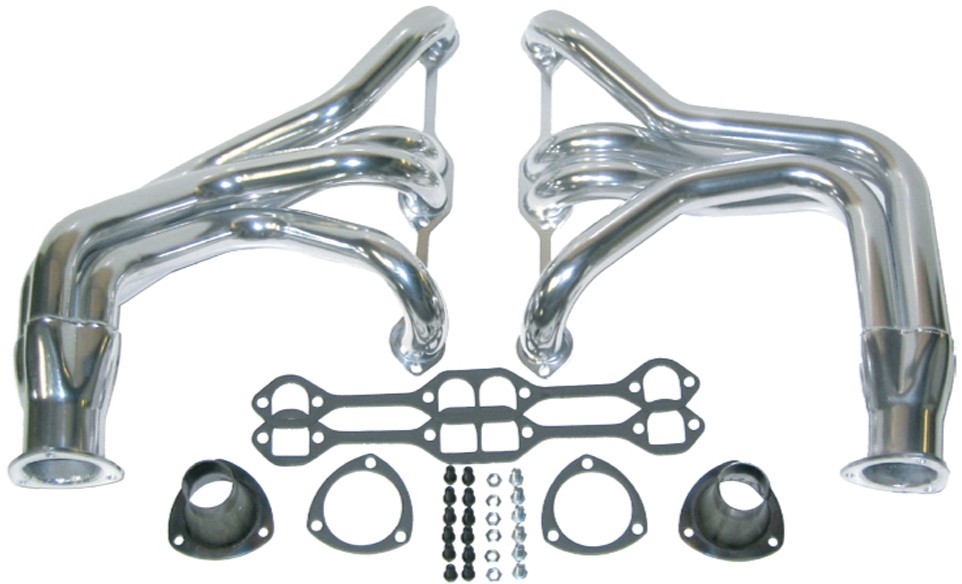

TCI Silver Ceramic Coated LS Headers

Ordering A Front & 4 Link Kit At the Same Time? If So, Click On This Freebie Package!
