Wilwood Rear 12″ Disc Brake Conversion Kit – Ford 8″ Small Ford Axle

PN: 140-7143



Application: Ford 8″ Small Axles – 12.19″ Wilwood Kit With Parking Brake


Not sure which axle you have? Click HERE

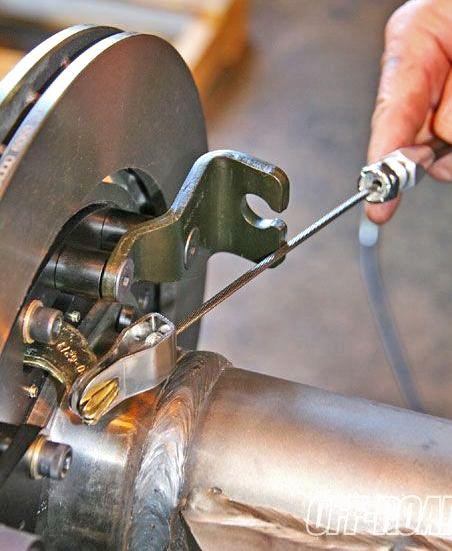

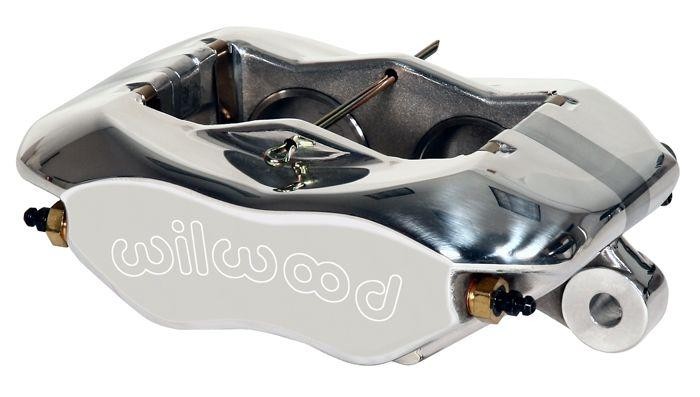

Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. Inside the rotor are Wilwoods patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car.

This kit is available for axles with a 2.50″ or 2.66″ offset! Call if you need assistance.

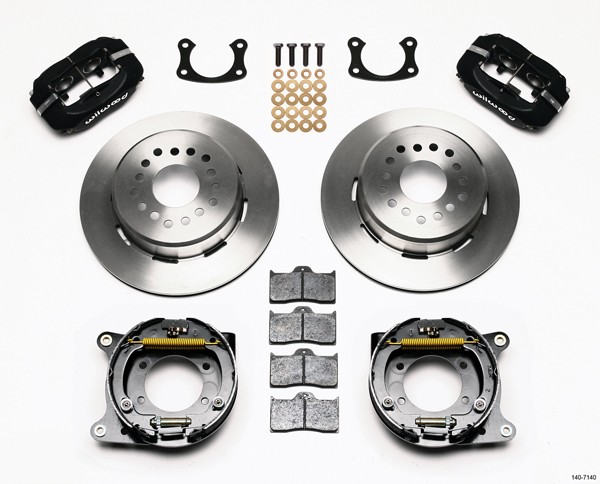

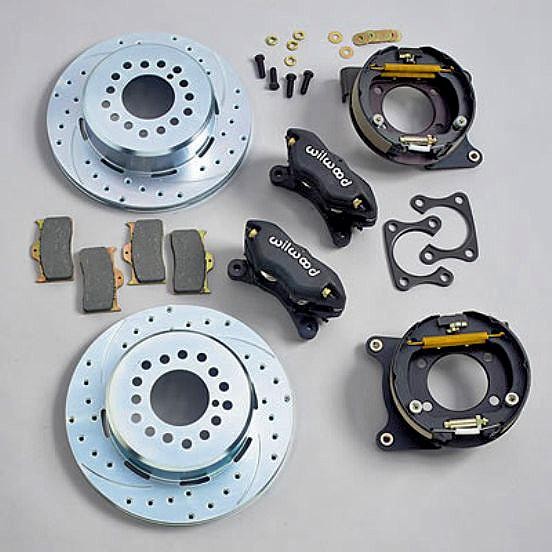

Rear Disc Kit Contents

  • 12.19″ Wilwood Iron Rotors
  • Dynalite Billet 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions

Base caliper surface is black

This kit fits most 15″ wheels! Sizing chart available.

Shock configuration is parallel.

Rotors are triple bolt pattern: 5x 4.5″, 5x 4.75″ and 5x 5.0″ respectively.

  • Summary
  • Details
  • Review

Additional information

Weight 49 lbs
