TCI 66-69 Ford Fairlane 68-69 Torino Coil Over IFS Front Suspension Kit

$4,224.00

(0) Review this Product

Untitled document

SPECIALFREE Total Cost Involved 66 67 Fairlane IFS Kit InstructionsPOWER RACK, SBF ENGINE MOUNTS & BRAIDED BRAKE LINES!

NEW COYOTEE  or BBF MOUNTS WITH NOTCHED CROSSMEMBER NOW AVAILABLE!



  • FREE SWAY BAR
  • STOCK OR DROP SPINDLES
  • FREE INNER PANEL SHEET METAL
  • FREE SBF ENGINE MOUNTS
  • FREE ZINC COATED DRILLED ROTOR UPGRADE
  • CPP LARGE BORE CALIPERS
  • FREE SHIPPING
  • PLUS A FREE POWER RACK and BRAIDED LINES ON FAB Quest!



Application:  66-69 Ford Fairlane & 68-69 Torino Pro Touring IFS

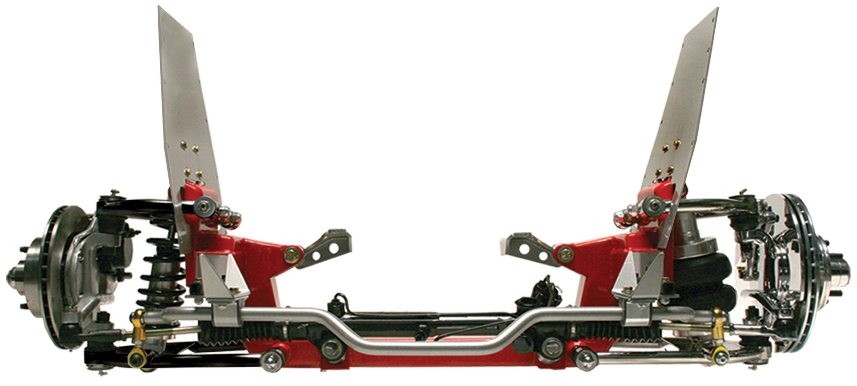

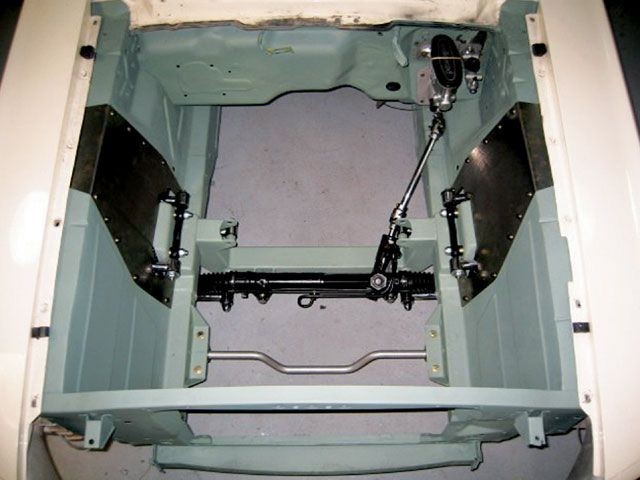

NEW! TCI 66-69 Ford Fairlane 68-69 Torino Coil Over IFS Front Suspension Kit: This all newly designed Total Cost Involved Custom IFS for the Ford Fairlane creates the corner carving Pro Touring ride all Fairlanes should have been! This weld in kit lowers your stance while offering a large amount of suspension tuning with adjustable coil over shocks. Depending on your options, front end weight loss can be substantial. Braking is excellent with included modern disc brakes along with frame stiffening plates to keep that rubber planted where it needs to be. These thoughtfully engineered kits create more room under the hood making big block transplants that much easier as well as improved header clearnce. Also included are inner fender sheet metal for a factory appearing instal.

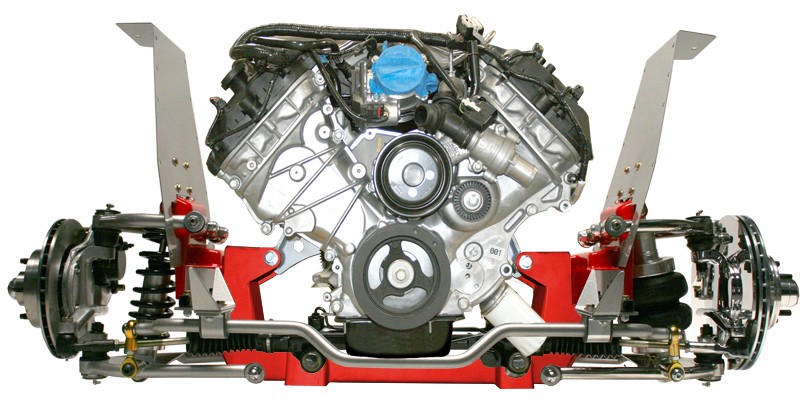

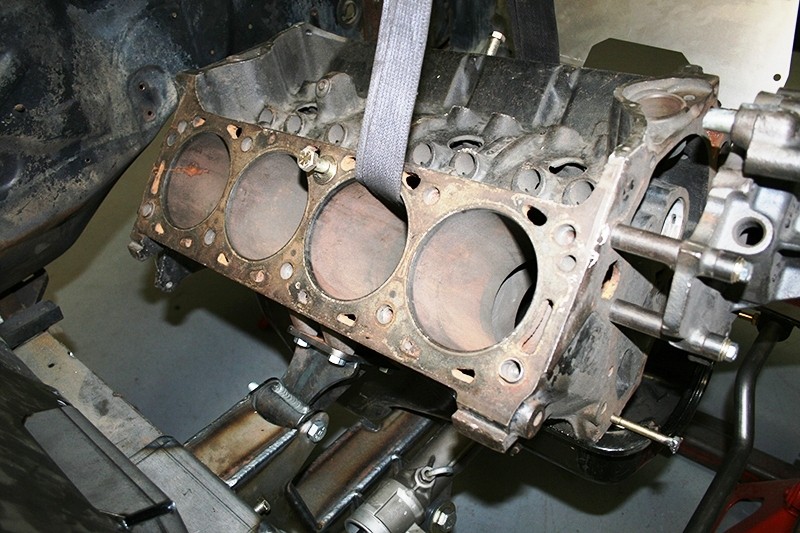

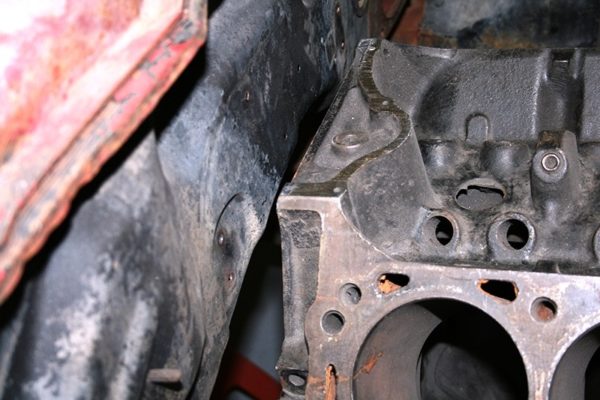

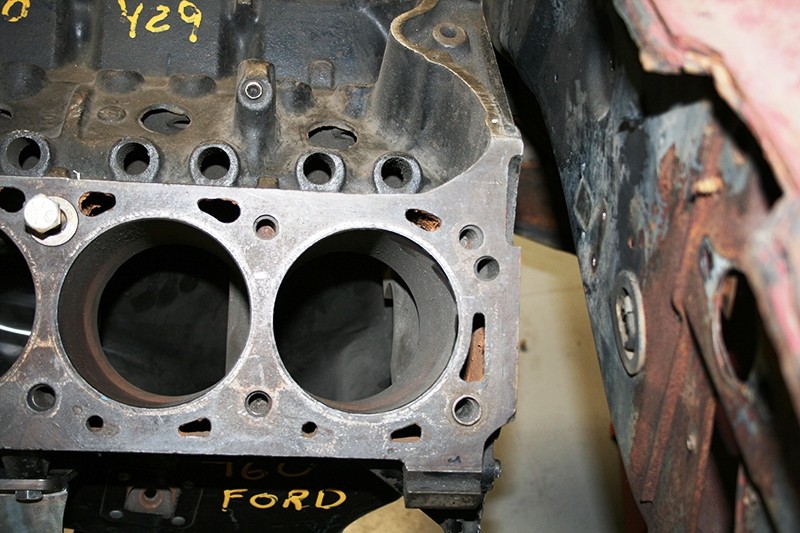

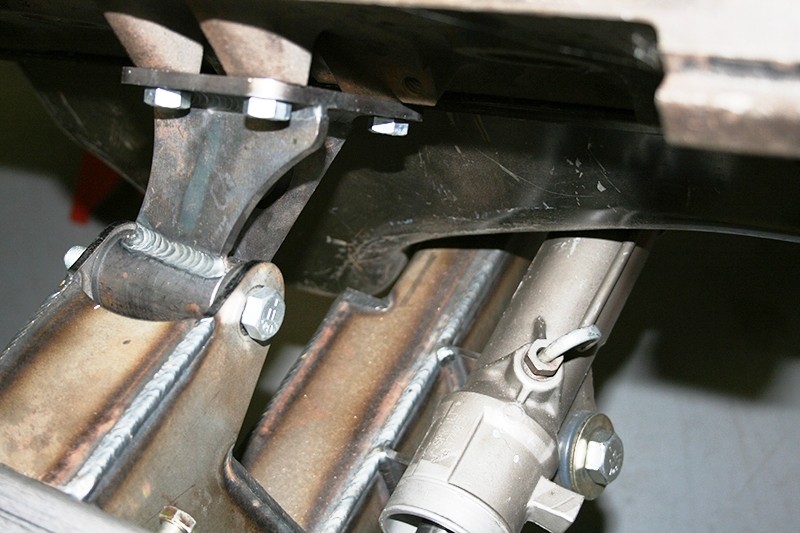

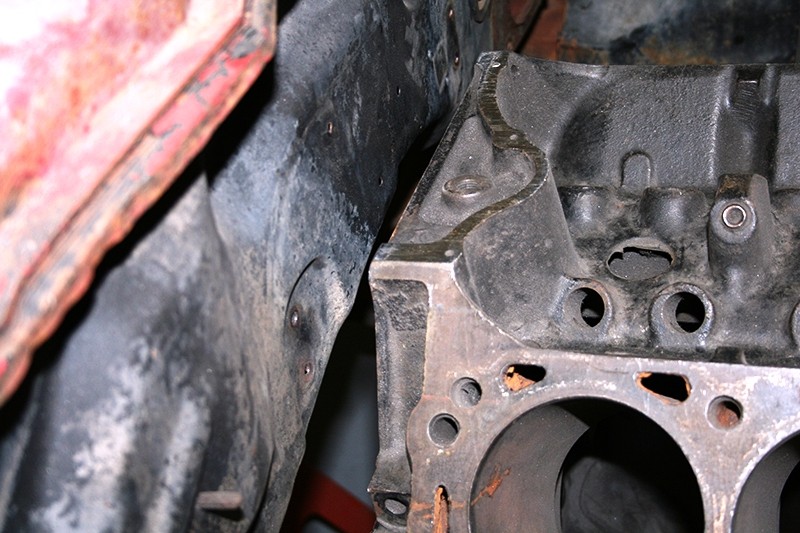

The new Mod Motor or BBF engine option allow the use of the stock oil pan. It will also improve firewall clearance although firewall mods will be necessary. BBF images of the firewall clearance are included in the thumbnails to your left. This option, available below, does come with a special notched .250″ plate steel crossmember only used with these mounts.

Every Base Custom IFS Features:

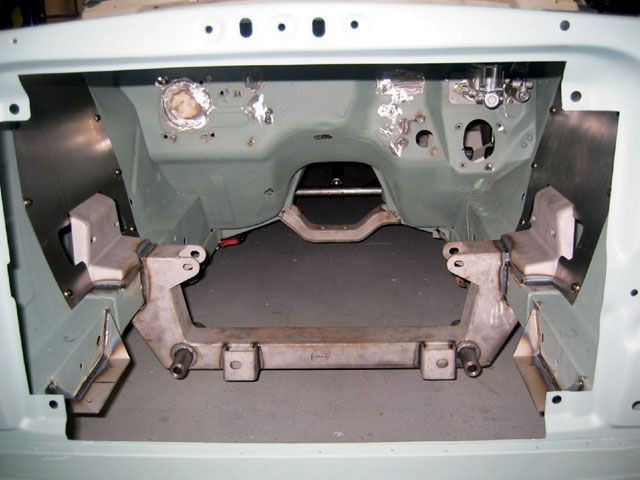

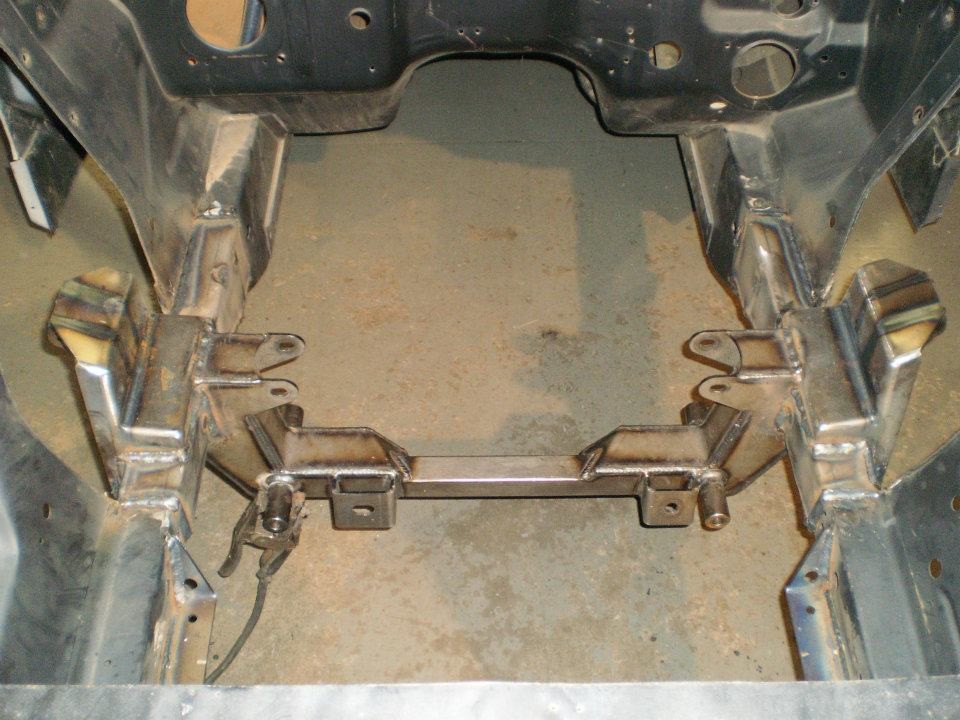

  • Laser Cut and TIG Welded “In House” Custom Cross Member
  • Frame Reinforcement Platess
  • Upper Control Arm and Flattened Shock Mounting Towers
  • 1″ Upper, 1 1/8″ Lower Tubular A-arms With Urethane Bushings Installed
  • TCI Custom Steering Arms and Stock Height or Drop Spindles
  • Power Rack & Pinion

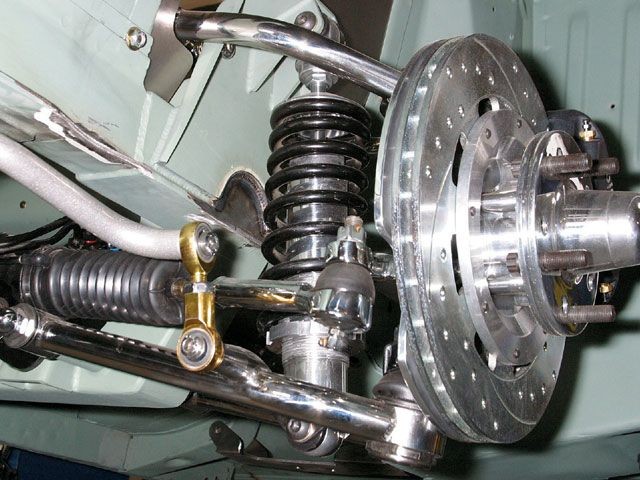

  • 1″ Sway Bar
  • 11″ GM Drilled Slotted Disc Brakes w/Large CPP Calipers
  • RideTech Billet “Coil Over” Shocks With 400# Black Painted Springs
  • Hardware and Excellent Instructions
  • 5x 4.50″ Ford Bolt Pattern Standard



Show package and many hardware options available below!

  • Summary
  • Details
  • Review

Description



TCI 66 67 Ford Fairlane Coil Over IFS Front Suspension Kit





Additional information

Weight 200 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 66-69 Ford Fairlane 68-69 Torino Coil Over IFS Front Suspension Kit”

Your email address will not be published. Required fields are marked *

Convert to 68-69 Torino

Choose Stock Height or Drop Spindles *

Engine Mounts *

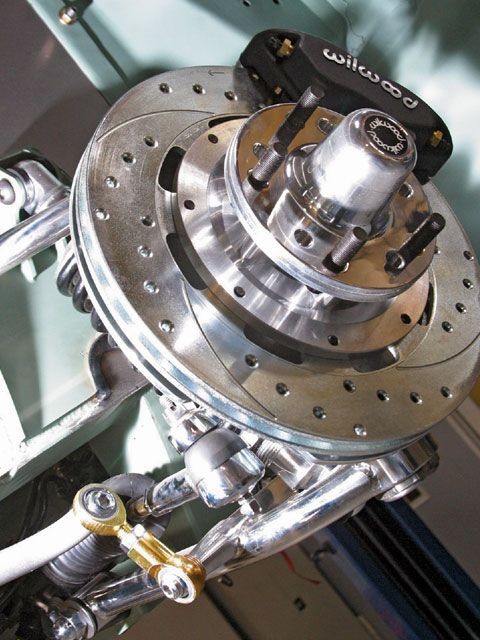

SHOW POLISH AND CHROME EVERYTHING! THIS IS THE BEST DEAL GOING. INCLUDES WILWOOD BRAKE UPGRADE, BILLET BACKING PLATES, SWAY BAR AND MORE !

Aluminum Shock Upgade

Spring Options

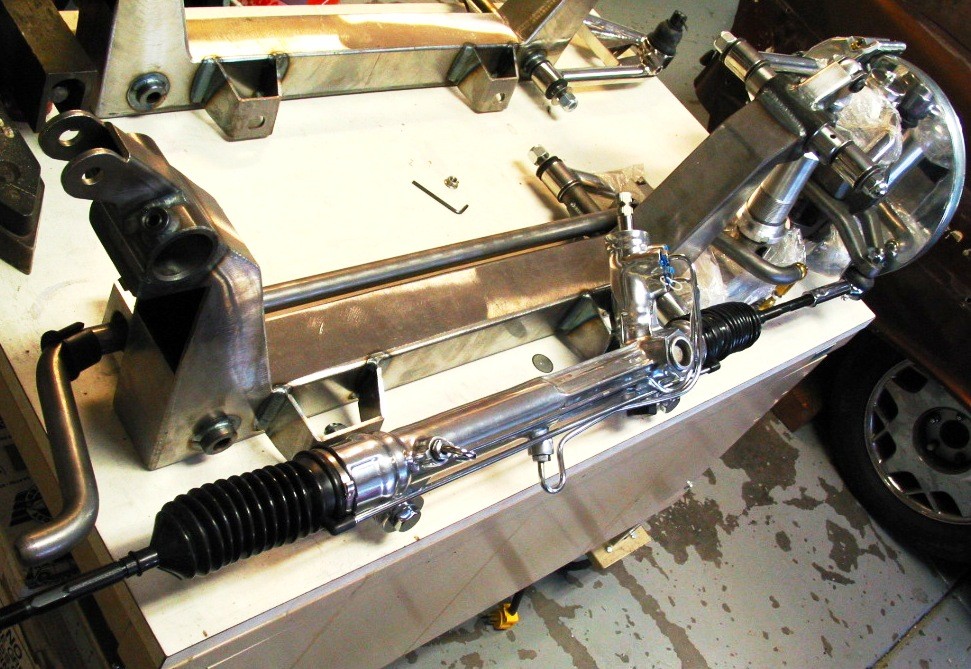

Rack and Pinion Upgrade

Disc Brake Upgrade

Add Braided Steel Brake Lines

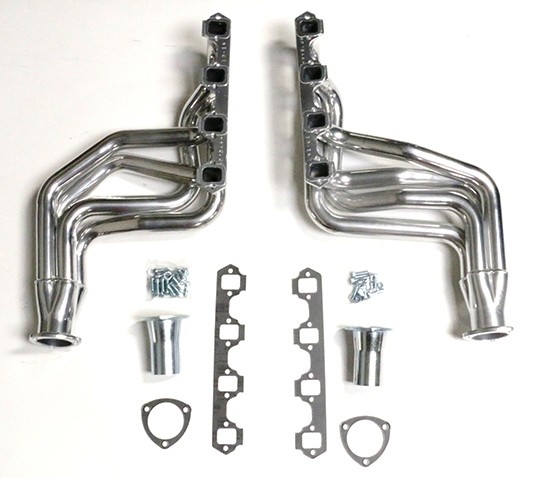

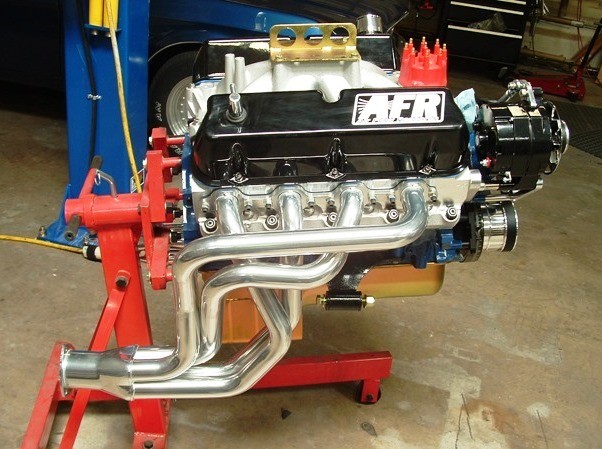

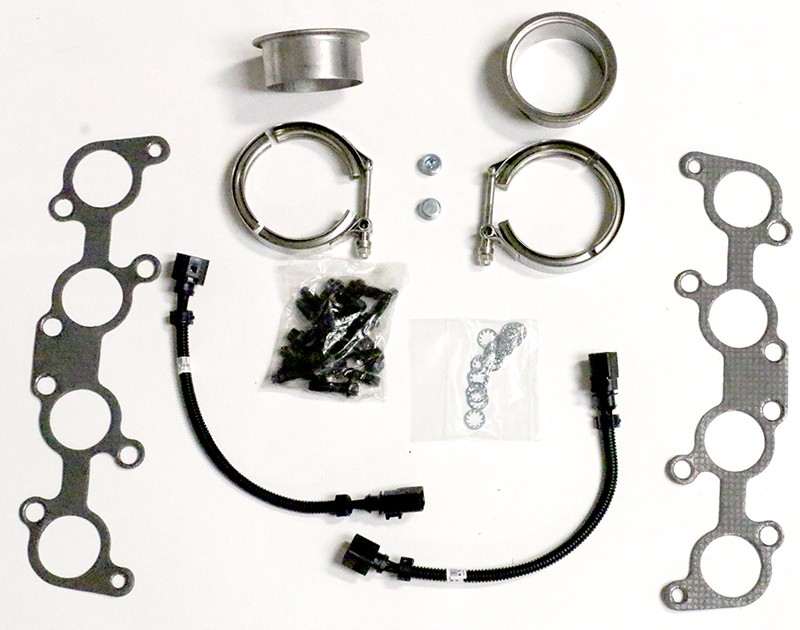

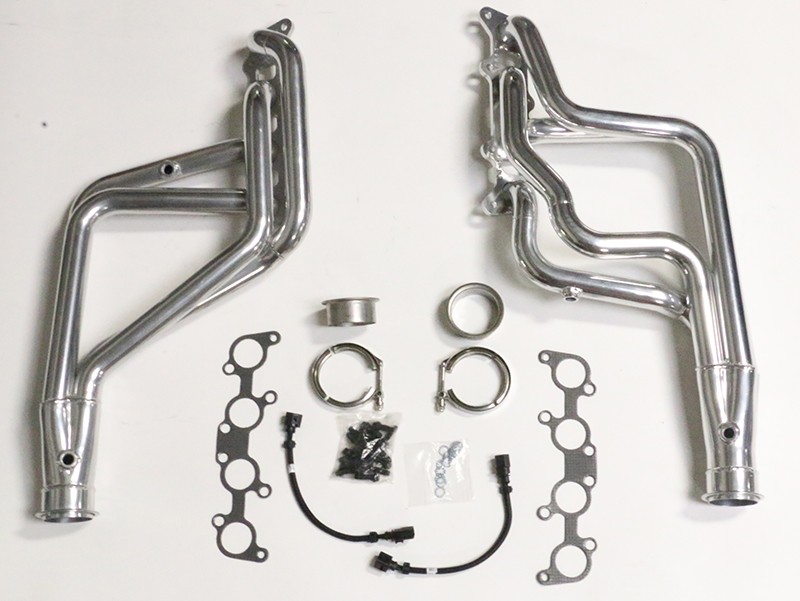

SALE! $80 Off & Ship For Free! TCI Ford Headers
