TCI 33-34 Ford Drop Axle Complete Chassis

PN: 103-1215-00

$13,513.00

(0) Review this Product



SUPER FREEBIES MOST EVERY MONTH. CALL FOR LIST – BELOW ITEMS ARE TYPICAL BUT NOT GUARANTEED!



  • FREE WELD IN ENGINE BRACKETS
  • UNITSTEER RACK
  • STAINLESS BRAKE LINES – PLUMBED
  • REAR 4 LINK w/COIL OVERS
  • REAR DISC BRAKE UPGRADE
  • POWER BRAKE BOOSTER



Application: 33-34 Ford Cars and Pickup

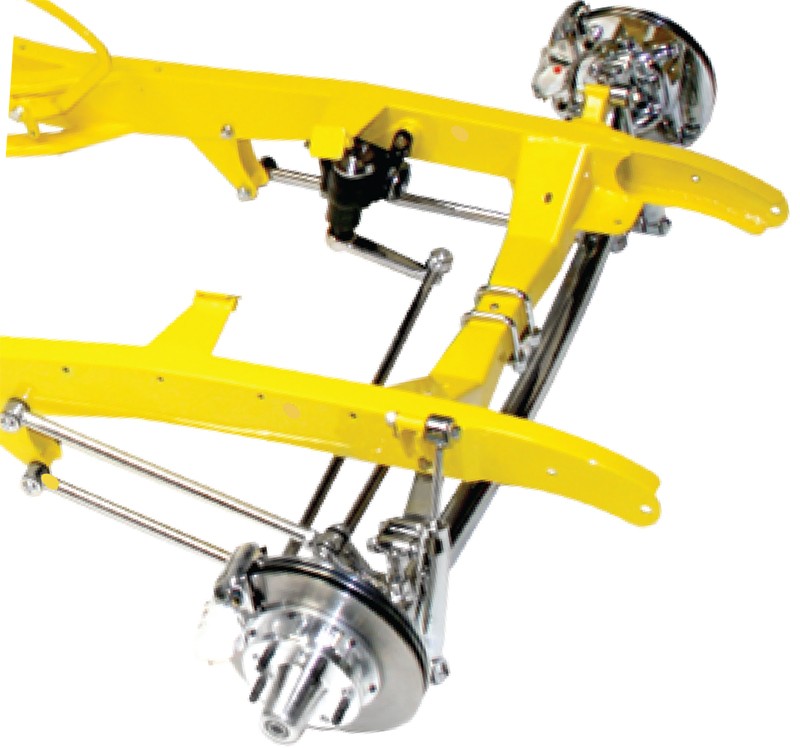

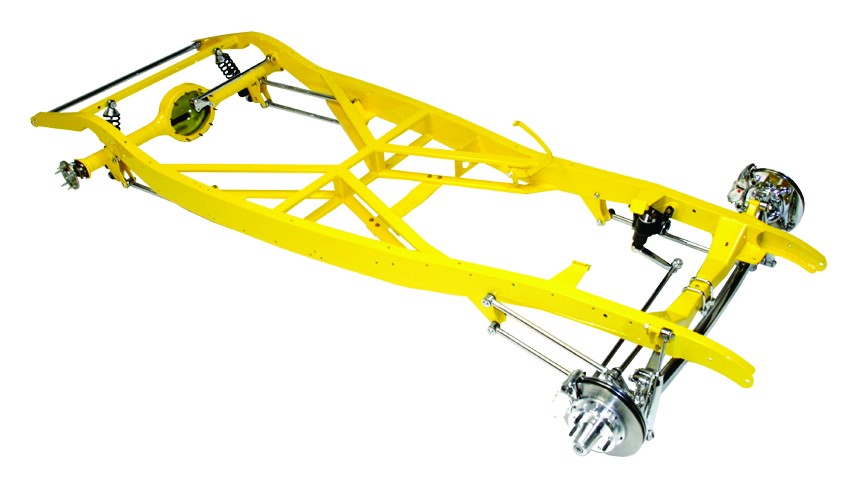

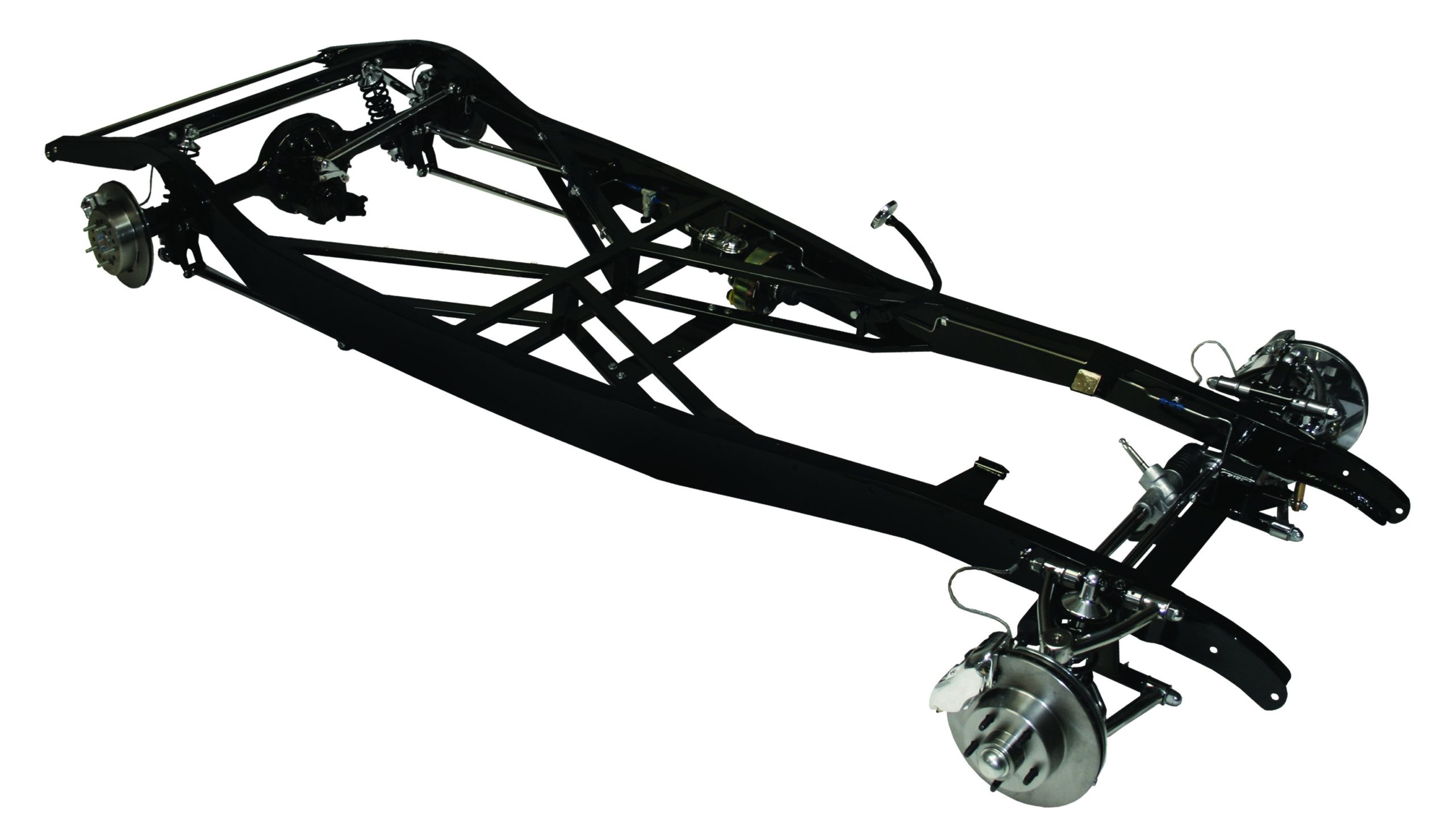

TCI 33-34 Ford Car or Truck Dropped Axle Complete Chassis: Considered the highest quality hot rod front frame and suspension on the market, this system offers fully boxed OE appearing frame with stout X-member capable of passing 2.5″ exhaust pipes through it. The traditional front suspenison with 4 link and pan hard bar offers solid handling and the lowered stance you’re looking for. Steering is vega box with cross steer or optional manual Unisteer rack. The 2″ tube axle features forged ends and a .250 thick sidewall. Kingpin centers are on the 46″ standard. I-beam axle available below. A mono leaf is standard but ca be swapped for a classic mulit leaf. All springs have “poly ride” sliders installed for smooth operation.  Springs are assembled with a stainless clamp. 37-41 “juice” spindles are included standard along with 11″ GM disc brakes. Kingpins are fitted and assembled.  Ford 5x 4.5″ lug pattern standard. The 4 bar style system can be swapped to more traditional hair pins for no cost. Brake pedal and hard lines are plumbed with prop valve and includes braided flex lines. The rear is hung on a parallel 4 link system with panhard bar and steel All American coil over shocks. Total Cost Involved uses only brand new Currie Ford 9″ style axles. It will include a new nodualr iron 3rd member, open style dif, your choice of gears, 31 spline street/strip axles and 11″ drum brakes.



All TCI products are 100% made in the USA!

Shipping is truck freight quoted at the time the chassis is ready. Shipping is NOT free!

Show package, front axle, steering and many hardware options available below!

  • Summary
  • Details
  • Review

Description





Reviews

There are no reviews yet.

Be the first to review “TCI 33-34 Ford Drop Axle Complete Chassis”

Your email address will not be published. Required fields are marked *

Pro Street Chassis

SHOW PREMIUM POLISH AND CHROME EVERYTHING! THIS IS THE BEST DEAL GOING. INCLUDES WILWOOD BRAKE UPGRADE

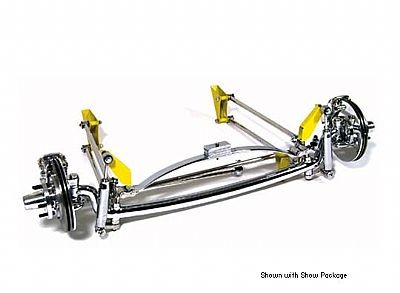

Front Drop Axle Options

Choose Your Front Bars – Traditional Radius Rods or Parallel 4 Bar *

Choose Spring Type Mono Spring or Multi-Leaf Spring *

Select Your Lug Pattern – Required *

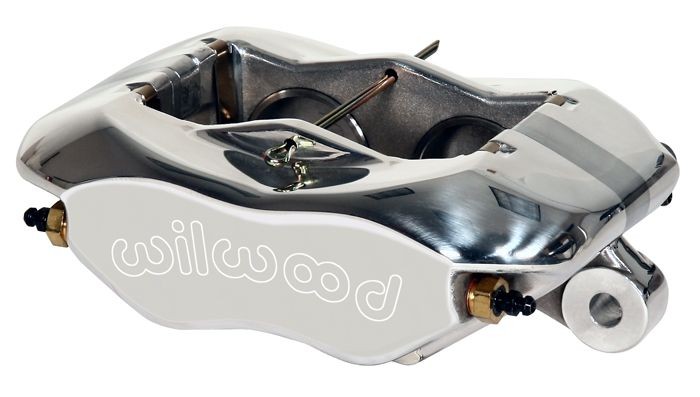

Front Disc Brake Upgrades

FREEBIE! Upgrade Steering To Manual Rack & Pinion

Upgrade Hard Brake Lines From Steel To Stainless

Upgrade Rear Coil Over Shocks

Rear Axle Options – Base carrier is open style

Upgrade Rear Drum Brakes

Add A Rear Sway Bar

Engine Brackets *

Add Hydraulic Clutch Pedal

Product price
Additional options total:
Order total:
