NEW! TCI 68-74 Chevy Nova Torque Arm 3 Link Rear Suspension Kit

$2,533.00

(0) Review this Product

Untitled document

 SHIPS FREE IF PURCHASED WITH IFS!



KIT WILL INCLUDE BRACKETS FOR OEM AXLE or FORD 9″



Total Cost Involved has released their Rear Torque Arm Solid Axle “Coil Over Shock” suspension kit for the 68-74 Chevy Nova. Order this product if you would like C6 Corvette quality G-Machine handling and ET slashing drag launches!

Shipping – Select “Torque Arm Fed Ex Flat Rate” Kit is 3 Oversized Packages 185 lbs. Axles will be charged an additional shipping fee. You can check out and we will contact with an axle freight quote.



DETAILED PRODUCT DESCRIPTON BELOW OPTIONS LIST – JUST SCROLL DOWN!

  • Summary
  • Details
  • Review

Description



THIS KIT IS A FULLY BOLT IN SYSTEM!

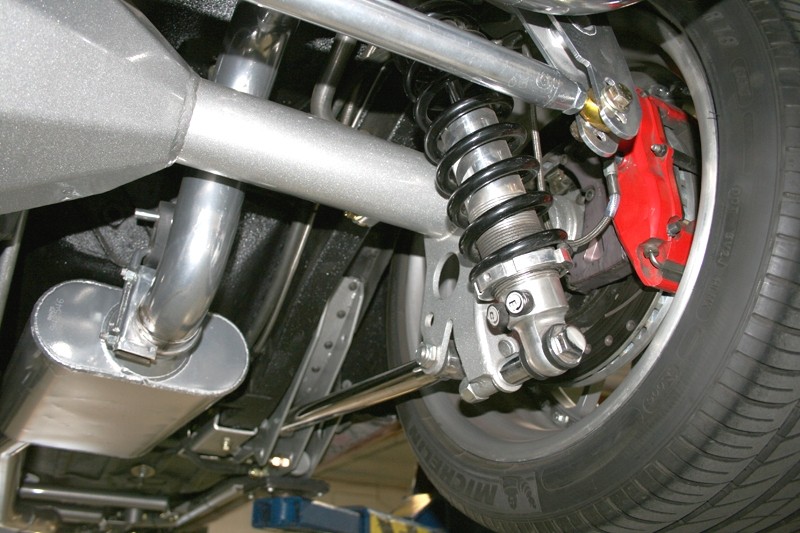

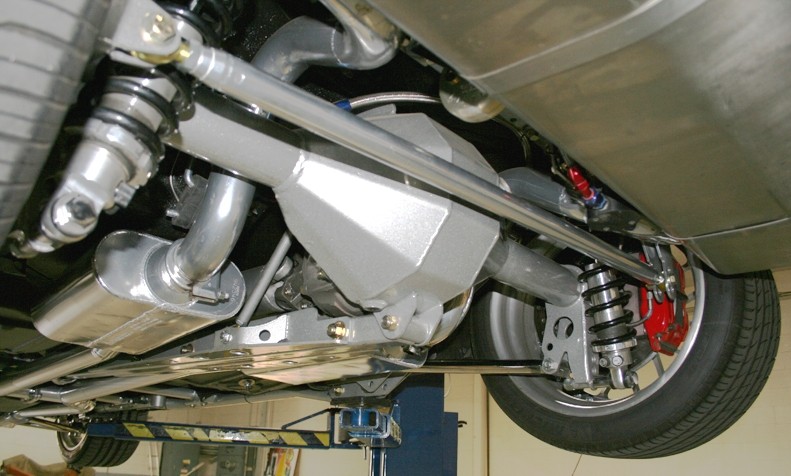

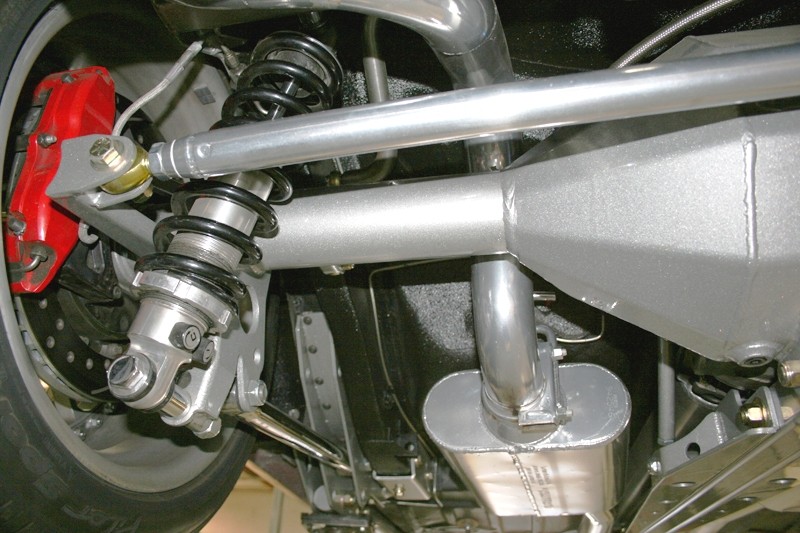

The TCI Torque Arm features a unique slider on the front of the arm that slides for and aft and rotates as the car goes through suspension travel thus allowing the cars handling to be controlled by the coil-over shocks and the rear sway bar with no suspension binding variables. The kit allows for a lower stance, greater rear axle control and dramatically improved handling.

Performance and drag racing: this kit is rated up to 1000 HP. When combined with the TCI modernized front IFS your early Nova will pull skid pad and slalom course numbers similar to a C6 ZO6 Corvette. On the strip 60 foot times of 1.4″ have been achieved in a number of cars with sticky tires. 18″ street tire cars with AC and full interiors etc. were pulling 1.6’s.  Launches are straight and very controllable.

Kit allows the use of 18×12 rear wheels, 335-35-18 massive tires and adds 2″ to your wheel well width!

See our “EZ Tubs” Tubbing inserts to your upper left.



The kit is a fully bolt on application except for welding the shock brackets, panhard bracket, pinion aduster brackets and optional sway bar brackets onto your stock housing or a Ford 9” housing. Also available is an optional Currie Ford 9” housing with all the brackets installed and heli-arced welded in place. 5x 4.75″ Chevy bolt pattern standard. 5x 4.50″ Ford pattern is available at no additional cost.



Kit Features

  • 1¾ inch torque arm with slider and reinforcing flanges
  • 1½ inch cross-member with drive shaft loop
  • inch sub frame connectors
  • 1¼ inch trailing arms with stainless adjustors
  • 1 inch adjustable panhard bar with LH & RH rod ends
  • Axle housing brackets, torque arm tabs and install tool
  • Adjustable pinion support tubes with rod ends, tabs and install tool.
  • Bolt-on trailing arm channel brackets
  • 1½ inch coil-over cross-member with channel brackets
  • All American steel coil-over shocks
  • Floor reinforcing plates and hardware
  • Detailed installation manual



Unless an axle is purchased, axle brackets will need to be welded in place.

The 4 link ships by FedEx Ground and is comprised of 3-4 boxes tottaling 175lbs.



If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact. Chevy 5x 4.75 BP is standard. Ford available.



Additional information

Weight 150 lbs

Reviews

There are no reviews yet.

Be the first to review “NEW! TCI 68-74 Chevy Nova Torque Arm 3 Link Rear Suspension Kit”

Your email address will not be published.

What Front Clip Do You Have? *

Please Select Intended Axle *

Tubbed Car Upgrade – Includes Special Brackets

Show Chrome and Stainless Steeel Upgrades

Upgrade Link Bar Ends to RideTech R Joints

Shock Options

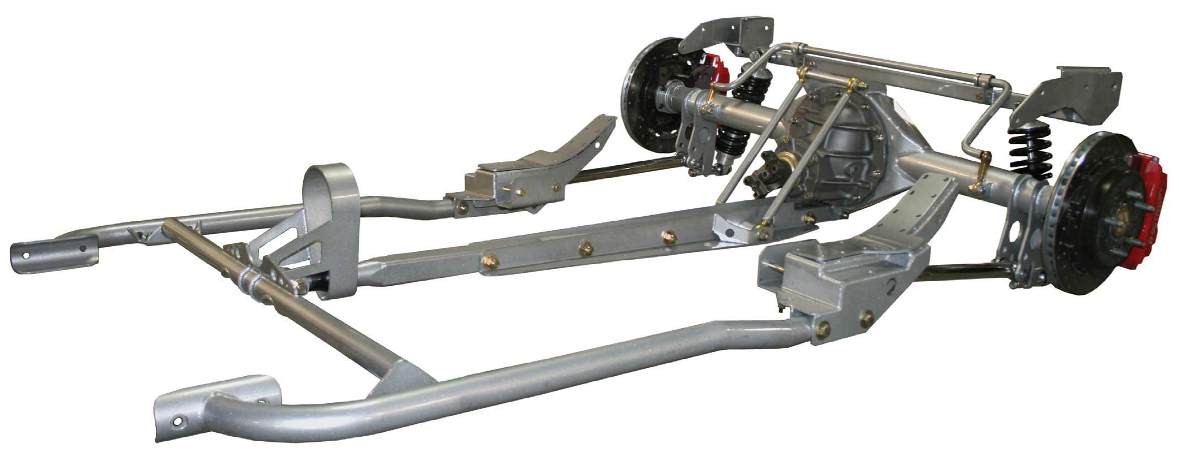

Add A Currie Built Ford 9" Axle Assembly To Your Kit. Axle Comes With All Brackets Welded In Place

Upgrade Above Axle Housing or Complete Axle To FAB 9

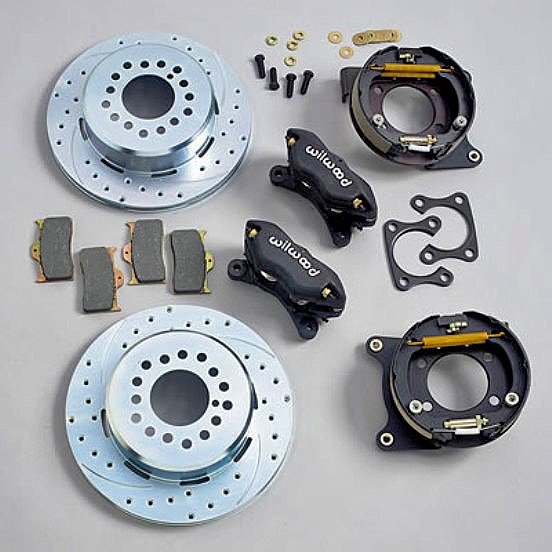

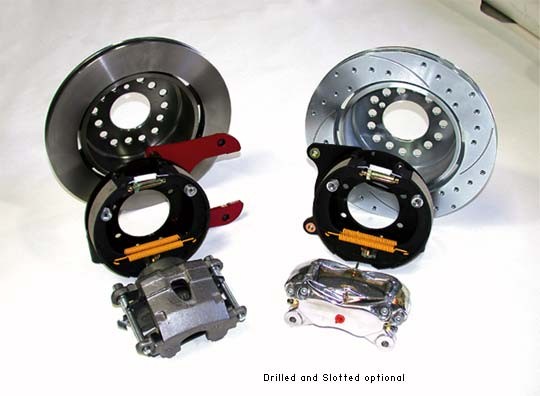

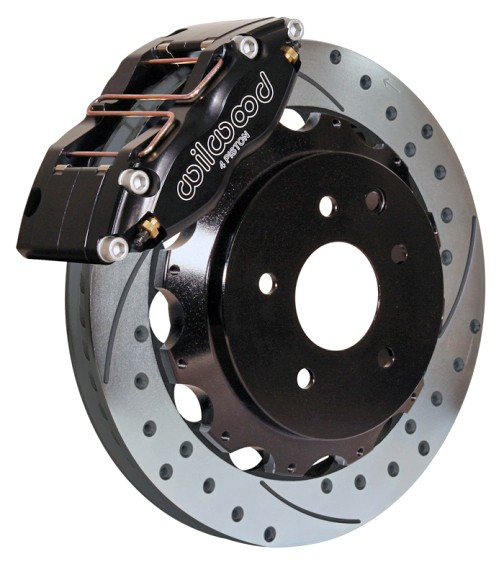

Brake Options For TCI Ford 9" Axle ****COMPLETE AXLE MUST BE CHOSEN ABOVE****
