TCI 60-65 Falcon Performance Triangulated 4 Link Rear Suspension Kit

PN: 527-5110-00

$1,966.00

DISCOUNT PRICING &  NEW OPTIONS!Instructions

UPGRADED “FAT” LINK BARS ARE INCLUDED FREE. COMPLETE AXLES INCLUDE A FREE UPGRADE TO A NODULAR IRON 3RD MEMBER!



IF PURCHASED WITH A TCI FRONT IFS SHIPPING IS FREE FOR THE REAR

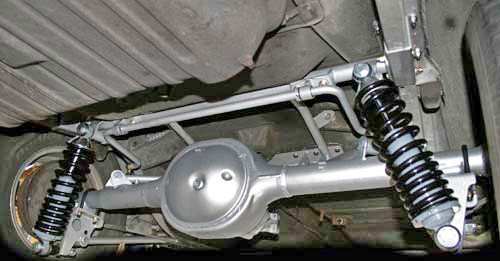

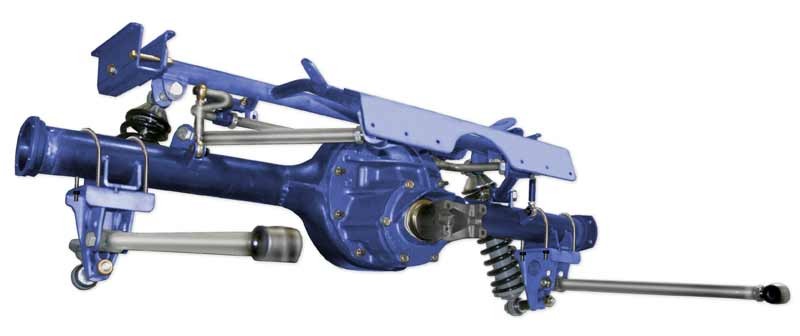

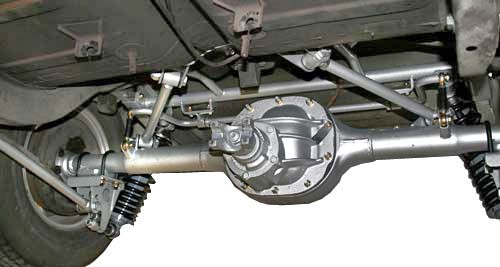

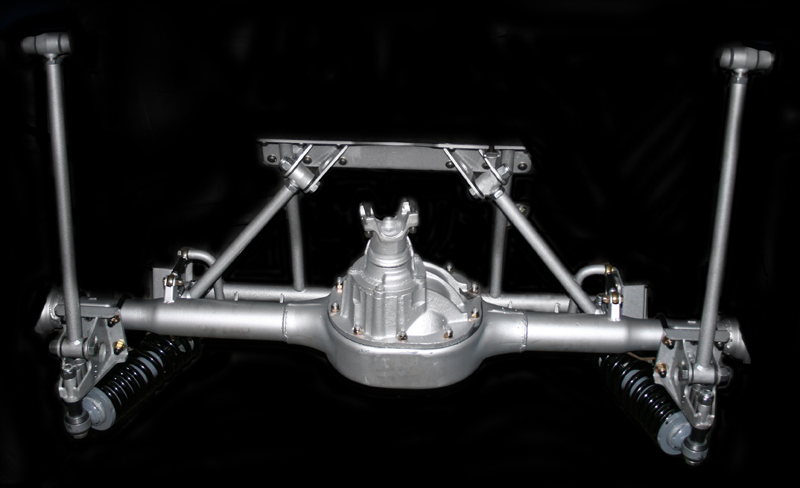

Total Cost Involved’s modern triangulated 4-Link is a true, Pro Style fully bolt-in kit with no cutting required. Link bars eliminate wheel hop while the “coil over shocks” provide a superior type of suspension when compared to leaf springs. The highly engineered bolt in cradle locates both the upper link bars as well as the coil over shocks. It also includes integrated sway bar mounting points. The triangulated design of the upper bars locates the axle eliminating the need for a panhard bar. This reduces unsprung suspension weight as well as offering more room for exhaust routing. Specifically for the small Ford/Merc vehicles, this kit allows much greater horsepower engines to be run safely. This suspension will lower your stance and drastically improve handling as well as improve straight line launches. This kit utilizes poly bushed rod ends making for a quiet and reliable street or track driven vehicle. Kit comes with bolt on brackets for the stock 8″ (upper link bar tabs need to be welded) or fully welded pro style brackets for a swapped in 9″ (available below).



Max tire widths for non mini tubbed cars are 255mm. Rolling the inner fender lip will buy you another 10mm or so. For mini tubbed cars you can pocket the lower link bar into the sub frame rail and gain 2.00″ per side of tire. Call for details.   Kit Includes:



  • Adjustable 1.25″ 4-Link Bars With Stainless Adjusters

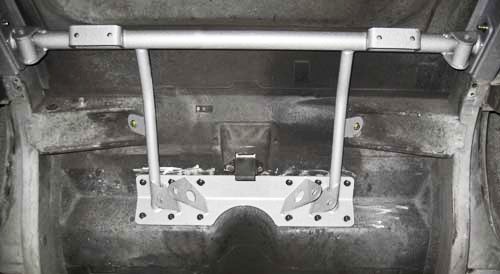

  • Bolt In Frame Cradle
  • Frame Rail Channel Brackets
  • Bolt/Weld On Axle Brackets
  • Floor Reinforcing Plates
  • Adjustable Steel Coil-Over Shocks With Springs
  • All Hardware
  • Detailed Instructions

Product Notes:

Unless an axle is purchased, upper link bar brackets will need to be welded in place.

If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact.

This 4 link ships by FedEx Ground and is comprised of 3 boxes totaling 150lbs. Axles ship by freight. Please contact us for an axle shipping quote.



  • Summary
  • Details
  • Review

Description

Total Cost Involved’s modern triangulated 4-Link is a true, Pro Style fully bolt-in kit with no cutting required. Link bars eliminate wheel hop while the “coil over shocks” provide a superior type of suspension when compared to leaf springs. The highly engineered bolt in cradle locates both the upper link bars as well as the coil over shocks. It also includes integrated sway bar mounting points. The triangulated design of the upper bars locates the axle eliminating the need for a panhard bar. This reduces unsprung suspension weight as well as offering more room for exhaust routing. Specifically for the small Ford/Merc vehicles, this kit allows much greater horsepower engines to be run safely. This suspension will lower your stance and drastically improve handling as well as improve straight line launches. This kit utilizes poly bushed rod ends making for a quiet and reliable street or track driven vehicle. Kit comes with bolt on brackets for the stock 8″ (upper link bar tabs need to be welded) or fully welded pro style brackets for a swapped in 9″ (available below).



Max tire widths for non mini tubbed cars are 255mm. Rolling the inner fender lip will buy you another 10mm or so. For mini tubbed cars you can pocket the lower link bar into the sub frame rail and gain 2.00″ per side of tire. Call for details.



Kit Includes:



  • Adjustable 1.25″ 4-Link Bars With Stainless Adjustors
  • Bolt In Frame Cradle
  • Frame Rail Channel Brackets
  • Bolt/Weld On Axle Brackets
  • Floor Reinforcing Plates
  • Adjustable Steel Coil-Over Shocks With Springs
  • All Hardware
  • Detailed Instructions

Product Notes:

Unless an axle is purchased, upper link bar brackets will need to be welded in place.

If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact.

This 4 link ships by FedEx Ground and is comprised of 3 boxes totaling 150lbs. Axles ship by freight. Please contact us for an axle shipping quote.





Additional information

Weight 130 lbs

Choose Your Axle Brackets

Tack Weld Cradle - YOU FAB to Fit Ranchero (not bad) or Comet (fair amount of fab)

Choose Body Style

Mustang & Cougar Option Only! Tubbed Car Brackets - For 2" Wider Mini Tubs - MUST ORDER RIDETECH SHOCKS WITH MINI TUB OPTION!

Shock Options

Add A Currie Built Ford 9" Axle Assembly To Your Kit. Axle Comes With All Brackets Welded In Place. All Complete Axles Include A Currie Sportsman Nodular Iron 3rd Member Upgrade For FREE!

Upgrade Above Axle Housing or Complete Axle To FAB 9

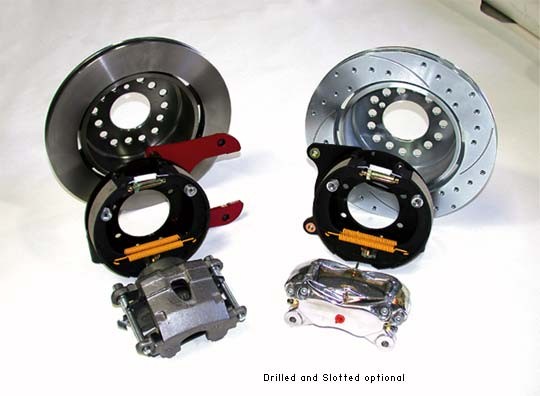

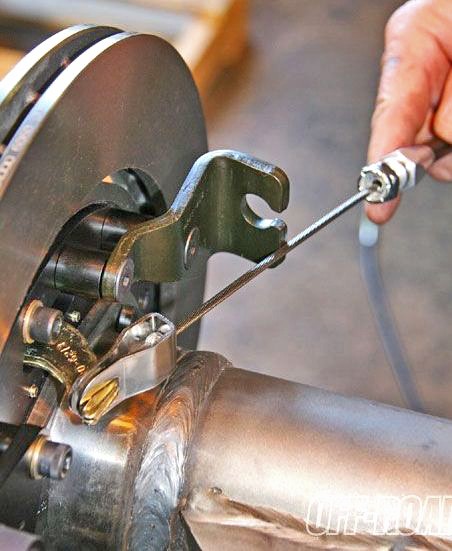

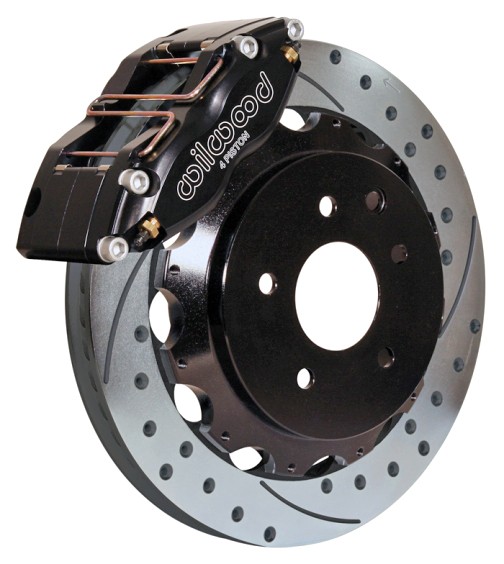

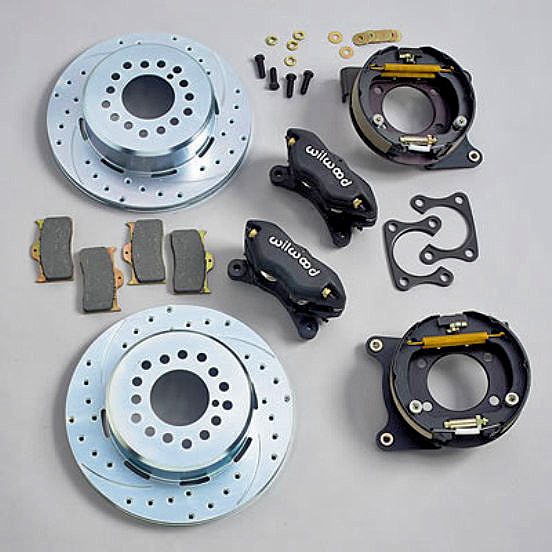

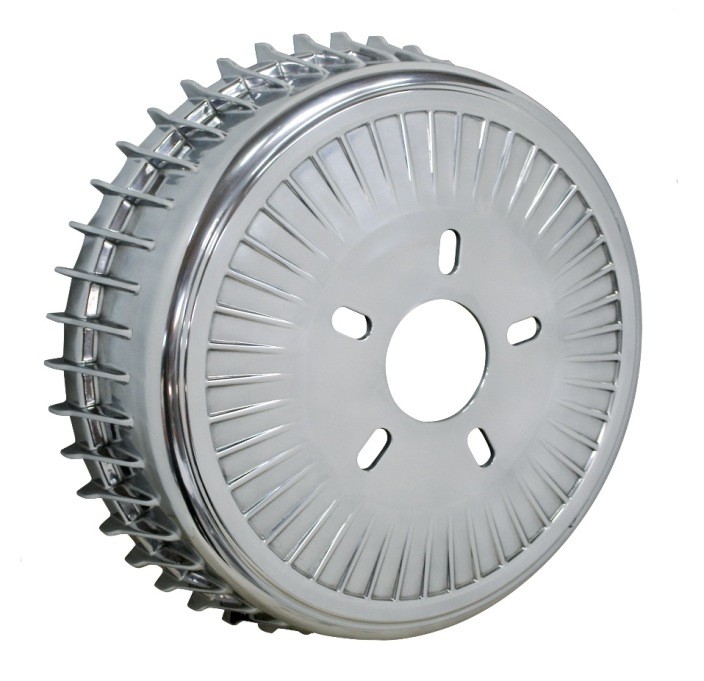

Complete Axle Brake Options For TCI Ford 9" Axle - COMPLETE AXLES ONYL! NOT AVAILABLE ON HOUSINGS! See Willood tab above for Ford 9" brake kits

Add Braided Steel Brake Line Kit

Performance Rear Sway Bar

Product price: $1,966.00
Total options:
Order total:
