TCI 62 63 64 65 66 67 Chevy II Nova Mustang II IFS Front Suspension Clip
TCI 62-67 Nova Custom IFS Front End Suspension Clip
PN: 228-2354-00$4,562.00
FREE BRAIDED BRAKE LINES!
NEW CUSTOM IFS SUSPENSION KIT!
- NEW STYLE ALIGNMENT SYSTEM
- IMPROVED GROUND CLEARANCE
- 6.5″ Of WHEEL TRAVEL
- ADJUSTABLE DOWN TUBES
- NEW DESIGN TCI STOCK OR DROP SPINDLES

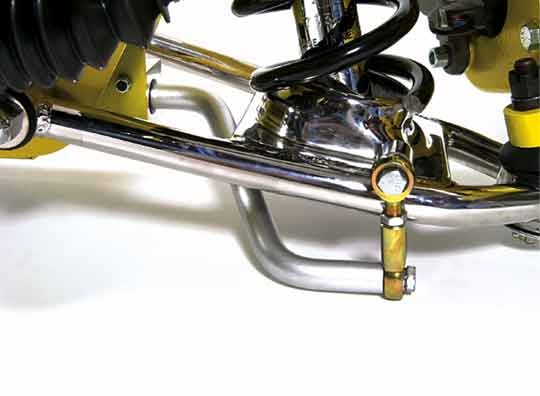

- FREE 1″ SWAY BAR
- FREE STEEL INNER FENDER PANELS
- FREE PLATED DRILLED ROTORS
- CPP BIG BORE CALIPERS
- HUGE OPTIONS LIST
PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON THE REAR

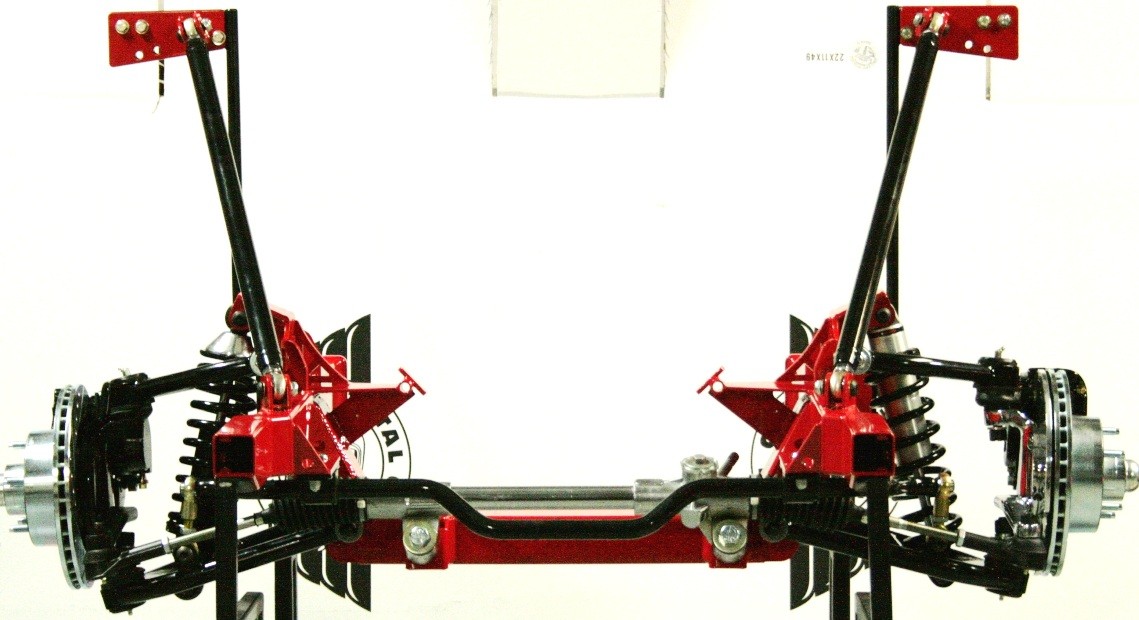

  NEW TCI 62-67 Nova Custom IFS Front End Suspension Kit:

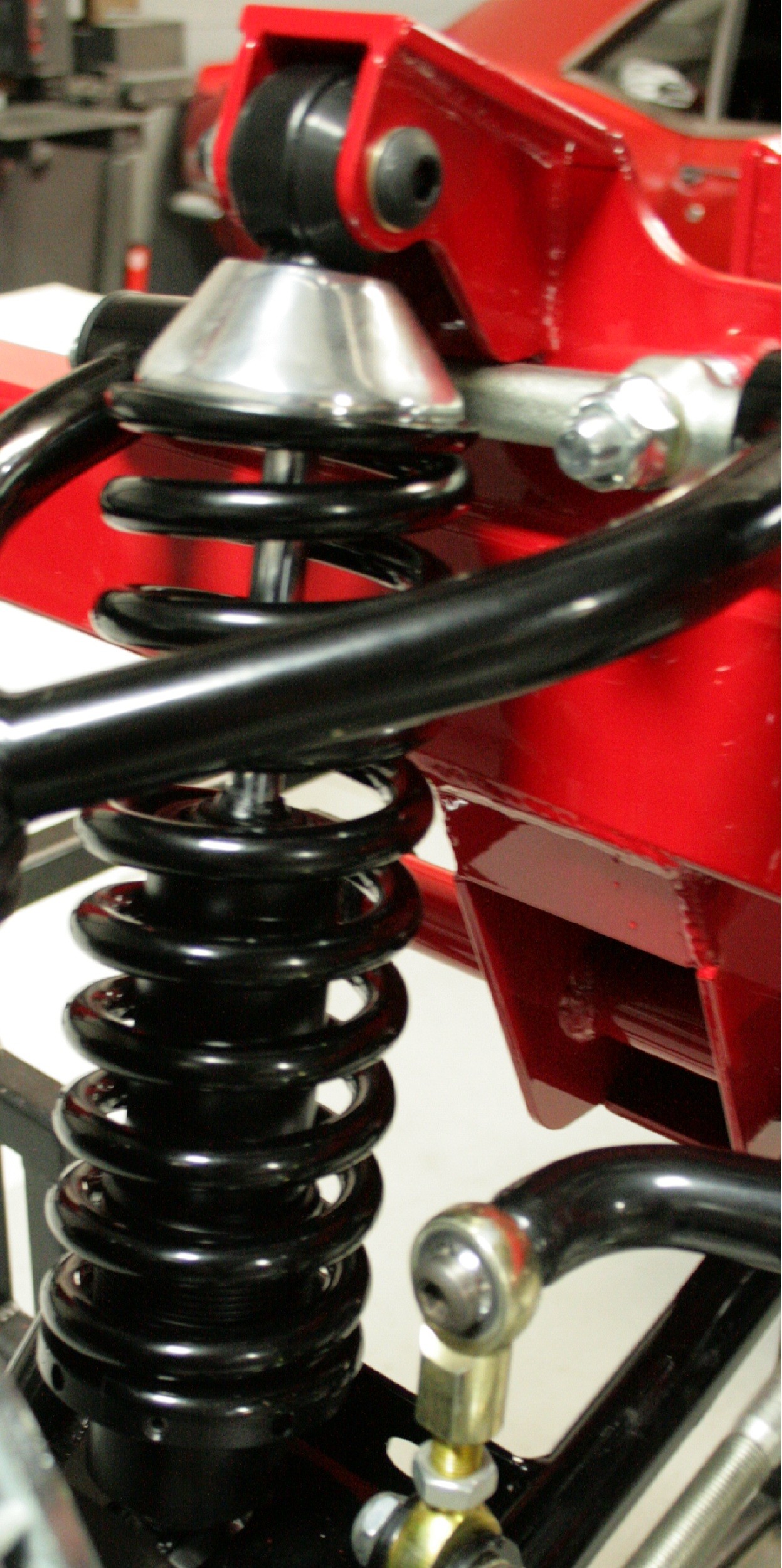

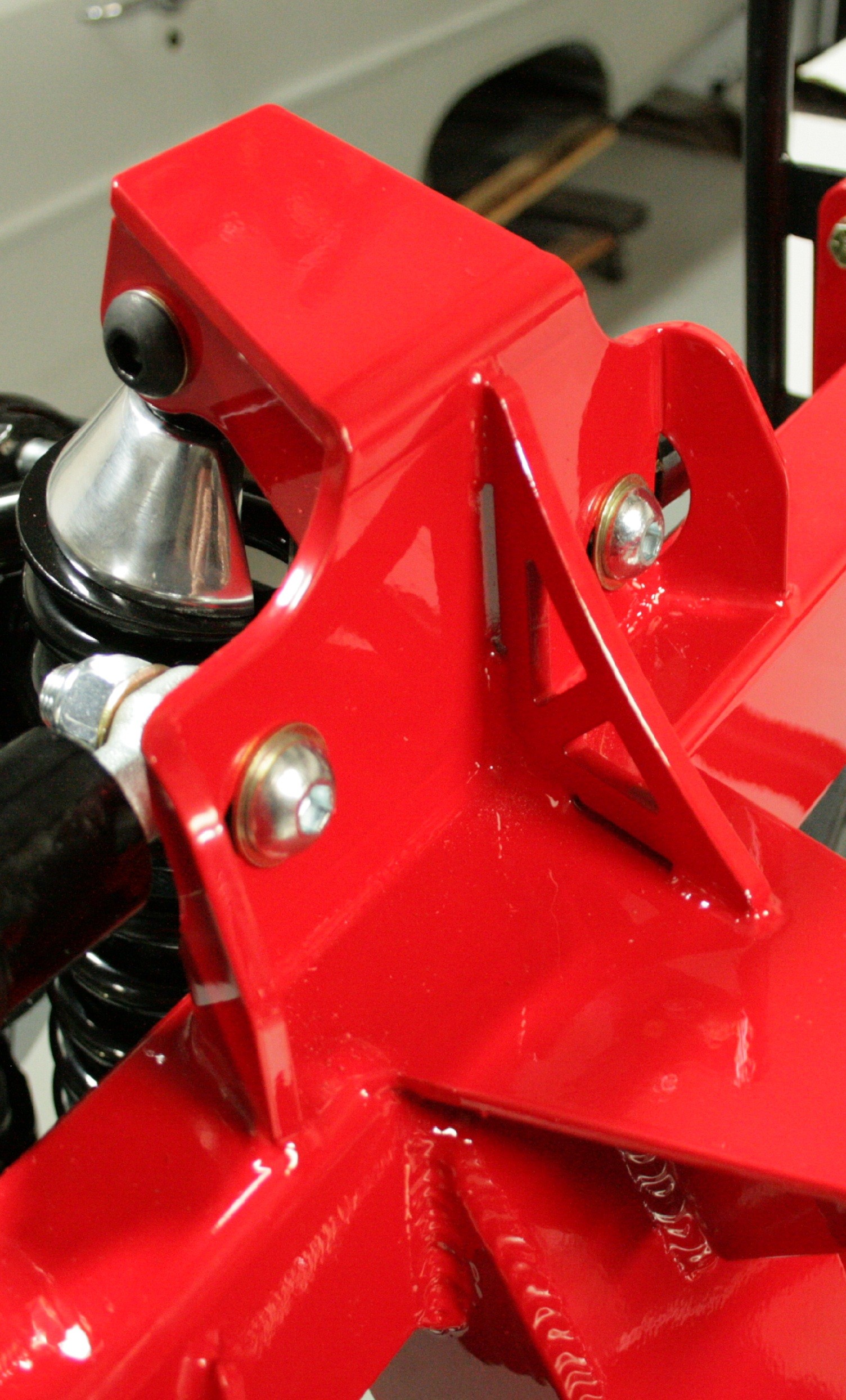

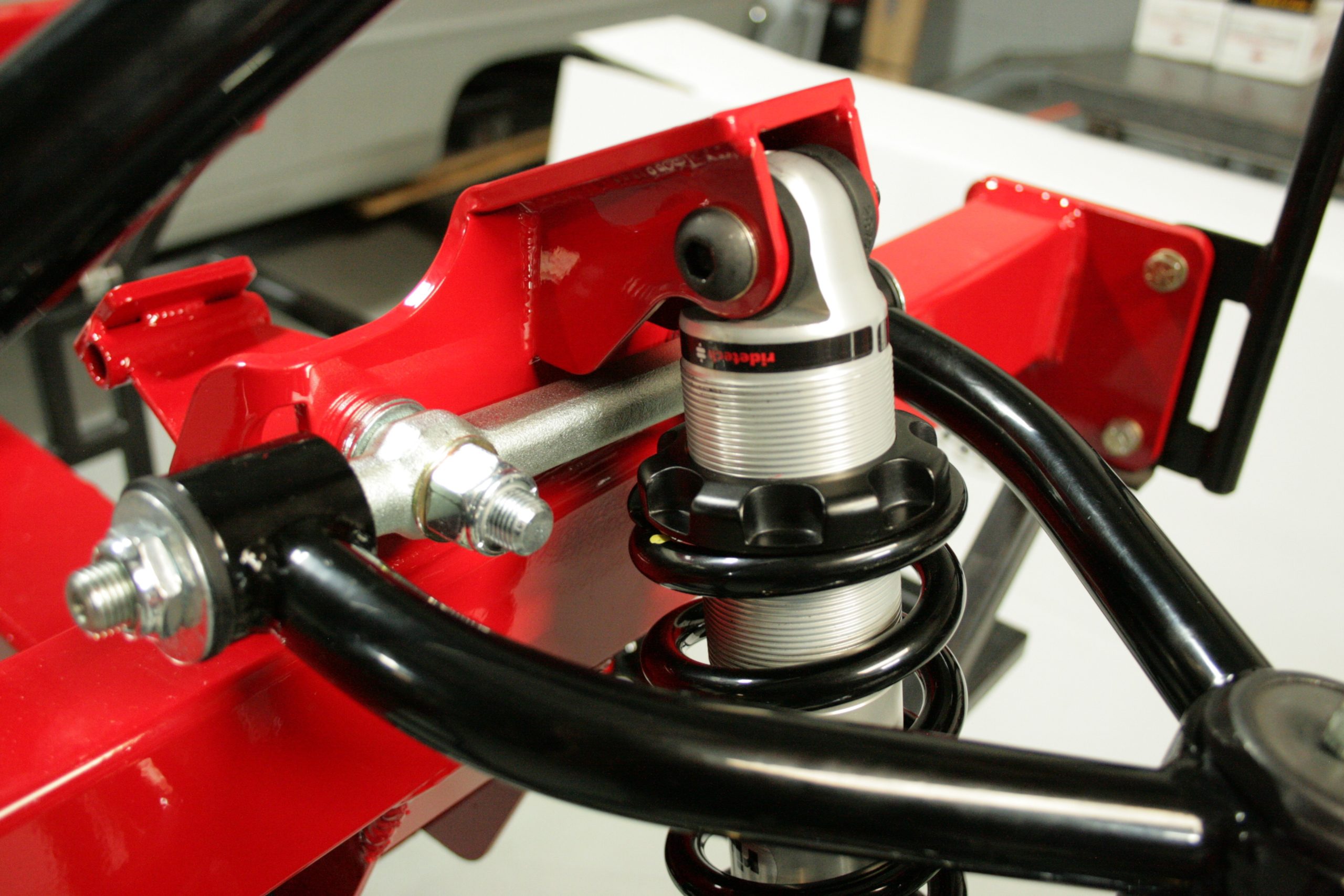

Crossmember: NOT A MUSTANG 2!! Newly designed rectable tube frame clip with greater ground clearance at the cross member. The cross member is constructed of 3/16″ laser cut plate. All TIG welded throughout. Heavy 1.25″ gusted lower A-arm pins. PIns are 1 piece “through the frame” for increased strength. This new IFS system provides the suspension control only adjustable coil over shocks can offer. No more fixed springs and shocks! Wheel travel has been increased to 5.5″ offering a much more supple ride.

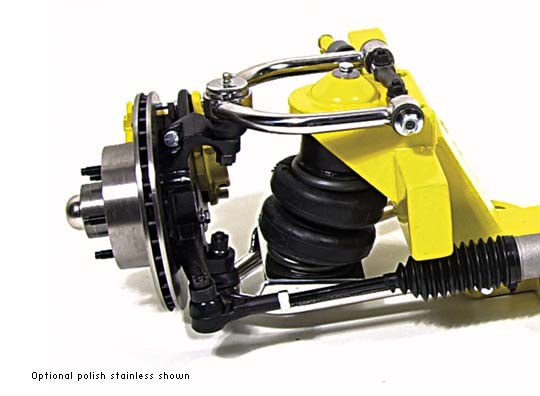

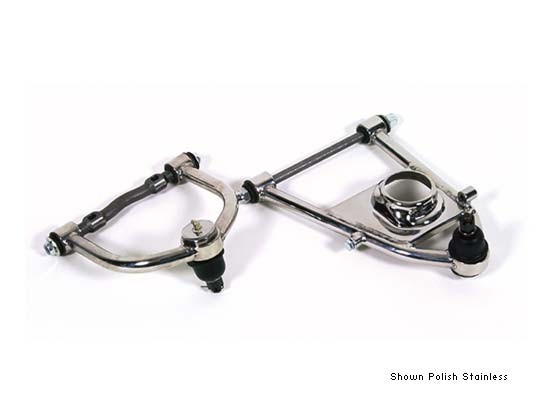

Tubular Control Arms:Â Heavy duty optomiozed length 1″ DOM steel welded/formed in house. Full width lower coil over plate mounts incorporate corrected spring/schock angles. US made ball large thread in ball joints w/urethane bushings installed. Optons include black powder coating and Stainless Steel along with RideTech Shockwaves.
Spindles:Â 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes compatible with screw in heavy duty Mopar ball joints. Mounting points for a multitude of braking options along with bolt on drop steering arms. Geometry is improved for increased camber and castor gain.
KIT DETAILS
- Kit Utilizes Your OEM RadiatorÂ
- 40 lbs Lighter Than OE ClipÂ
- Bolt In Narrowed Pro Street Front ClipÂ
- Adjustable Firewall Supports
-  Tubular A-Arms Â

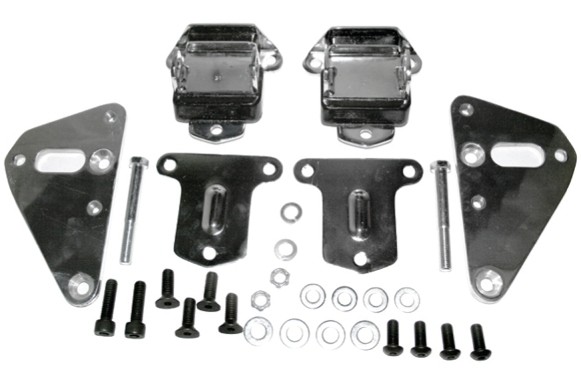

- Engine Mounts Installed
- Steel Coil Over Shocks w/Pre-load CollarÂ
- Black Powder Coated 350# Coil Over Springs

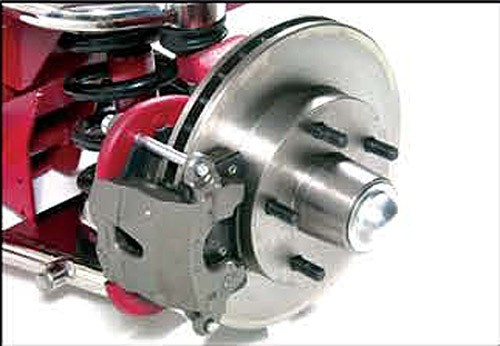

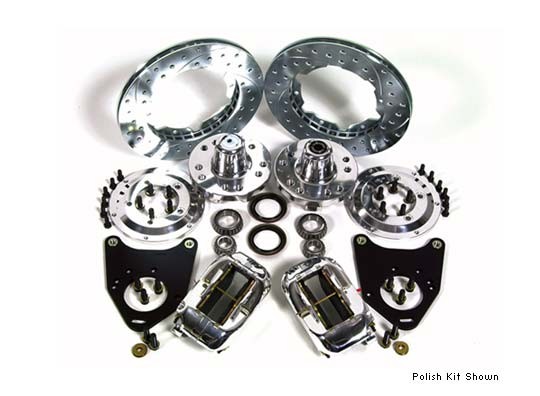

- Assembled11″ Drilled/Slotted GM Disc Brakes w/ CPP Large Calipers
- New Manual Rack and Pinion

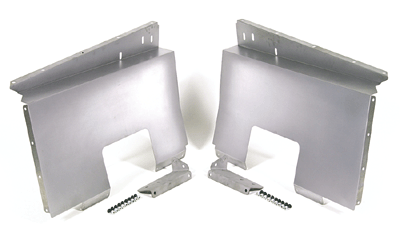

- Steel Inner Fender Panels with Hood Hinge Hardware
- All Hardware and Detailed InstructionsÂ
- 5x 4.75″Â Chevy Bolt Pattern Standard
Â
SCROLL DOWN FOR HUGE OPTIONS LIST!
- Summary
- Details
- Review
Additional information
| Weight | 150 lbs |
|---|
