Wilwood 64-69 Mustang 12″ Forged Dynalite Front Brake Kit



Application: 64-69 Ford Mustang Stock Drum & Disc Spindles

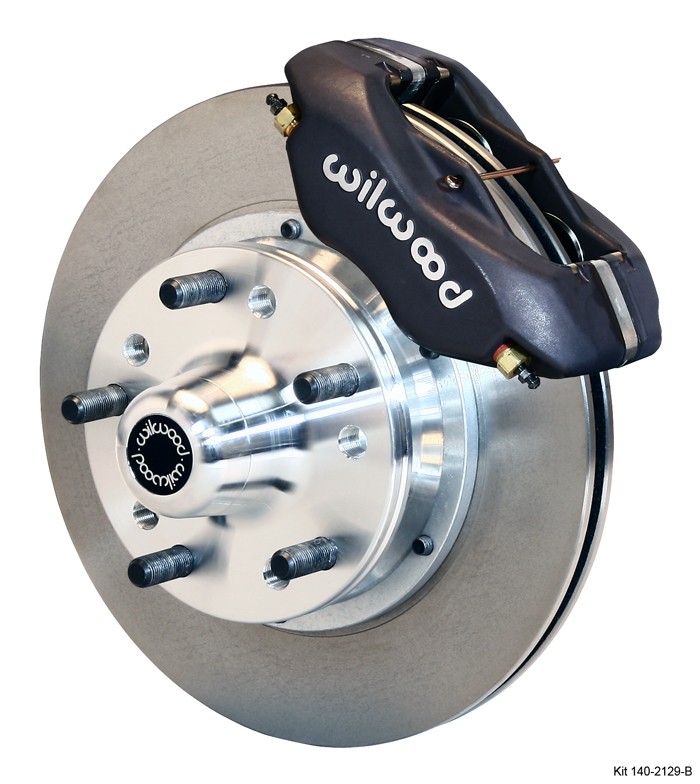

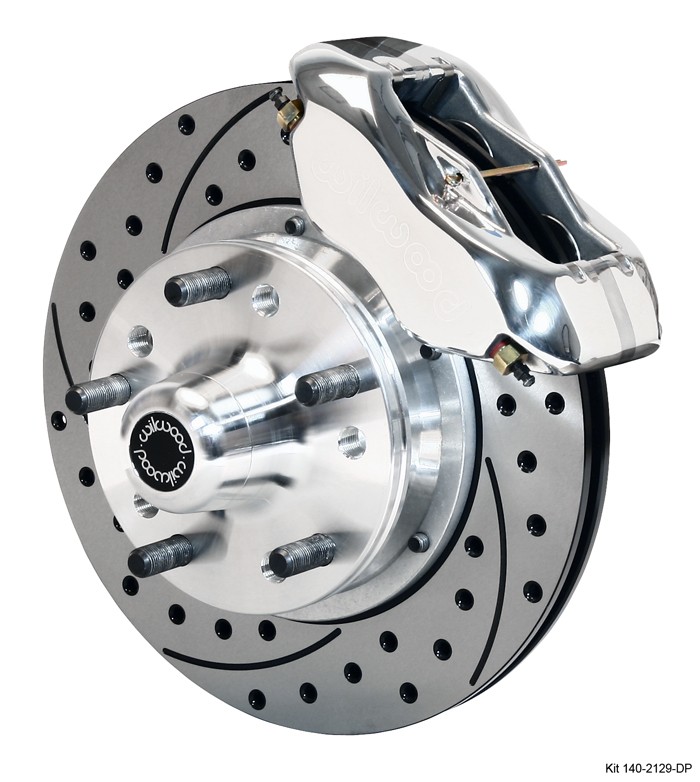

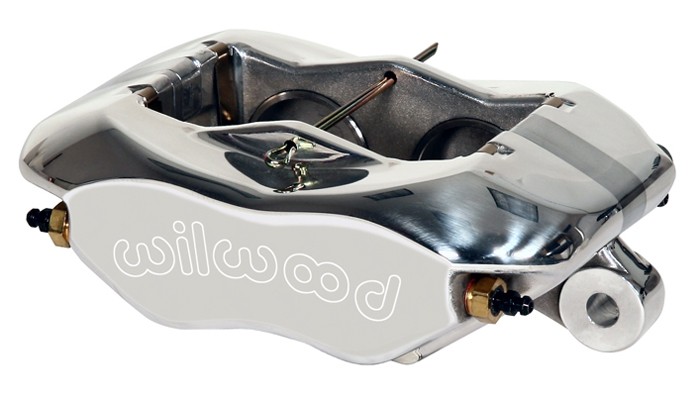

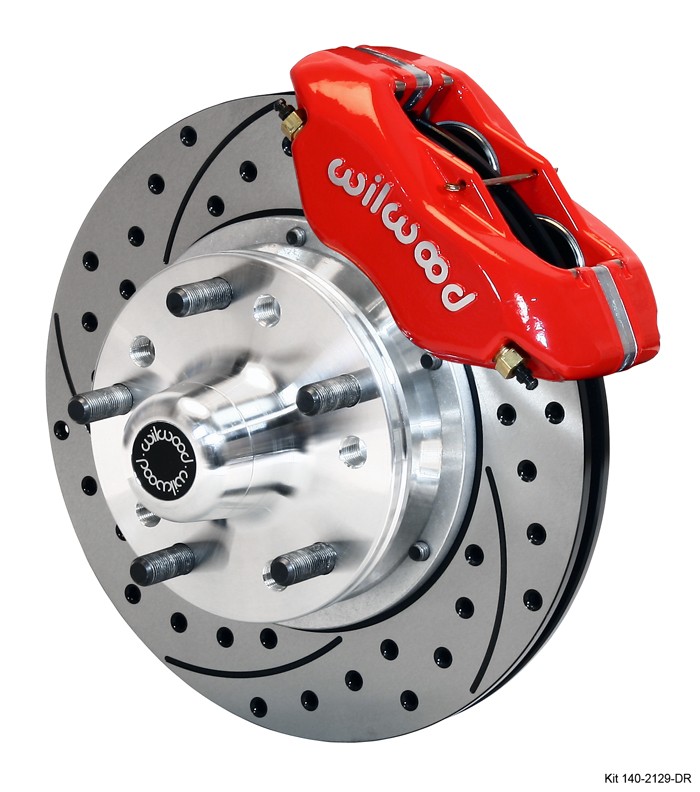

Wilwood 64-69 Mustang 12″  Forged Dynalite Front Brake Kit: This comprehensive bolt on kit includes a custom Wilwood caliper bracket that integrates their brakes with your stock Mustang spindles. Kit adapts to both the early 64-69 drum and 68-69 disc spindle. Kit uses a race quality 3 piece forged aluminum hub, forged rotor adapter and separate 12″ vented .81″ thick iron multi vaned rotor. Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered to be one of the most powerful 4 piston calipers made, these light, slender units incorporate stainless internals and super rigid mounting lugs. This impressive looking package creates strong stopping power, quicker cooling and is constructed of long life components. Other benefts are reduced unsprung weight and the ability to use most 15″ wheels. Many options are noted below. Choose the TCI option to swap out the hub to the special Wilwood TCI hub! Base kit includes smooth vented rotors and the glossy powder coated black calipers.

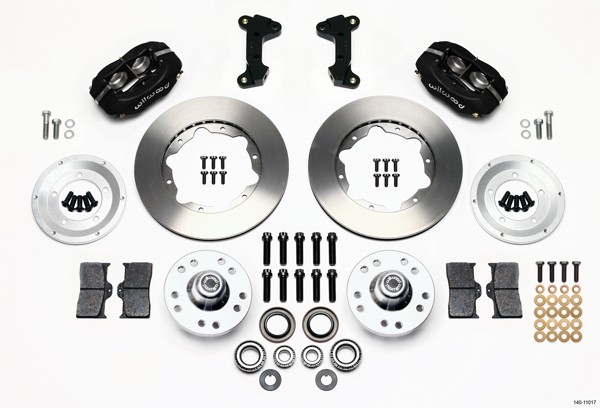

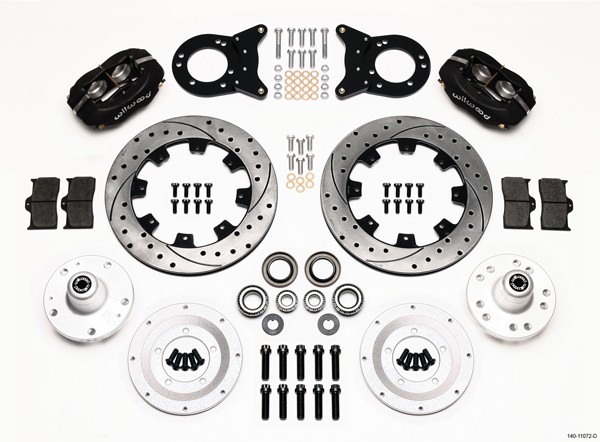

Kit Contents

  • Black Powder Coated 4 Piston Billet Dynalite Wilwood Calipers
  • Forged Aluminum Caliper Brackets

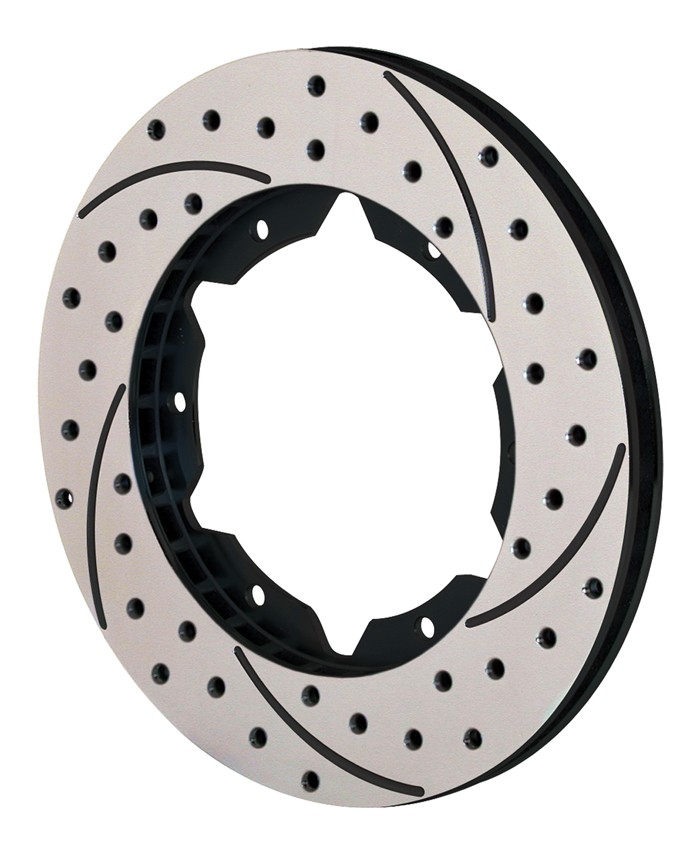

  • 12″ Smooth .81″ Vented Wilwood Rotors
  • Forged Auminum Rotor Adapters

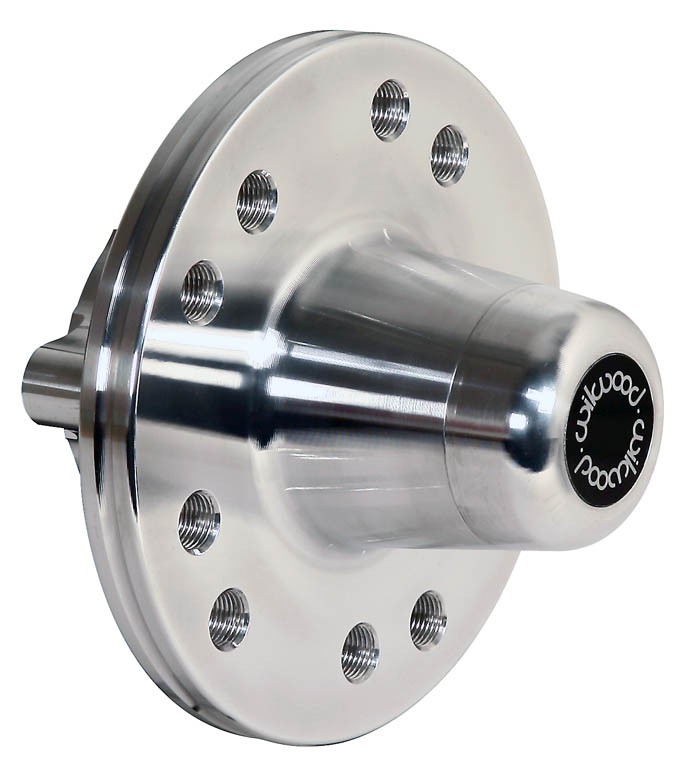

  • Forged Aluminum Hubs
  • 1/2″ 20 Studs
  • Dual Pattern 5x 4.5″ and 4.75″
  • Bearings, Seals and Dust Cap
  • BP110 Compound Street/Race Pads
  • Mounting Hardware
  • Detailed Instructions

This kit does NOT widen your track!

  • Summary
  • Details
  • Review

Additional information

Weight 84 lbs
