Ford 9″ Large Bearing Rear Disc Brake Conversion Kit – Standard

PN: DBK9

$435.00

Application: Ford 9″ Early AND Late Large Bearing Ford 9 Disc Brake ConversinAxles



Not sure which axle you have? Click HERE

Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our comprehensive Ford 9″ large bearing kit utilizes all new OEM GM parts to complete a seamless bolt on swap.

This kit includes brackets to fit ALL of the following flange patterns:

  • 8″ and 9″ Small Bearing Early Flange 2″x 3.336″
  • 9″ Large Bearing Early Flange 2.375″x 3.5″
  • 9″ Large Bearing Late Flange 2″x 3.562″

Also included are the shims required to index (center) the caliper properly over the rotor. We also include new emergency brake cables. One cable will be 37″ long, end to end and the other will be 40.5″ long end to end. No fabrication required.No fabrication required.

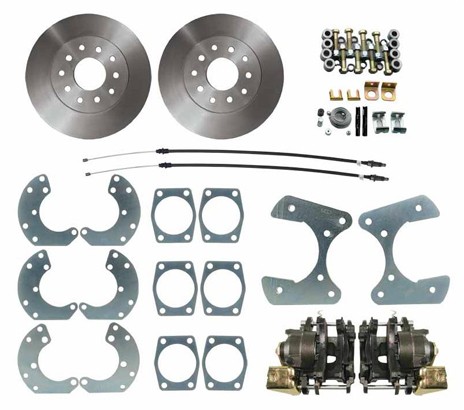

Rear Disc Kit Contents

  • 11.14″ large GM Rotors,
  • Loaded Large GM Calipers
  • Caliper Brackets & Shims
  • Bracket Hardware
  • Rubber Brake Hoses with Clips
  • Emergency Brake Cables
  • Instructions

Shock configuration is parallel. 1st gen Camaro/Firebird owners may need to move one shock upper mount to create a parallel set up.

Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively. Center register hole is 2 13/16″. Inside hat diam is 6 3/16″.

See our Performance Ford 8/9 Conversion Kit for drilled/slotted rotors and stainless brake lines, to your upper left.

  • Summary
  • Details
  • Review

Additional information

Weight 50 lbs
