Wilwood Rear 12″ Disc Brake Conversion Kit – Ford 8.8″ Axle

PN: 140-7146



Application: Ford 8.8″ With 2.50″ Axle Offset – 12.19″ Wilwood Dynalite Kit With Parking Brake


Not sure which axle you have? Click HERE

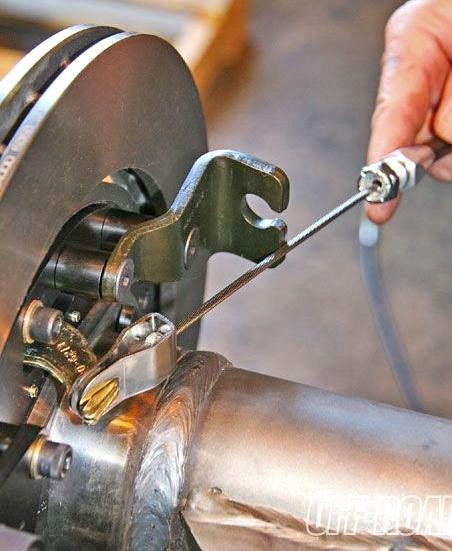

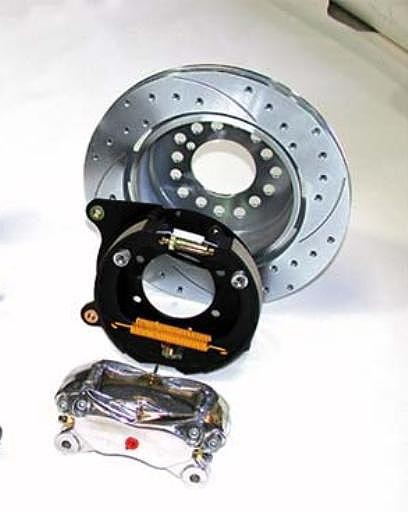

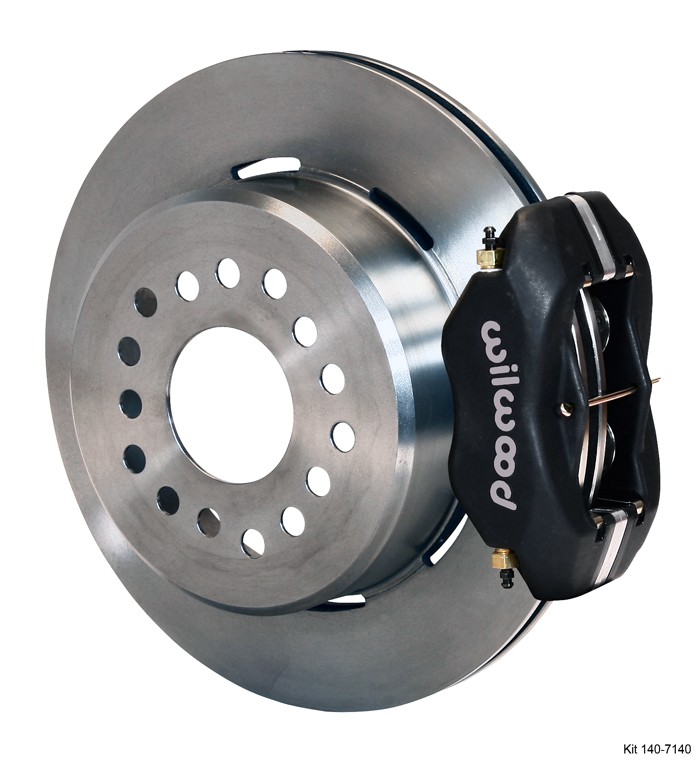

This kit is for pre 94 axles. Does not fit the 94 and up Explorer axle. Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. Inside the rotor are Wilwoods patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car.

Rotors come with 3 pre-drilled lug patterns: 5x 4.50″, 5x 4.75″, 5x 5.0″ This kit is only available for 5 lug 8.8″ axles with a 2.50″ offset! Call if you need assistance.

Base caliper surface is black. This kit fits most 15″ wheels! Sizing chart available. Shock configuration is parallel.

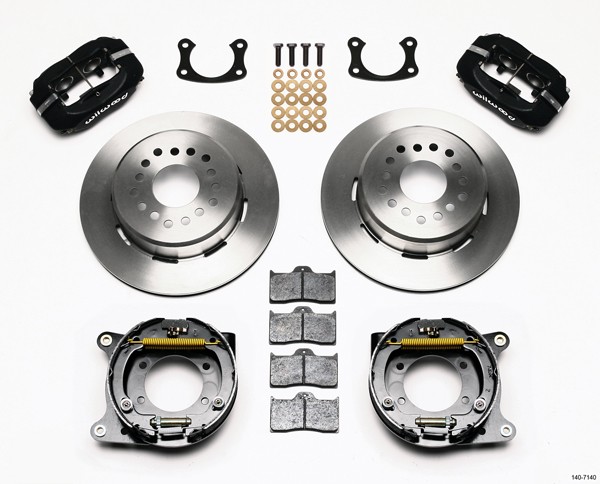

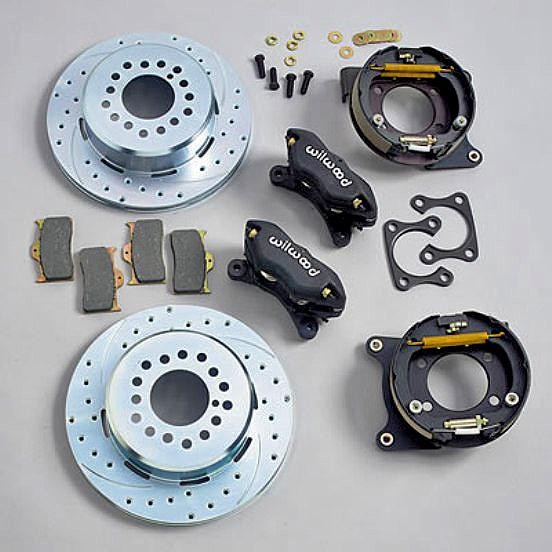

Rear Disc Kit Contents

  • 12.19″ Wilwood Iron Rotors
  • Dynalite Billet 4 Piston Black Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions
  • Summary
  • Details
  • Review

Additional information

Weight 15 lbs
