Wilwood Hydraulic Clutch Pedal With High Volume MC

PN: 340-13833


Wilwood Hydraulic Clutch Pedal With High Volume MC.

 Application: Universal Firewall & Dash Mount

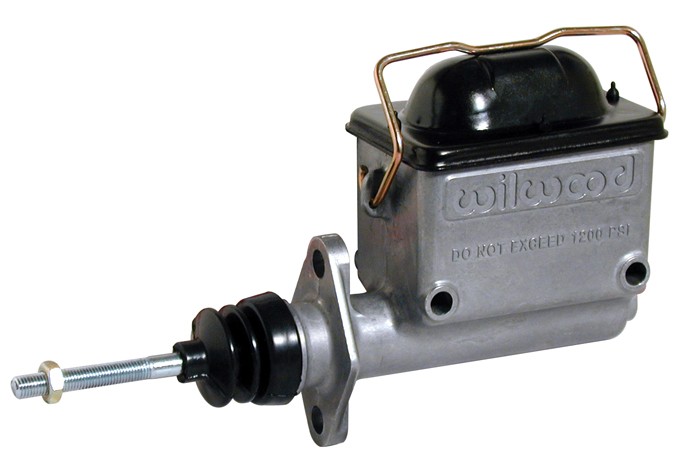

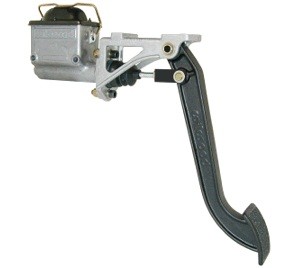

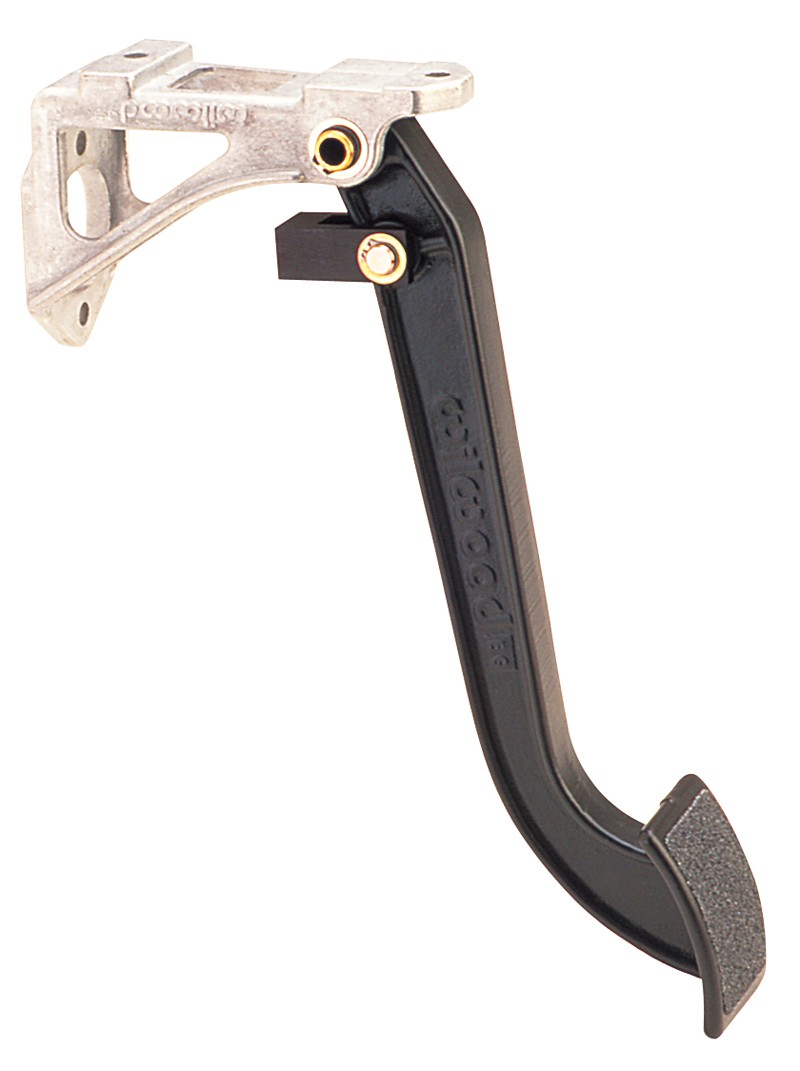

The pedal features all aluminum frame and arm construction with steel pivots, mounting studs, and an anti-skid pedal pad. Swing mount mount with a 7.00 to 1 pedal ratio. The included Wilwood High Volume master cylinder is a .75″ bore, correct for all hydraulic slave cylilnders or throwout bearings. The attractive aluminum high volume master cylinder protrude only 5″ into your engine bay and are quite narrow. It is fitted with a bail release and black aluminum top. The pedal assembly is fully anodized in Wilwood’s new Platinum-E color.

This is a good solution for those looking to:


  • Minimize engine bay intrusions
  • Replace their OE pedal with a hydraulic unit
  • Improve the overall appearance of this often ugly equipment
  • Non slip pedal pad are included

Pedal mounts to firewall (vertical wall) and under dash (horizontal bracket). You will need to create some brackets to mount this under your dash. The pedal has 4 horizontal “ears” with bolt holes that are easily mounted to with angle iron etc.

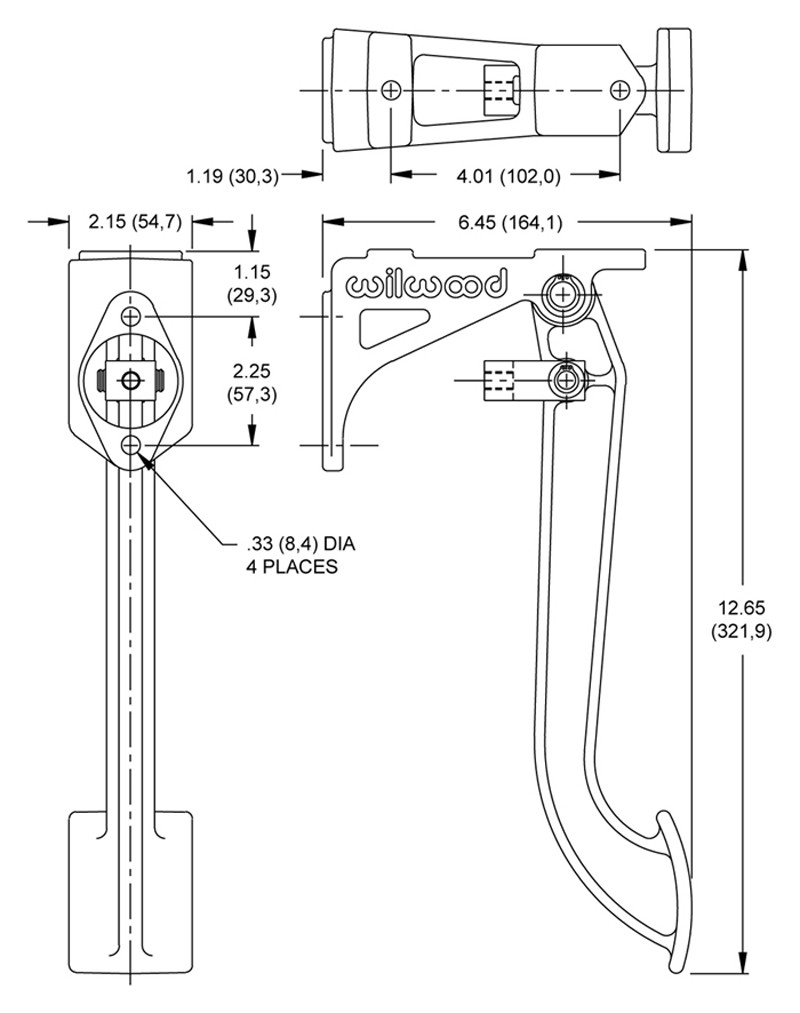

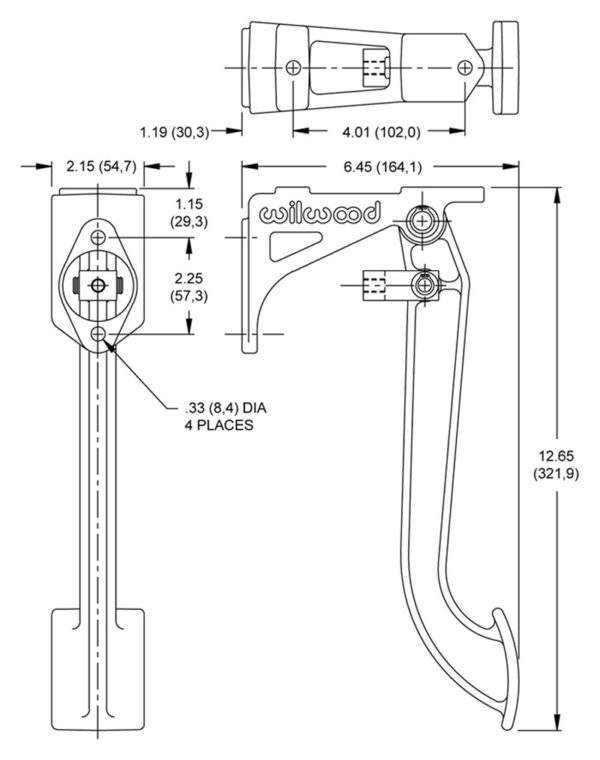

Pedal arm is 11.86″ long. Mounted length is 12.65 long. The bottom edge of the pedal pad sits 6.39″ away form the firewall when in its relaxed position.

  • Summary
  • Details
  • Review

Additional information

Weight 8 lbs

Ship Without Mastery Cylinder - Pedal Only, You Supply MC

Product price: $169.00
