Wilwood Hydraulic Clutch Pedal With High Volume MC

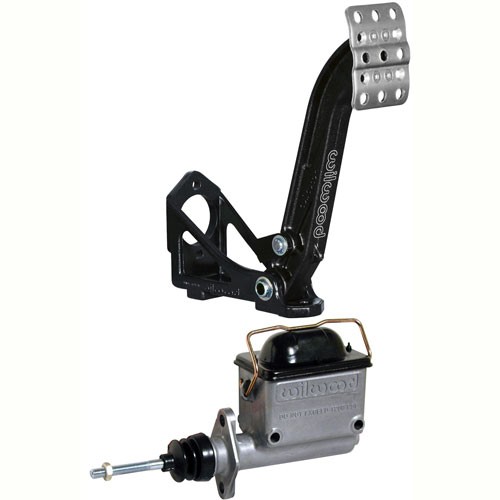

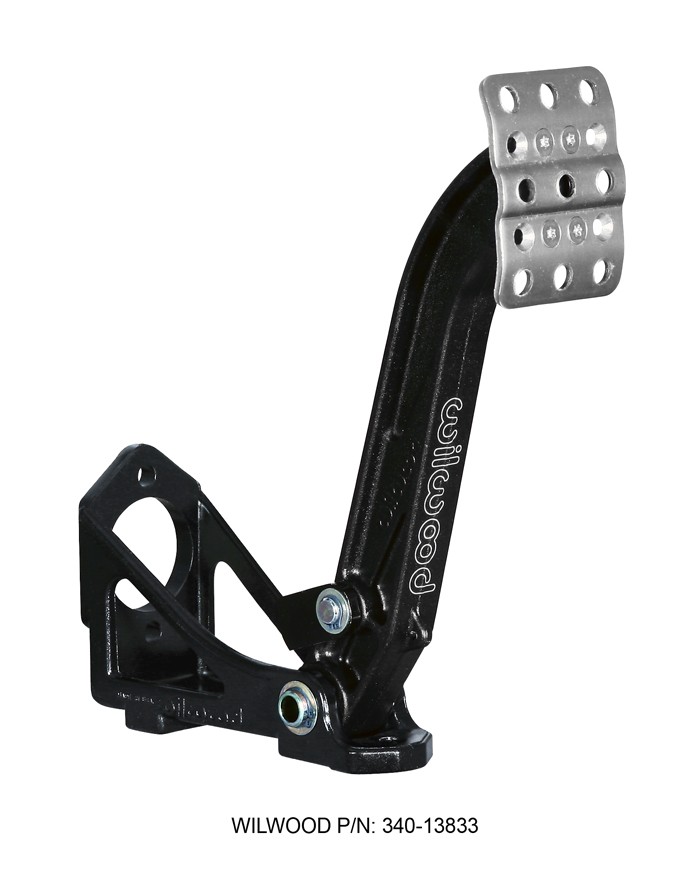

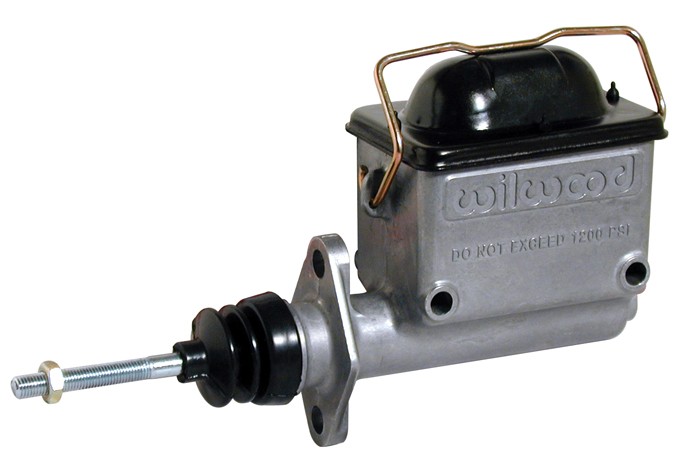

This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. Price includes a hydraulic clutch appropriate .75″ bore high volume bail top Wilwood master cylinder. Pedal will work with both OEM type slave cylinders or hydraulic throwout bearings.

This is a good solution for those looking to:


  • Minimize engine bay intrusions
  • Install in a classic truck or hot rod with “through the floor” brake pedals
  • Replace their OE pedal with a hydraulic unit
  • Improve the overall appearance of this often ugly equipment
  • Non slip pedal pad are included

Pedal mounts to firewall (vertical wall) and floor.

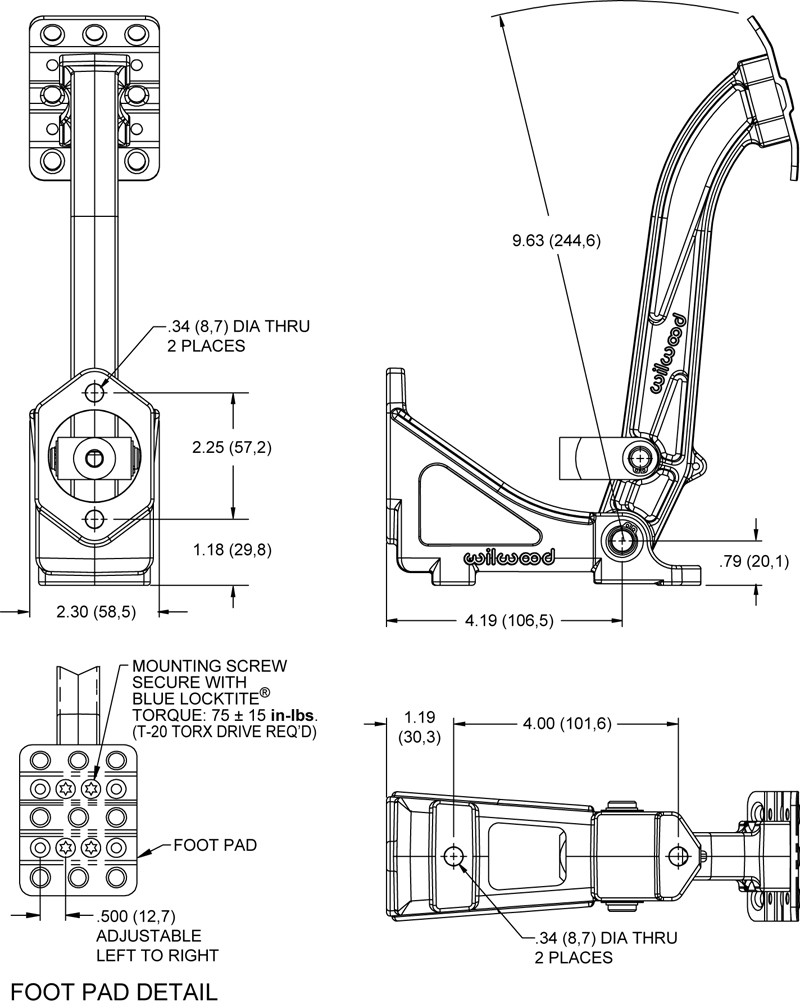

Pedal arm is 9.63″ long. See drawing for complete specifications.

  • Summary
  • Details
  • Review

Additional information

Weight 10 lbs


There are no reviews yet.

Be the first to review “Wilwood Floor Mount Hydraulic Clutch Pedal With High Volume MC”

Your email address will not be published. Required fields are marked *

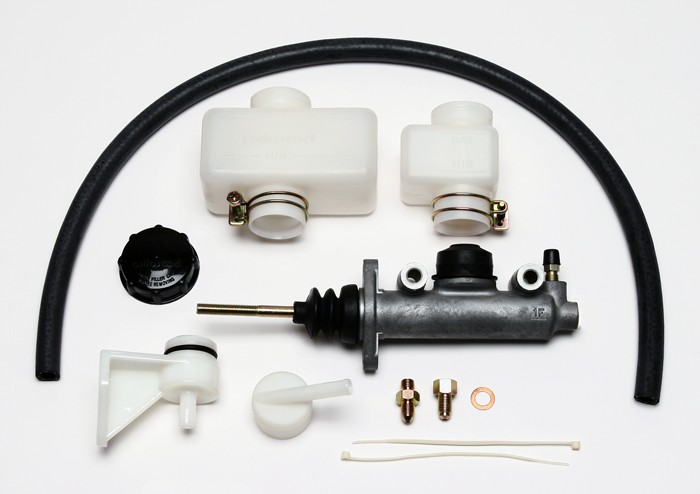

Swap MC for on MC or Remote Fill Combo Remote
