TCI 35-40 Ford Car Power Brake Pedal Assembly

PN: 603-6515-00


Untitled document

Application: 35-40 Ford Cars With Stock Frame or TCI Frame

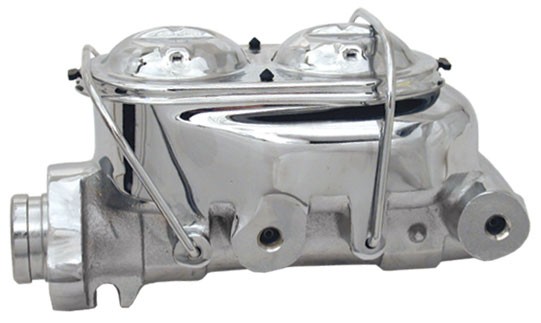

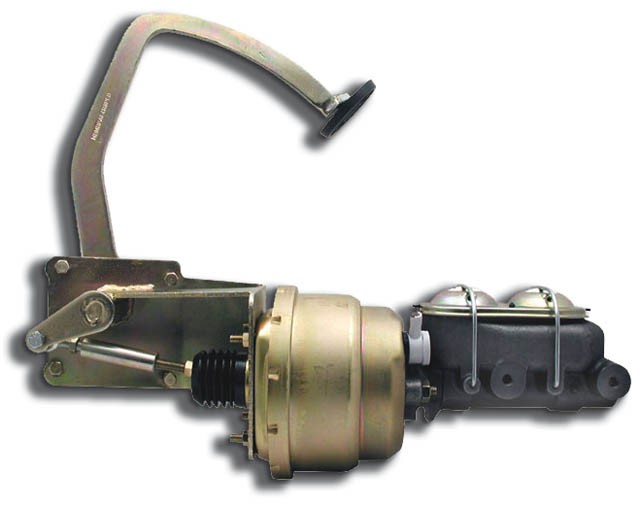

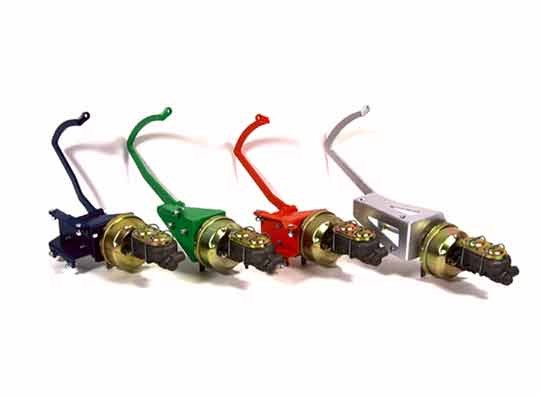

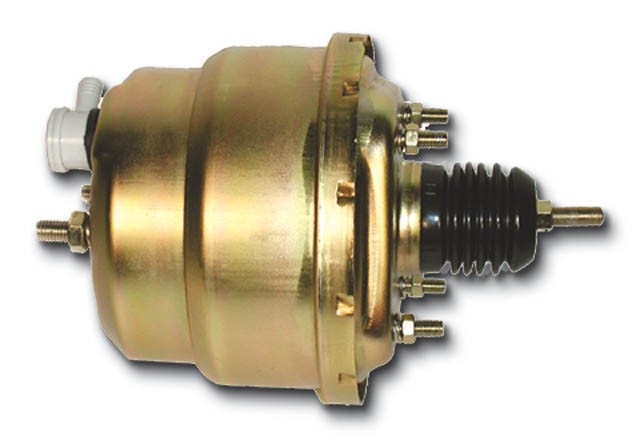

TCI 35-40 Ford Car Power Brake Pedal Assembly: BASE PRICE DOES NOT INCLUDE BOOSTER AND MC – ADD BELOW! This OEM style beneath the floor bolt on pedal bracket features an appropriate length “power assist” arm and bracket that bolts to the stock frame location. It properly positions the booster and MC behind the bracket. This kit includes the bracket assembly with or without our DUAL 7″ zinc plated power booster and the standard non corrosive aluminum corvette style master cylinder. Most shops, including TCI, only supply a 7″ single diagpragm booster and nasty iron MC. We have upgraded your options to better choices! The Totoal Cost Involved pedal bracket is the industry standard with stout construction and smooth pivot points.


Add a booster, master cylinder,  proper proportioning valve and residual valves (highly recommended) if you need them. Residual valves are required to stop fluid drainback from caliper or wheel cylinder into MC. These plumb inline and vastly improve how fast your brakes respond with under floor units.


Power booster, prop valve and master cylinder options available below.

Choose frame style/ pedal below. TCI Bracket weighs a hefty 20 lbs. Booster and MC ship in their own box.


  • Summary
  • Details
  • Review

Additional information

Weight 18 lbs

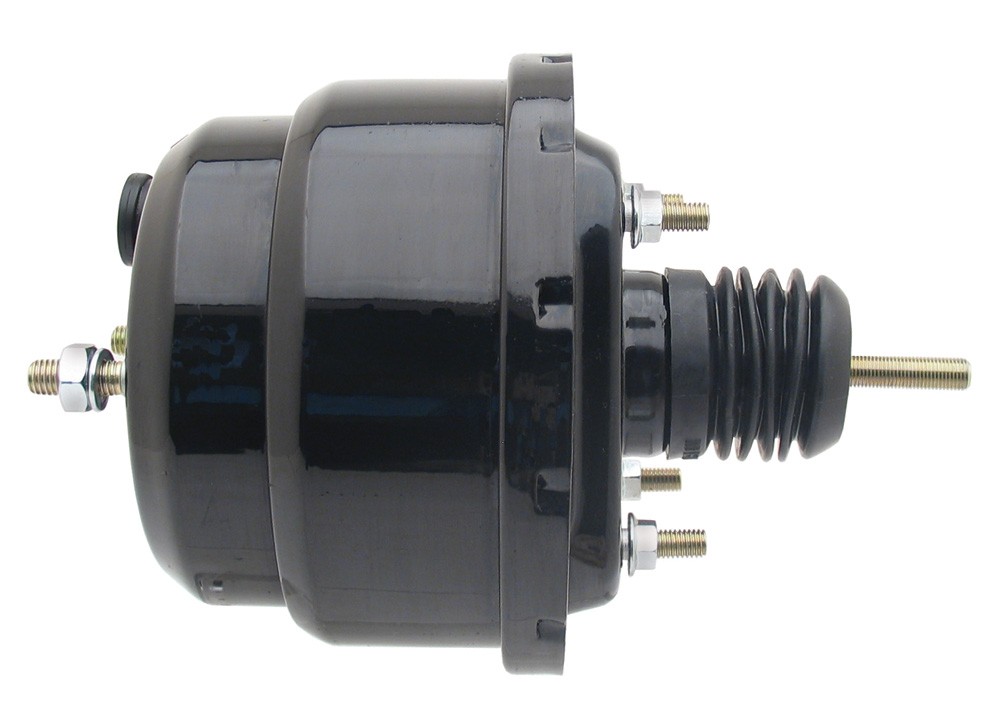

Add A Power Booster & MC

Add a Proportioning Valve

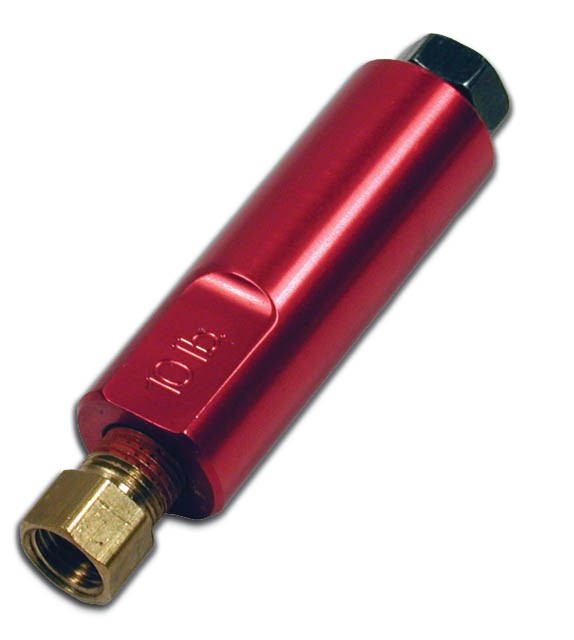

Residual Valves - Needed For All Under Floor MC Mount - Front & Rear Circuits Each Need Their Own Valve

Product price: $222.00
Total options:
Order total:
