TCI Currie Ford 9″ Complete Axle For TCI Rear Suspension

PN: 528-5005-00





APPLICATION: All TCI Rear Kits Ordered Without an Axle – You Ship Back Your Brackets

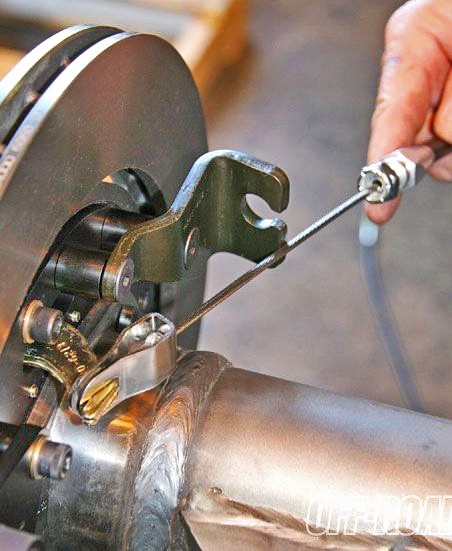

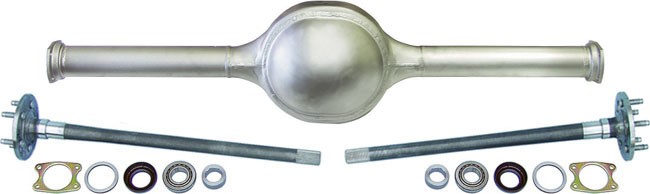

TCI Currie Ford 9″ Complete Axle For TCI Rear Suspension: Total Cost Involved’s custom narrowed axle includes 31 spline axles, new Currie “Hot Rod” 9″ housing, new Currie nodular iron 3rd member with your choice of gears, open differential, 12″ smooth rotors w/ Wilwood internal parking brake & GM iron calipers and all suspension brackets pre-welded in place. Axle is the latest Currie “Large Late Model Bearing” design. Axle will be narrowed for either stock tubs, tubbed wells or you can designate a custom width for no extra cost. This price does not include brackets. You ship your TCI brackets back to be installed on this axle. This applies when a rear kit was ordered without an axle…but ya changed your mind! Or if you just want a Currie axle without any brackets than order this. Includes lube.


This is the easiest and most cost effective way to step up to a bolt in bullet proof axle. Prefer just an axle housing? We offer those as well under the TCI accessory tab above on the button bar.


Posi units and disc brake upgrades available below.


CALL FOR FREIGHT QUOTE! Complete axles will ship via truck freight anywhere in the lower 48 or you can order here and will call pick up at TCI. You may check out now and we will send you a payment request for the shipping. Please call in custom axle widths and gear ratio or which rear kit you want the axle to be built for.


Choose Axle Style - 4 Link, Torque Arm Or Leaf Springs

Choose Your Lug Pattern

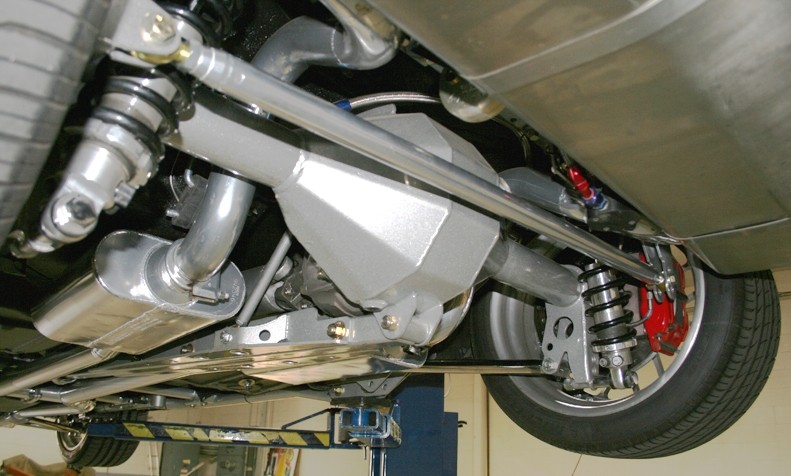

Upgrade Above Axle Housing To FAB 9

Upgrade To A Twin-Trac Posi Differential - Standard Included Axle Features: Nodular Iron 3rd Member, Disc Brakes, Assembled - Includes Lube and Axle Brackets Pre-Welded

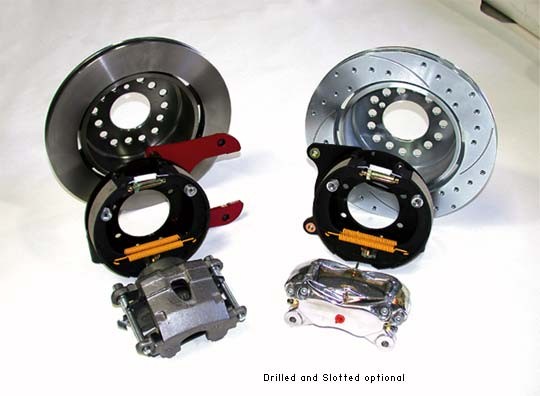

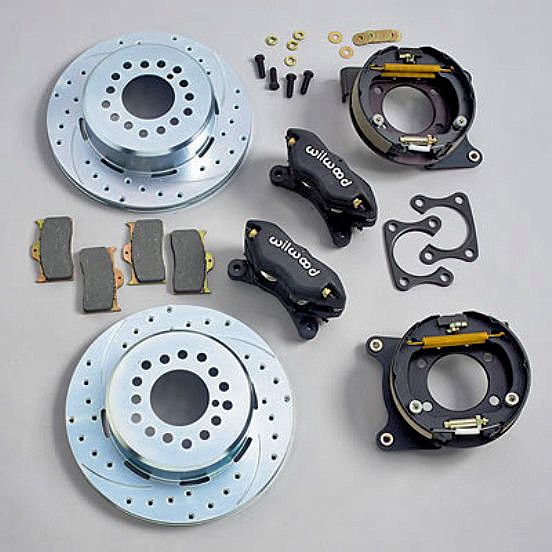

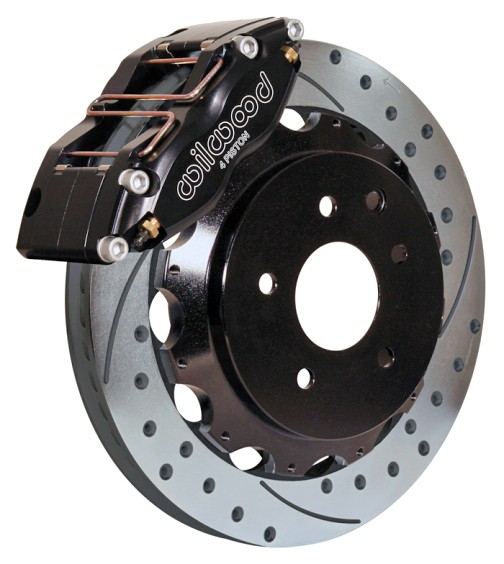

Brake Options For TCI Comoplete Ford 9" Axle - Complete Axle Must Be Selected Above! Not For Axle Housing!

Add Braided Flex Hoses

Product price: $4,647.00
Total options:
Order total:
