TCI 37-48 Chevy Car Mustang II IFS Front Suspension Kit

PN: 222-2354-00-A

$2,976.00



TCI 37-48 Chevy Car IFS Kit InstructionsNEW SOLID ALIGNMENT SYSTEM! DISCOUNT PRICING AND THE MOST FREE UPGRADES!

  • FREE 2″ DROP SPINDLES
  • FREE 1″ SWAY BAR
  • CPP BIG BORE SINGLE PISTON CALIPERS
  • FREE SHIPPING
  • THIS CROSSMEMBER IS A BOLT IN UNIT!



PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON BOTH PLUS MORE UPGRADES!

All TCI STOCKED ACCESSORIES SHIP FOR FREE WHEN ORDERED AT THE SAME TIME! SAVE BIG ON HEADERS, COLUMNS, BOOSTER BRACKETS ETC!



Why buy a Mustang II IFS? CLICK HERE!

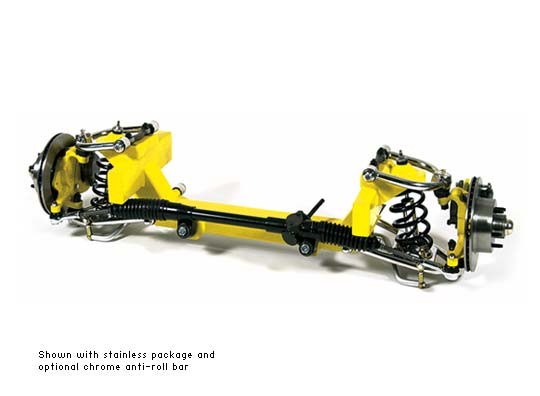

TCI 37-48 Chevy Car Mustang II IFS Front End Kit

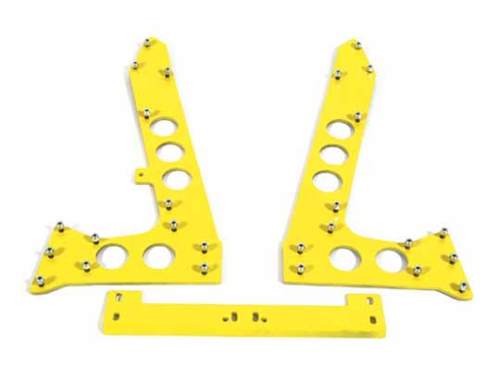

 M-II Crossmember: Custom designed per application; the 37-48 Chevy crossmember is a BOLT IN unit! It’s made of 3/16″ laser cut U.S. steel plate, TIG welded in-house, Heavy 1.25″ gusted lower A arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are welded in place. Spring towers need to be welded in place.

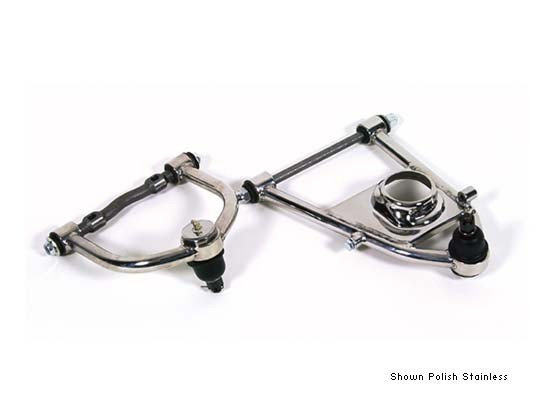

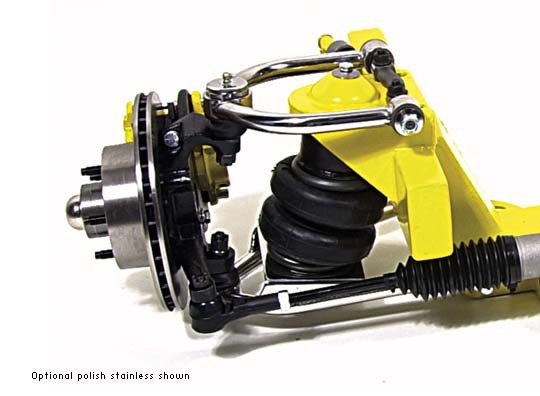

Tubular Control Arms: Heavy duty 5/8″ narrowed 1″ DOM steel welded/formed in house. Indexed spring pockets, corrected spring angle. US made ball joints/Urethane bushings installed. Options include Stainless Steel, a “Coil Over Shock” design as well as a very affordable air spring set up.

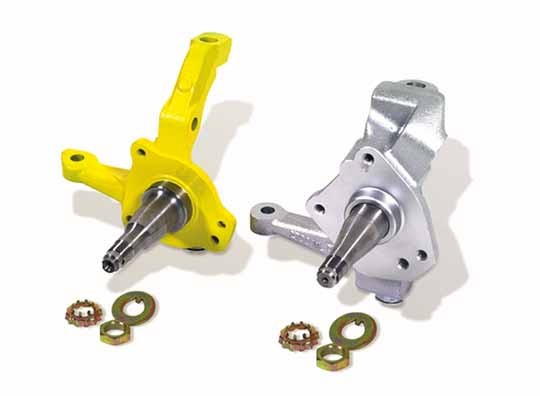

Spindles: 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes for “screw in” type heavy duty ball joints. OEM attachment points and bolt patterns so that stock Mustang II components can be used. Stock height available as no cost swap.






Chevy Car Kit Details:

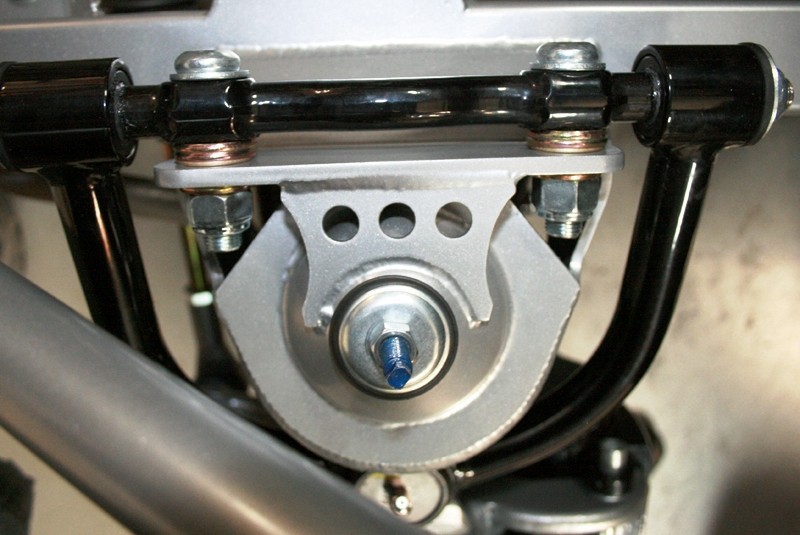

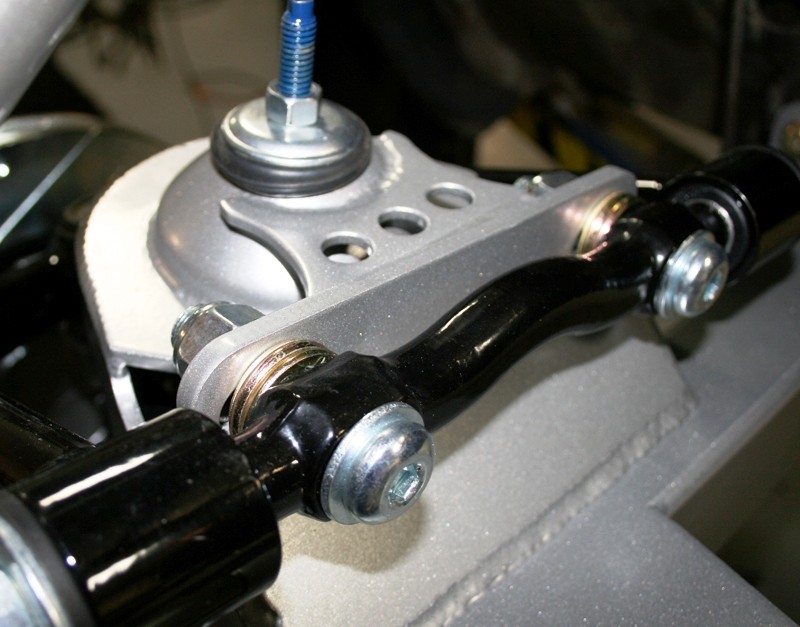

  • New Solid Alignment System
  • Custom BOLT IN Crossmember
  • Weld In Spring Towers
  • Tubular Control Arms
  • 2″ Drop or Stock Height Forged Spindles
  • Black Powder Coated 350# Springs and Painted Steel Gas Shocks

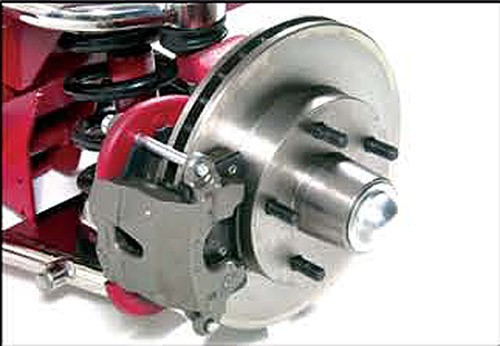

  • Assembled 11″ GM  Disc Brakes w/CPP Large Calipers
  • New Manual Rack and Pinion

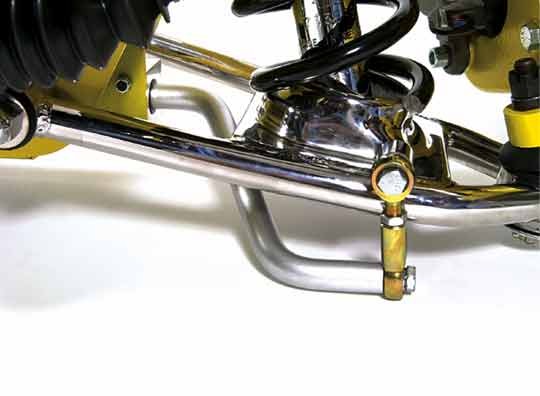

  • 1″ Sway Bar w/Heim Style Drop Links
  • All Hardware and Detailed Instructions
  • 5x 4.75″ GM Bolt Pattern Standard


SCROLL DOWN! HUGE Options List Below



  • Summary
  • Details
  • Review

Description

TCI 37 38 39 40 41 46 47 48 Chevy Car Mustang II IFS Front Suspension Kit – New Solid Alignment System!



Additional information

Weight 150 lbs

TELL US ABOUT YOUR CAR

Swap to Stock Spindles

Coil Spring Options

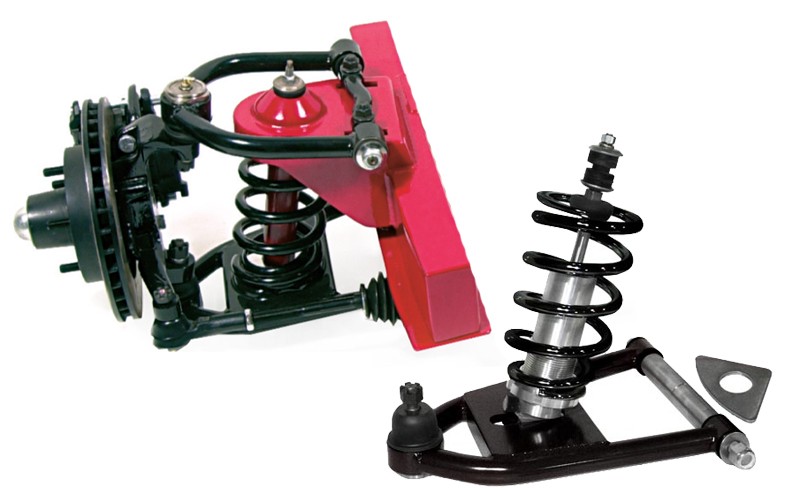

Change To Adjustable Aluminum RideTech Coil Over Style Shocks or Air Bagss

Rack Options - Power and or Right Hand Drive

Braided Power Steering Line Kit

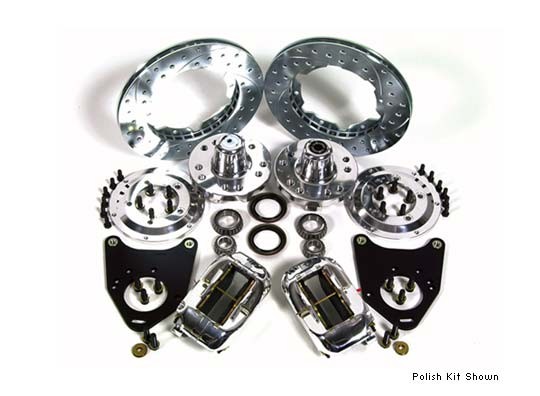

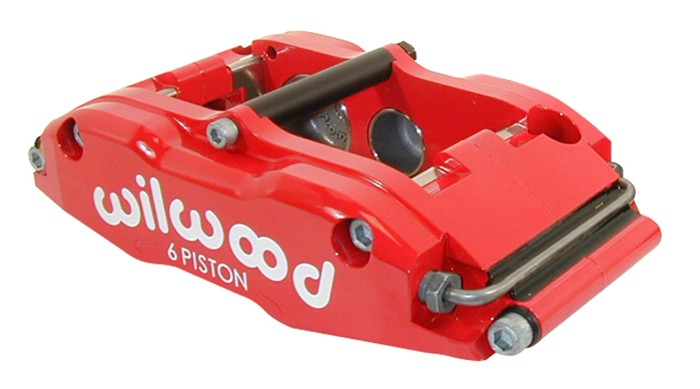

Disc Brake Upgrade

Add Braided Steel Brake Lines

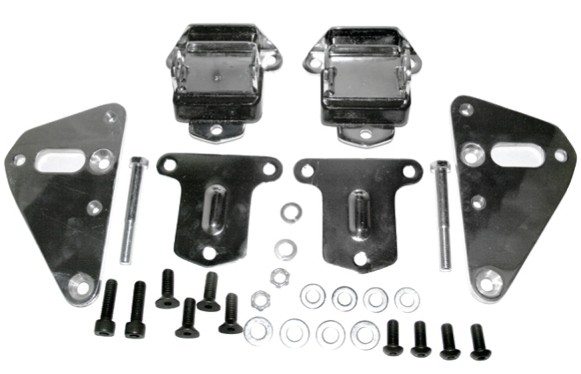

Weld In Engine Brackets - Specific Fit For 37-54 Chevy Cars

Bolt On LS Engine Bracket Set - Works With Weld In Brackets Shown Above!

Bolt In Transmision and Brake Pedal Crossmember

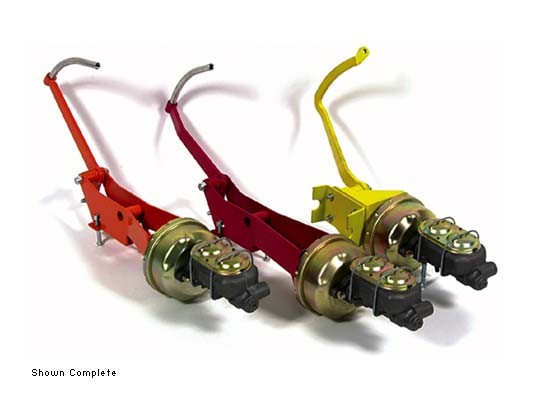

Add A TCI Power Brake Pedal

Product price: $2,976.00
