TCI 63-87 Chevy C10 Truck Grounded Air Ride Chassis

PN: 136-1225-00-2

$19,043.00



FAB QUEST HONORS ALL CURRENT TCI SPECIALS!

CALL FOR QUOTE! PRICES ARE BALL PARK ONLY!



TCI 63-87 C10 Grounded Air Ride Chassis

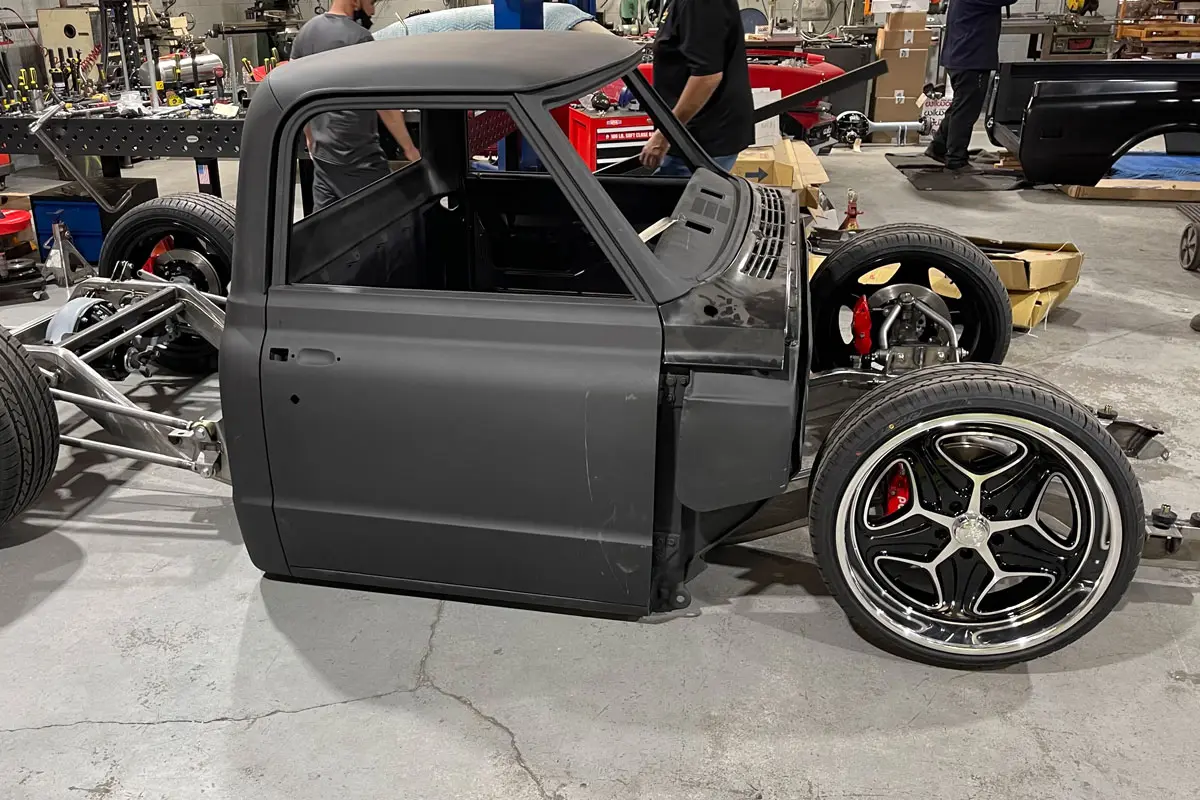

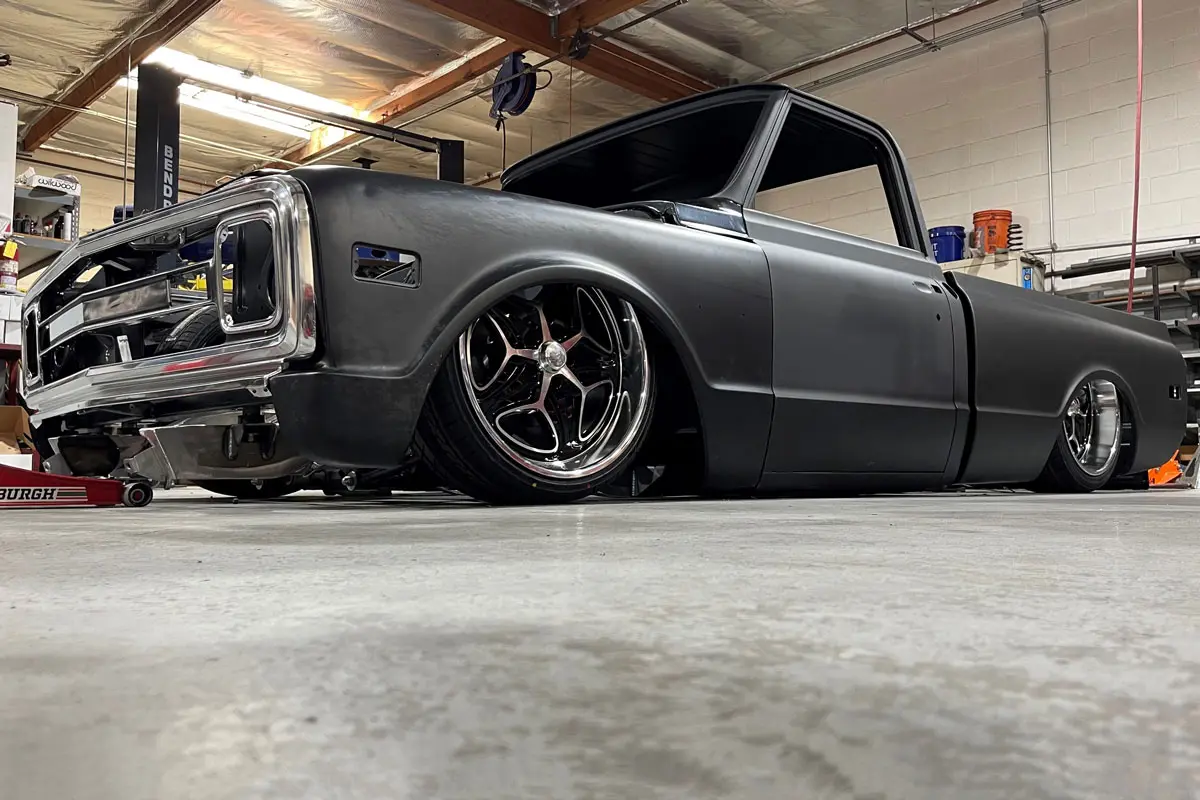

The TCI new Grounded Chassis is intended to change the negative perception that many have about air bag suspension. They spent countless hours making sure that this chassis had enough wheel travel to accomplish this goal. The ultimate goal was to run the least amount of pressure to hold the truck at ride height. So with this new Grounded Chassis we not only have the ability to lay it out but also keep the performance that we’re known for. These brand-new Grounded Chassis include all-new front and rear air bag suspension that when aired out, allows you to lay the frame on the ground with 29” tall front and rear tires. Fully aired up, the chassis boasts a max ground clearance of 8” with minimal camber change and when aired down provides that aggressive 4” ride height that everyone wants.

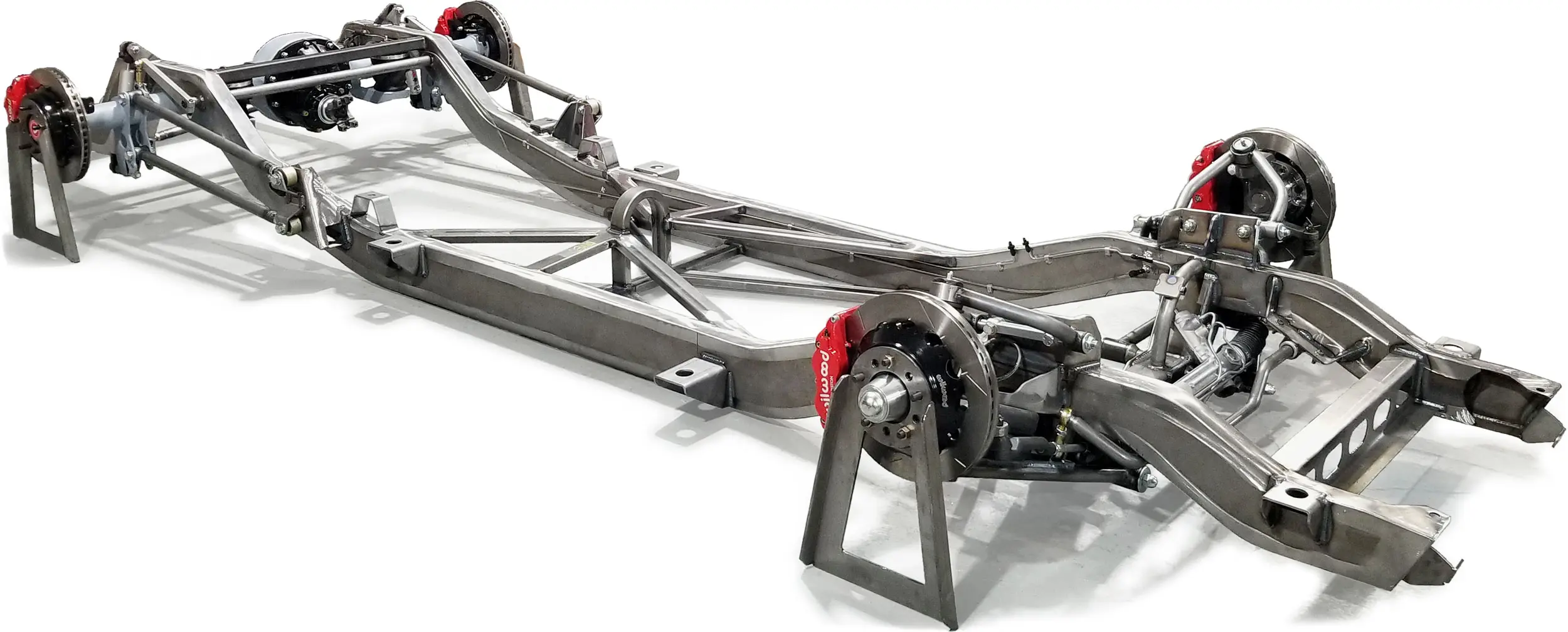

To start, the frame is laser cut and jig welded for the utmost precision and strength. We widened the front frame rails to allow more room for headers and steering components. In the rear, we’ve narrowed the frame to allow for outboard-mounted shocks and wider tires.

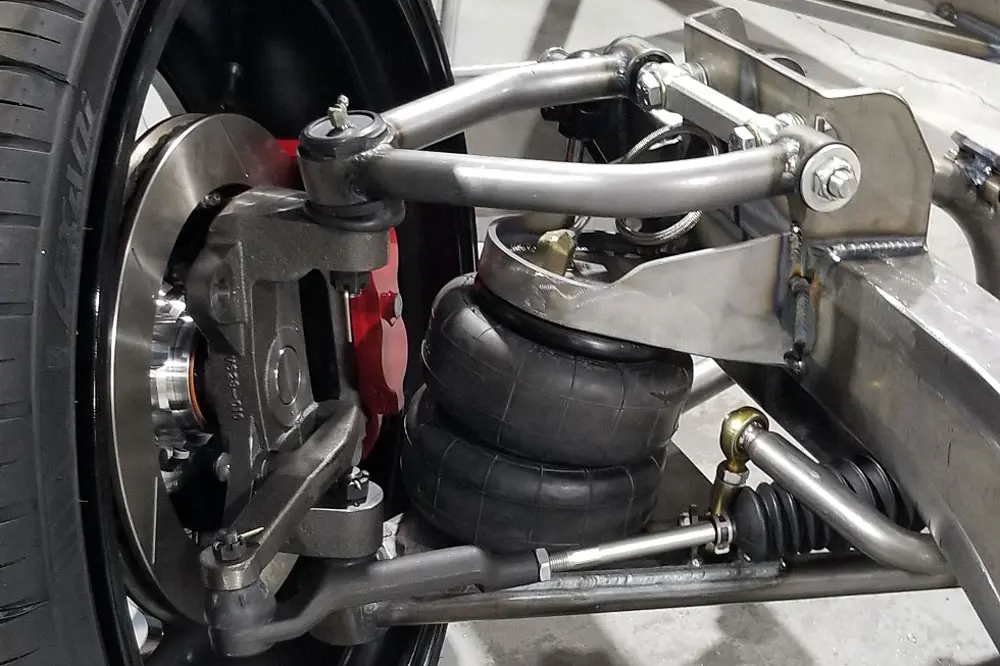

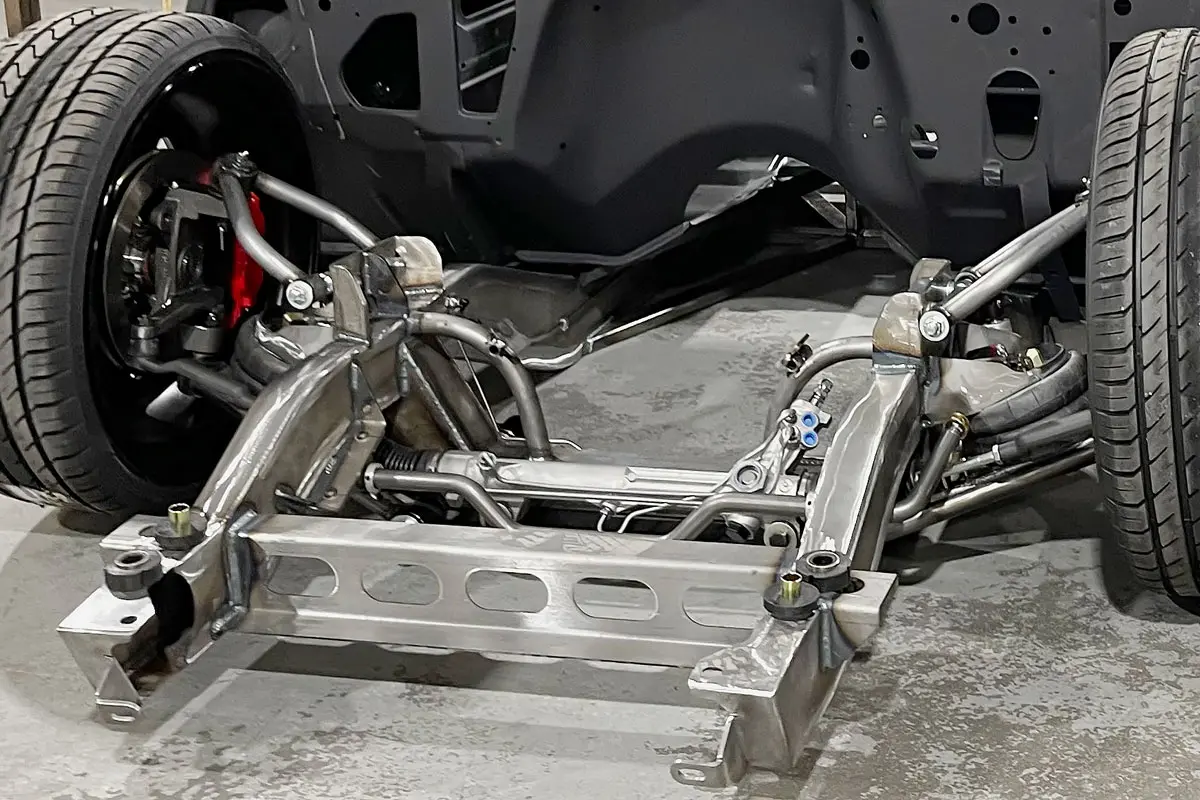

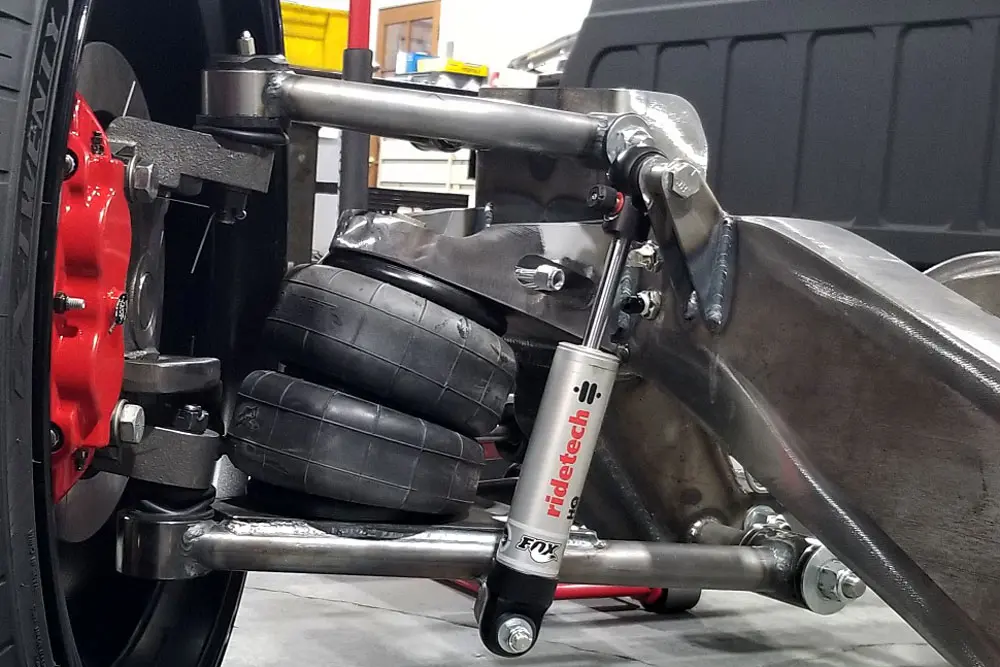

The front consists of our trusted and track-proven Pro Touring IFS system, we changed the Coilover mounts to airbag mounts and then added outboard shock mounts to accept the Ridetech single adjustable shocks. The Grounded IFS features our heavy-duty tubular control arms, 1” anti-sway bar, and rack and pinion steering along with custom modular spindles to provide plenty of brake options. This design brings performance to an air-bagged chassis.

The center section is a direct carry-over from our Pro Touring chassis. This 12-piece center section keeps the frame from twisting no matter how much horsepower you throw at it, while still leaving plenty of room to run 3” diameter exhaust.

Out back you will find fully boxed frame rails stepped up 8” and C-notched to accommodate that extra low slammed stance. Extra long and beefy 1-1/4” four-link bars are coupled with Currie Johnny Joints to aid in unbound articulation, less pinion angle change during suspension cycling and to minimize forward movement of axle centerline at full compression. All of this is suspended by rollover sleeve style Firestone airbags and Ridetech single adjustable shocks. This combination allows you to adjust the ride height and fine-tune ride quality to your liking.

All Grounded Chassis come standard with a complete Currie 9-inch differential including 31 spline axles with your choice of gearing. The housing is fabricated in-house for maximum strength to give your truck the ultimate in reliability. We can build these to your exact specifications from stock width or shortened to accommodate your large, deep dish rear wheels.

All C10 Grounded Chassis come fully plumbed with hand fabricated ¼” steel airlines along with 3/16” brake lines and hoses. Just add your own air management system to complete the build.

All TCI Engineering products come with two warranties. They come with a Six-Year, 60,000-mile warranty on wear and tear items such as bushings and ball joints. The second is that any items built in-house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc. come with a Lifetime Warranty.

ALL BASE CHASSIS INCLUDE THE FOLLOWING:
  • Pro Tour IFS Front End
  • Drop Forged Spindles
  • Body Mounts Included
  • Oversized Fully Boxed Steel Frame Fixture Welded In House
  • Heavy Wall Tubular Control Arms
  • SB/BB/LS Engine Mount Options
  • Front Sway Bar
  • Assembled12″ GM Truck Disc Brakes w/ Large D-52 Calipers
  • Power Rack and Pinion
  • Rear 4 Link Suspension
  • Currie Ford 9″ Axle w/Nodular Iron 3rd Member
  • Rear Drum Brakes
  • All Air / Brake Hard Lines and Flex Lines Plumbed
  • All Hardware and Detailed Instructions
  • 5x 5.00″ Chevy Bolt Pattern Standard


Freight is extra and will be quoted/charged when the chassis is ready to ship!!



SCROLL DOWN for many hardware options available below

  • Summary
  • Details
  • Review

Additional information

Weight 215 lbs
