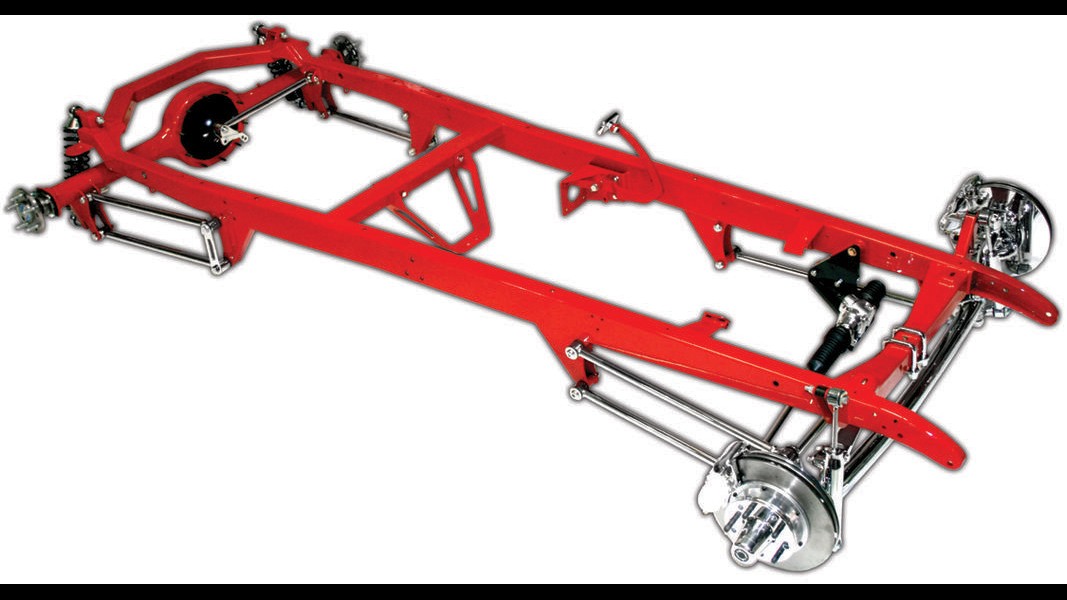

TCI 28-31 Model A Ford Drop Axle Complete Chassis

PN: 101-1215-00

$11,110.00

(0) Review this Product

SUPER MONTHLY FREEBIES. CALL FOR LIST & SALE PRICING – BELOW ITEMS ARE TYPICAL BUT NOT GUARANTEED!

  • FREE WELD IN SBF/SBC ENGINE BRACKETS
  • UNITSTEER RACK
  • STAINLESS BRAKE LINES – PLUMBED

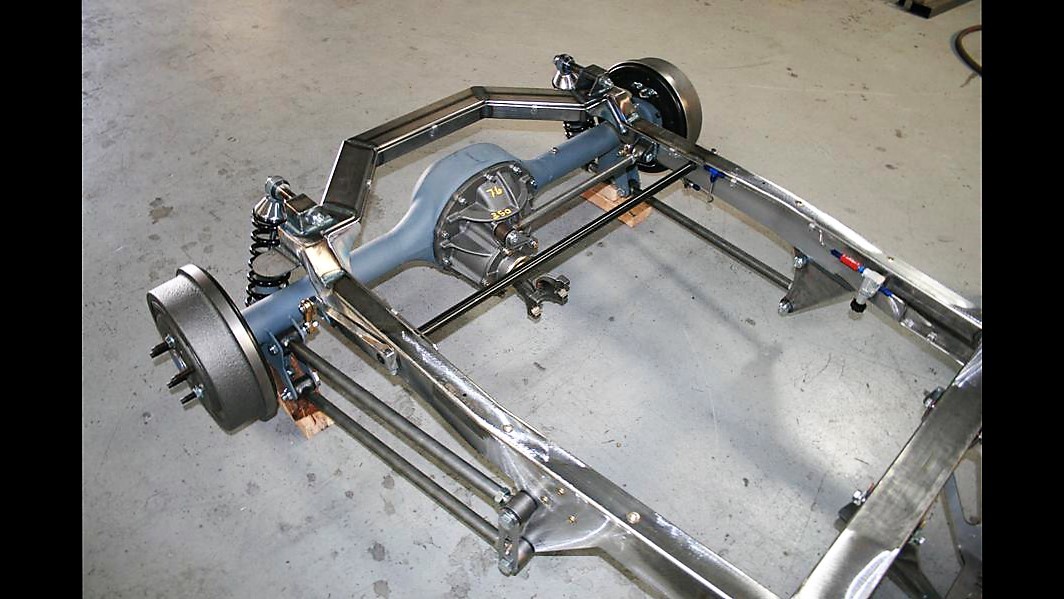

  • REAR 4 LINK w/COIL OVERS
  • REAR SWAY BAR
  • CURRIE FORD 9″ AXLE W/NODULAR IRON 3RD MEMBER
  • POWER BRAKE BOOSTER

Application: 28-31 Model A Ford Cars and Pickup

TCI 28-31 Model A Ford Car or Truck Dropped Axle Complete Chassis:

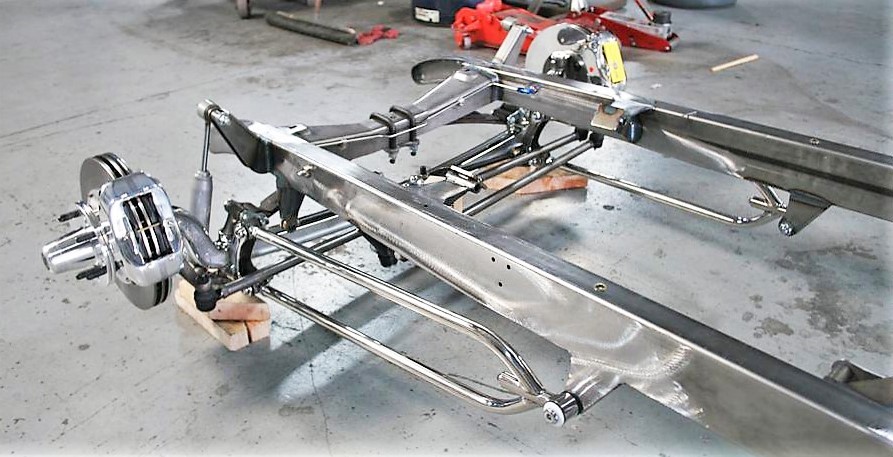

Considered the highest quality hot rod front frame and suspension on the market, this system offers fully boxed OE appearing frame with stout cross-members. Frame has stock tapers and dimensions. System comes with traditional hot rod front suspension with radius rods or 4 link and pan hard bar. Choose 4 bar with rack and pinion for solid handling and the lowered stance you’re looking for. Steering is Vega box with cross steer or optional manual Unisteer rack. The 2″ diam. tube axle features forged ends and a .250″ thick sidewall. Axles are 4″ drops. Kingpin centers are on the 46″ standard width. Traditional US made I-beam axle available below. A mono leaf is standard but ca be swapped for a classic mulit leaf. All springs have “poly ride” sliders installed for smooth operation.  Springs are assembled with a stainless clamp. 37-41 Ford “juice” spindles are included standard along with 11″ Mopar disc brakes. Kingpins are fitted and assembled.  Ford 5x 4.50″ lug pattern standard. Chevy available. The 4 bar style system can be swapped to more traditional hair pins for no cost. Brake pedal and hard lines are plumbed with prop valve and includes braided flex lines. The rear is hung on a parallel 4 link system with panhard bar and steel All American coil over shocks. Total Cost Involved uses only brand new Currie Ford 9″ style axles. It will include a new noduaAlr iron 3rd member, open style dif, your choice of gears, 31 spline street/strip axles and 11″ drum brakes w/park brake.

SHIPPING BY TRUCK FREIGHT QUOTED AT THE TIME YOUR CHASSIS IS READY! SHIPPING IS NOT FREE!

All TCI products are 100% made in the USA!



  • Summary
  • Details
  • Review

Description

TCI 28 29 30 31 Model A Ford Solid Axle Complete Chassis

Reviews

There are no reviews yet.

Be the first to review “TCI 28-31 Model A Ford Drop Axle Complete Chassis”

Your email address will not be published.

Custom Chasssis Stretch – Got a hemi or?

Front Drop Axle Options

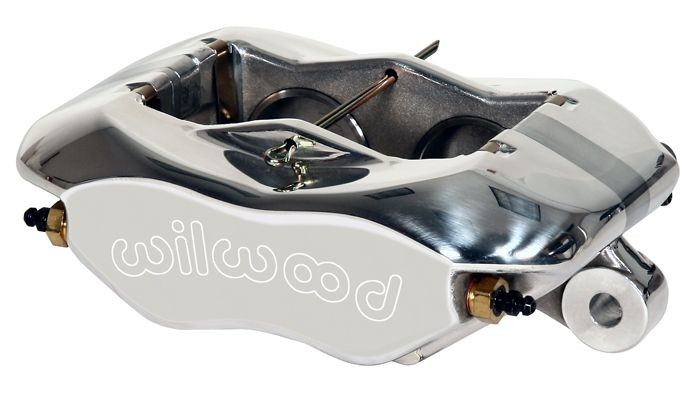

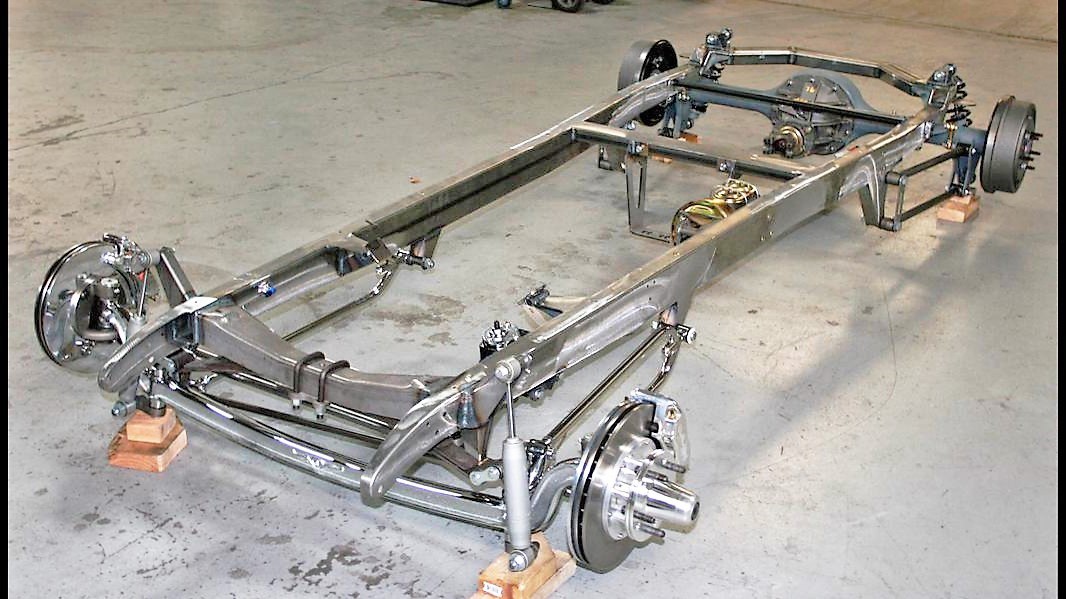

SHOW PREMIUM POLISH AND CHROME EVERYTHING! THIS IS THE BEST DEAL GOING. INCLUDES WILWOOD BRAKE UPGRADE – SEE OPT. 2

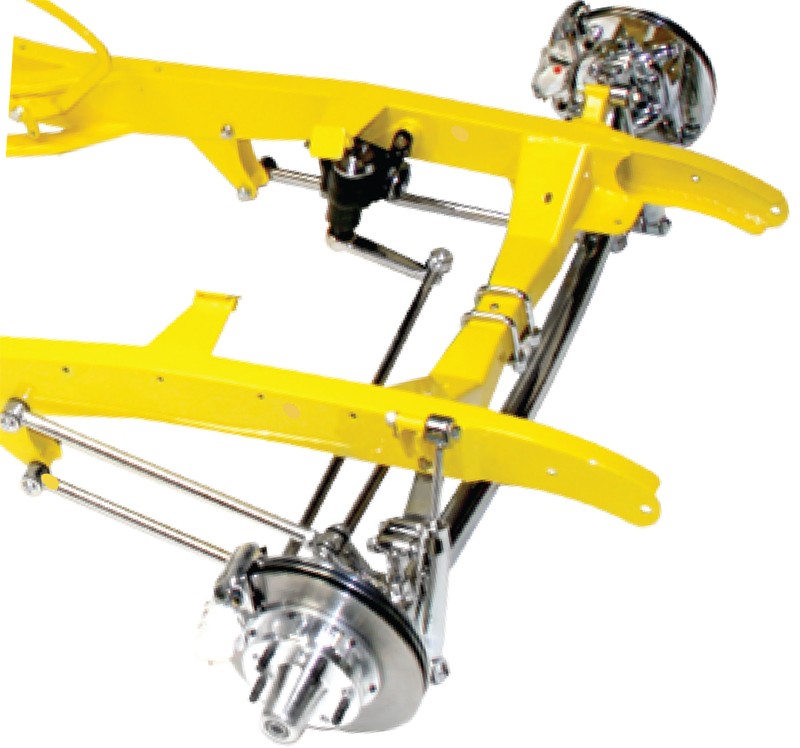

Choose Your Front Bars – Traditional Radius Rods or Parallel 4 Bar *

Choose Spring Type Mono Spring or Multi-Leaf Spring *

Select Your Lug Pattern – Required *

Brake & Clutch Pedal Optoins – Power Pedal Is Standard

Upgrade Steering To Manual Rack

Front Disc Brake Upgrades

Upgrade Hard Brake Lines From Steel To Stainless

Upgrade Rear Coil Over Shocks

Rear Axle Options – Base carrier is open style

Upgrade Rear Drum Brakes

Add A Rear Sway Bar

Product price
Additional options total:
Order total:
