TCI 35-40 & 41PU Ford Mustang II IFS Front Suspension Kit

PN: 204-2352-00

$2,755.00

Untitled document

Total Cost Involved TCI 42-48 Ford M-II InstructionsSPECIALFREE BRAIDED LINES!



NEW SOLID ALIGNMENT SYSTEM! DISCOUNT PRICING AND THE MOST FREE UPGRADES!

  • FREE 2″ DROP SPINDLES
  • FREE 1″ SWAY BAR
  • CPP BIG BORE SINGLE PISTON CALIPERS
  • FREE BRAIDED BRAKE HOSES
  • FREE SHIPPING



PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON BOTH PLUS MORE UPGRADES!

All TCI STOCKED ACCESSORIES SHIP FOR FREE WHEN ORDERED AT THE SAME TIME! SAVE BIG ON HEADERS, COLUMNS, BOOSTER BRACKETS ETC!



Why buy a Mustang II IFS? CLICK HERE!

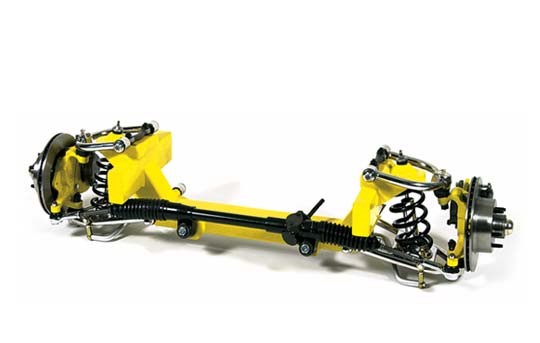

 TCI 35-40 Ford Car 35-41 Ford Truck Mustang II IFS Front Suspension Kit

 M-II Crossmember: Custom designed per application; includes laser cut boxing plate. Crossmember is made of 3/16″ laser cut U.S. steel plate, TIG welded in-house, Heavy 1.25″ gusted lower A arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are welded in place. Spring towers need to be welded in place.

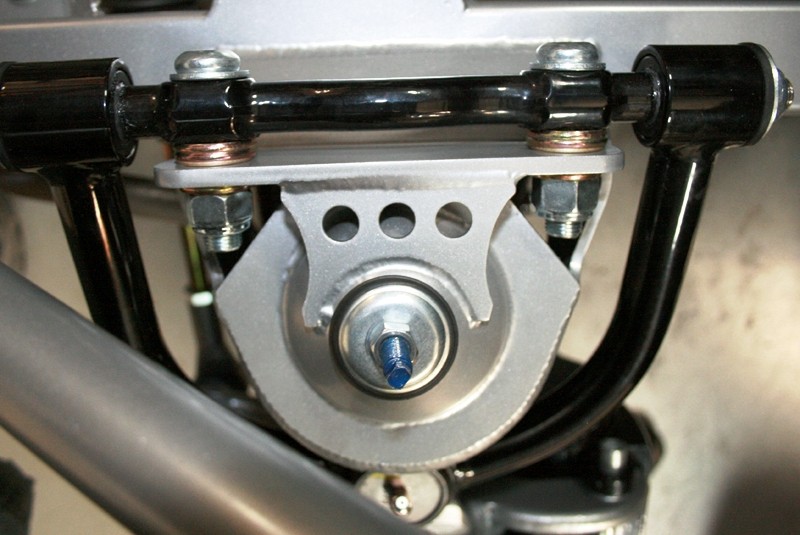

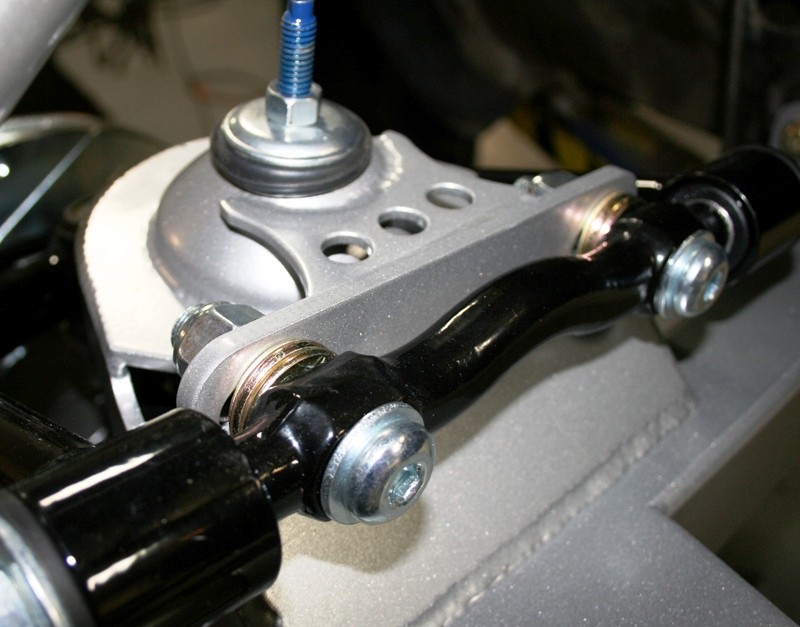

Tubular Control Arms: Heavy duty 1″ DOM steel welded/formed in house. Indexed spring pockets, corrected spring angle. US made ball joints/Urethane bushings installed. Options include a “Coil Over Shock” design as well as a very affordable air bag set up.



Spindles: 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes for “screw in” type heavy duty ball joints. Stock height available as no cost swap.




Ford Car Kit Includes:
  • Kit Utilizes Your OEM Radiator
  • Custom Weld In Crossmember
  • Forged Drop or Stock Height Spindles
  • Weld In Spring Towers
  • Boxing Plate
  • Heavy Wall Tubular Control Arms
  • Black Powder Coated 350# Springs and Painted Steel Gas Shocks

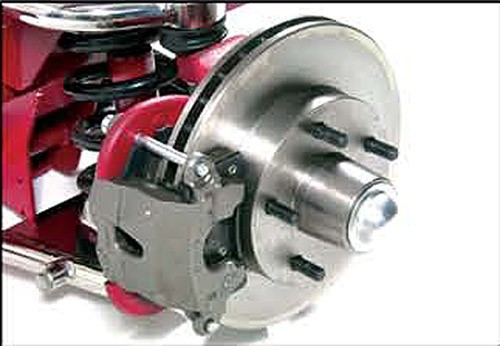

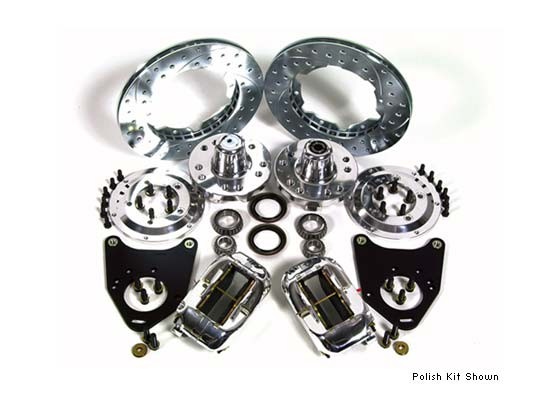

  • Assembled 11″ GM  Disc Brakes w/CPP Large Single Piston Calipers
  • New Manual Rack and Pinion

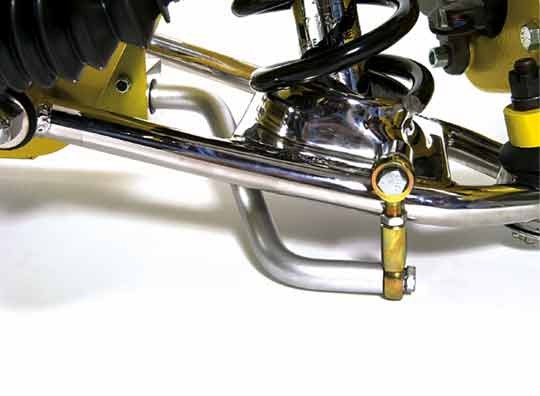

  • 1″ Sway Bar w/Heim Style Drop Links
  • All Hardware and Detailed Instructions
  • 5x 4.50″ Ford Bolt Pattern Standard


SCROLL DOWN! Powder coating, polishing and many hardware options available below

  • Summary
  • Details
  • Review

Description

TCI 42 46 47 48 Ford Car Mustang II IFS Front Suspension Kit – From Total Cost Involved



Additional information

Weight 150 lbs

Choose Your Spindles - REQUIRED!

TELL US ABOUT YOUR TRUCK - REQUIRED!

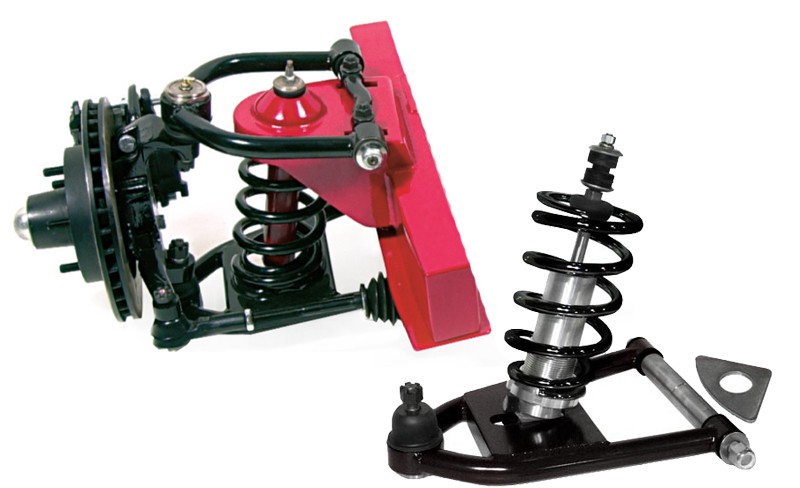

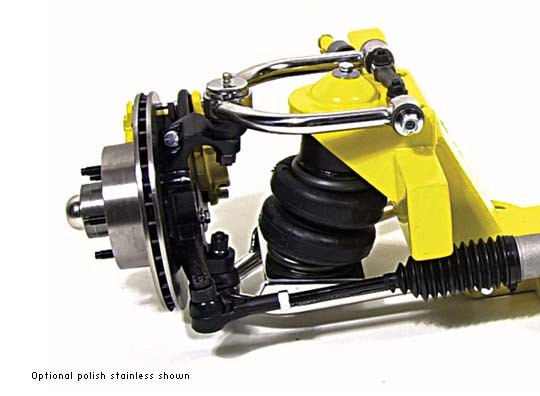

Change To RideTech Coil Over Shocks or Air Bags

Rack & Pinion Options

Coil Spring Options

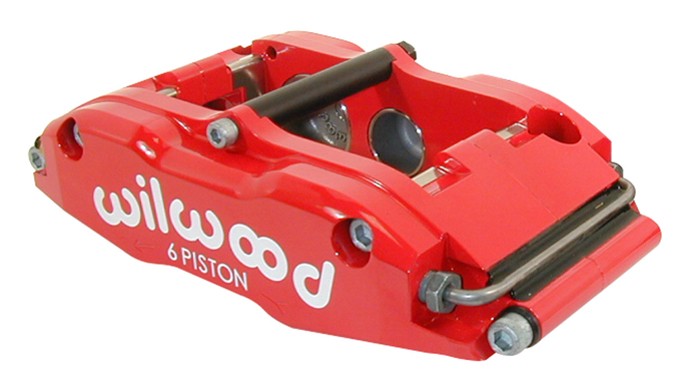

Disc Brake Upgrade

Power Steering Hose Kit With Flow Valve, Fittings, Braided Hose

Add Braided Steel Brake Lines

Trans & Engine Mounts - Check All That Apply

Add A TCI Under Floor Power Brake Pedal

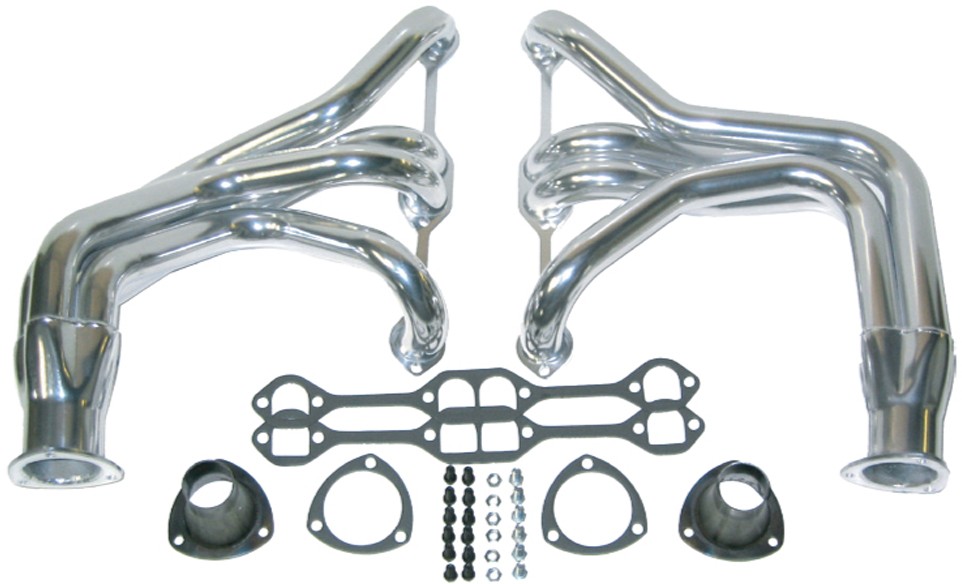

Add TCI Ceramic Coated Full Length Headers

Product price: $2,755.00
Total options:
Order total:
