TCI 35-41 Ford Car & PU Complete Chassis

PN: 101-1225-00

$14,508.00



FAB QUEST HONORS ALL CURRENT TCI SPECIALS!

CALL FOR QUOTE SO WE CAN APPLY ANY SPECIALS!

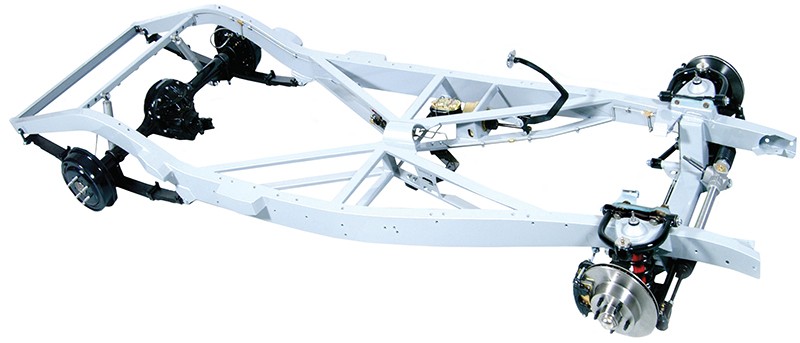

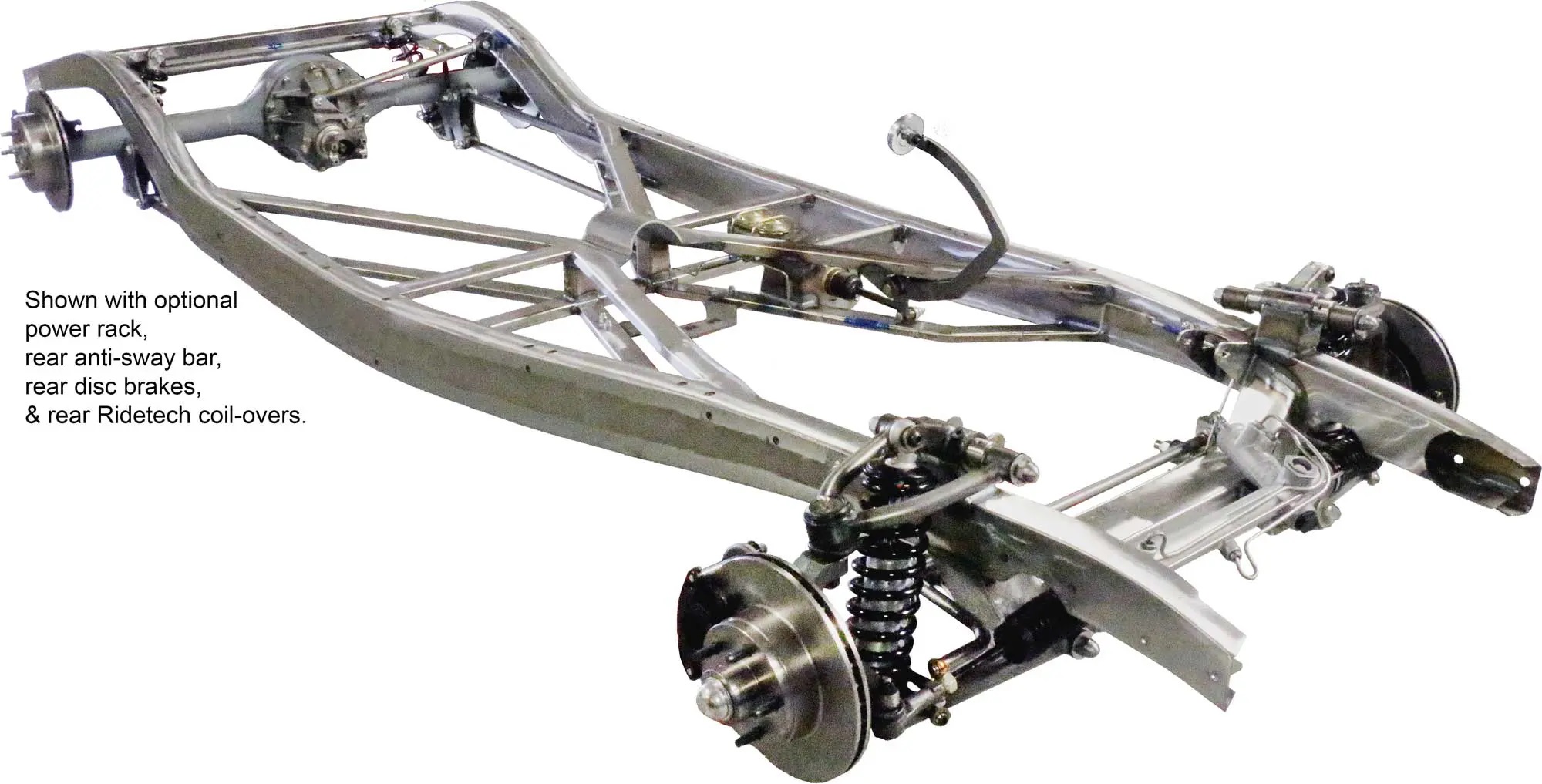

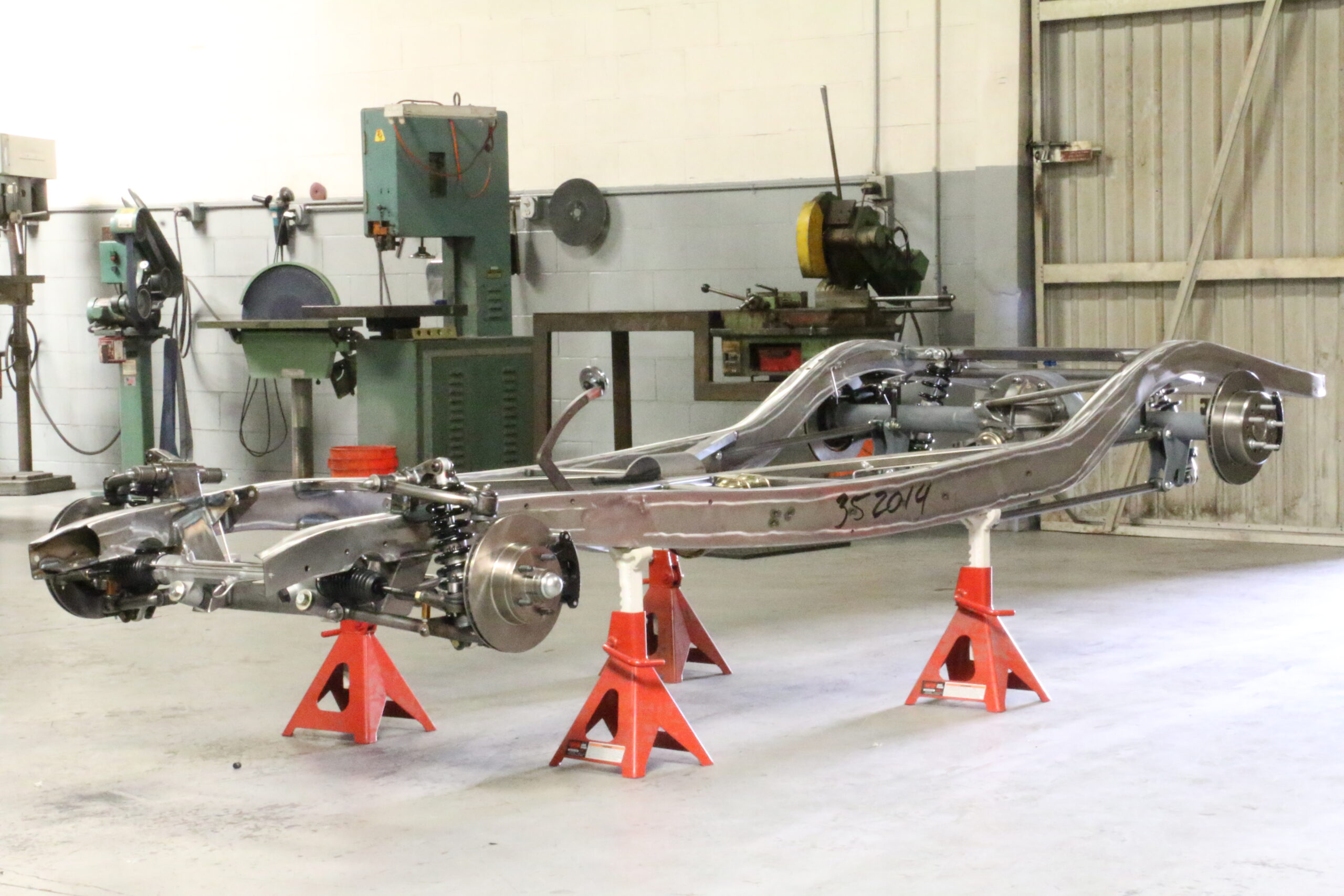

TCI 35-40 Ford Car, 35-41 Ford Truck Complete Chassis w/Mustang II IFS or Custom IFS Front End

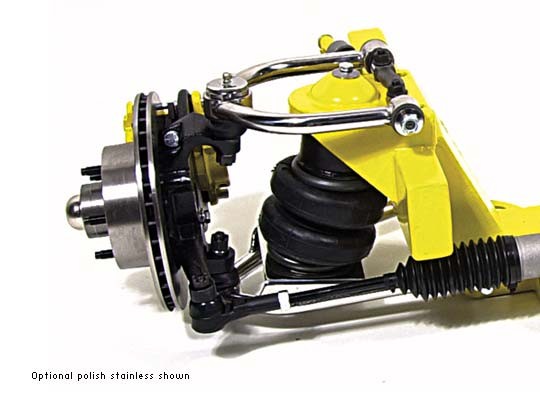

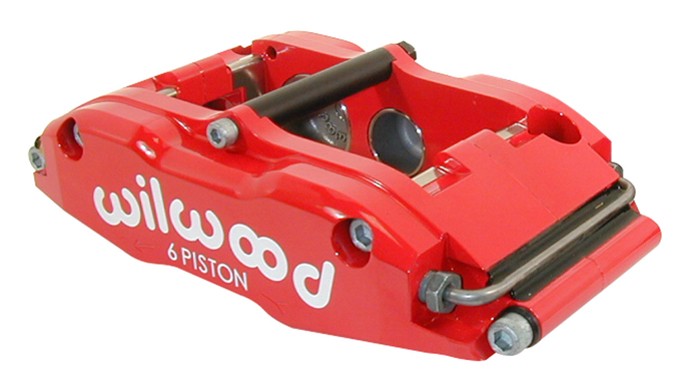

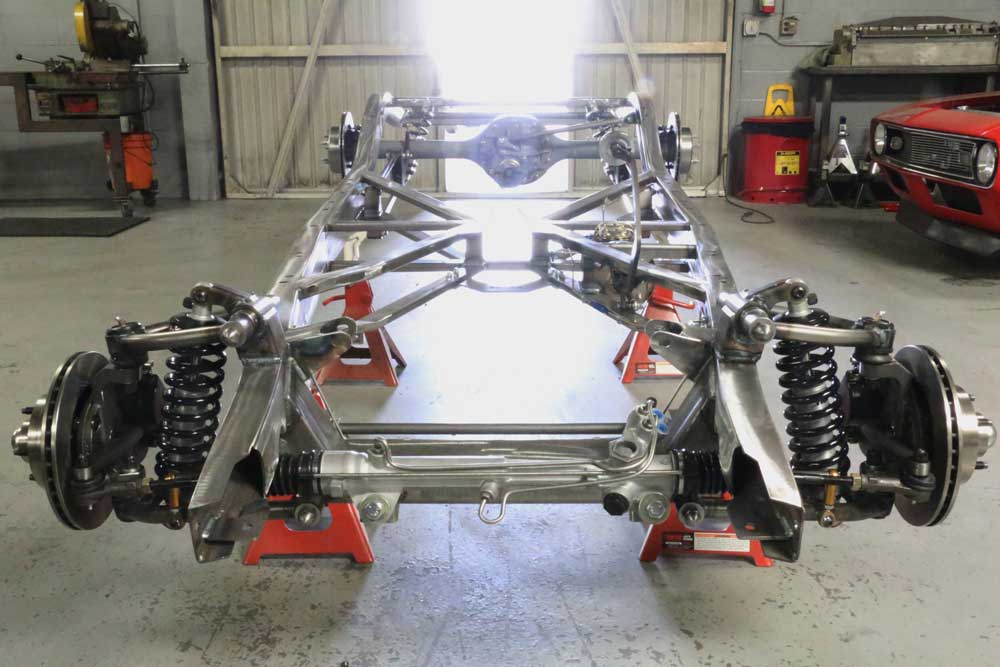

Chassis starting price includes an M-II front IFS and rear leaf spring suspension. Upgrading to the custom IFS changes the front cross member to a 1 piece unit designed for coil over shocks. Billet RodeTech Single Adjust coil overs are included with the upgrade. Options include choice of spindle, air bags on the M-II, Shockwaves on the custom IFS, upgrade to stainless hard brake lines (installed) and a combo power brake pedal with hydraulic clutch pedal. A custom mount is required to accommodate the hydraulic clutch pedal bracket. Many Wilwood brake options. The 11″ brake rotors can be ordered with a 5x 4.50″ or 4.75″ lug pattern. Wilwood brakes are dual pattern 5x 4.5″ or 5x 4.75″ only. For massive rear tires call for a Pro Street rear frame pinch quote. The frame will be built to accommodate your tire/ wheel combo.



ALL STARTING CHASSIS PRICING INCLUDE THE FOLLOWING:

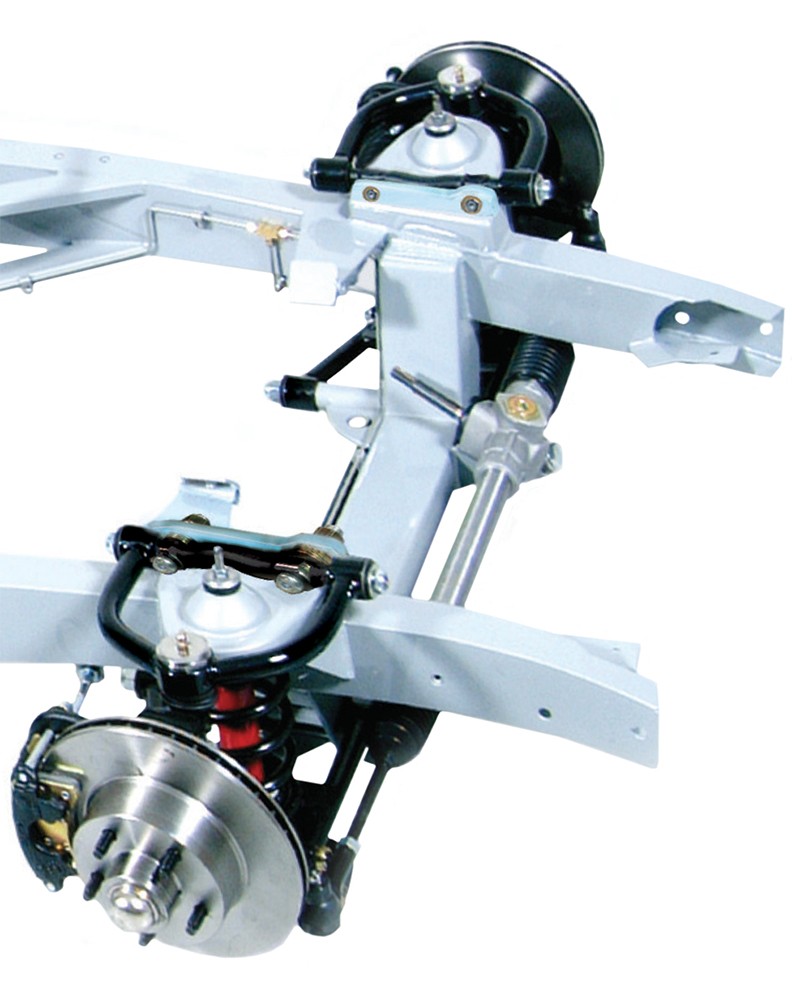

  • TCI Mustang II IFS Front End
  • Stock or Drop Forged Spindles
  • Kit Utilizes Your OEM Radiator
  • Body Mounts Included
  • Fully Boxed Steel Frame Fixture Welded In House
  • Custom “Space Frame” X Member” For Through Frame Exhaust

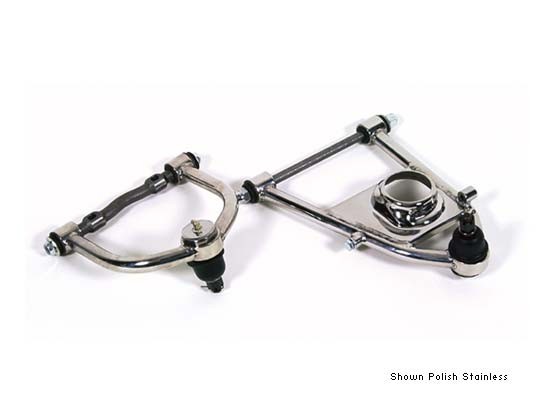

  • Heavy Wall Tubular Control Arms
  • SB/BB/LS Engine Mount Options
  • Trans Mount Included
  • Black Powder Coated Springs and Painted Steel Gas Rear Shocks

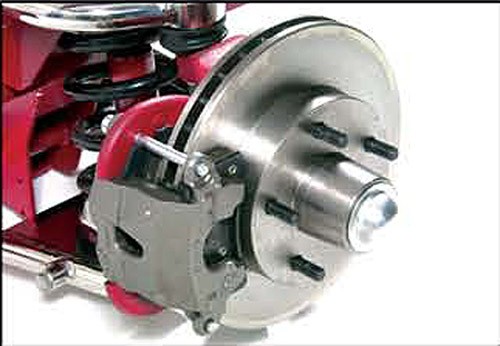

  • Assembled Front 11″ GM Disc Brakes w/ CPP Large Iron Calipers
  • Rear 12″ Disc Brakes, Single Piston Iron Caliper w/ Internal Park Brake
  • New Manual Rack and Pinion
  • Rear Leaf Spring Suspension
  • New Currie Ford 9″ Axle w/Nodular Iron 3rd Member, 31 Spline Shafts12″
  • Under Floor Complete Power Brake Kit w/Pedal, Booster etc.Installed
  • All Brake Hard Lines and Flex Lines Plumbed – Requires Stainless Hartline Upgrade
  • All Hardware and Detailed Instructions
  • 5x 4.50″ Ford Bolt Pattern Standard, Chevy Available


Freight is extra and will be quoted/charged when the chassis is ready to ship!!



SCROLL DOWN to build your chassis. Many hardware options available below.

  • Summary
  • Details
  • Review

Additional information

Weight 215 lbs

Tell Us About Your Vehicle

Upgrade From Mustang II To Custom IFS Front End With 1 Piece Front Cross Member & Ectric Alignment System

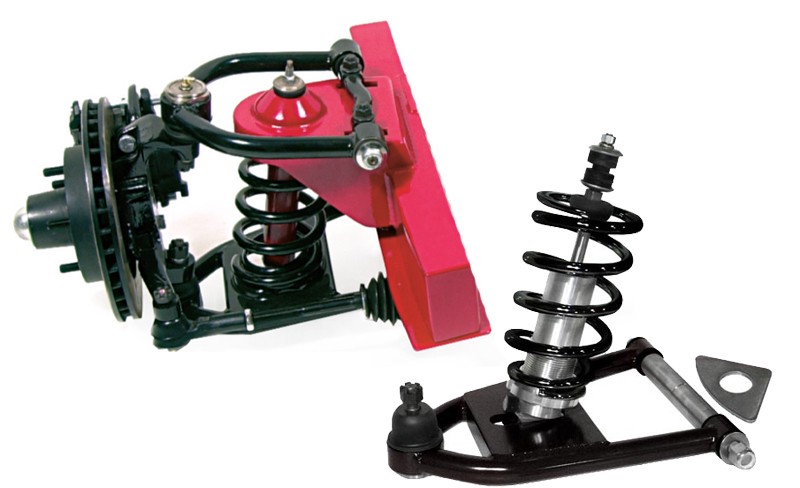

M-II Option Only - Change To "Coil Over" Style Shocks

Coil Spring Options - M-II and Custom IFS

Show Packages & Raw Control Arm and Shock Upgrade

Please Choose A Spindle - Applies to both M-II or Custom IFS front ends

Choose Your Lug Pattern - 5X 4.50" Standard

Steering Rack Options

Add Engine Brackets - Will Be Welded In Place

Choose Your Brake / Clutch Pedal

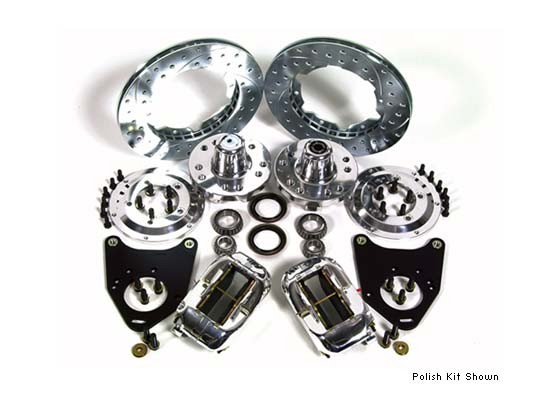

Front Disc Brake Upgrade

Rear Brake Options

Choose Your Brake Hard Lines

Braided Steel Brake Lines

Choose Your Gears

Upgrade Open Dif to Posi

Rear Sway Bar
