TCI 47-54 Chevy Pickup Truck Mustang II IFS Front Suspension Kit

$2,755.00

(0) Review this Product



 NEW SOLID ALIGNMENT SYSTEM! DISCOUNT PRICING AND THE MOST FREE UPGRADES!Total Cost Involved 47-54 Chevy Truck Mustang II Front End

  • FREE 2″ DROP SPINDLES
  • FREE 1″ SWAY BAR
  • CPP BIG BORE SINGLE PISTON CALIPERS
  • FREE SHIPPING



PURCHASE A FRONT AND REAR KIT AND RECEIVE FREE SHIPPING ON BOTH PLUS MORE UPGRADES!



Why buy a Mustang II IFS? CLICK HERE!

Application: 47-54 Chevy PU Trucks

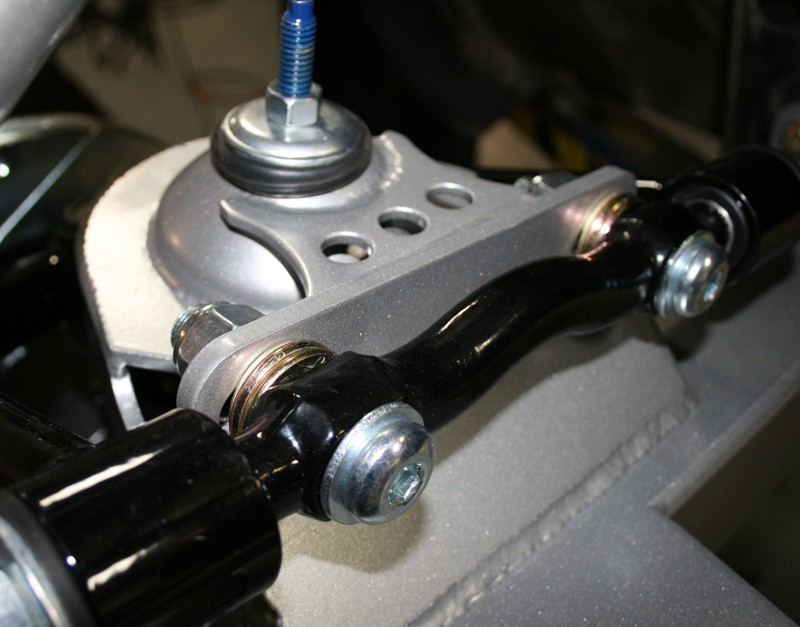

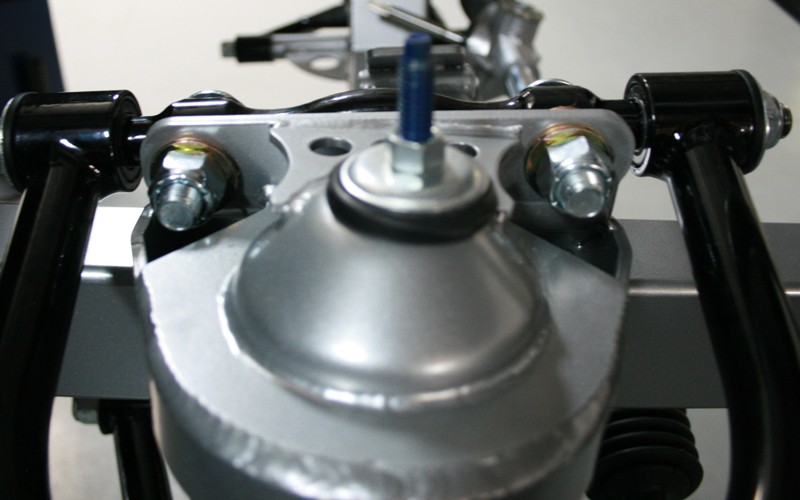

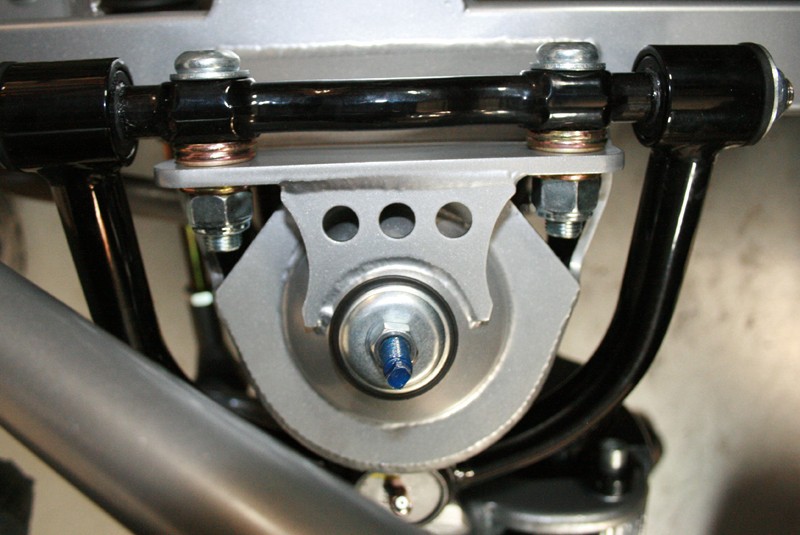

Total Cost Involved just released their updated Mustang II IFS that now uses a fixed upper spring tower block for alignment. NO MORE T-BOLTS! TCI’s new system uses washers between the upper cross shaft bolted in a horizontal fashion. Its completely rock solid and good looking. No other M-II kit even comes close! Pics to your left.

 M-II Crossmember: Custom designed per application, 3/16″ laser cut plate, TIG welded in-house, Heavy 1.25″ gusted lower A arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are welded in place. Boxing plate is included in kits that need it.

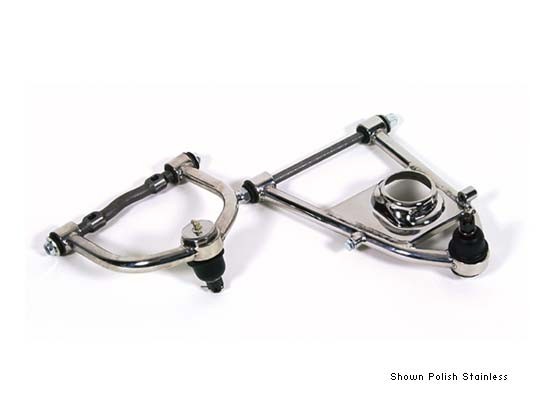

Tubular Control Arms: Heavy duty 5/8″ narrowed 1″ DOM steel welded/formed in house. Indexed spring pockets, corrected spring angle. US made ball joints/Urethane bushings installed. Options include Stainless Steel, a “Coil Over Shock” design as well as a very affordable air spring set up.



Spindles: 2″ forged drop spindles standard, stock height available. CNC machined “in house” with tapered holes for “screw in” type heavy duty ball joints. OEM attachment points and bolt patterns so that stock Mustang II components can be used. Stock height available as no cost swap.






Chevy Pick Up Kit Details:
  • New Alignment System Included
  • Kit Utilizes Your OEM Radiator Suppport
  • 3/8″ Narrowed  Tube Arms
  • Forged Spindles Drop or Stock Height
  • Black Powder Coated 350# Springs and Painted Steel Gas Shocks

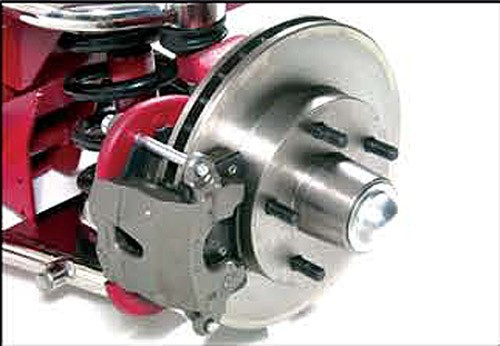

  • Assembled 11″ GM  Disc Brakes w/CPP Large Calipers
  • New Manual Rack and Pinion

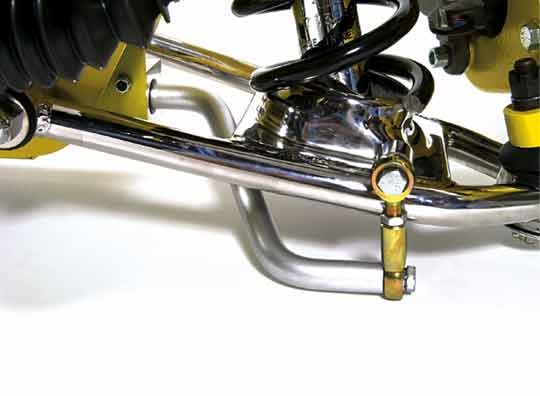

  • 1″ Sway Bar w/Heim Style Drop Links
  • Boxing Plate Specific For Your Truck
  • All Hardware and Detailed Instructions
  • 5x 4.75″ Chevy Bolt Pattern Standard



SCROLL DOWN! Powder coating, polishing and many hardware options available below.

All TCI accessories ship for FREE with IFS purchase!

  • Summary
  • Details
  • Review

Description



TCI 47 48 49 50 51 52 53 54 Chevy Pickup Truck Mustang II IFS Front Suspension Kit



Additional information

Weight 150 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 47-54 Chevy Pickup Truck Mustang II IFS Front Suspension Kit”

Your email address will not be published.

Swap to Stock Spindles

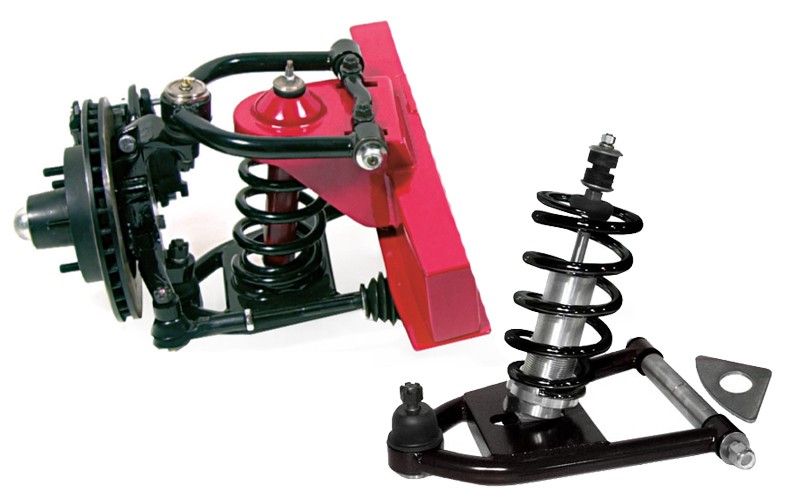

Change To "Coil Over" Style Shocks

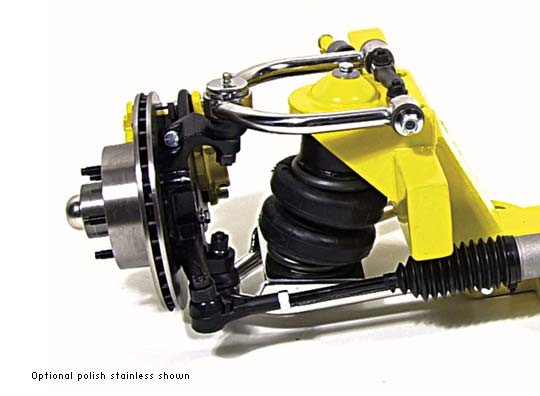

SUPER DEAL! GoodYear Air Spring Upgrade

Coil Spring Options

Rack Options

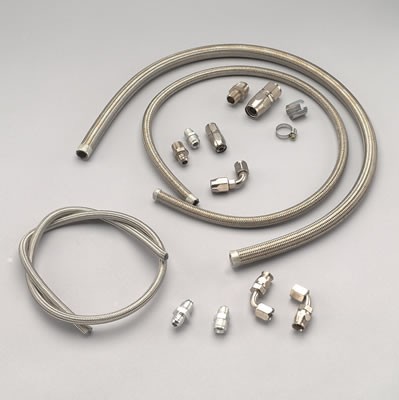

Braided Power Steering Line Kit

Truck Wheel Lug Pattern Options

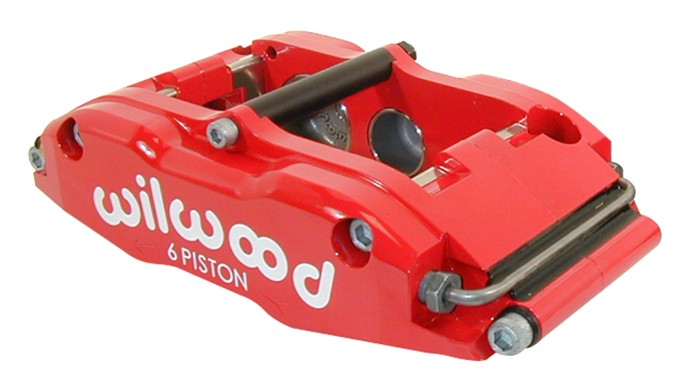

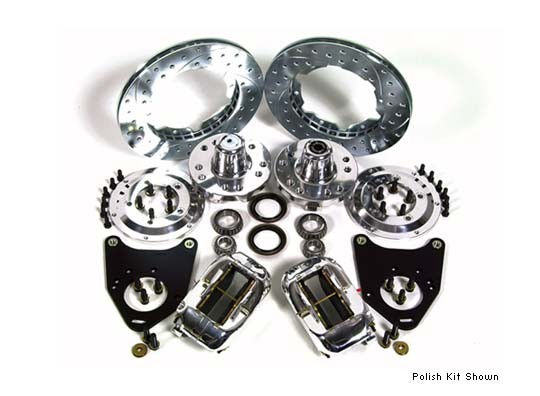

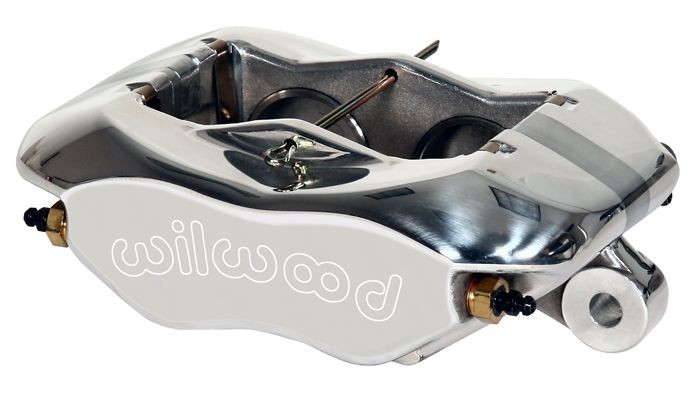

Disc Brake Upgrade

Add Braided Steel Brake Lines

Bolt In Tube Style Transmission Crossmember – Most Manual and Auto

Weld In Engine Mounts – Uses OE Style Motor Mounts – BB or SB – FOR LS ORDER THIS AND BELOW BRACKET SET!

LS Engine Mount Bracets, Urethane Insulators and Hardware – Bolts to Weld On Engine Mounts Above. Order Both!

Add A TCI Power Brake Pedal – For Stock Frames

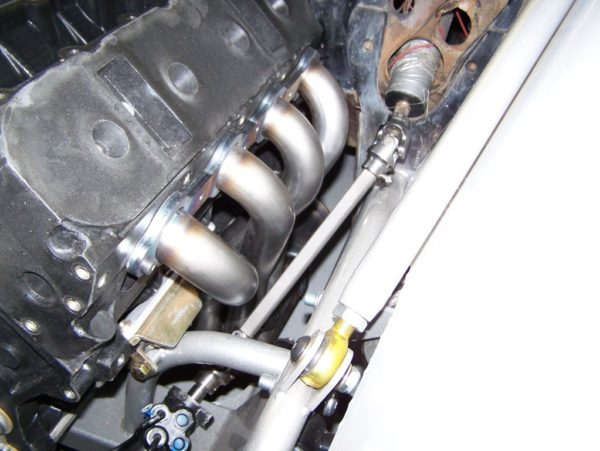

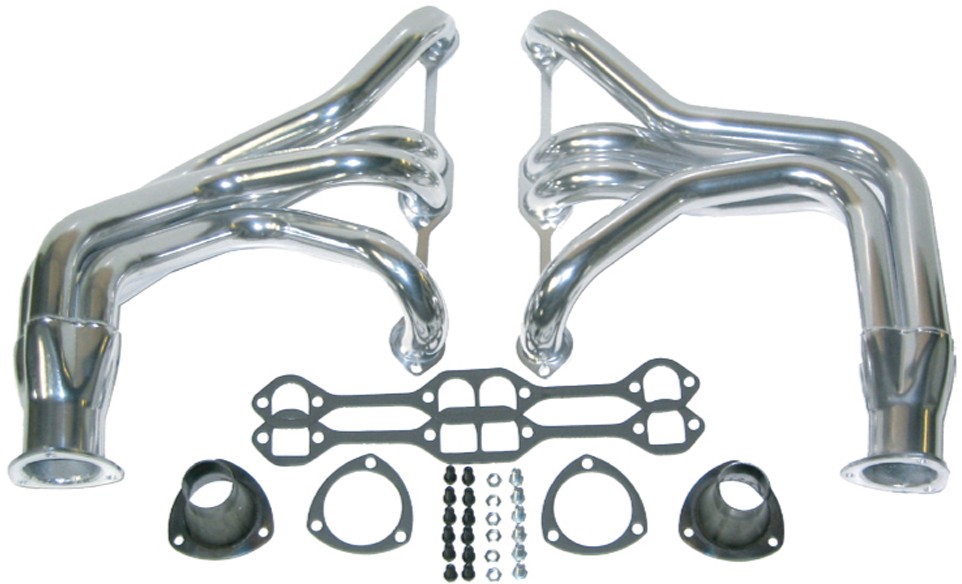

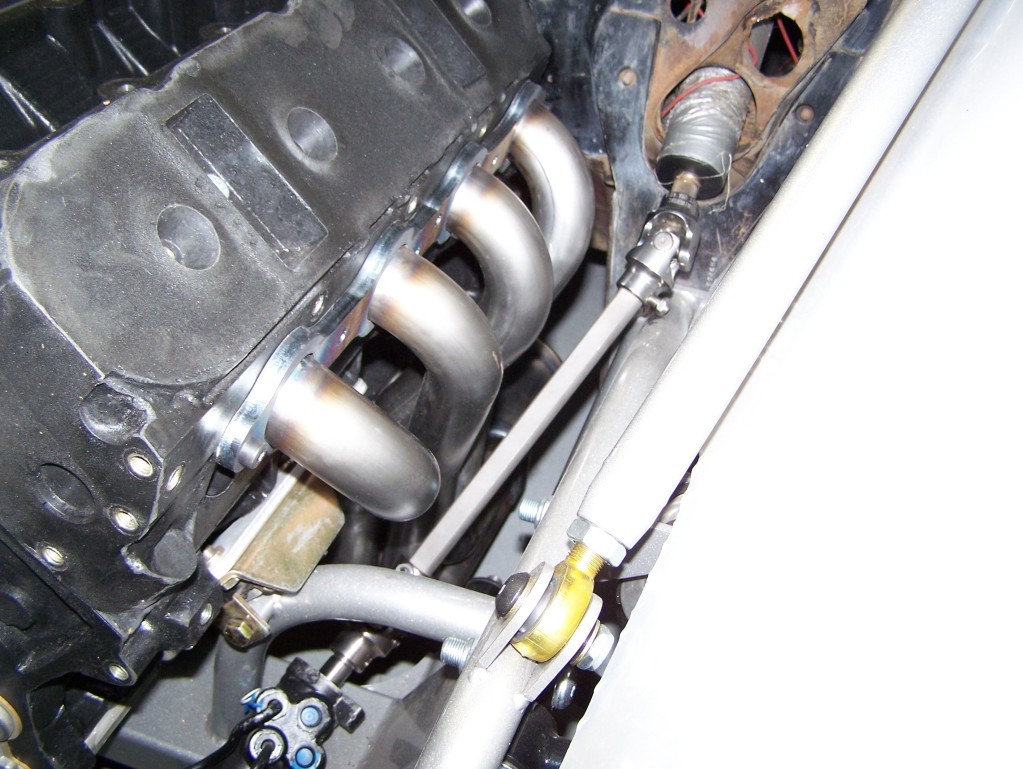

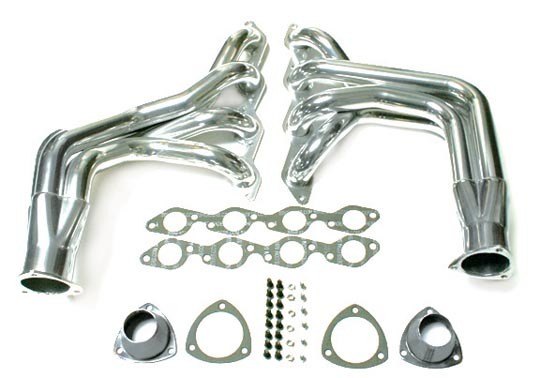

TCI Ceramic Coated Full Length Headers

Product price
Additional options total:
Order total:
