Description: Universal M-II Coil Spring/Control Arm Top Hats

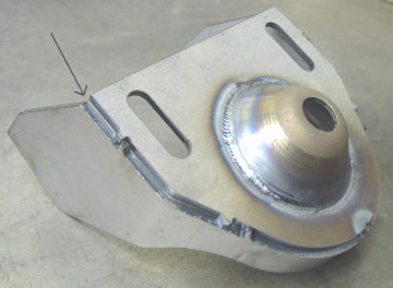

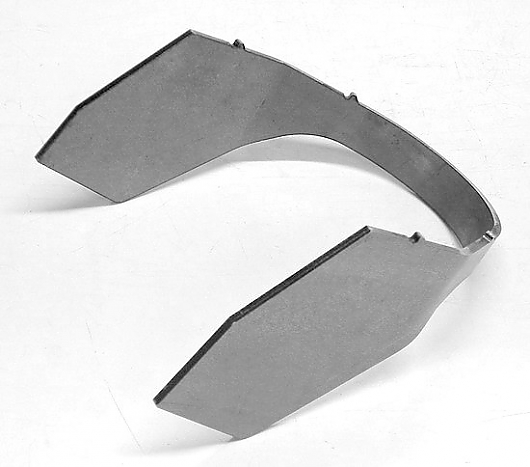

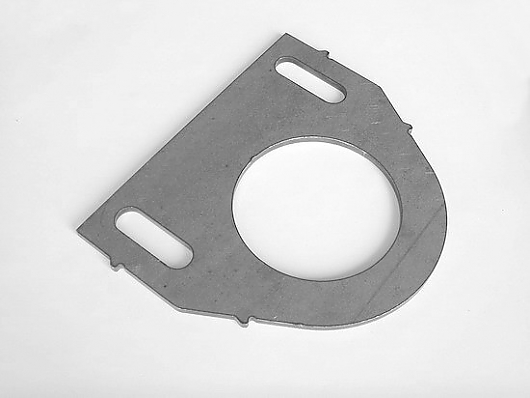

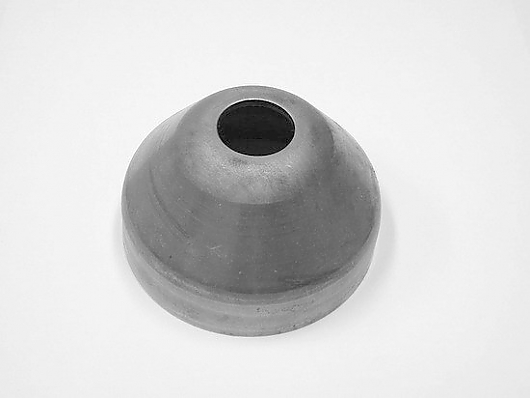

This kit comes with 3 separate pieces (2 each, 6 total) that make up a complete upper spring retainer with the slots to mount the upper M-II style control arms. You get the top plate with laser cut slots for control arm T-bolts (not included), the upper tower wrap plate plus the drop in cone which centers the spring inside the hat plus mounts the upper shocks threaded rod in its center hole. The wrap plates are left and right thus incorporating the anti-dive geometry. These pieces are formed but not welded together. Welded option below. There is plenty of “meat” on the wraps to fit them to your cross member. I.E. in/ out or up/ and down…trim to fit.
Kit starting price is for 6 un-welded pieces that wil produce 2 complete spring hat assembly’s’. Made of US 3/16″ thick steel.
