GM Universal Aluminum Hot Rod Master Cylinder Manual or Power

PN: C1312A


Application: Universal or GM Power Boosters, Direct Firewall Mount for Manual Brakes, or Frame Mount – Any Make of Car or Truck

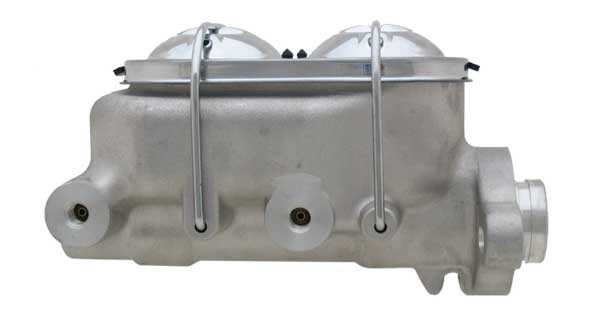

GM Corvette Style Aluminum Hot Rod Master Cylinder Manual or Power: This 1″ bore dual reservoir MC has easy to plum 3/8″ ports front and rear on both sides for a truly universal fit. This unit is cast out of corrosion resistant aluminum and comes in 8 lbs lighter vs. the original cast iron version. Will reduce firewall loads as well provide a non-corrosive unit for under the floor applications Ships “as cast” aluminum just like the original.

MC is a deep bore with removable “bullet” adapter to so that it works with brake boosters (with adapter) or manual brakes (no adapter).

Also available in a show chrome. Matching prop valve kits for disc/drum and disc/disc brakes are available below. Choose an aluminum prop vavle kit (includes chrome bracket and stainless small hard lines) to maintain an inexpensive but non-corrosive complete conversion. Adjustable prop vavles available under the “Brakes Master Cylinders, Prop Valves” catigory above on red bar.

  • Summary
  • Details
  • Review

Additional information

Weight 5 lbs

Add Residual Valves

Upgrade To Show Chromed Aluminum MC

Add A Proportioning Valve Kit - Be Sure To Note Location Choice and Disc/Drum Or Disc/Disc Further Down!!!

If Purchasing a Prop Valve Kit Please Select Desired Valve Placement And Brake Configuration

Product price: $99.00
