Under Dash, Reverse Swing, Forged “Super Pedal” Brake and Clutch Triple Master Conversion Kit w/Adjustable Pads

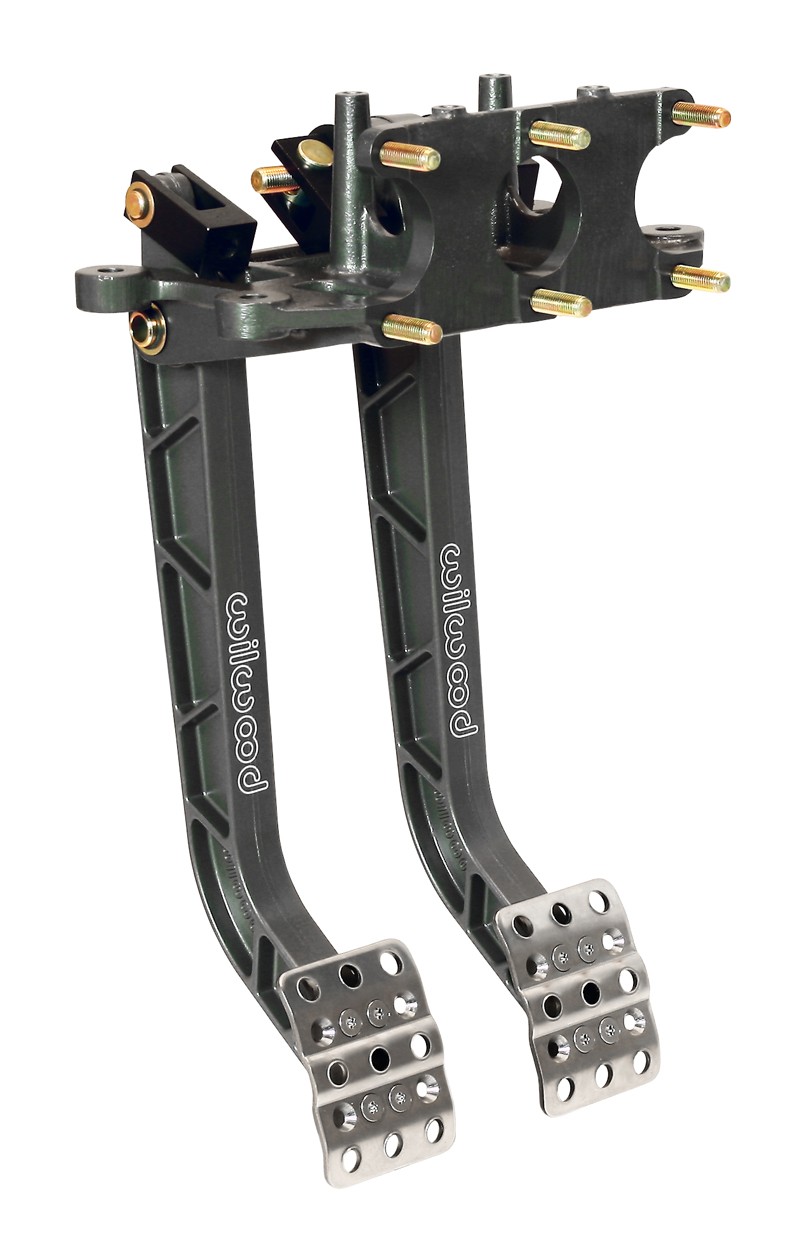

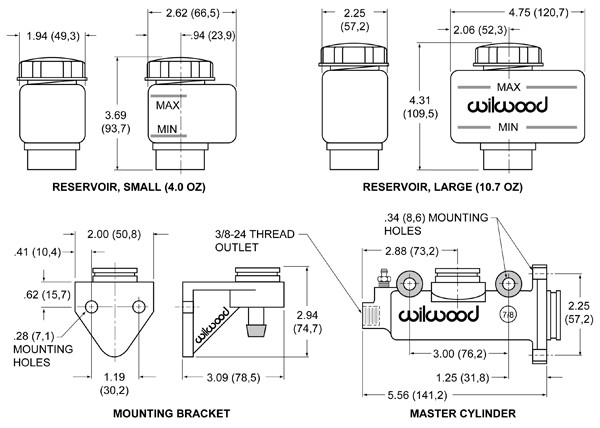

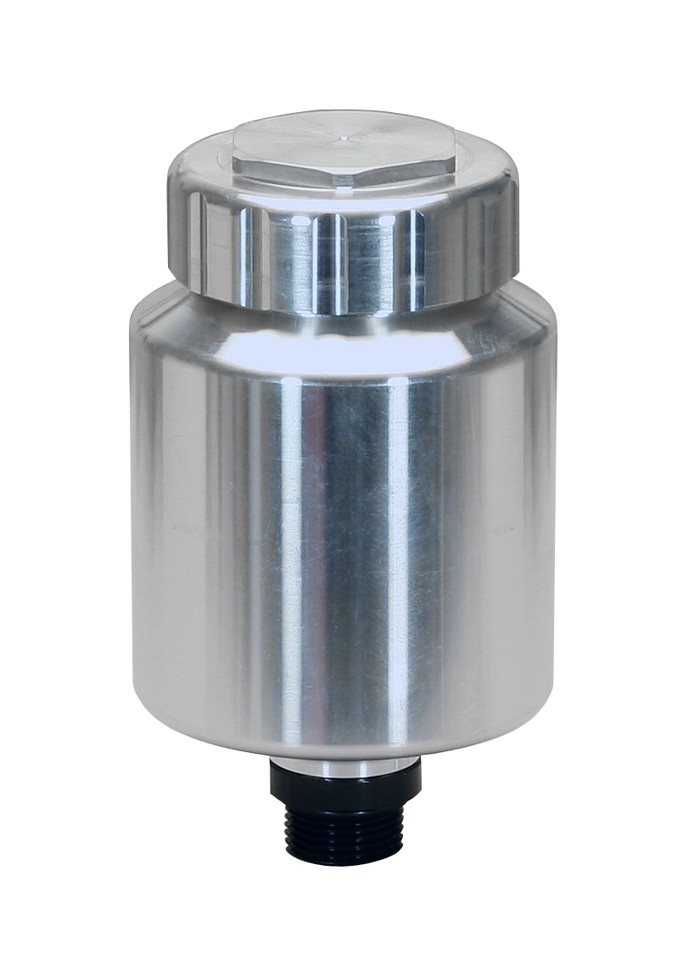

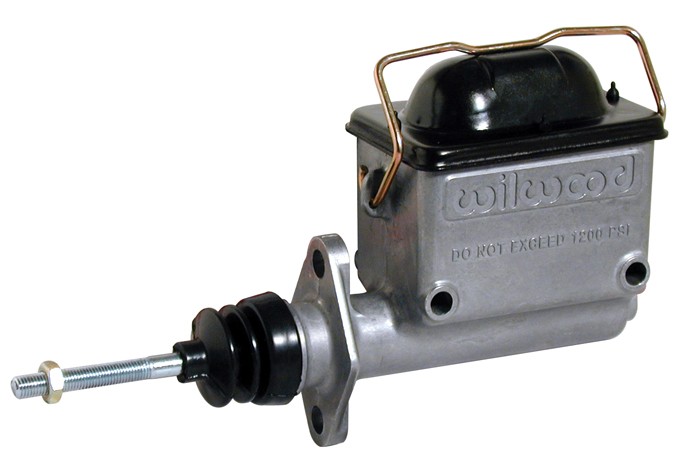

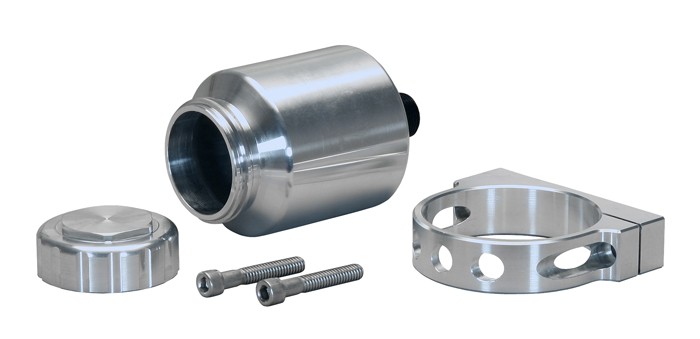

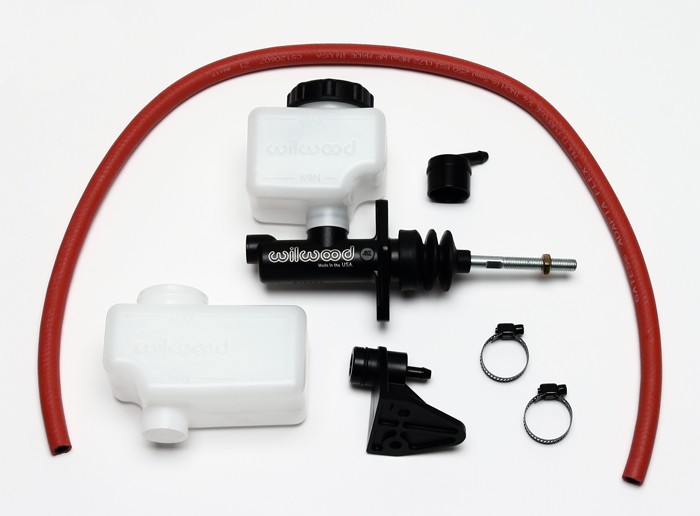

Under Dash Wilwood “Super Pedal” Brake & Clutch Pedal Kit- Forged Arms: The difference between this pedal and the standard Super Pedal is that everything mounts under the dash, the arms are forged vs. cast and this unit has adjustable foot pads. Included MC’s are the all aluminum High Volume units. Combination MC’s are available as option and highly recommended. They come with 2 plastic reservoirs and hoses for both “on unit” mounting or remote mounting. When mounting under the dash the combination remote reservoirs are desirable. Spun aluminum remote mount reservoirs with hoses and brackets available below. The compact remote MC must be chosen to use the aluminum reservoirs.
This is the best solution available for strong braking power without using any kind of brake assist such as a vacuum power booster or the very ugly hydro boost system. By using 2 small manual race quality master cylinders this Wilwood pedal creates line pressures equal to or greater than assisted systems. You also gain tremendous brake “feel” and the safety of never losing your brakes because of engine failure. Each master is sized and dedicated to either the front or rear circuit. This system is compatible with single or multiple piston calipers of all designs. They are adjustable for front/rear bias by adjusting with the patented Wilwood balance bar system. This is a very simple pedal mounted adjuster. The attractive aluminum master cylinders protrude only 5″ into your under dash space and are quite narrow. They come with bail release black aluminum tops. The entire 3.7 lb pedal assembly (sans MC’s) is fully anodized in Wilwood’s new Platinum-E color.

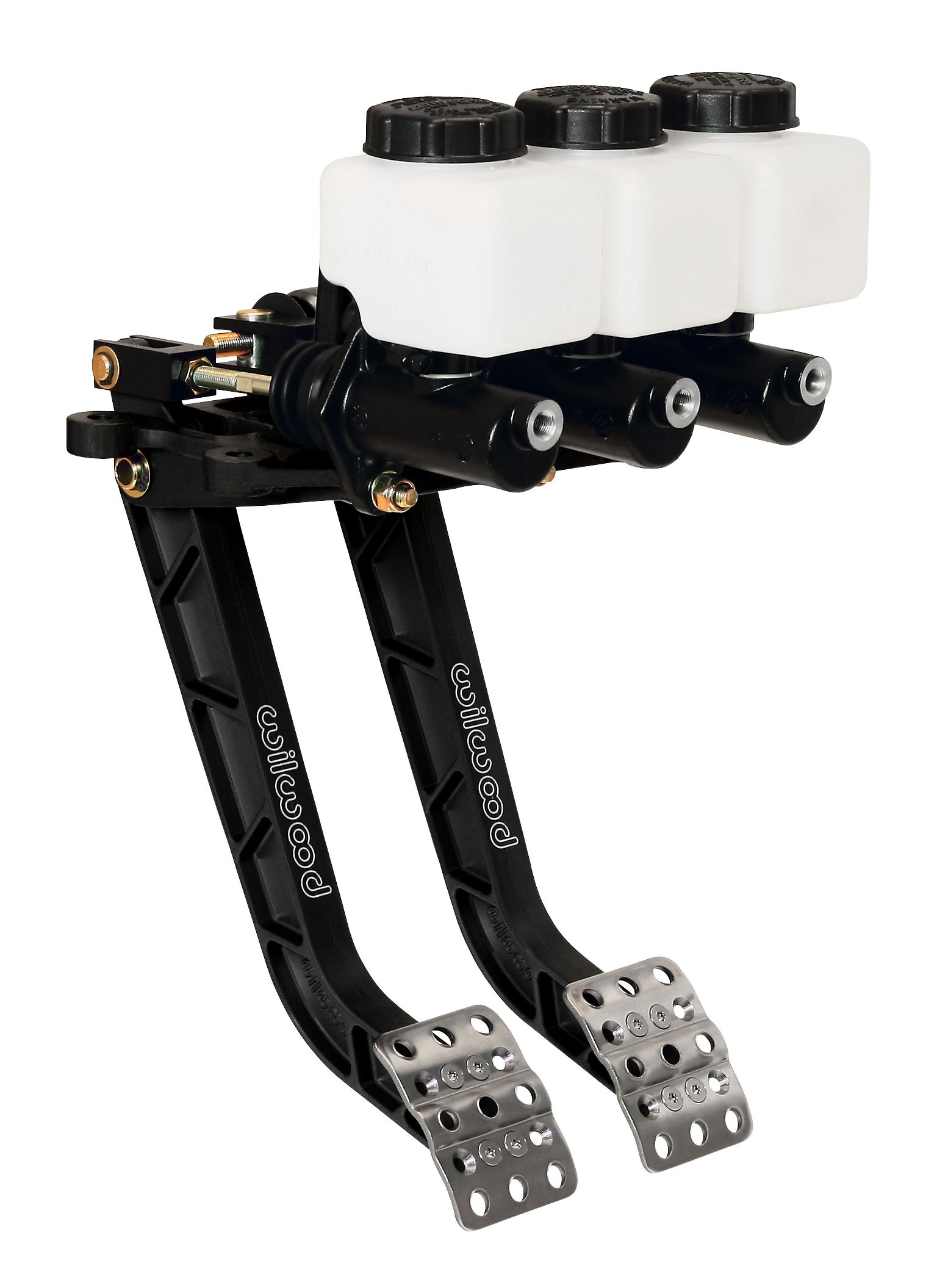

This dual pedal is our triple master cylinder model which incorporates a 3rd MC (same physical size and appearance as the other MC’s) for actuating a hydraulic clutch. It will work with both hydraulic throw out bearings or a typical slave cylinder. This is the simplest and easiest way to add a hydraulic clutch system.
This is a fantastic solution for those looking to:
- Eliminate engine bay intrusions
- Upgrade their braking to a race quality system that does not require power assist
- Replace their OE pedal with a lighter (only 3.7 lbs) adjustable aluminum unit
- Easily add a hydraulic clutch MC
- Improve the overall appearance of this often ugly equipment
- Forged heavy duty pedal arms
- Non slip adjustable pedal pads are included
Pedal mounts under dash only. It does not attach to the firewall! You will need to create some brackets to hang this under your dash. The pedal has 4 horizontal “ears” with bolt holes that are easily mounted to with angle iron etc. The pedal is made of very sturdy anodized aluminum and finished with a racy look. The pedal comes with adjustable non slip pads. Pedal ratios are a powerful 6.25:1 thus reducing leg fatigue. The clutch pedal is designed to operate performance/race style pressure plate systems. Pedal spacing will accommodate all steering column widths.

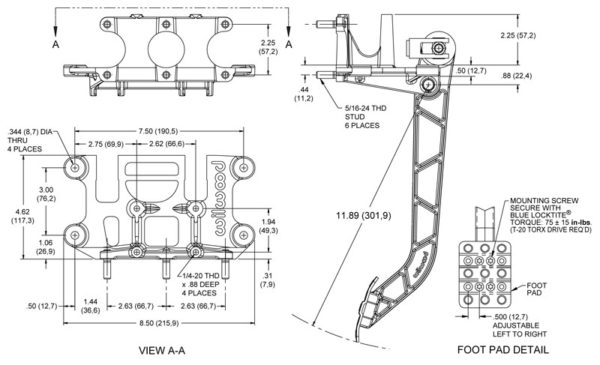

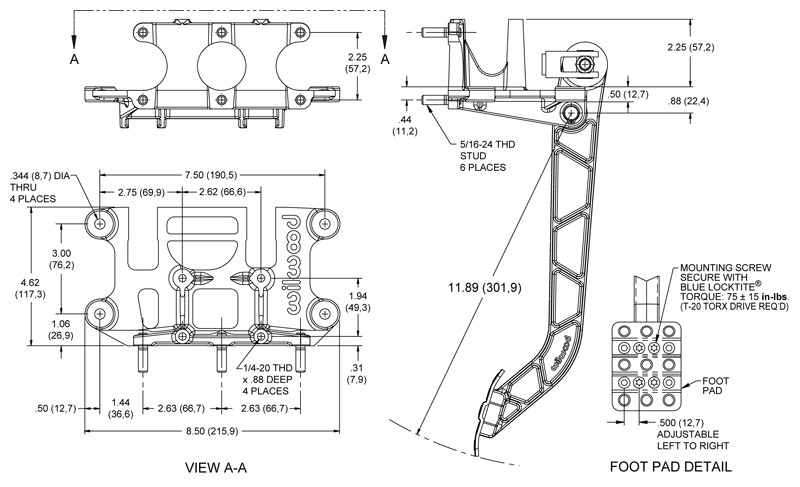

Pedal arm is 11.88″ long. Assembly mounted length is 12.21″ long. The bottom edge of the pedal pad sits approximately 7.5″ away form the firewall when in its relaxed position.
