Wilwood 55-57 Chevy 56 Corvette 12″ Rear Disc Brake Conversion OE Axle

PN: 140-11348



Application: 55 56 57 Chevy Full Size Car and 56 Corvette OE Axle    Wilwood Tri 5 Chevy Instructions


Not sure which axle you have? Click HERE

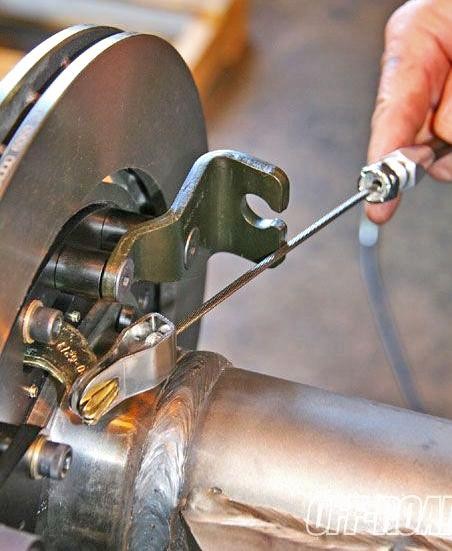

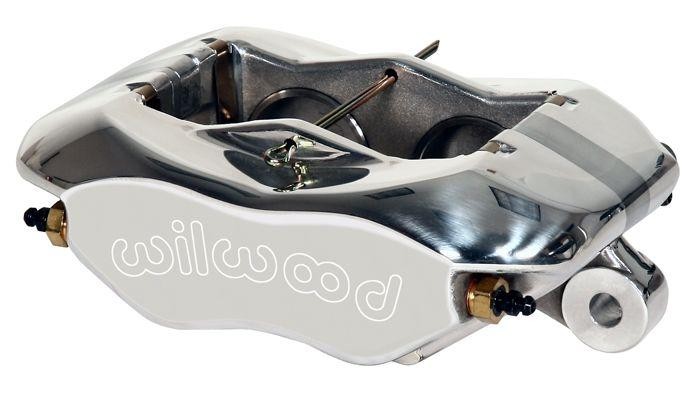

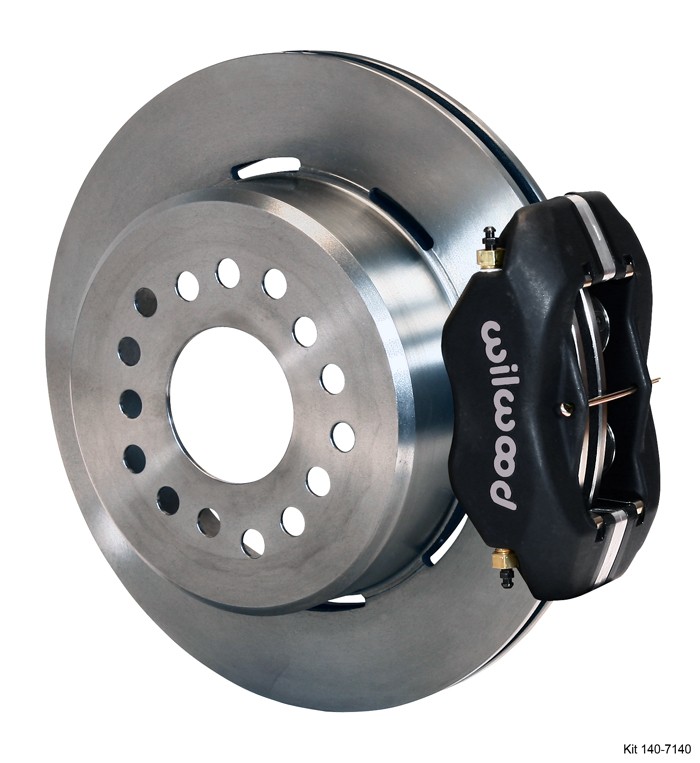

Wilwood 55 56 57 Chevy Full Size Car 56 Corvette 12″ Rear Disc Brake Conversion OE Axle: Adding disc brakes to your rear axle will create the best possible braking combination for your full size American car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our bolt on Wilwood Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. Inside the rotor are Wilwoods patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US full size car.

Fits OE axles with 2.34″ axle offset only. Measure axle housing end flange (where the backing plaste mounted) outside to axle shaft wheel pad, outside. Call if you need help! Check the instruction PDF above for info and diagrams. Base rotor is smooth, base caliper surface is Wilwoods gloss black. This kit fits most 15″ wheels! Sizing chart available. Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively

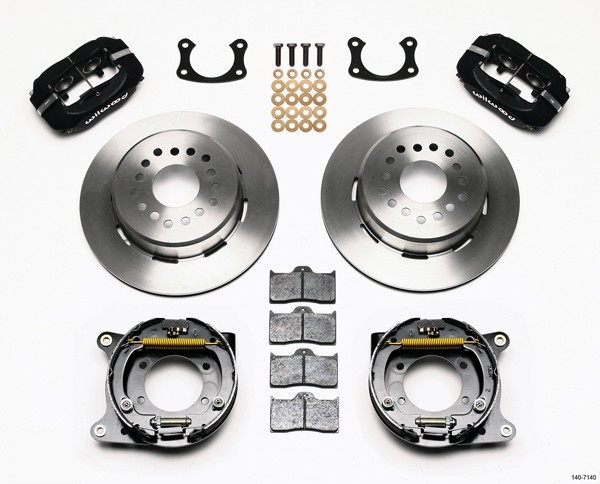

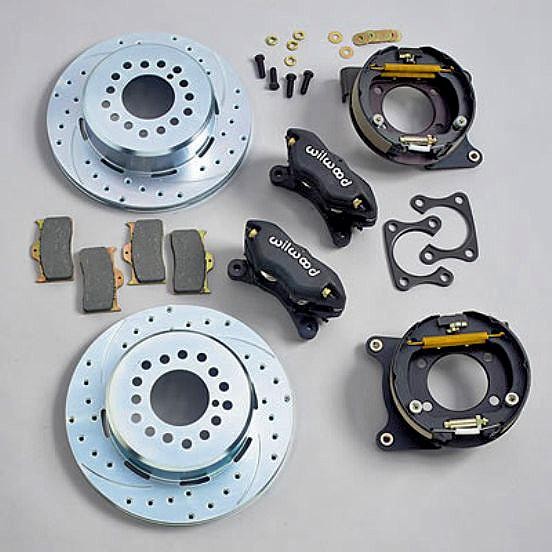

Rear Disc Kit Contents

  • 12.19″ Wilwood Smooth Iron Rotors
  • Dynalite Billet Black Powder Coated 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions
  • Summary
  • Details
  • Review

Additional information

Weight 49 lbs

Choose Rotors And Calipe Color - REQUIRED

Product price: $993.00
Total options:
Order total:
