Wilwood Rear 12″ Disc Brake Kit, Chevy 10 &12 Bolt Car 67-02

PN: 140-7141



Application: 67-78 Chevy Cars, 67-03 Camaro/Firebird, 10 & 12 Bolt Axles With 2.75, 2.81 or 2.91″ Offset


Not sure which axle you have? Click HERE

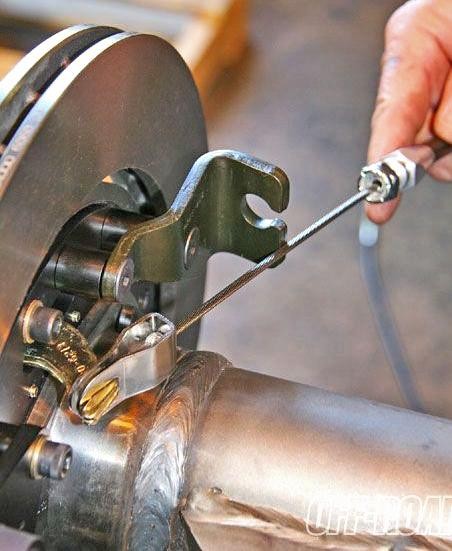

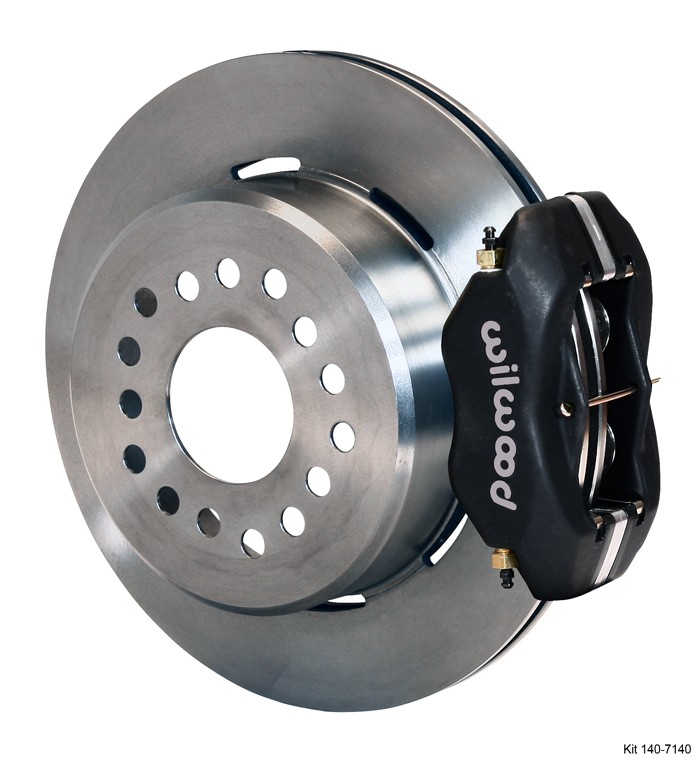

Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. Inside the rotor are Wilwoods patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car. This kit is only available for axles with a 2.75″, 2.81″ or a 2.91″ offset! Call if you need assistance in how to measure (ouside surface of axle housing end bracket to outer surface of wheel mounting pad on axle) . Base kit includes smooth rotors and gloss black calipers.

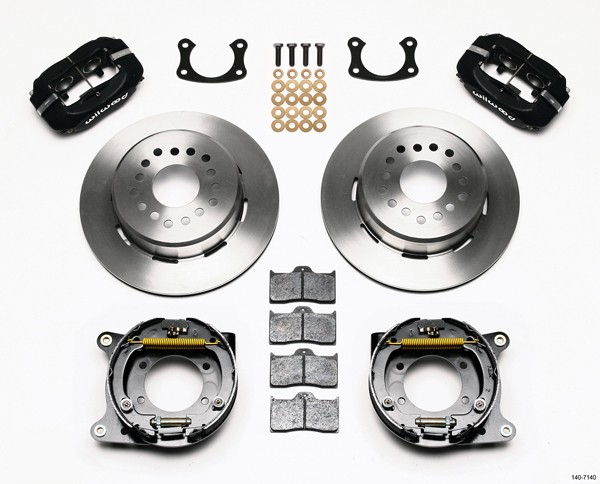

Rear Disc Kit Contents

  • 12.19″ Wilwood Smooth Iron Rotors
  • Dynalite Billet 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions

Base kit includes GLOSS BLACK calipers and SMOOTH silver rotors. Drilling gets you black electrostat on the rotors exposed edges.

This kit fits most 15″ wheels. Sizing chart available

Base shock configuration is parallel. Staggered option below

Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively

  • Summary
  • Details
  • Review

Additional information

Weight 30 lbs
