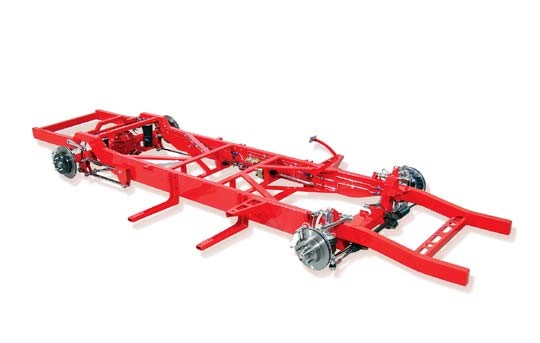

TCI 55-59 Chevy Truck Complete Chassis

PN: 133-1245-00

$13,846.00

(0) Review this Product



FAB QUEST HONORS ALL CURRENT TCI SPECIALS!

CALL FOR QUOTE! PRICES ARE BALL PARK ONLY!



  TCI 55-59 Chevy Truck Complete Chassis w/Mustang II IFS or Custom IFS

Chassis starting price includes an M-II fornt IFS and rear leaf spring suspension. Upgrading to the custom IFS changes the front cross member to a 1 piece unit designed for coil over shocks. Billet shocks are included with the upgrade. The custom IFS can be ordered with a full show stainless and chrome package. Other options include air bags on the M-II, Shockwaves on the custom IFS, upgrade to stainless hard brake lines (installed) and a combo power brake pedal with hydraulic clutch pedal. A custom cross member is requried to accomodate the hydaulic clutch pedal bracket. The 11″ brake rotors can be ordered with a 5″, 5.5″ or 6 lug truck pattern. This upgrade will include a custom iron hub and 2 piece custom TCI rotor. Wilwood brakes are dual pattern 5x 4.5″ or 5x 4.75″ only. No truck patterns.

54 model years will require that the bed be raised 1″ to clear the 48-53 rear kick up.



ALL BASE CHASSIS INCLUDE THE FOLLOWING:
  • M-II IFS Front End
  • Stock or Drop Forged Spindles
  • Kit Utilizes Your OEM Radiator
  • Body Mounts Included
  • Oversized Fully Boxed Steel Frame Fixture Welded In House

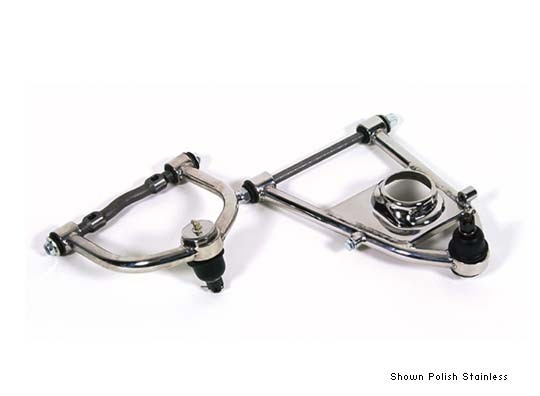

  • Heavy WallTubular Control Arms
  • SB/BB/LS Engine Mount Options
  • Black Powder Coated Springs and Painted Steel Gas Shocks

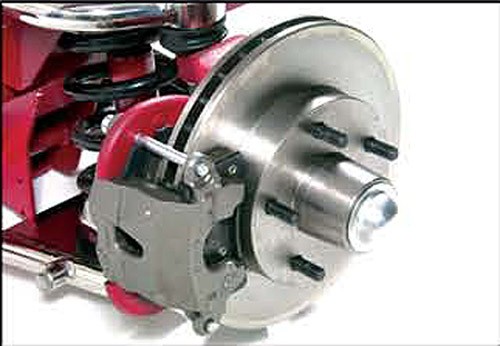

  • Assembled11″ GM Disc Brakes w/ CPP Large Calipers
  • New Manual Rack and Pinion
  • Rear Leaf Spring Suspension
  • New Currie Ford 9″ Axle w/Nodular Iron 3rd Member
  • Rear Drum Brakes
  • Under Floor Complete Power Brake Kit w/Pedal, Booster etc.
  • All Brake Hard Lines and Flex Lines Plumbed
  • All Hardware and Detailed Instructions
  • 5x 4.75″ Chevy Bolt Pattern Standard


Freight is extra and will be quoted/charged when the chassis is ready to ship!!



SCROLL DOWN! Powder coating, polishing and many hardware options available below

  • Summary
  • Details
  • Review

Additional information

Weight 200 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 55-59 Chevy Truck Complete Chassis”

Your email address will not be published. Required fields are marked *

Tell Us About Your Truck *

Please Choose A Spindle – Applies to both M-II or Custom IFS front ends *

Upgrade From M-II/Leafs To Custom IFS Front End & 4 Link Rear

Upgrade Rear To Pro Street Pinched Chassis – Custom Fit to Your Wheels – Up to 16" Wide

Coil Spring Options – M-II and Custom IFS

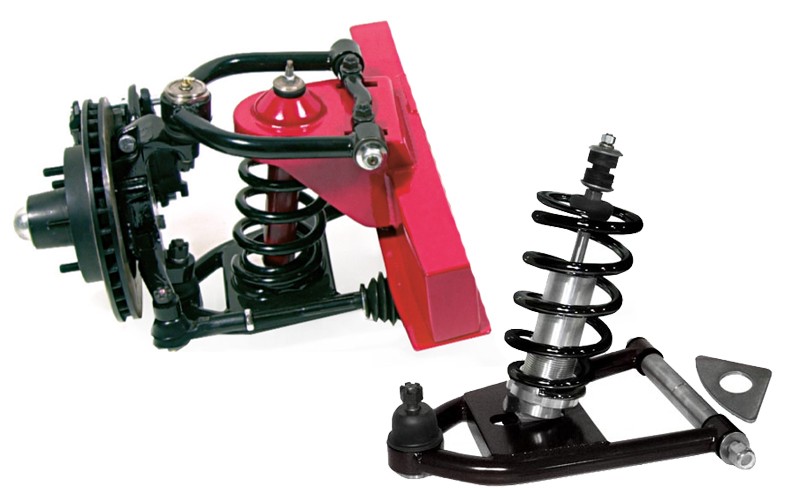

Coil Over Shock Options

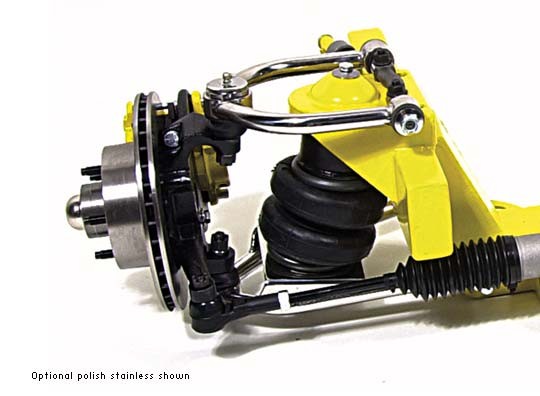

Going Air Ride? Add Stainless Air Hard Lines Plumbed on Frame With Air Bags or Shockwaves

Add Rear C-Notch or Stepped Rails For Additional Drop On Air Bagged Chassiss

Show Packages – Custom IFS Chassis Only

Steering Rack Options

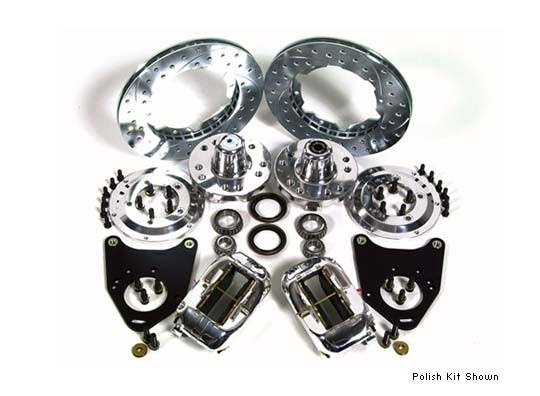

Front Disc Brake Upgrade

Braided Steel Brake Lines

Upgrade Your Rear Coil Overs – By Default 4 LinkComes Wtih Steel Non Adjustable Coil Overs

Upgrade Open Dif to Posi – Default dif is open style

Rear Brake Options

Rear Sway Bar

Add Hydraulic Clutch Petal – Requires a custom trans cross member and labor

Choose Truck Lug Patterns, Includes Custom Rear Axle Shafts – Wilwood Brakes Not Available With This Options

Upgrade To Stainless Steel Hard Brake Lines – Installed

Add Engine Brackets – Will Be Welded In Place
