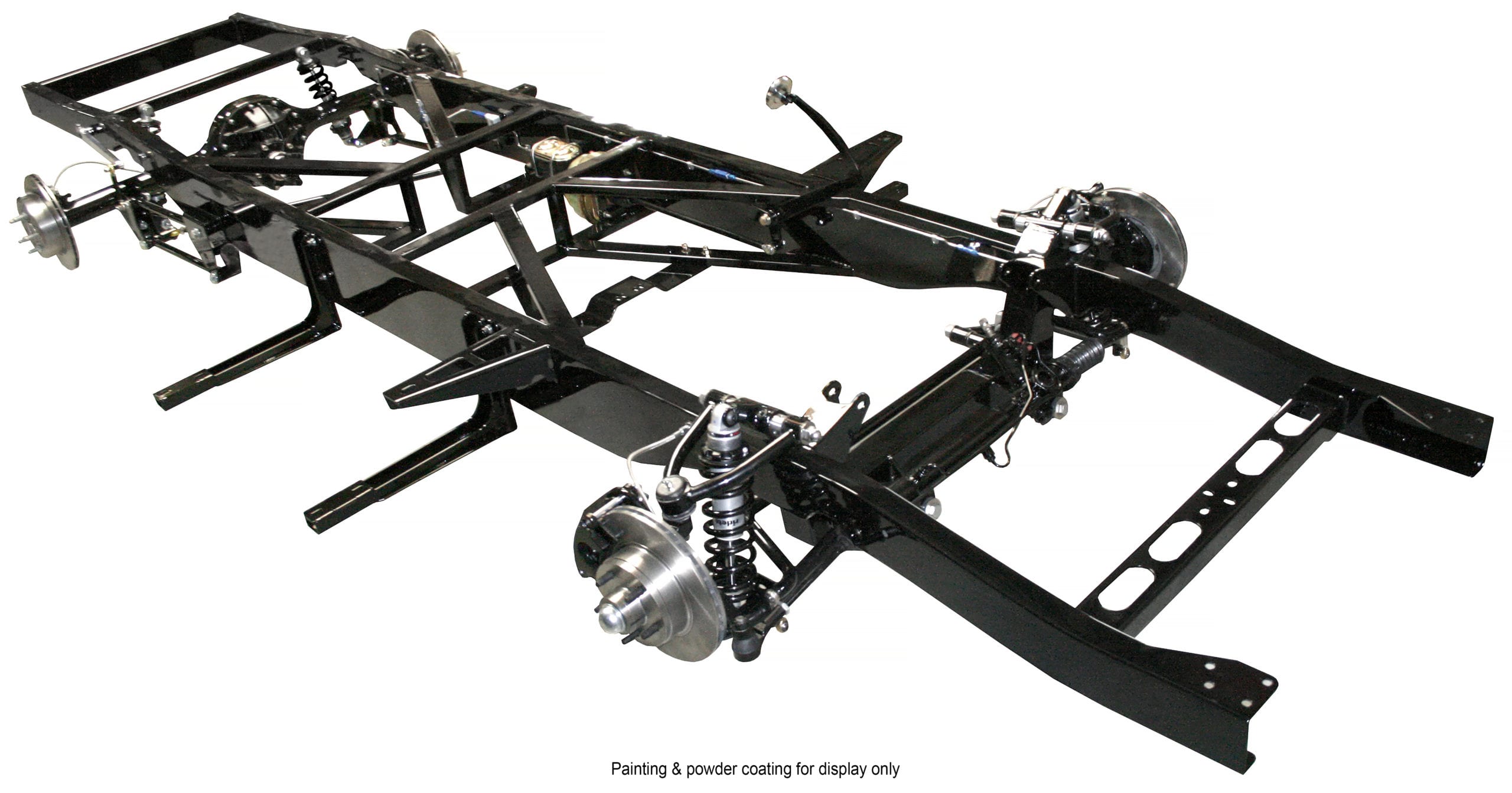

TCI 48-52 or 53-56 Ford F1 F100 Truck Complete Chassis

PN: 113-1245-00

$12,545.00

(0) Review this Product



FAB QUEST HONORS ALL CURRENT TCI SPECIALS!

CALL FOR QUOTE. THESE PRICES DO NOT INCLUDE SPECIALS!

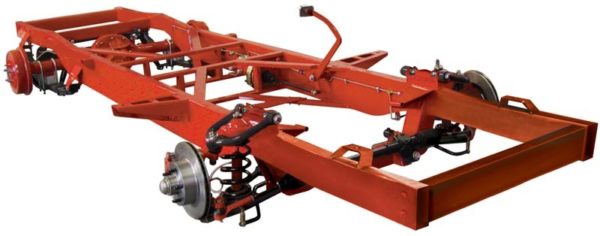

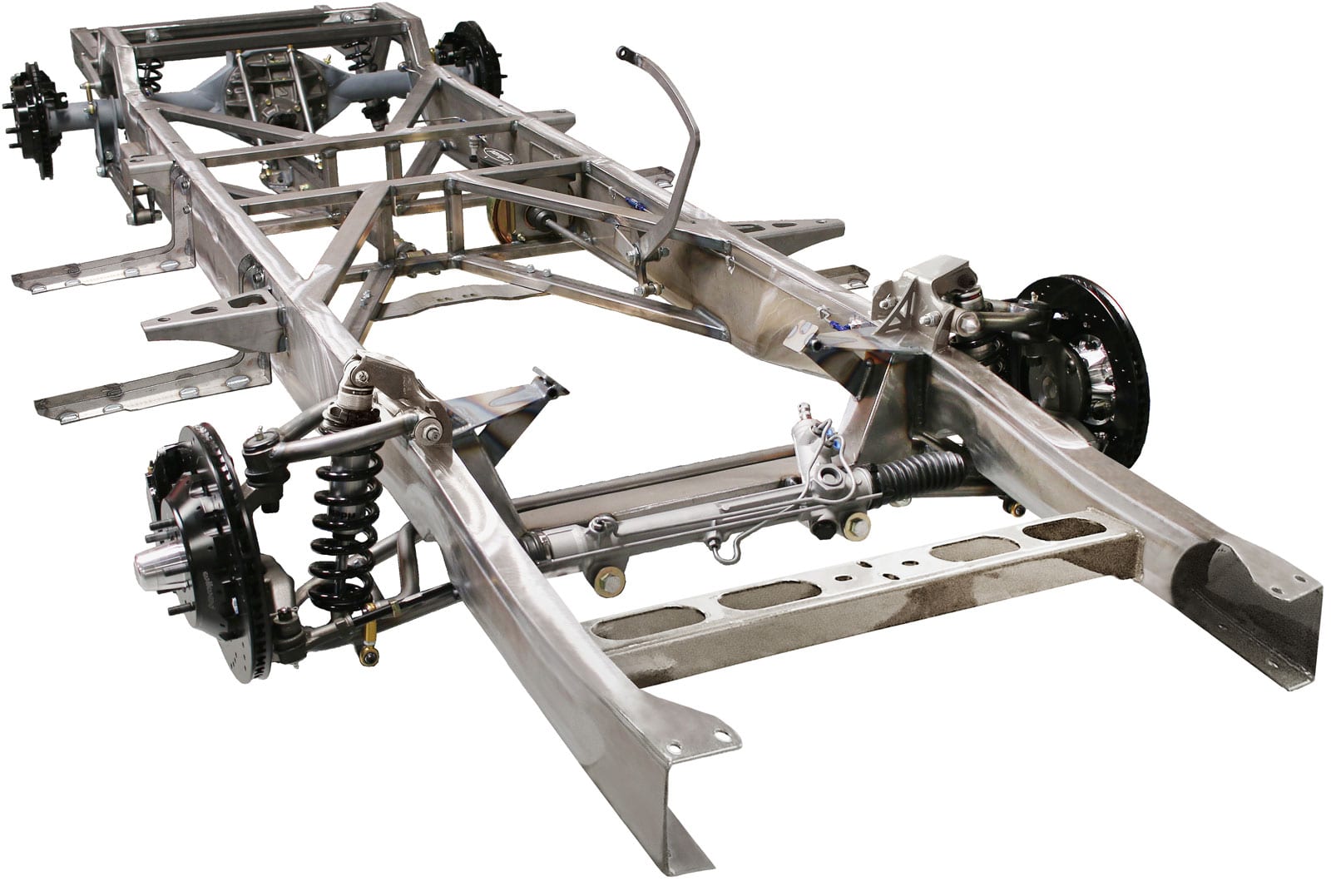

 TCI 53-56 Ford F1 / F100 Truck Complete Chassis w/Mustang II IFS or Custom IFS

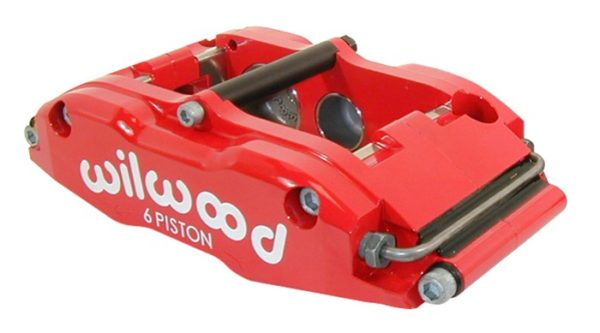

Chassis starting price includes an M-II fornt IFS and rear leaf spring suspension. Upgrading to the custom IFS changes the front cross member to a 1 piece unit designed for coil over shocks. Billet shocks are included with the upgrade. The custom IFS can be ordered with a full show stainless and chrome package. Other options include air bags on the M-II, Shockwaves on the custom IFS, upgrade to stainless hard brake lines (installed) and a combo power brake pedal with hydraulic clutch pedal. A custom cross member is requried to accomodate the hydaulic clutch pedal bracket. The 11″ brake rotors can be ordered with a 5″, 5.5″ or 6 lug truck pattern. This upgrade will include a custom iron hub and 2 piece custom TCI rotor. Wilwood brakes are dual pattern 5x 4.5″ or 5x 4.75″ only. No truck patterns.

ALL BASE CHASSIS INCLUDE THE FOLLOWING:
  • M-II IFS Front End
  • Stock or Drop Forged Spindles
  • Kit Utilizes Your OEM Radiator
  • Running Board and Body Mounts Included
  • Oversized Fully Boxed Steel Frame Fixture Welded In House
  • Heavy WallTubular Control Arms
  • SB/BB/LS Engine Mount Options
  • Black Powder Coated Springs and Painted Steel Gas Shocks

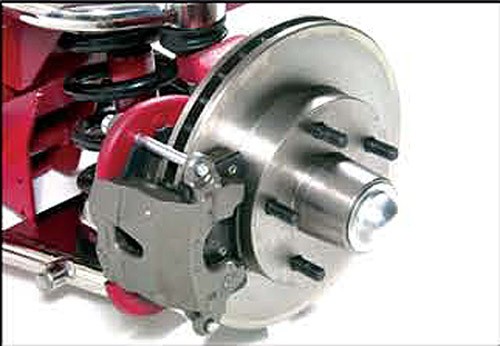

  • Assembled11″ GM Disc Brakes w/ CPP Large Calipers
  • New Manual Rack and Pinion
  • Rear Leaf Spring Suspension
  • New Currie Ford 9″ Axle w/Nodular Iron 3rd Member
  • Rear Drum Brakes
  • Under Floor Complete Power Brake Kit w/Pedal, Booster etc.
  • All Brake Hard Lines and Flex Lines Plumbed
  • All Hardware and Detailed Instructions
  • 5x 4.50″ Ford Car Bolt Pattern Standard


Freight will be quoted/charged when the chassis is ready to ship. Shipping is NOT free!



SCROLL DOWN! Configure your chassis below but call us for the latest specials/pricing



  • Summary
  • Details
  • Review

Reviews

There are no reviews yet.

Be the first to review “TCI 48-52 or 53-56 Ford F1 F100 Truck Complete Chassis”

Your email address will not be published. Required fields are marked *

Tell Us About Your Truck *

Please Choose A Spindle – Applies to both M-II or Custom IFS front ends *

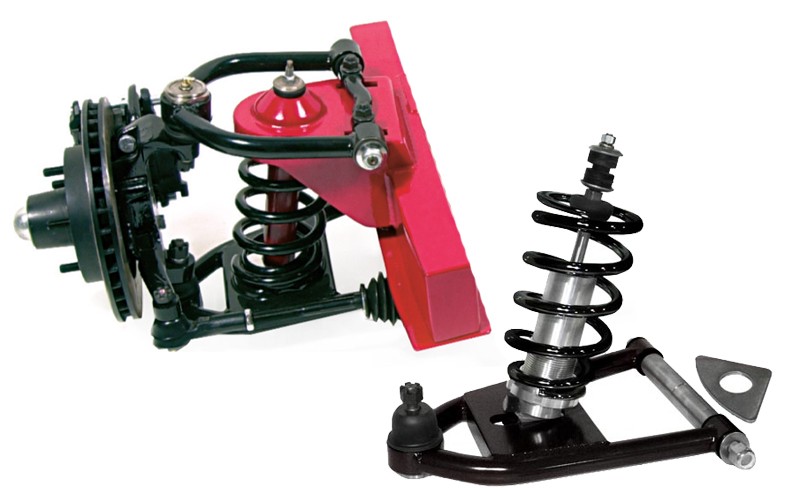

Upgrade To Custom IFS Front End With 1 Piece Front Cross Member & Ectric Alignment System

Coil Spring Options – M-II and Custom IFS

Shock Options – Custom IFS & M-II

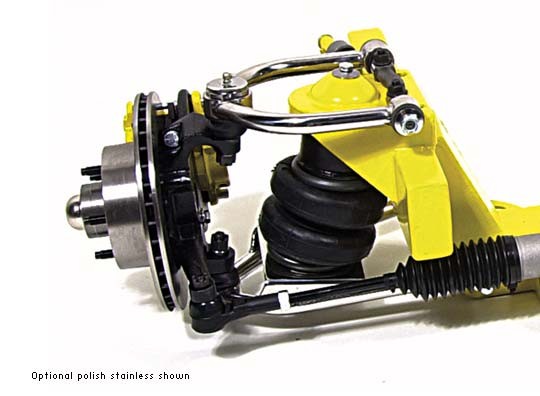

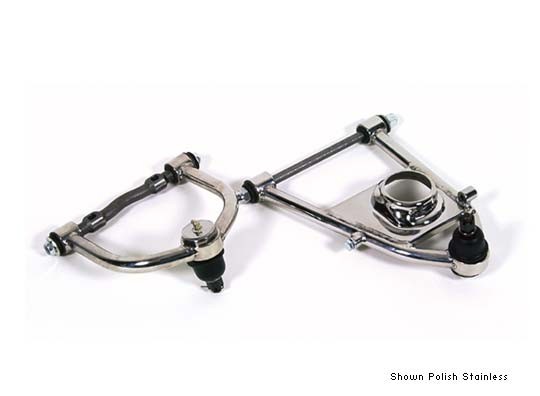

Show Packages Upgrade – Custom IFS Option Only – No M-II show package

Steering Rack Options

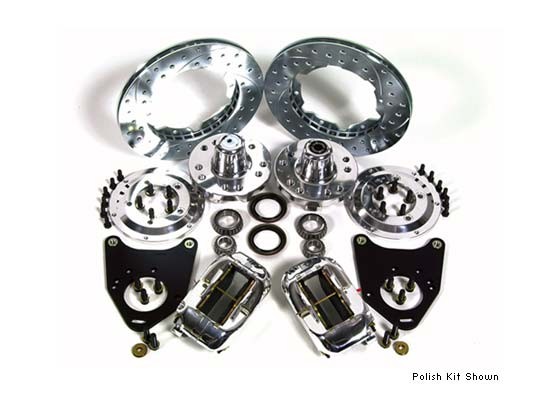

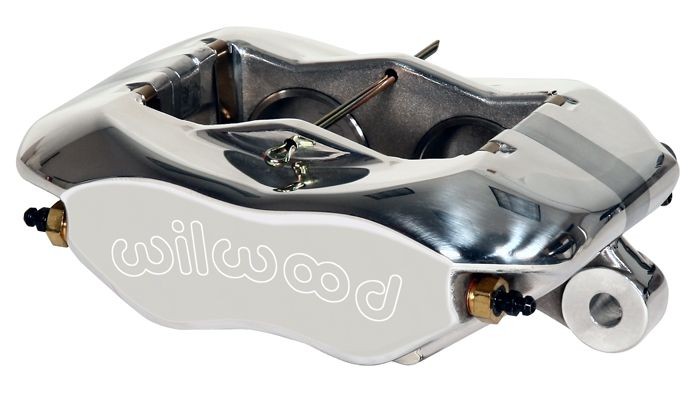

Front Disc Brake Upgrade

Brake Lines

Upgrade Your Rear Leaf Springs To a 4 Link – MUST ORDER CUSTOM IFS ABOVE! NOT AVAILABLE WITH M-II

Included Currie 9" Axle – Upgrade Open Dif to Posi – Your Choice of Gears

Choose Gear Ratio *

Rear Brake Options

Rear Sway Bar

Power Brake Pedal or Add Hydraulic Clutch Petal – Requires a custom trans cross member and labor

Choose Truck Lug Patterns – Wilwood Brakes Not Available With This Options (5x 4.50" Ford car pattern standard)

Add Engine Brackets – Will Be Welded In Place

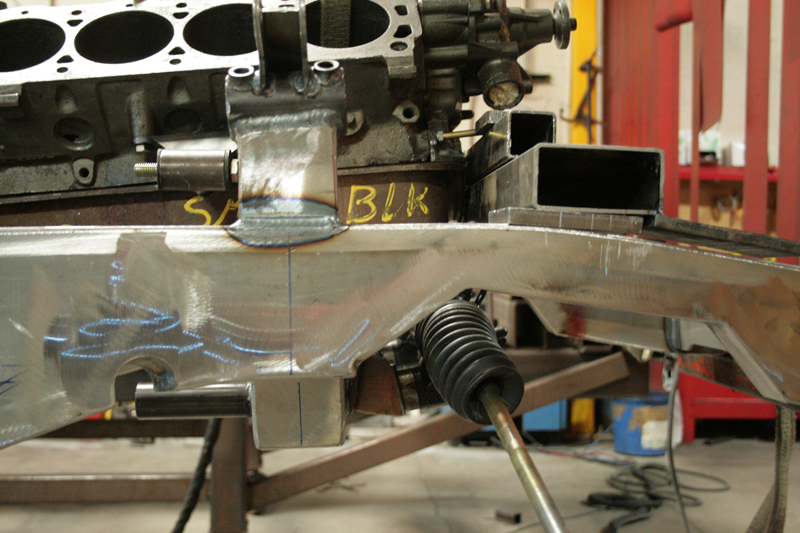

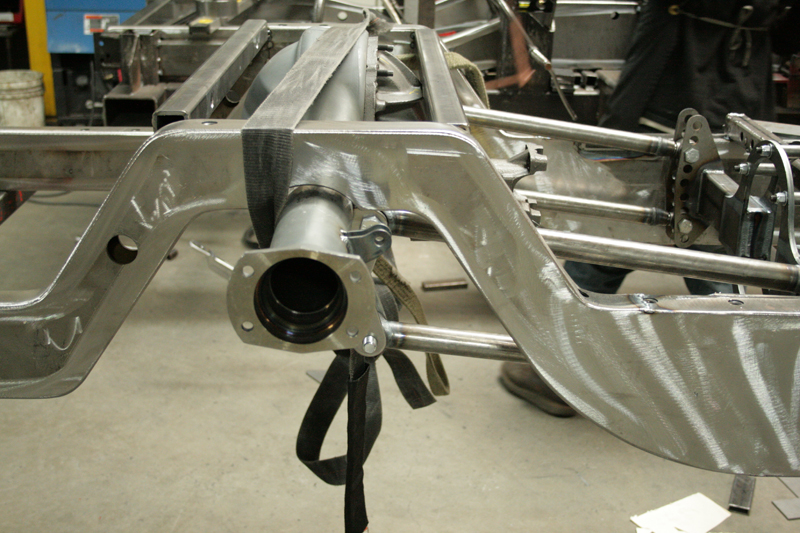

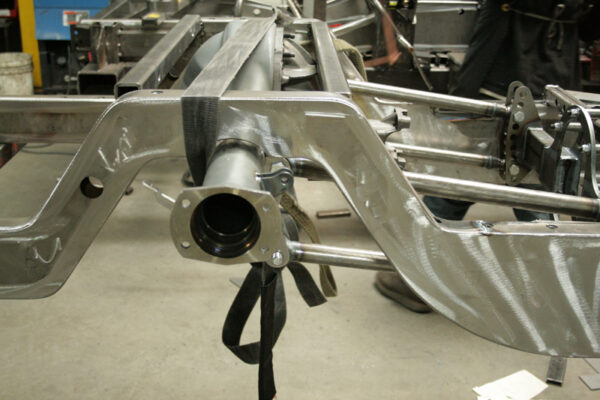

48-52 Ford F-1 Rear Step or C Notch – 4 Links OInly

Convert Steel Hard Lines to Stainless Steel – Air & Brake

Product price
Additional options total:
Order total:
