SALE! Mustang II Tubular Control Arms For Coil Over Shocks – All 4

PN: TLC-100-CO-TUC-100


Application: All Mustang II Front Ends OE or Aftermarket, Narrow or Stock Width

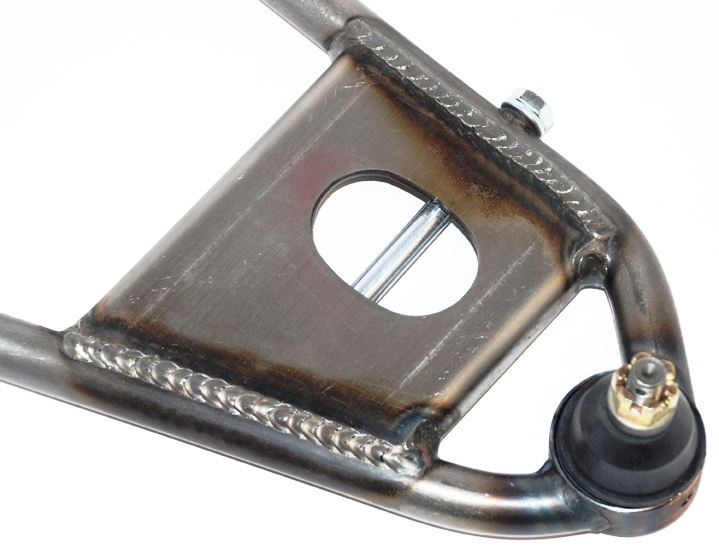

This kit contains ALL 4 tubular A-arms! Upper and lower A-arms are for all Mustang II 74-78 IFS front ends, OEM or aftermarket. The photo of the lower arms is not the coil over arm….coil over arm is similar but without spring tube! These attractive and lighter than stock control arms come pre-assembled with new cross shafts, urethane bushings, heavy duty screw in ball joints and all attachment hardware.

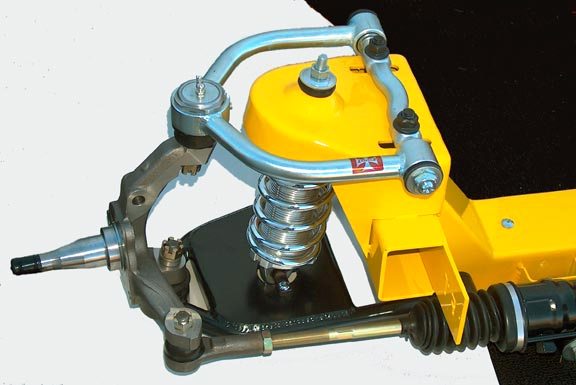

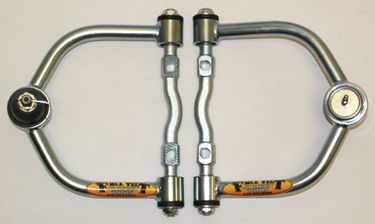

Upper and lower A-arms are compatible with all “coil over” type shocks that have a bottom through bolt eyelet: Strange, Heidts, TCI, QA-1, Aldan etc as well as Shockwaves. See the photo to your left if your not sure of the correct shock type. The control arms are stock width or narrowed 5/8″ for improved tire clearance and assist when Mustang II suspension is installed on a narrow framed vehicle (early Ford, early Vett, sports cars etc). Arms accept both stock and drop type spindles. Upper arms are 7/8″ OD and .125″ wall thickness. Lowers are 1″ with a heavy 3/16″ wall thickness.

Traditional coil spring and separate shock arm kit also available plus air bags.

100% hand made in the USA!!

Kit Includes:

  • 4 DOM Steel A-arms
  • Cross Shafts
  • Pre Installed Bushings
  • Heavy Duty Ball Joints
  • New Hardware

Choose options below!

  • Summary
  • Details
  • Review

Additional information

Weight 32 lbs

Choose Shock Mount Style

Narrowed Option -adds 1-2 weeks

Special Ford Engine Compatible Lowre Control Arm

Set of 4 T-Bolts

Product price: $634.00
