Wilwood 13″ Mustang II 6 Piston Superlite 6R Front Brake Kit

PN: 140-12275



Application: All Mustang II IFS Systems With OE Style Spindles or TCI M-II Spindles, Stock Or Drop!Wilwood PN 140-12275 13" Mustang II Superlite


PN: 140-12275 Wilwood 12.88″ Mustang II 6 Piston Superlite 6R Front Brake Kit: This comprehensive ultra powerful bolt on kit includes a custom Wilwood caliper bracket that integrates their brakes with your stock style OEM spindle. Will fit most aftermarket, stock and drop spindles. Kit uses a race quality forged aluminum hub with a forged 1 piece rotor /hat. Rotors are vented 12.88″ diam., 1.10″ thick ductile iron. Race quality clamping duties are accomplished with the Wilwood 6 piston radial mounted “Superlite Narrow 6R” forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to OEM iron calipers. The racing radial type mounting system is the most rigid type of mount available. Considered to be one of the most powerful 6 piston calipers made, these light, slender units incorporate stainless internals. This impressive looking package creates ultra strong stopping power, quicker cooling and is constructed of long life components. Other benefits are reduced unsprung weight.

17″ or larger wheels required. This kit increased your track by .26″ per side! Base kit includes slotted (not drilled) rotors and black caliper color. Available options below. Ships in two 32 lb boxes.

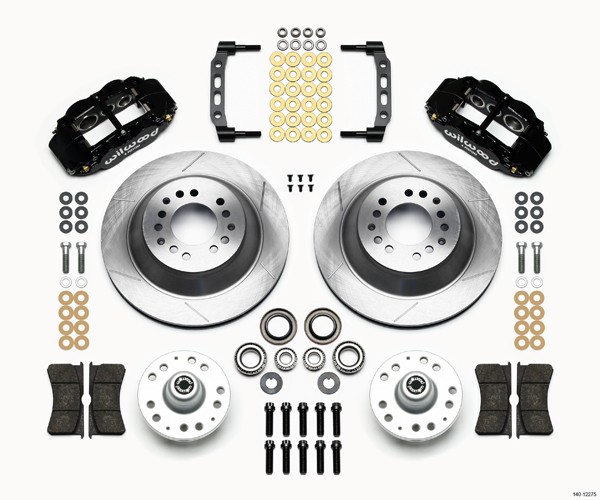

Kit Content

  • Black 6 Piston Forged Superlite 6R  Wilwood Calipers
  • Forged Aluminum Caliper Brackets
  • 12.88″ Slotted 1.10″ Thick Vented Rotor/Hat Combo

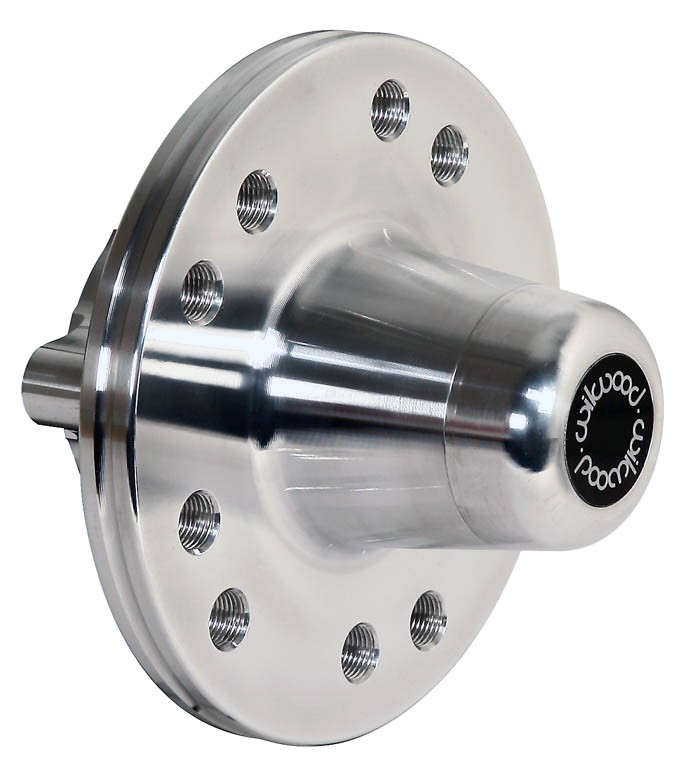

  • Forged Aluminum Hubs
  • 1/2″ 20 Studs
  • Dual Pattern 5x 4.5″ and 4.75″
  • Bearings, Seals and Dust Cap
  • BP110 Compound Street/Race Pads
  • Mounting Hardware
  • Detailed Instructions
  • Summary
  • Details
  • Review

Additional information

Weight 10 lbs

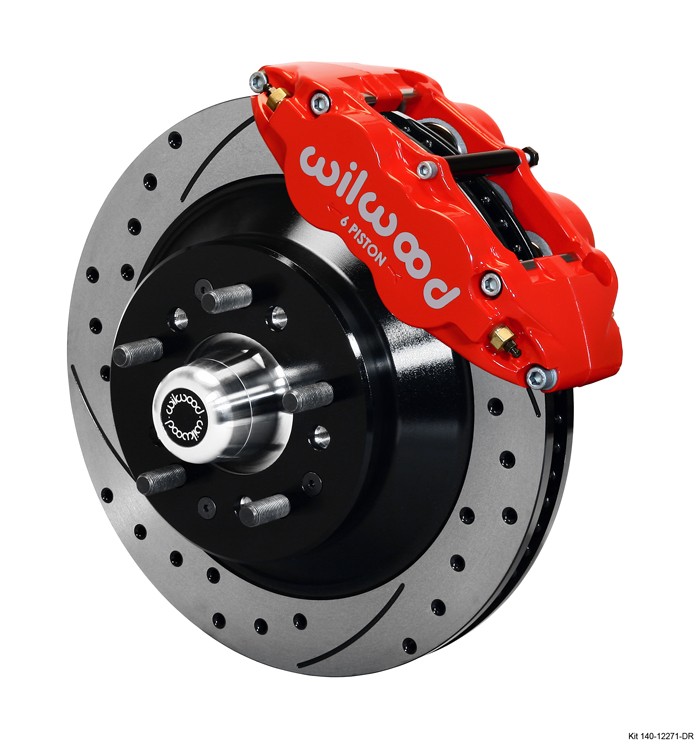

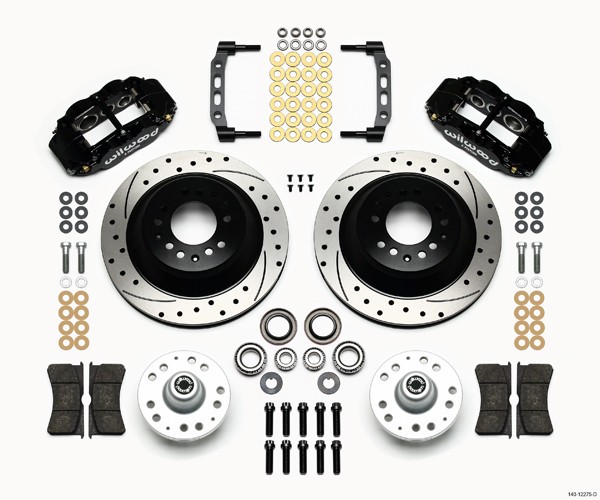

Upgrade to Drilled Rotors And Change Caliper Color

Product price: $1,458.00
