Additional information
| Weight | 150 lbs |
|---|---|
| Dimensions | 48 × 15 × 15 in |
65-77 Ford Pickup Truck Mustang II IFS Suspension Kit w/ 1 Piece Cross Member- By Full Tilt
PN: M2HH-FT5356-UB-1$2,799.00
CUSTOM 1 PIECE “DROP IN” CROSS MEMBER & GREAT PRICE ON US MADE KIT
- SPRING TOP HATS ARE INCORPORATED INTO THE CROSS MEMBER
- FREE 2″ DROP SPINDLES
- ALL US HAND MADE COMPONENTS
- SPRING & SHOCKS OR SHOCKWAVE AIR RIDE
- SPECIAL “FORD INTO A FORD” A-ARM OPTION FOR FRONT SUMP ENGINES
Why buy a Mustang II IFS? CLICK HERE!
Application: 65-77 Ford F100 Pick Up Truck

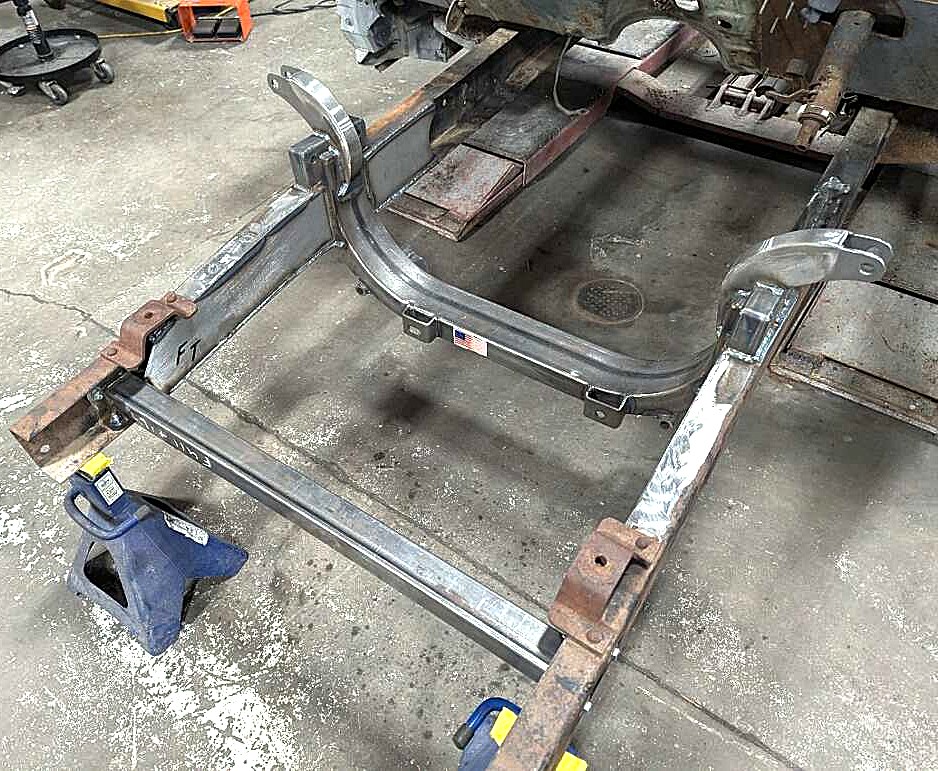

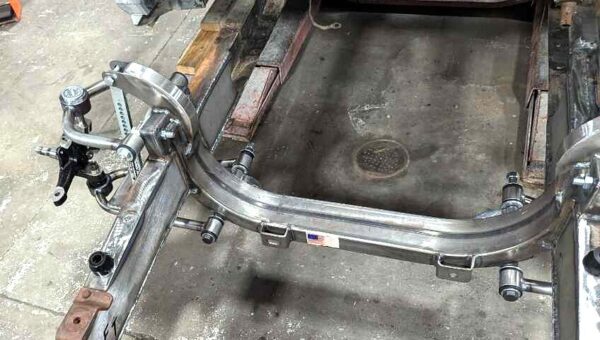

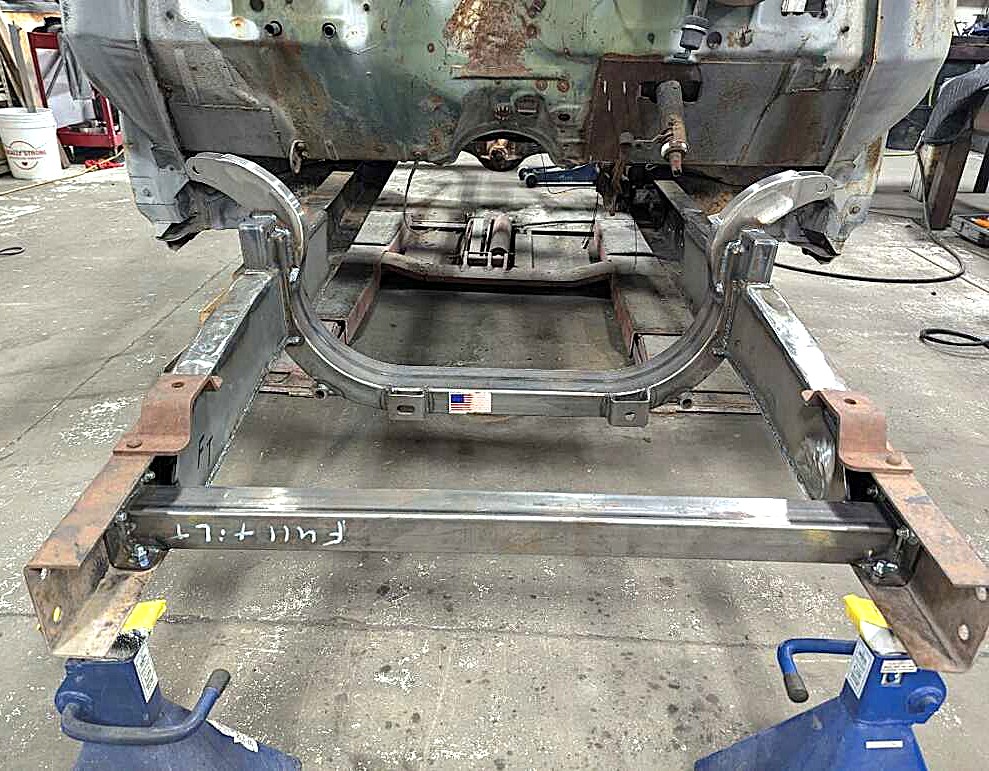

M-II Crossmember: Custom designed & mandrel bent, Upper spring hats are incorporated into the cross member, Fully welded 3/16″ US plate steel, Heavy gusseted lower A-arm mounting pins that ELIMINATE THE TRACK RODS! Heavy 3/16″ rack mounting points are attached. Boxing plate included in the kits that need it.
Tubular Control Arms: Heavy duty 1″ DOM steel uppers beautifully welded/formed in house by true craftsman. Lowers are 3/16″ wall 1.125″ DOM Indexed spring risers with corrected anit dive spring angle. US made ball joints/Urethane bushings installed. Options include, powder coating, chrome “Coil Over Shock” and Air bags. We also now carry the “Ford into a Ford” lower control arm that allows the use of a Ford engine without the arms front mounting point interfering with the oil pan! So drop that FE into your F-100! Pics to your left.
Spindles: 2″ forged drop spindles standard, stock height available. Tapered holes for “screw in” type heavy duty ball joints. OEM attachment points and bolt patterns so that stock Mustang II components can be used.
Kit Details:
- Custom Steel “Drop In” Crossmember
- Boxing Plate
- Custom Tubular A-Arms with Urethane Bushings Installed
- Black Powder Coated Big Block or Small Block Springs and Painted Steel Gas Shocks
- New Assembled 11″ GM Disc Brakes w/GM Midsize Calipers
- New Manual Rack and Pinion or New Power Rack
- All Hardware and Detailed Instructions
- 5x 4.50″ Chevy Bolt Pattern Standard
Kit ships as raw steel unless otherwise noted.
SCROLL DOWN! Many hardware options available below
