55-59 Chevy Truck 4 Link kit With Pan Hard From Full Tilt Street Rods

PN: RS-CT5559-P4B

$599.00

(0) Review this Product

FAB Quest New Item – US Made Kit at An Affordable Price!

Application: 55-59 Chevy Truck Pick Up Trucks with Stock Frame





This Full Tilt Street Rods kit includes very well designed bolt on forward link bar brackets that mount to your stock frame in the old leaf spring bracket rivet/bolt holes.

Link bars are threaded heavy 1″ diameter seamless steal (.188″ side wall), with adjusters bungs installed. Axle brackets are designed for standard coil over shocks or Shockwave type air suspension. The brackets incorporate 3 ride height mounting points that offer about 3″ of up or down static shock placement. Axle bracket holes are 5/8″ (poly bushed mount) for locating your coil overs or air suspension. The axle brackets will accommodate most axle tube diameter and does NOT require removing your axles or end flanges to mount. Kit includes bolt on pan hard bar for Ford axles or order the optional weld on brackets for GM axles below. Kit includes urethane bushings, inner bolt sleeves and all hardware to mount.

The included upper shock mount tabs weld to the outside of your frame rails.

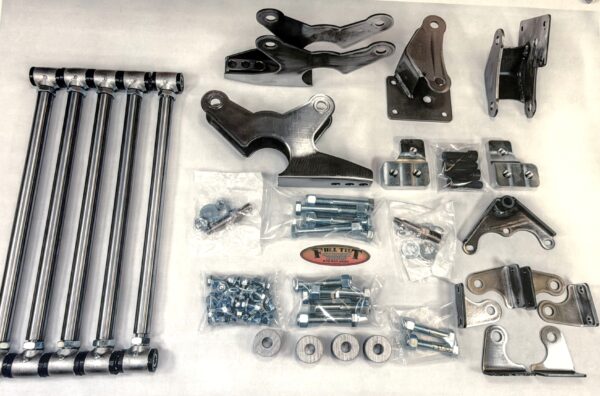

Kit Details

  • Bolt on Forward Link Bar Brackets
  • Weld On Adjustable Ride Height Axle Brackets
  • 1″ Heavy Wall Link Bars w/Adjusters
  • Weld On Upper Shock Mount Tabs
  • Panhard Kit
  • Hardware and Detailed Instructions



KIT DOES NOT INCLUDE SHOCKS OR SHOCKWAVES! Shock options are below and can be ordered with the kit. Shocks ship for free! Kit ships as raw steel. Link bars are 17 1/2″ without the ends With the ends they are 20″.

  • Summary
  • Details
  • Review

Additional information

Weight 49 lbs
