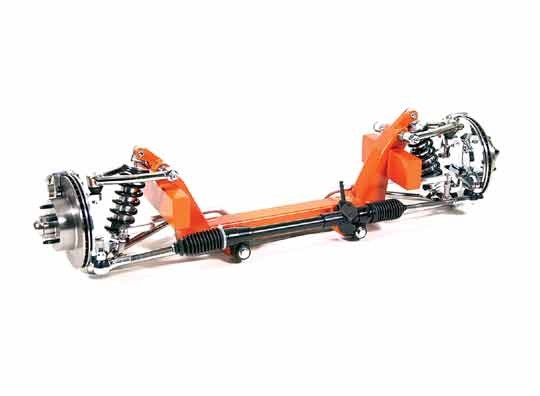

TCI 55-59 Chevy Pickup Truck IFS Front Suspension Kit

PN: 233-2202-00

$4,460.00



THIS KIT HAS BEEN Total Cost Involved 55-59 Chevy Truck InstructionsREDESIGNED, READ BELOW!

GREAT INCLUDED OPTIONS & FAB QUEST ONLY FREE UPGRADES!

  • FREE SWAY BAR
  • STOCK or DROP SPINDLES
  • FREE FREIGHT
  • FREE FRONT BRAIDED BRAKE LINES
  • FAB Quest WEB SPECIAL – ALL ACCESSORIES WILL SHIP FOR FREE WITH IFS PURCHASE!



Application:  55-59 Chevy Pickup Trucks

TCI 55-59 Chevy Pickup Truck IFS Front Suspension Kit: Here’s a quick list of the recent updates made to this IFS kit and most of the other TCI 50’s PU kits. All of these updates are aimed at moving this suspension towards a true Pro Touring design!

By redesigning the crossmember they have acheived improved camber and castor gain, improved the coil over mounting location, optimized control arm geometry and created a lighter thinner sway bar that tucks in tighter behind the crossmember but provides resistance similar to a 1.25″ bar.



Total Cost Involved’s Custom Front Steer IFS unit has been engineered to remove the dreaded bump steer while offering a large amount of ride height adjustment so you can acheive the stance your looking for while maintaining proper front end alignment. Caster and camber is made simple with adjustable stainless eccentrics.The custom IFS design creates optimum suspension geometry with correct length control arms, fast camber gain spindles with excellent anti dive qualities and very high quality adjustable billet shocks. Its all about the geometry and these kits are dialed in. Your truck will feel nimble, sporty and very road compliant.

Check out the extensive options list below and create your dream suspension!



Every Base Custom IFS Features:

  • Laser Cut and TIG Welded “In House” Custom Crossmember
  • Forged Stock or Drop Spindles

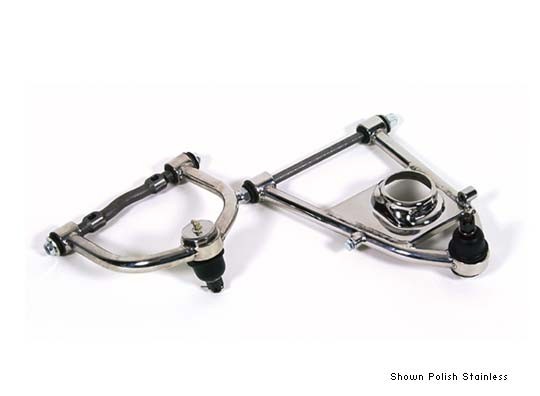

  • 1″ Upper, 1 1/8″ Lower Tubular A-arms with Urethane Bushings
  • NEW Manual Rack & Pinion
  • 11″ GM Disc Brakes w/Loaded Large Bore CPP Calipers

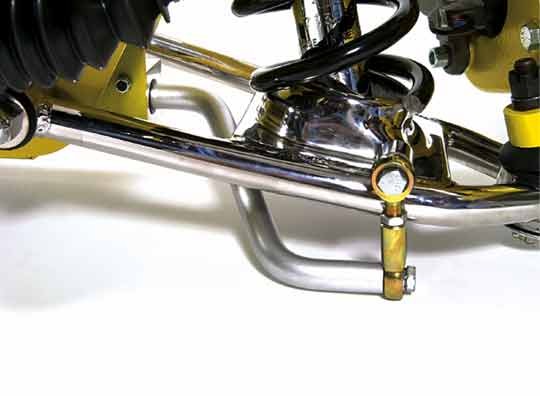

  • Sway Bar With Heim Links
  • Adjustable Billet “Coil Over” Shocks With 350 # Black Springs
  • Hardware and Instructions.
  • 5x 4.75″ Chevy Bolt Pattern Standard. Ford available



SCROLL DOWN FOR HUGE OPTIONS LIST!

  • Summary
  • Details
  • Review

Description



TCI 55 56 57 58 59 Chevy Pickup Truck IFS Front Suspension Kit

Chevy lug pattern 5×4.75 standard

Additional information

Weight 150 lbs

Tell Us About Your Truck

Upgrade to New Truck Pro Tour Custom IFS Kit

Choose Your Spindle Type

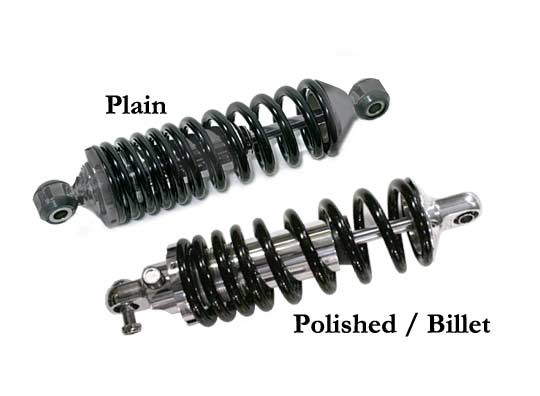

Shock Upgade

Spring Options

Steering Rack Options

Add A Power Steering Braided Line Kit

Truck Wheel Lug Pattern Options - Includes Custom Slip Over 11.75' Vented Rotor and Separate Hub

Disc Brake Upgrade

Add Braided Steel Brake Lines

Add A TCI Power Brake Pedal - For Stock Frames

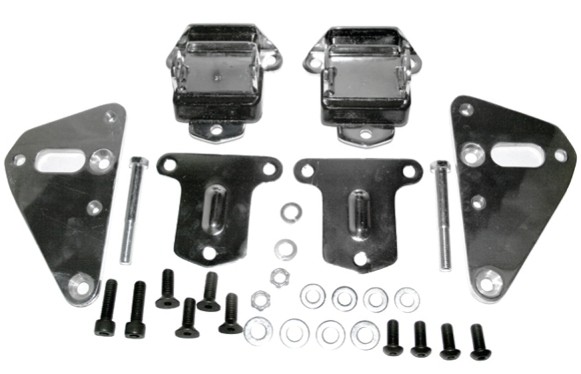

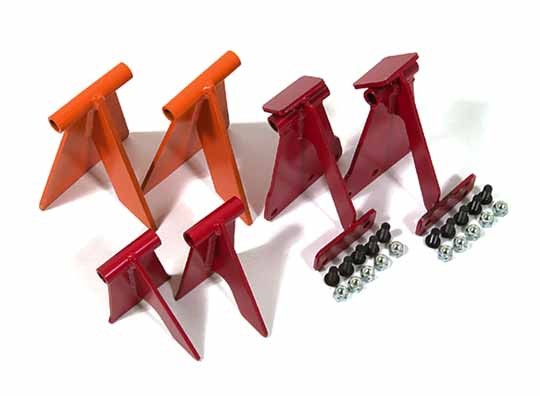

Weld In Engine Mounts - Uses OE Style Motor Mounts - BB or SB

LS 1-7 Brackets with Urethane Mounts - You must purchase the above weld in engine brackets. The LS mounts bolt to that bracket!!

Bolt In Tube Style Transmission Crossmember - Most Manual and Auto
