53-56 Ford PU Truck Power Brake Pedal Assembly


Application: 53-56 Ford Truck Stock Frame Power Pedal Assembly

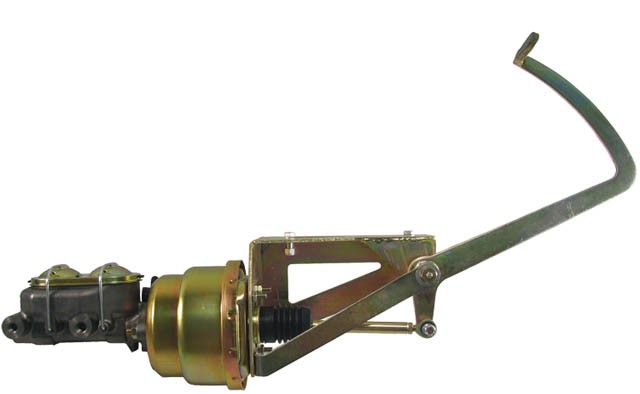

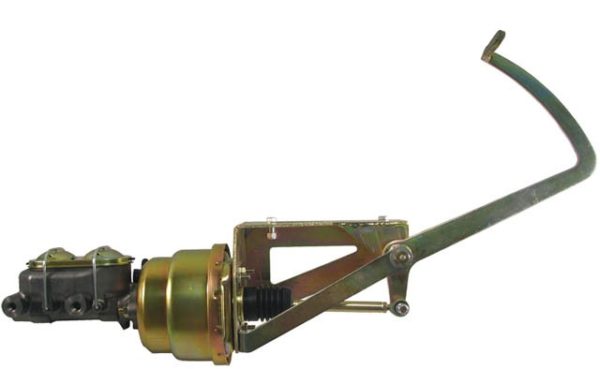

This custom “beneath the floor” pedal bracket features an appropriate length “power assist ratio” arm and bracket that mounts to a stock Ford pickup truck frame. The pedal arm will come up through your floor in the OE location.

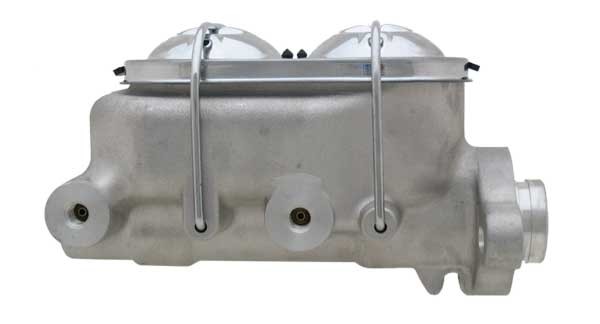

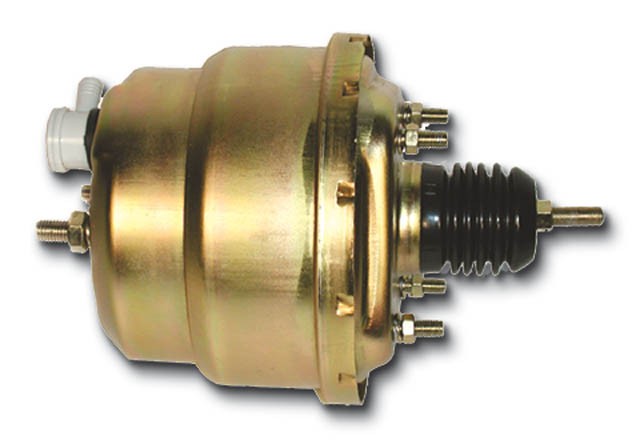

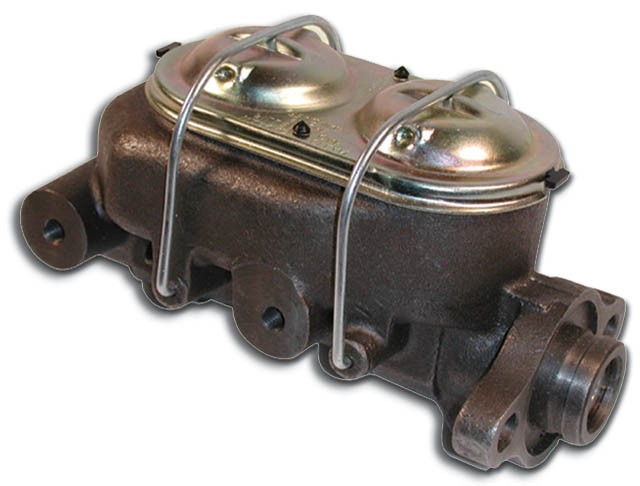

Kit includes a 7″ dual diaphragm zinc plated universal booster and new iron corvette style master cylinder. Non corosive black powder coat, stainless steel and aluminum/chrome options below. Using an 8″ booster may require some trimming of the frame to fit   Add a proportioning valve if you need one. All below the floor type pedals will need residual valves to eliminate fluid drain back out of your calipers/wheel cylinders. Residual valves do not take the place of proportioning valves. You should install both.

Package weighs a hefty 38 lbs.

  • Summary
  • Details
  • Review

Additional information

Weight 30 lbs

Please Tell Us Your Brake Configuration

Master Cylinder Options

Upgrade Your Power Booster

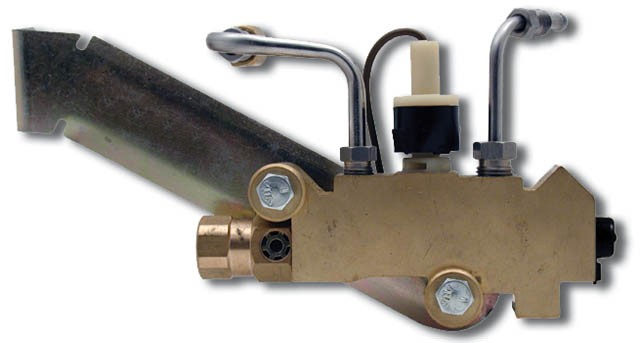

Add a Proportioning Valve Kit

Residual Valves - Needed For All Under Floor MC Mount - Front & Rear Circuits Each Need Their Own Valve

Product price: $254.00
Total options:
Order total:
