4 Link Rear Coil Over Weld On Axle Brackets – Pair


(0) Review this Product

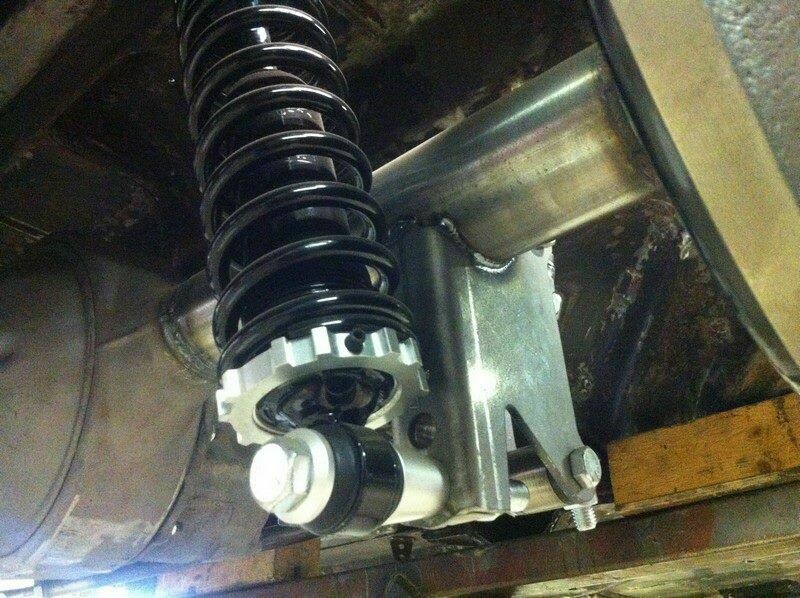

Description: Universal rear axle brackets for combo 4-link with adjustable ride height & lower coil-over mounts

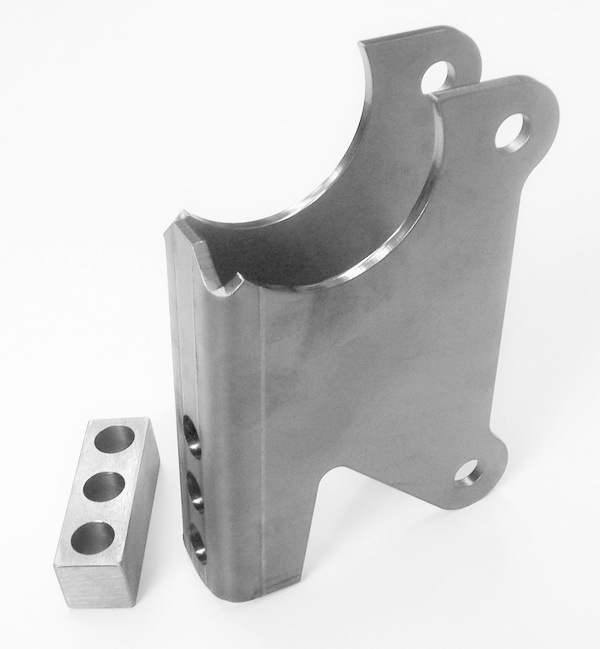

This kit will fit most 4 link kits on the market. The 4-link holes are ½” diameter on 5-1/2″ centers. Bracket inner dimension is formed for standard 1 3/8″ wide urethane bushings our you can upgrade to the large 1.75″ wide bushing below. The coil-over mounting holes are backed with a 1″ drilled square block for extra support. The three 5/8″ diameter coil over holes are on 1″ centers giving you 2″ of static ride height adjustment. The lower coil-over hole center is 4-1/2″ below the bottom of the axle tube. Made to fit 3″ or smaller (GM 10/12 bolt, Ford 9″ axles etc.) diameter axle tubes.

You will need to weld the drilled support block to the bracket (top and bottom only) or choose welded option below.

Kit is for 2 complete brackets. Made of US 3/16″ thick steel.

  • Summary
  • Details
  • Review

Additional information

Weight 12 lbs


There are no reviews yet.

Be the first to review “4 Link Rear Coil Over Weld On Axle Brackets – Pair”

Your email address will not be published. Required fields are marked *

Wide Bushing Bracket

Coil Over Bolt Kit

Welded Option

Product price: $72.00
