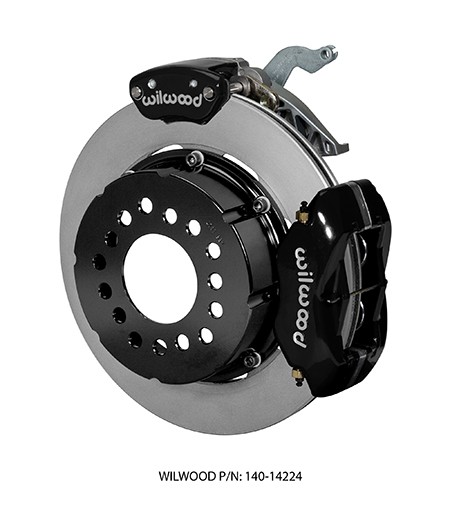

Wilwood Rear 12″ Disc Brake Kit, Chevy 10 &12 Bolt C Clip Eliminator

PN: 140-14224


InstructionsUntitled document


Application: Chevy 10 & 12 Bolt Axles w/C Clip Eliminator Ends – 2.91″ Offset


Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood FDL Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. This special C Clip Eliminator kit includes a separate mechanical parking brake mechanism. Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car. This kit is only available for axles with a 2.91″ offset! Bolts to the C Clip Eliminator ends having the OEM Chevy 10/12 Bolt axle end flange pattern. Does not fit the Ford 9″ conversion! Call if you need assistance in how to measure (ouside surface of axle housing end bracket to outer surface of wheel mounting pad on axle) .

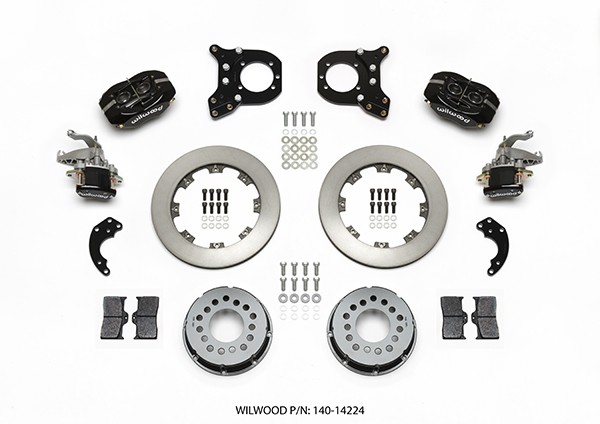

Rear Disc Kit Contents

  • 12.19″ Wilwood Iron Rotors
  • Dynalite Billet 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions

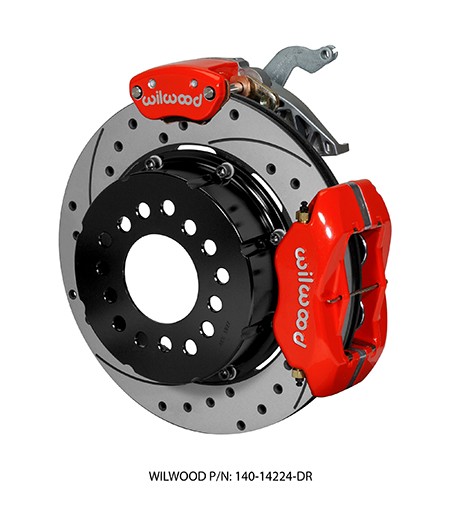

Base kit includes BLACK calipers and SMOOTH silver rotors. Drilling gets you black on the rotors exposed edges.

This kit fits most 15″ wheels! Sizing chart available

Base shock configuration is parallel. Staggered option below

Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively

Not sure which axle you have? Click HERE

  • Summary
  • Details
  • Review

Additional information

Weight 10 lbs
