Wilwood Rear 11″ Disc Brake Kit – Ford 9 Old Large Bearing

PN: 140-11387


Untitled document

Application: Ford 9″ Large  Bearing (old style) Axle – 11.00″ Wilwood Low Profile Kit With Parking Brake – Fits many 14″ wheels!


Not sure which axle you have? Click HERE

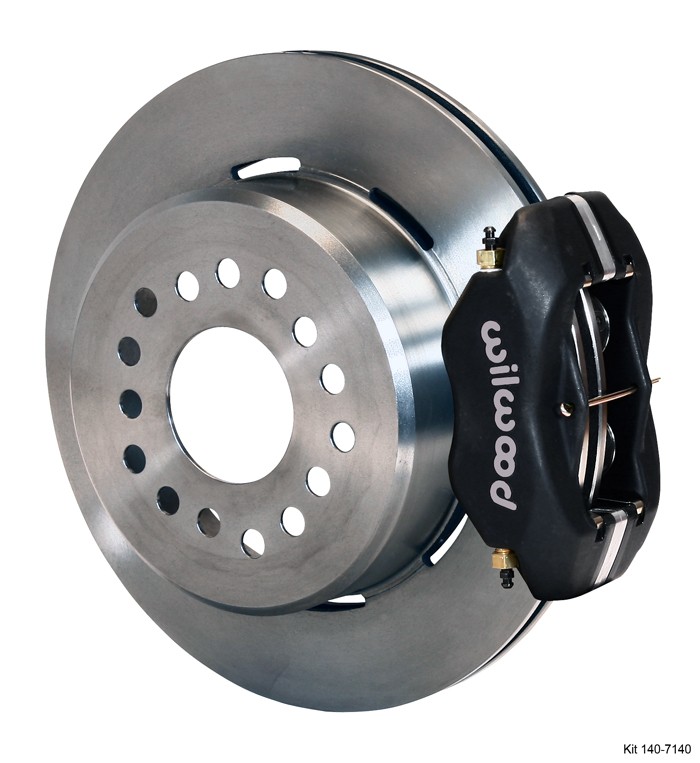

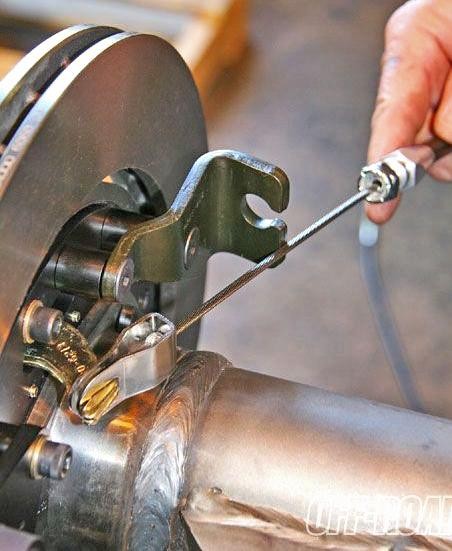

Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood Dynapro Low Series Kit utilizes a large 11″ vented .81″ thick iron rotor. Inside the rotor are Wilwoods patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynapro slim forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car. This kit is available for axles with a 2.36″offset only! 2.50″ or 2.54″ will need to run a 12″ rotor kit. The base price now includes what was the optional gloss black powder coated calipers. The black anodized calipers are gone. Call if you need assistance.

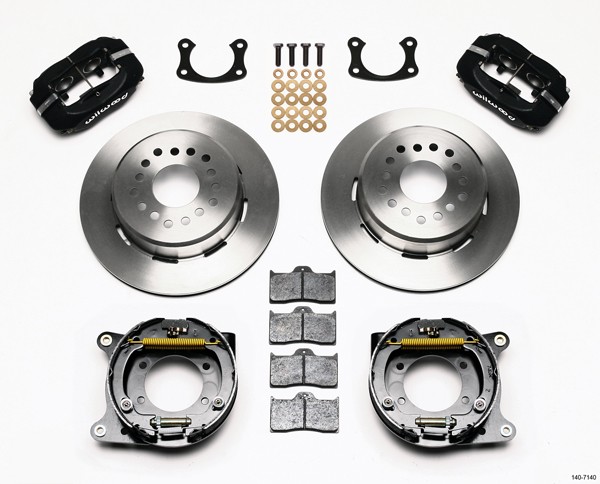

Rear Disc Kit Contents

  • 11.00″ Wilwood Iron Rotors
  • Gloss Black Dynalite Billet 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions

Base caliper surface is gloss black powder coat.

This kit fits some 14″ wheels! Sizing chart available

Base shock configuration is parallel. Staggered option below

Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively

  • Summary
  • Details
  • Review

Additional information

Weight 49 lbs

Please Choose Axle Offset

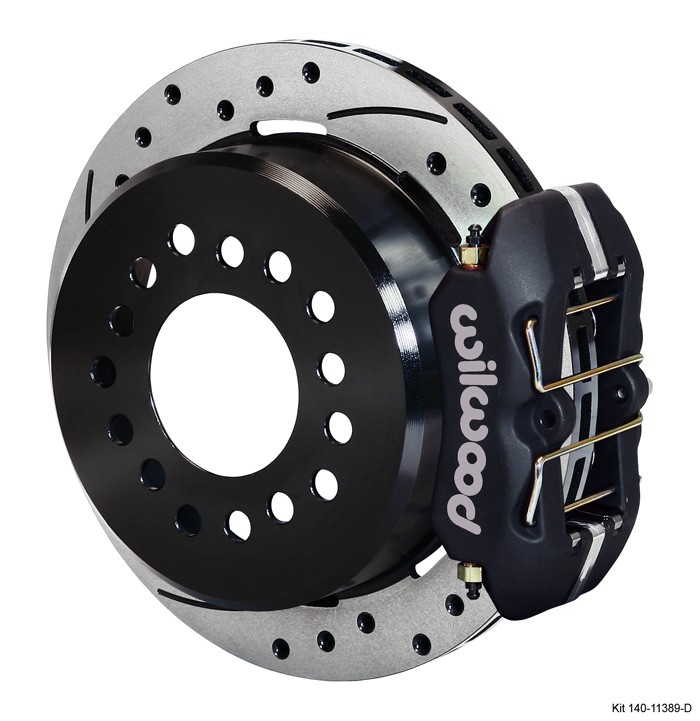

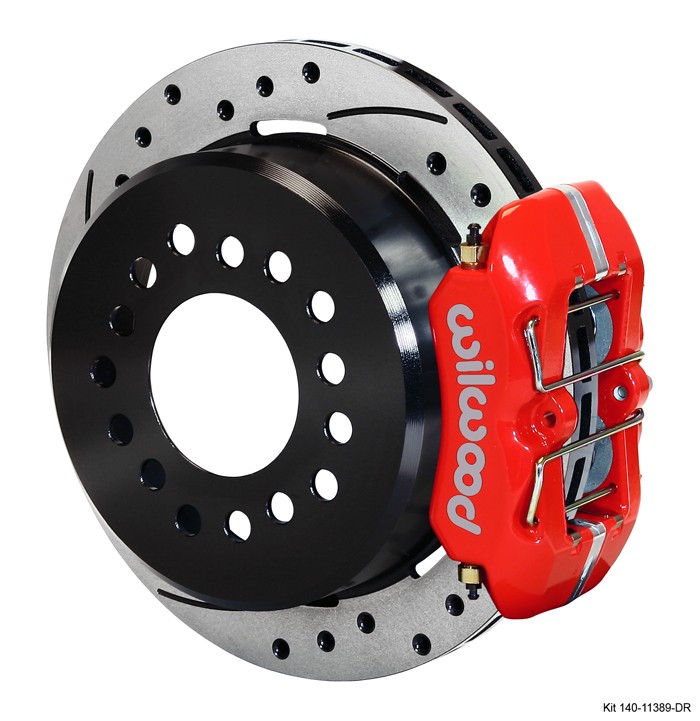

Choose Rotors and Caliper Surface Options

Convert To Ford Small Bearing

Product price: $932.00
Total options:
Order total:
