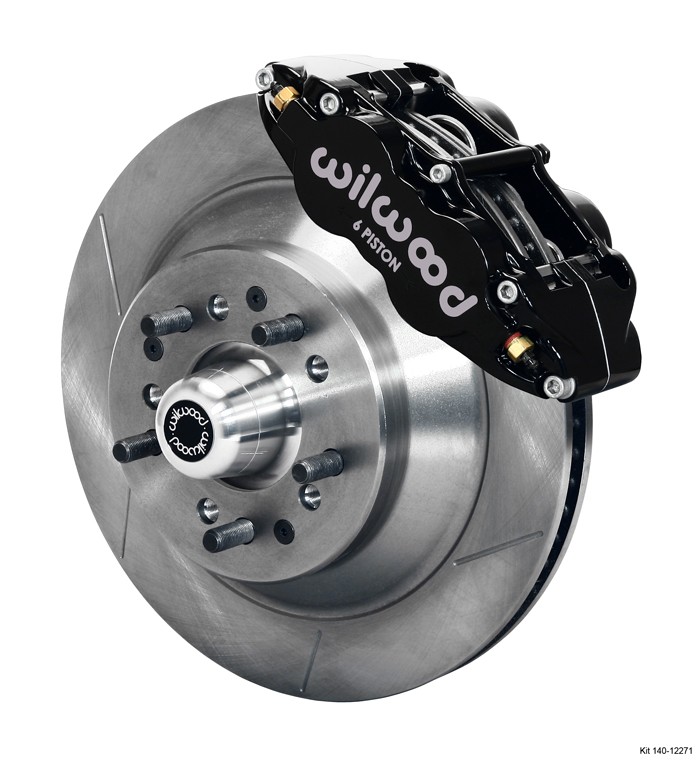

Wilwood 13″ Disc Superlite 6R Big Brakes Front Kit – 67-69 Camaro Firebird

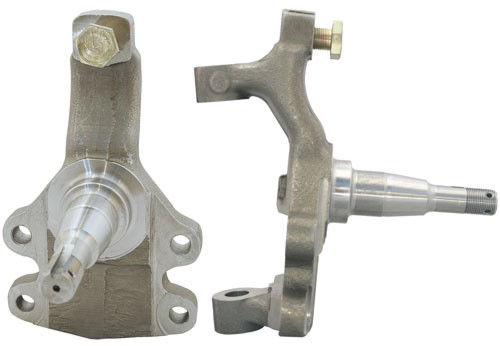

Application: 67 68 69 Camaro/Firebird Using OEM Spindle or Our 2″ Drop Camaro Drop Spindle or The CPP 62-67 Nova Drop Spindle

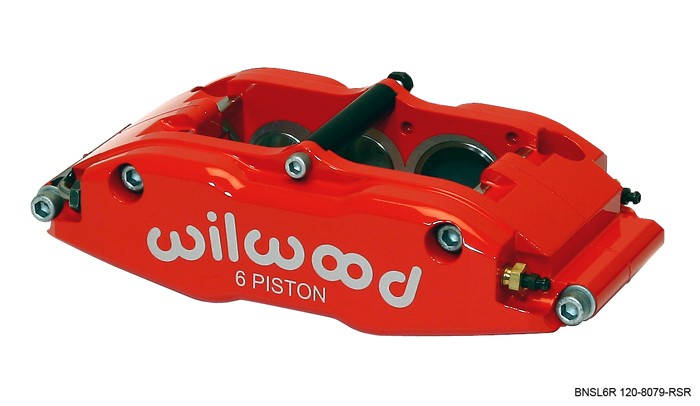

This comprehensive bolt on kit includes a custom Wilwood caliper bracket that integrates their brakes with your stock spindle or the FAB Quest OE style F body 2″ drop spindle. This kit also fits the CPP 62-67 Nova drop spindles with bolt on brackets. Kit uses a race quality 3 piece forged aluminum hub, forged flared bell rotor hat and separate 13″ vented 1.1″ thick iron multi vaned rotor. Clamping duties are accomplished with the Wilwood 6 piston Superlite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered to be one of the most powerful calipers made, these light, slender units incorporate stainless internals and super rigid radail mounting lugs. This impressive looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car. Other benefts are reduced unsprung weight and the ability to use most 17″ or larger wheels. Many options are noted below. Base kit includes smooth silver GT slotted vaned rotors, silver hats and the new black caliper color.

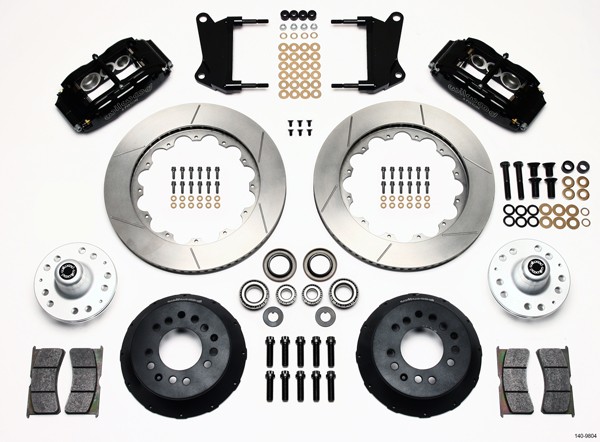

Base Kit Contents

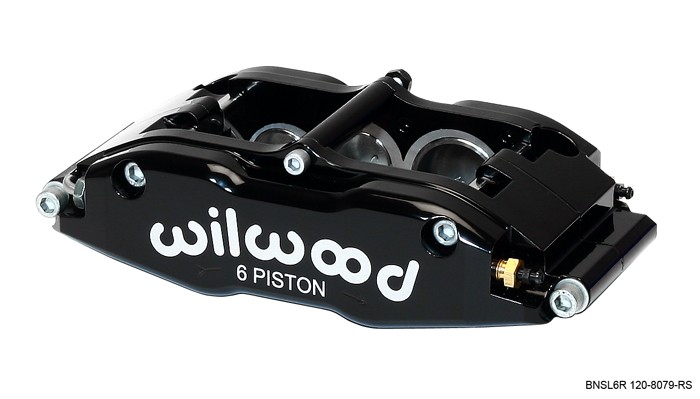

  • Black 6 Piston Billet Superlite Wilwood Calipers
  • Forged Aluminum Caliper Brackets
  • 13″ Slotted/Smooth 1.1″ Curved Vane Vented Wilwood Rotors

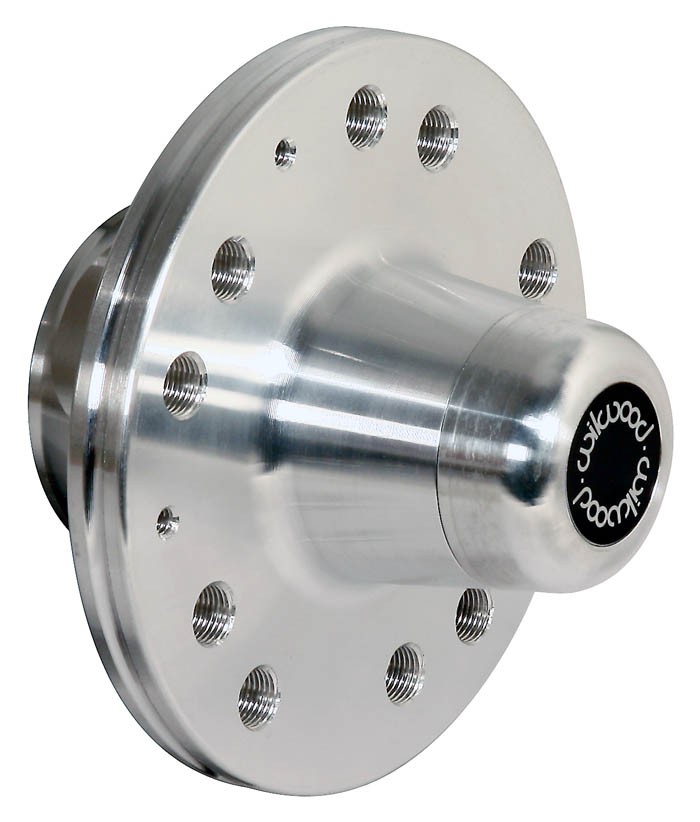

  • Forged Aluminum Hubs
  • 1/2″ 20 Studs

  • Dual Pattern 5x 4.5″ and 5x 4.75″

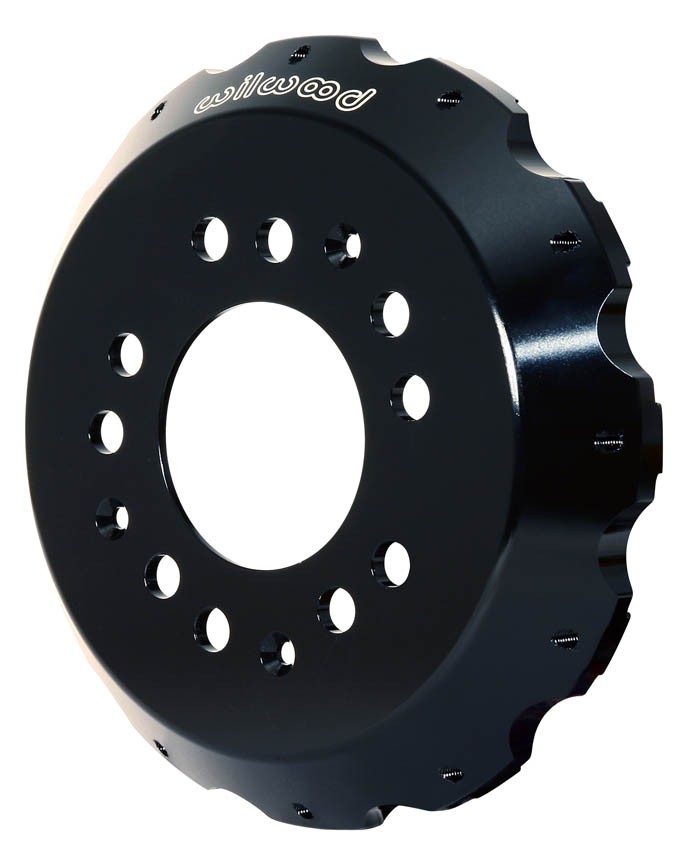

  • Silver Forged Aluminum Flared Bell Rotor Hat

  • Bearings, Seals and Dust Cap
  • BP110 Compound Street/Race Pads

  • Mounting Hardware
  • Detailed Instructions

This kit widens your track by a slim+ .38″ per side.

  • Summary
  • Details
  • Review

Additional information

Weight 20 lbs

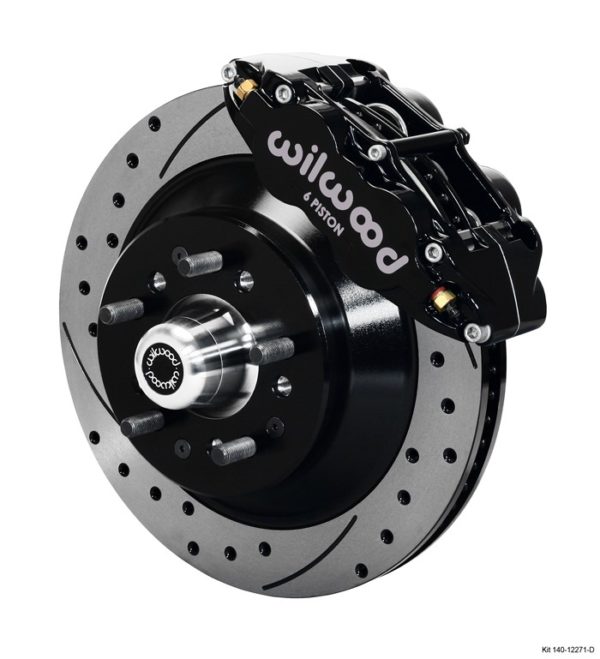

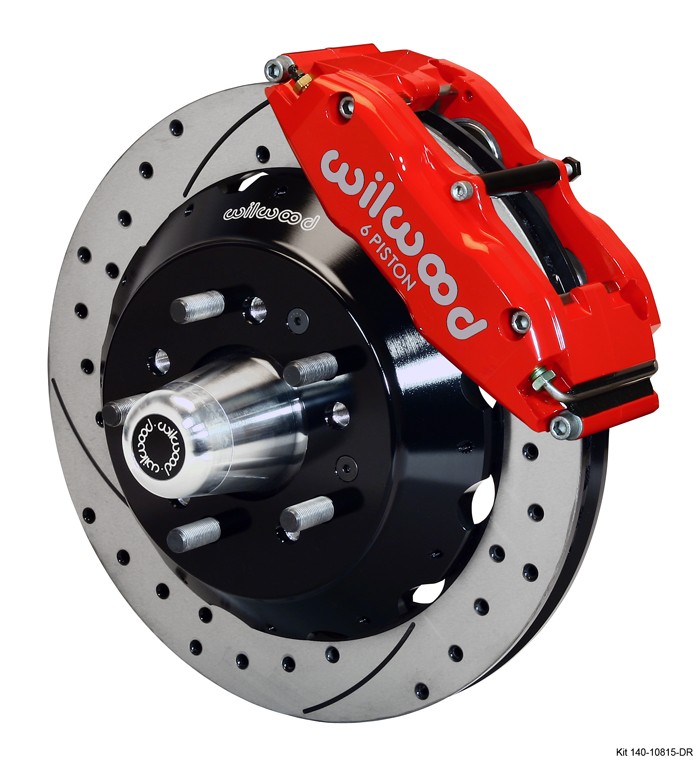

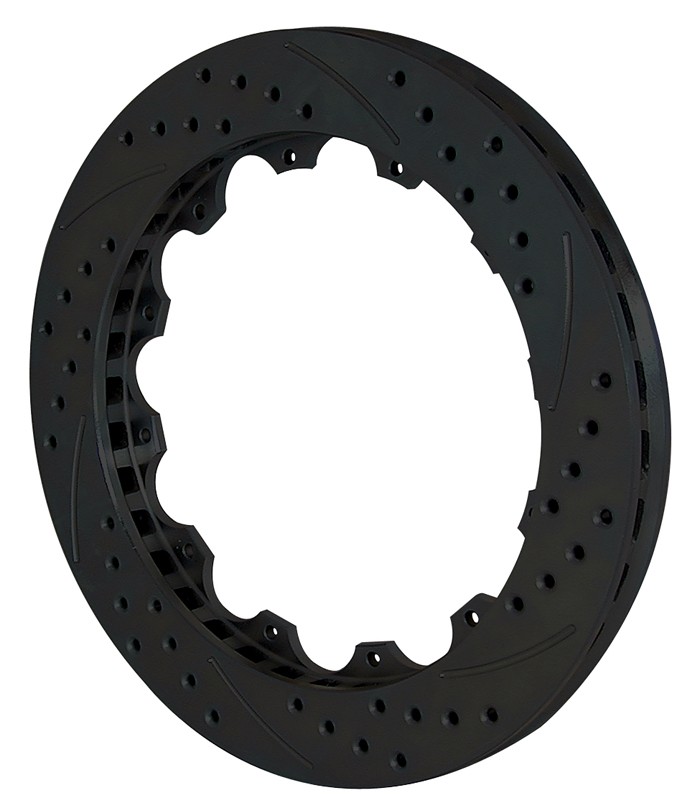

Upgrade to Drilled Rotors And Change Caliper Color

Product price: $1,199.00
