Tri 5 Chevy 55 56 57 Heidts Style Forged 2″ Drop Spindles

PN: 5557DRP

$169.00

(0) Review this Product

Application: Full Size Chevy 1955-57 2” Drop spindles

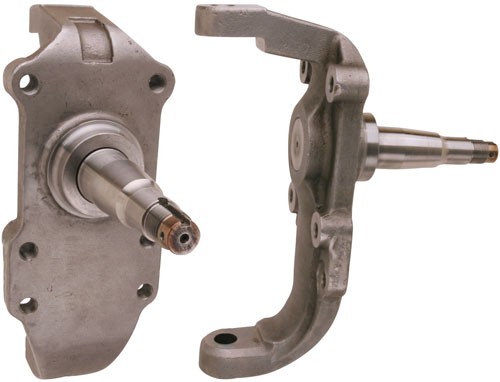

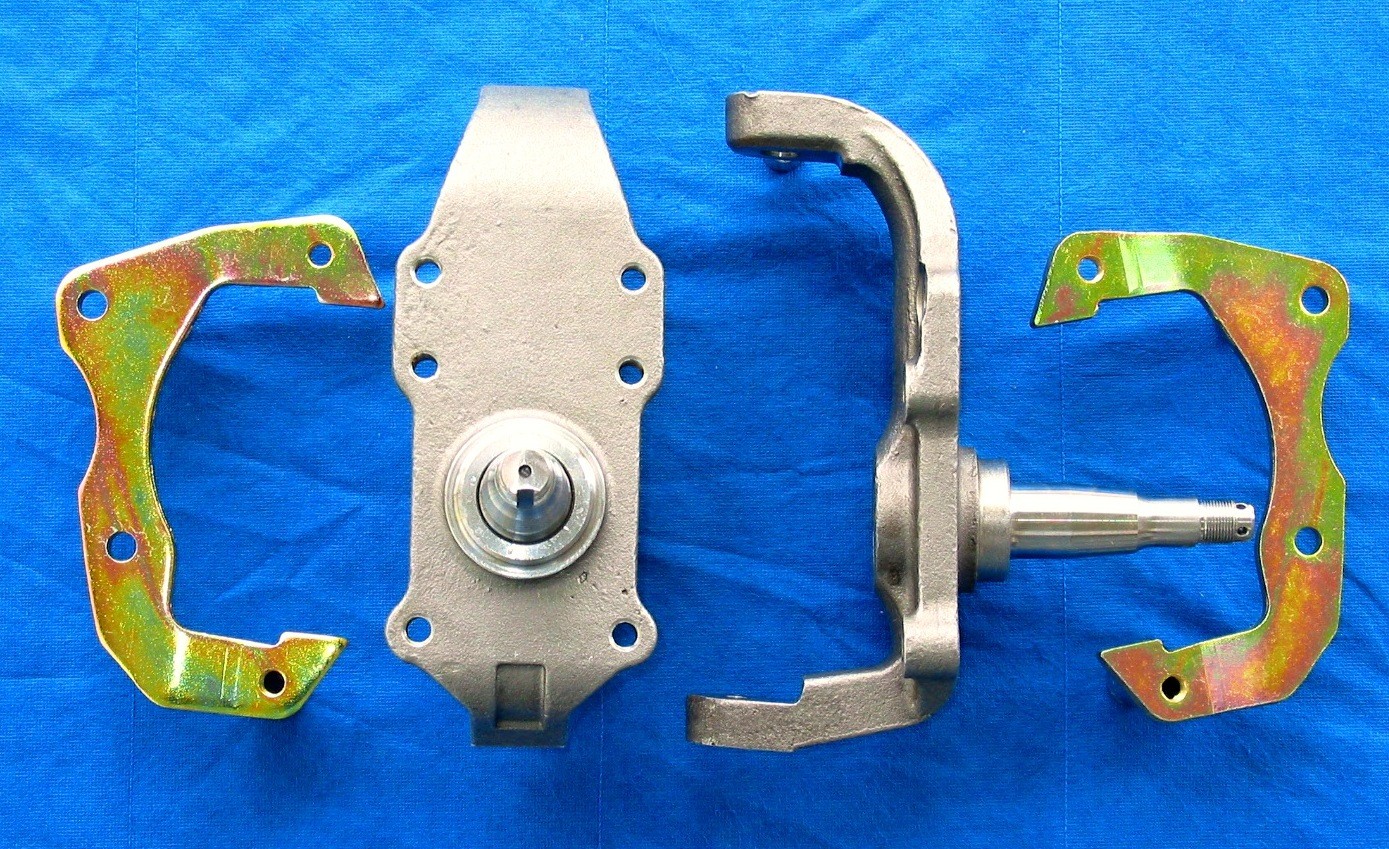

These newly designed “Heidts Style” 2″ drop spindles use your stock steering arms and do not interfere with or change your stock steering radius. Your track width is widened by 1/4″ to 3/8″ per side depending on which rotor kit you install. They are 8 lbs lighter per side vs. the common one piece cast drop spindles that interfere with your A-arms. These use a bolt on caliper bracket to allow different calipers and or rotor combinations to be used. They take either the Chevy metric S-10 rotors or our Wilwood 12″ brake kit.

Spindles uses A3 outer bearings, A6 inner bearings, 3/4-20 spindle nut and the common 8871 seal.

Currenlty the caliper brakcet kit for hte GM D154 metric caliper is unavailable. Complete Wilwood disc conversion kits are available!

Add our 1″ lowering coil spring for a total of a 3″ slam and drastically improve your rides handling!

  • Summary
  • Details
  • Review

Description

These forged 8871 steel spindles uses A3 outer bearings, A6 inner bearings, 3/4-20 spindle nut and the common 8871 seal. Rotors and calipers available below as options.

These spindles are also compatible with:

68-77 Large GM 7″ D-52 Calipers

Additional information

Weight 26 lbs
Dimensions 14 × 14 × 12 in

Reviews

There are no reviews yet.

Be the first to review “Tri 5 Chevy 55 56 57 Heidts Style Forged 2″ Drop Spindles”

Your email address will not be published. Required fields are marked *

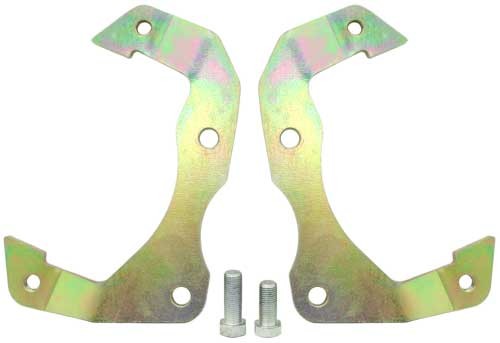

Caliper Brackets – For S-10 Mid Size Metrick D-154 Calipers
