TCI To Wilwood Front Brake Conversion – TCI Coil Over IFS

PN: 140-13224

$1,334.00

Application: All TCI Custom IFS Equipped Cars & Trucks

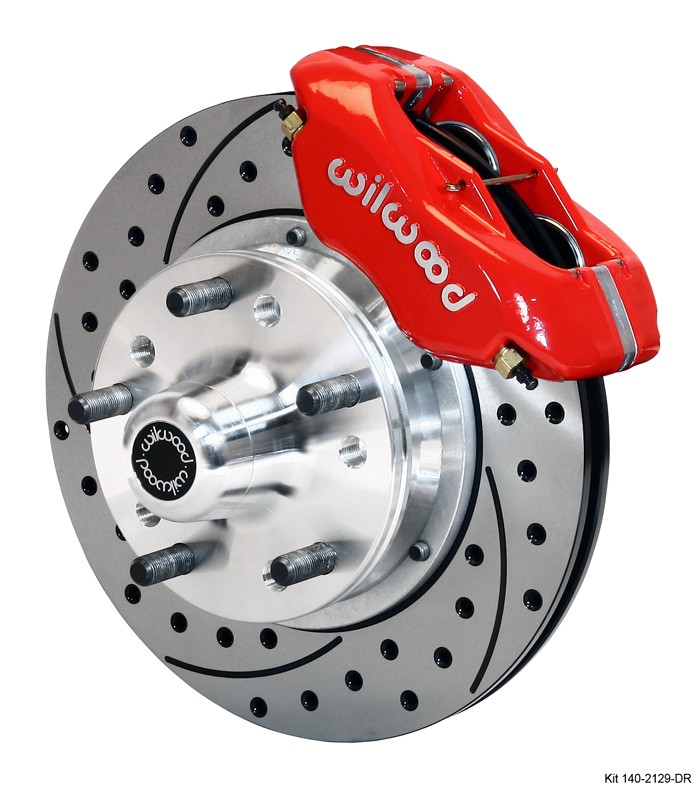

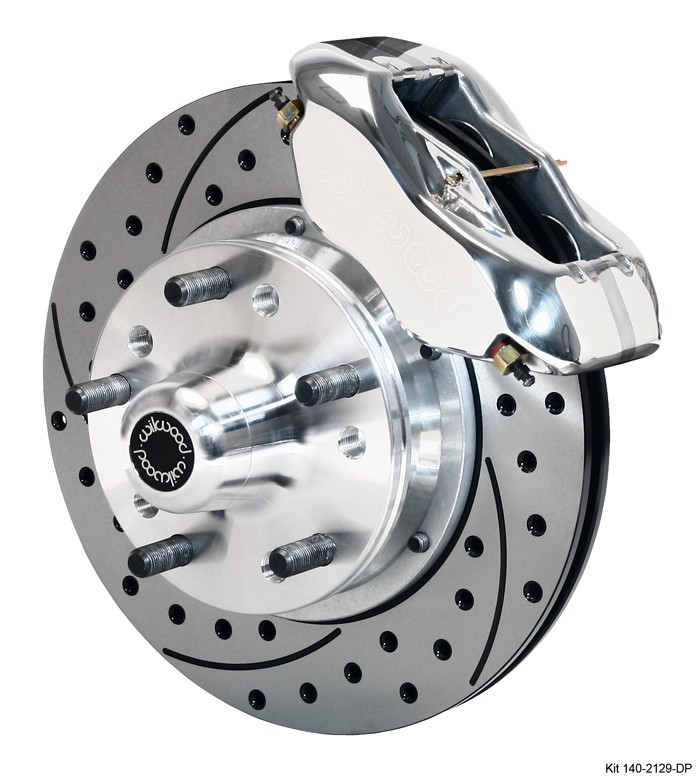

This comprehensive bolt on 12″ rotor kit includes a custom TCI only billet 360 full circle caliper bracket that integrates Wilwood brakes with their coil over custom IFS front ends. Will fit both TCI stock height and drop spindles. Kit uses a race quality 3 piece forged aluminum hub, forged rotor adapter and separate 11″ or 12″  .81″ thick iron multi vaned rotor. All TCI supplied Wilwood rotors are drilled and slotted. The 13″ / 14″ kit is available in slotted only or drilled and slotted rotors. This is the best bang for the buck as we ship these direclty from Wilwood. Clamping duties are accomplished with the Wilwood 4 piston (11 or 12 inch kits) or 6 piston (13″ inch kits) forged aluminum calipers. These forged billet calipers are much lighter, more rigged and very slim compared to the OEM iron calipers. Considered to be one of the most powerful 4/6 piston calipers made, these light, slender units incorporate stainless internals and super rigid mounting lugs. This impressive looking package creates strong stopping power, quicker cooling and is constructed of long life components. Other benefits are reduced unsprung weight and the ability to use 15″ wheels with up to a 12″ rotor or 17″ wheel with a 13″ rotor. Many options are noted below.

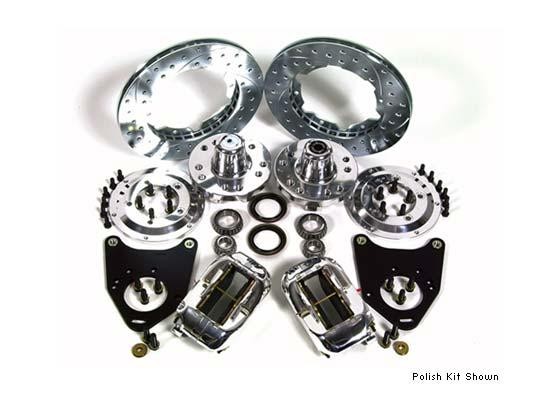

Kit Content

  • TCI Custom Caliper Mounts

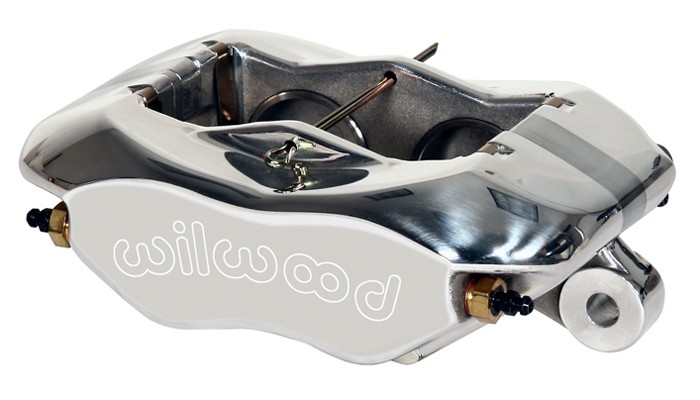

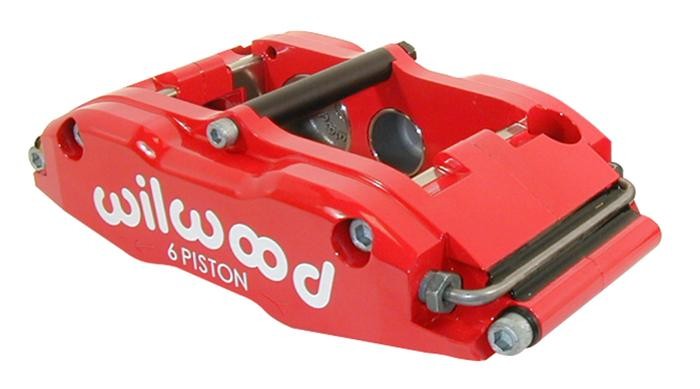

  • Black 4/6 Piston Billet Wilwood Calipers – Dynalite 4 Pot or Forged Narrow Superlite 6 Pot

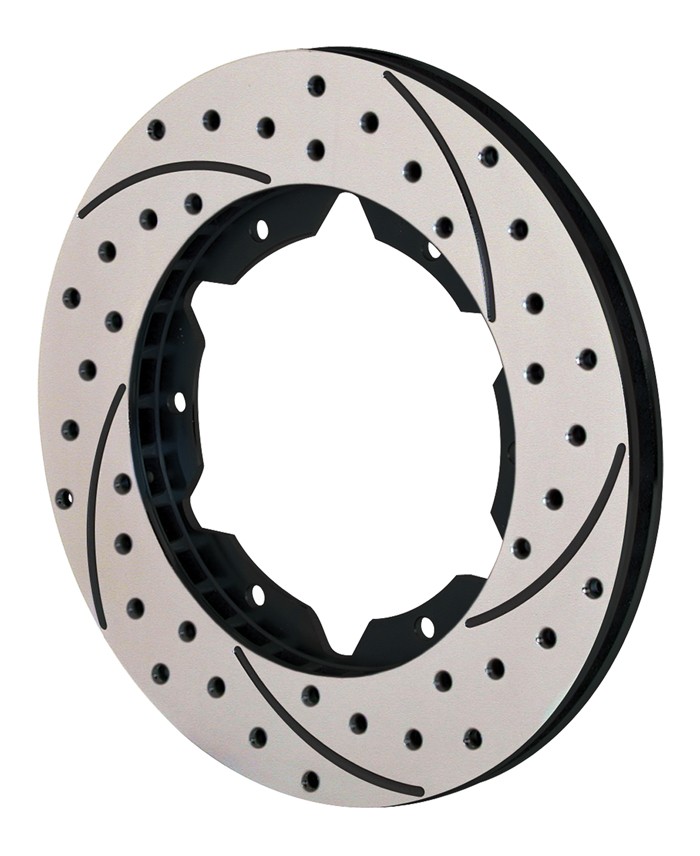

  • 11″, 12″, 13″ or 14″ inch Drilled, Slotted and .81″ Vented Wilwood Rotors
  • Forged Aluminum Rotor Adapters

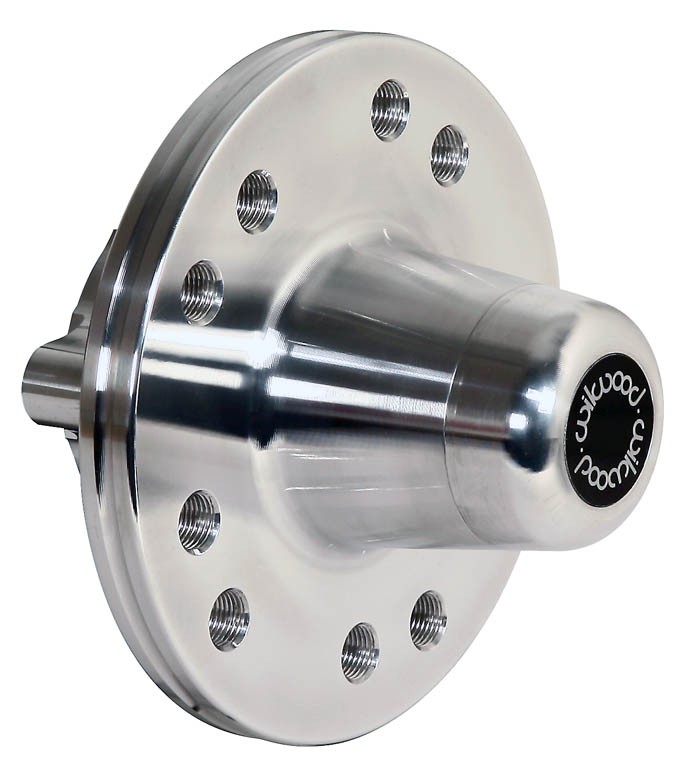

  • Forged Aluminum Hubs
  • 1/2″ 20 Studs
  • Dual Pattern 5x 4.50″ and 4.75″
  • Bearings, Seals and Dust Cap
  • BP110 Compound Street/Race Pads
  • Mounting Hardware



This kit does NOT widen your track!

  • Summary
  • Details
  • Review

Description

Application: All TCI Custom IFS Equipped Cars & Trucks

Additional information

Weight 25 lbs

Which Kit Do You Have?

Which Spindles Do You Have?

Choose Caliper Surface for 12\" Kits or Choose a 13\" Kit Below

Choose Rotor And Caliper Size

Product price: $1,334.00
Total options:
Order total:
