TCI 67 68 69 Camaro Firebird 4 Link Rear Suspension Kit Stock & Tubbed

$2,061.00

(0) Review this Product

DISCOUNTED PRICING Total Cost Involved InstructionsPLUS THESE FREE ITEMS!



  • FREE SUB FRAME CONNECTORS
  • FREE FAT 1.250″ LINK BARS

IF PURCHASED WITH AN IFS A REAR SWAY BAR IS INCLUDED FREE!

Application: 67-69 1st Gen Camaros and Firebirds Stock Tubs or Mini Tubbed Cars – DOES NOT WORK WITH DSE MINI TUBS

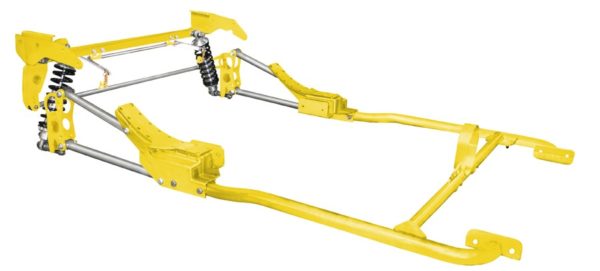

TCI 67 68 69 Camaro Firebird 4 Link Rear Suspension Kit : Total Cost Involved’s Performance Style 4-Link is a true bolt-in kit with no cutting into the floor required. Now included FREE are un-equal length, adjustable 1.25″ 4-Link “FAT” bars. Link bars eliminate wheel hop while the “coil over shocks” provide a superior type of suspension control when compared to leaf springs. This kit gives the driver the ability to adjust the suspension for changing track conditions as well as improving your street manners. This kit uses poly bushed rod ends making for a quiet and reliable street or track driven vehicle.

Max tire widths:

  • Non tubbed cars 67-68 285mm
  • 275mm for 1969
  • Tubbed cars 67/68 325mm
  • 335mm for1969
  • Add another 10mm if you roll the inner fender lip
  • Add another 5mm if you run the car at stock ride height

Kits includes:



  1. Adjustable 1.25″ 4-Link “FAT” Bars
  2. Link Bar to Frame Brackets
  3. Weld On Axle Brackets
  4. Coil-Over Crossmember – Bolt In
  5. Adjustable Steel Coil-Over Shocks With Springs

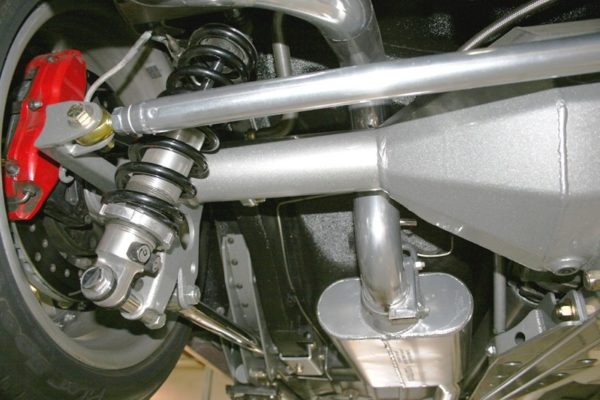

  6. Adjustable Low Mount Panhard Bar GM or Ford
  7. Detailed Instructions

Product Notes:

Unless an axle is purchased, axle brackets will need to be welded in place.The 4 link ships by FedEx Ground and is comprised of 3-4 boxes tottaling 175lbs.If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact. Chevy 5x 4.75 BP is standard. Ford available.

  • Summary
  • Details
  • Review

Description

TCI 67 68 69 Camaro Firebird Performance 4 Link Rear Suspension Kit – For Stock Tubs



Product Notes:

Unless an axle is purchased, axle brackets will need to be welded in place.The 4 link ships by FedEx Ground and is comprised of 3-4 boxes tottaling 175lbs.If an axle is selected please contact us or a freight quote. All axles are charged shipping regardless of specials. You may checkout and pay the axle freight after the fact. Chevy 5x 4.75 BP is standard. Ford available.









Additional information

Weight 149 lbs

Reviews

There are no reviews yet.

Be the first to review “TCI 67 68 69 Camaro Firebird 4 Link Rear Suspension Kit Stock & Tubbed”

Your email address will not be published. Required fields are marked *

Please Tell Us The Year of You Car *

Please Tell Us Your Body Style *

Tell Us About Your Axle For Correct Bracket Set! *

Select Your Sub Frame Connectors *

Tubbed Car Option

Show Chrome and Stainless Steeel Upgrades

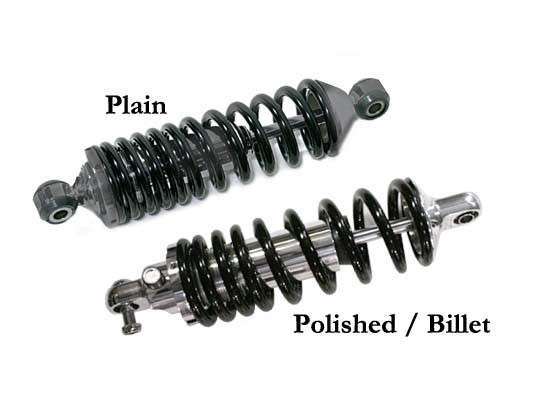

Shock Options

Add A Performance Rear Sway Bar

Add Cross Member With Drive Shaft Loop C

Add A Currie Built Ford 9" Axle Assembly To Your Kit. Axle Comes With All Brackets Welded In Place

Upgrade Above Axle Housing or Complete Axle To FAB 9

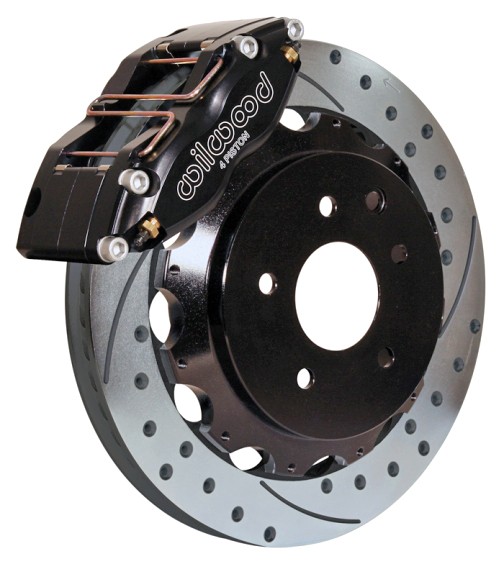

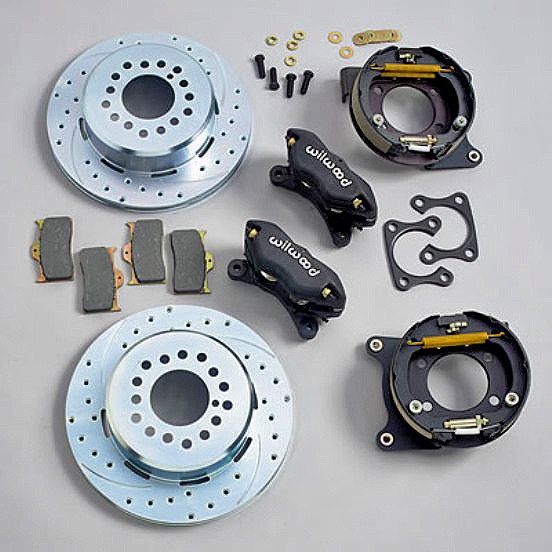

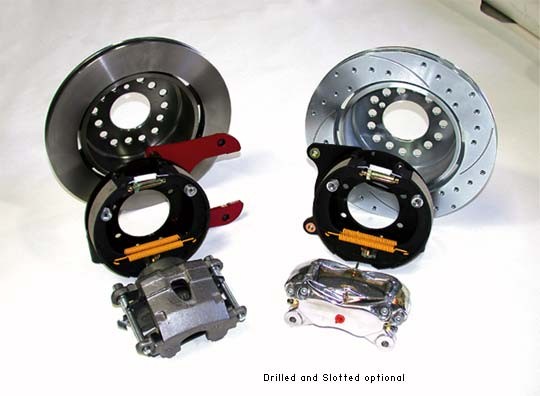

Brake Options For TCI Ford 9" Axle

Add a Braided Brake Line Kit

Product price
Additional options total:
Order total:
