TCI 47-53 & 54 Chevy Truck Complete Chassis


(0) Review this Product




 TCI 47-54 Chevy Truck Complete Chassis w/Mustang II IFS or Custom IFS

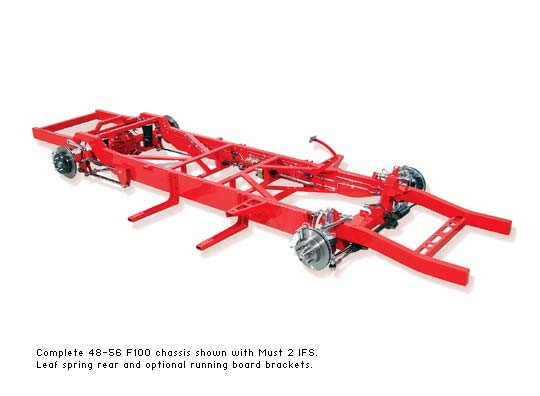

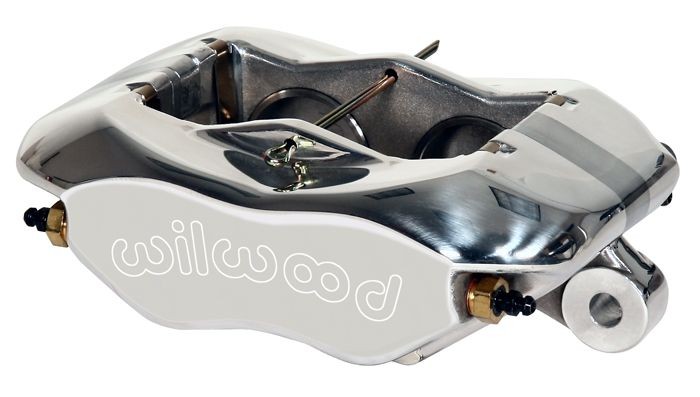

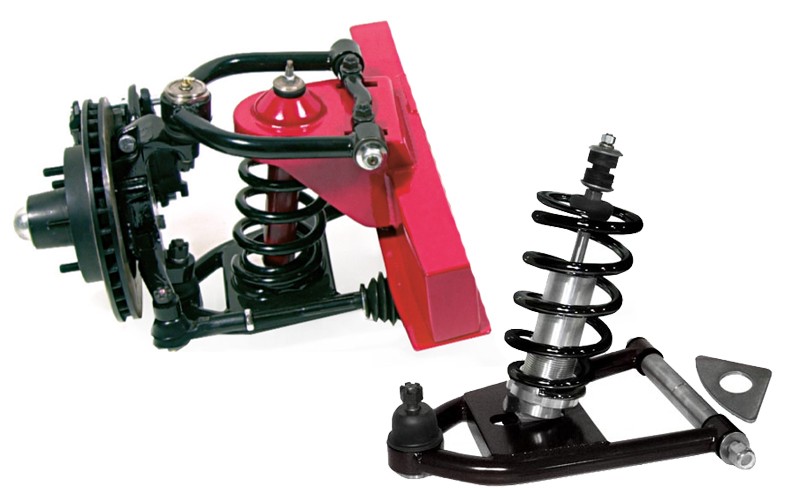

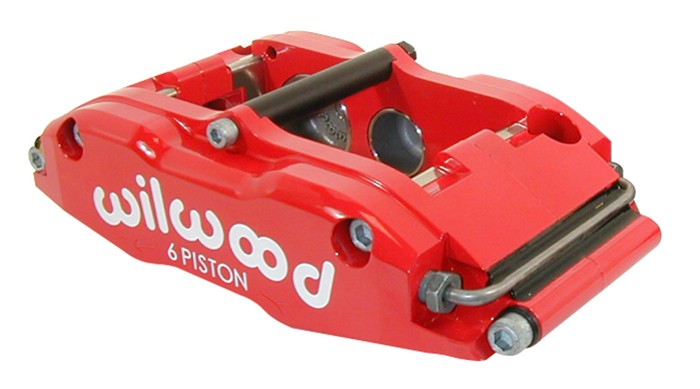

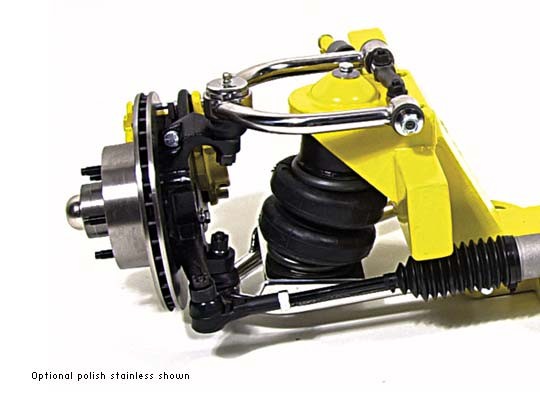

Chassis starting price includes an M-II fornt IFS and rear leaf spring suspension. Upgrading to the custom IFS changes the front cross member to a 1 piece unit designed for coil over shocks. Billet shocks are included with the upgrade. The custom IFS can be ordered with a full show stainless and chrome package. Other options include air bags on the M-II, Shockwaves on the custom IFS, upgrade to stainless hard brake lines (installed) and a combo power brake pedal with hydraulic clutch pedal. A custom cross member is requried to accomodate the hydaulic clutch pedal bracket. The 11″ brake rotors can be ordered with a 5″, 5.5″ or 6 lug truck pattern. This upgrade will include a custom iron hub and 2 piece custom TCI rotor. Wilwood brakes are dual pattern 5x 4.5″ or 5x 4.75″ only. No truck patterns.

54 model years will require that the bed be raised 1″ to clear the 48-53 rear kick up.

  • M-II IFS Front End
  • Stock or Drop Forged Spindles

  • Kit Utilizes Your OEM Radiator
  • Running Board and Body Mounts Included

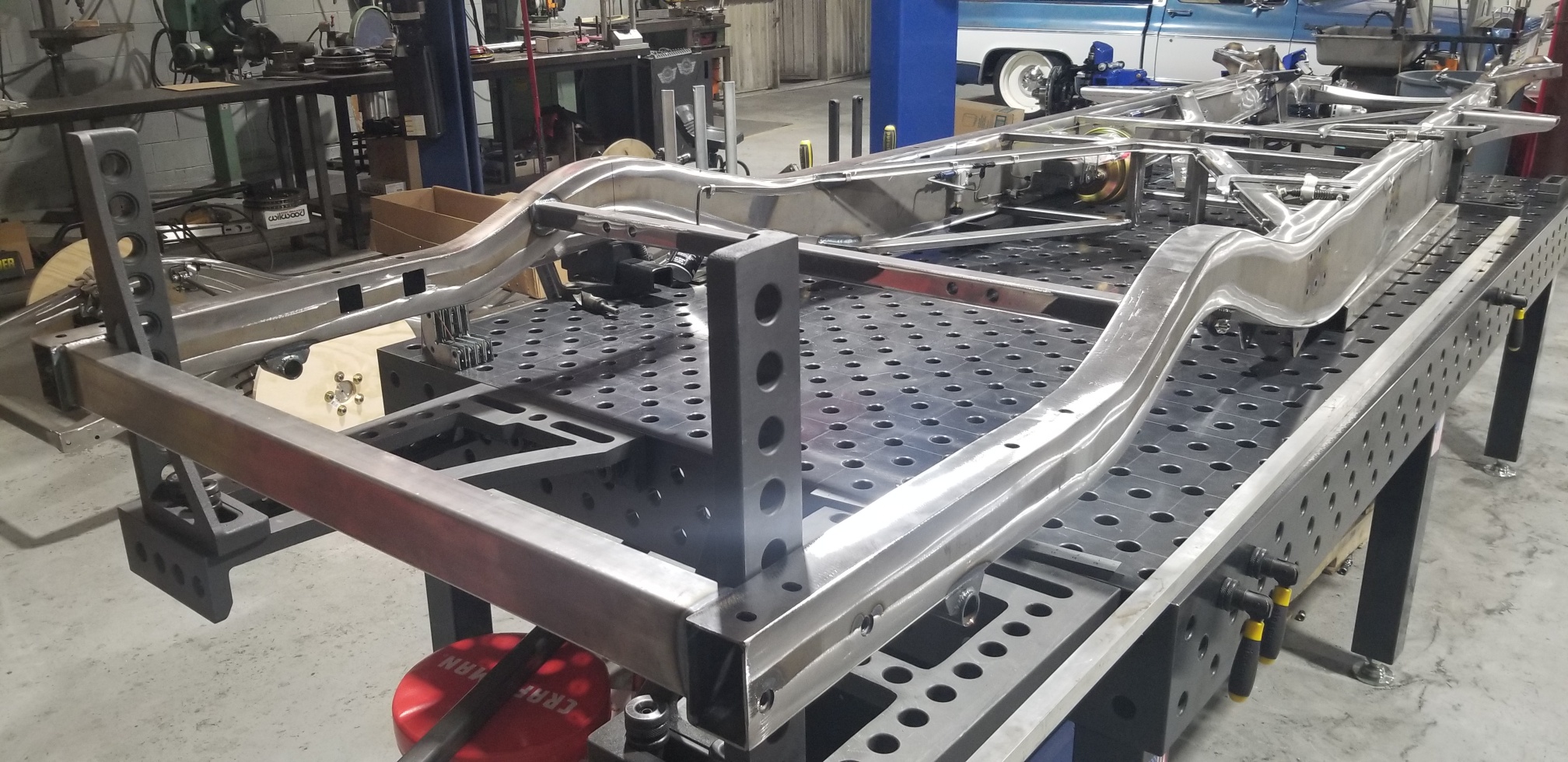

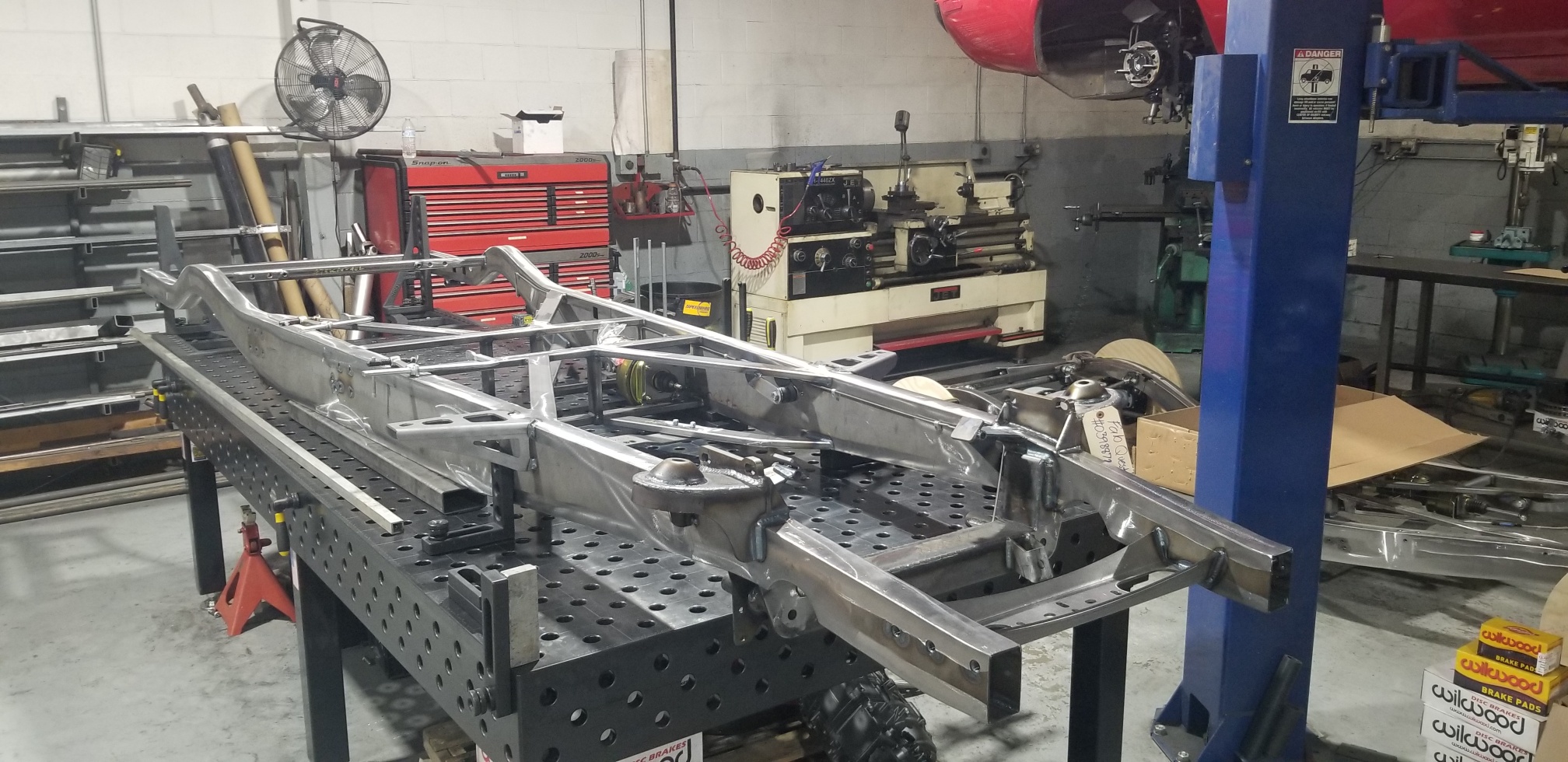

  • Oversized Fully Boxed Steel Frame Fixture Welded In House

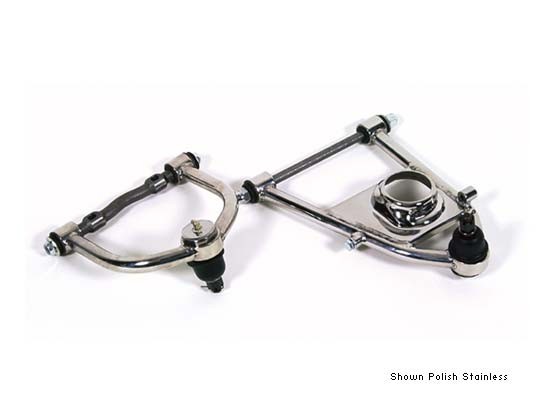

  • Heavy WallTubular Control Arms
  • SB/BB/LS Engine Mount Options

  • Black Powder Coated Springs and Painted Steel Gas Shocks

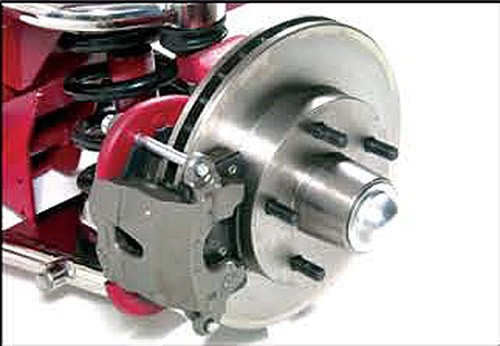

  • Assembled11″ GM Disc Brakes w/ CPP Large Calipers
  • New Manual Rack and Pinion
  • Rear Leaf Spring Suspension

  • New Currie Ford 9″ Axle w/Nodular Iron 3rd Member

  • Rear Drum Brakes
  • Under Floor Complete Power Brake Kit w/Pedal, Booster etc.
  • All Brake Hard Lines and Flex Lines Plumbed

  • All Hardware and Detailed Instructions
  • 5x 4.75″ Chevy Bolt Pattern Standard

FREIGHT IS EXTRA! Freight will be quoted/charged when the chassis is ready to ship!!

SCROLL DOWN! Powder coating, polishing and many hardware options available below

  • Summary
  • Details
  • Review

Additional information

Weight 200 lbs


There are no reviews yet.

Be the first to review “TCI 47-53 & 54 Chevy Truck Complete Chassis”

Your email address will not be published. Required fields are marked *

Please Tell Us About Your Truck!

Upgrade Your Rear Leaf Springs To a 4 Link

Upgrade Open Dif to Posi

Rear Brake Options

Rear Sway Bar

Power Brake Pedal or Add Hydraulic Clutch Petal - Requires a custom trans cross member and labor

Convert To Truck Lug Patterns - Wilwood Brakes Not Available With This Option!

Add Engine Brackets - Will Be Welded In Place

Add A Tilt Steering Column & U-joint Kit - Check All That Apply

Brake Lines

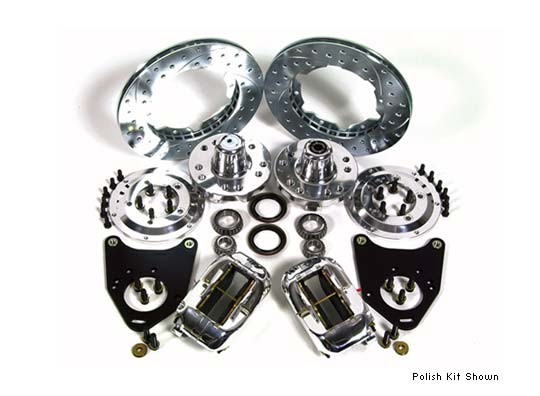

Front Disc Brake Upgrade

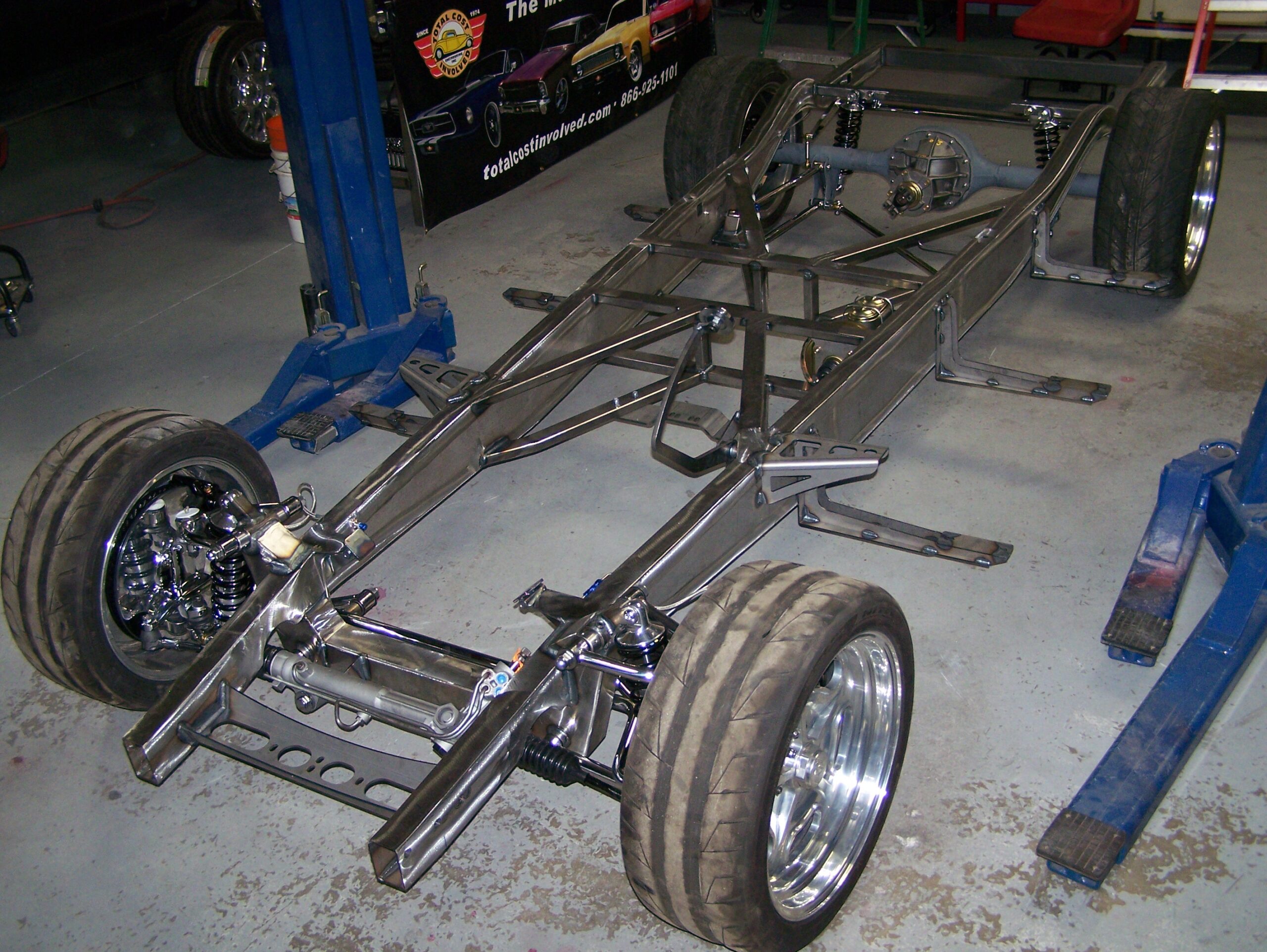

Upgrade To A Pro Street Chassis With Pinched Rear Frame Rails - Built to Your Wheel Spec. Up to 20\"x 16\" Wheel!

Step Notch Rear Kick Up To \"Lay Running Boards\" - Air Ride Suspension Must Be Chosen!

Please Choose A Spindle - Applies to both M-II or Custom IFS front ends

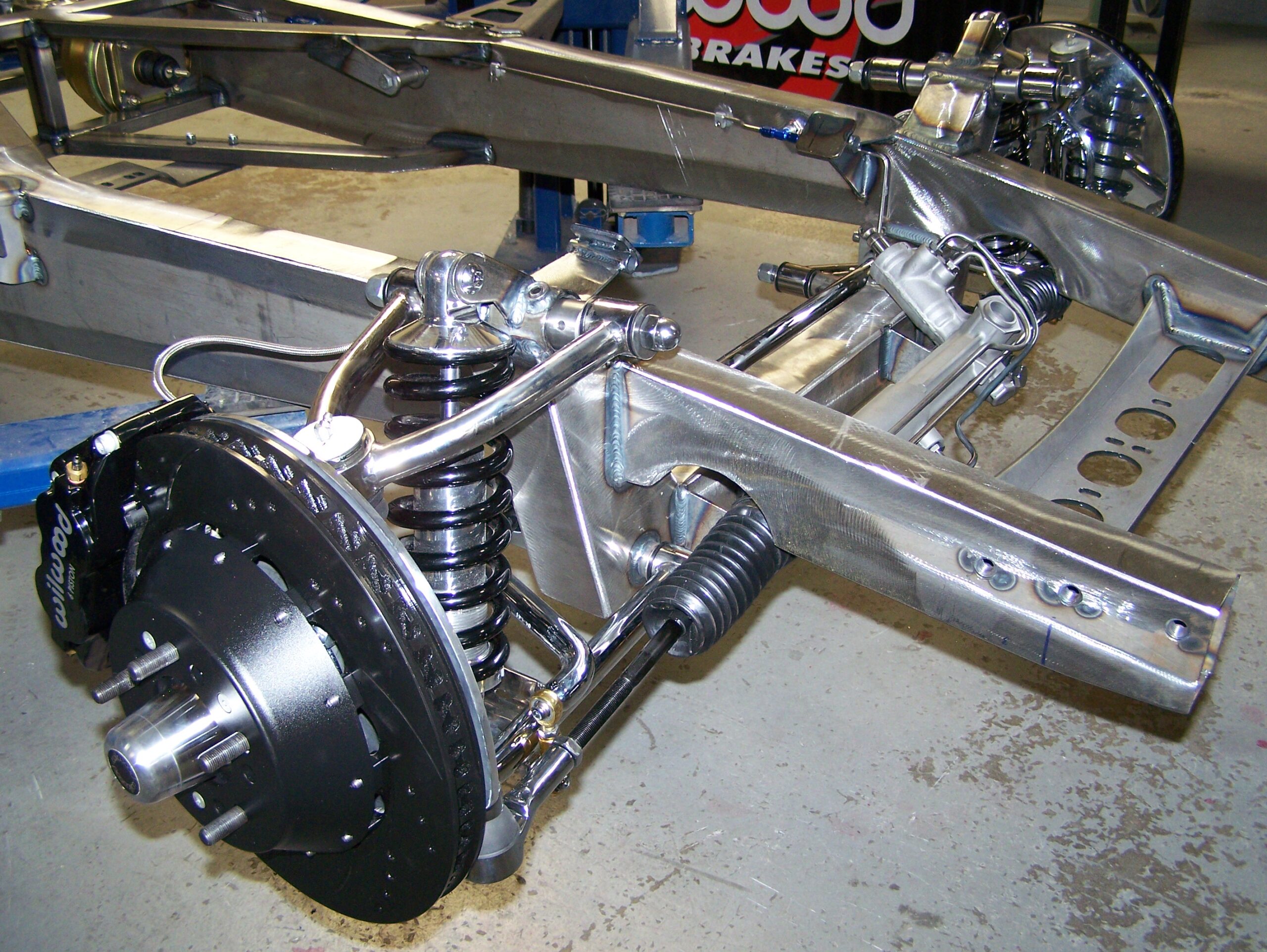

Upgrade To Custom IFS Front End With 1 Piece Front Cross Member & Ectric Alignment System

Coil Spring Options - M-II and Custom IFS

Shock Options - Custom IFS & M-II

Show Packages Upgrade - Custom IFS Option Only - No M-II show package

Steering Rack Options

Add Urethane Mounts

Product price: $11,584.00
