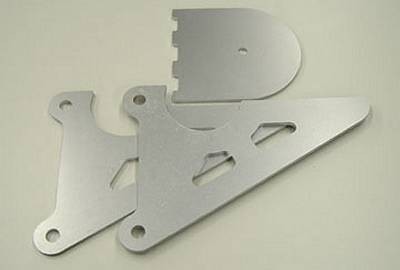

Air Spring to Rear Axle Bracket With 4 Link Mounts

Universal “You Weld” rear axle bracket kit for combination 4-link and lower air spring mount. 4-link mounting holes are ½” diameter on 5-1/2” centers. The 4-link holes are 2-1/2” ahead of the axle centerline. The air spring plate pad is the same height as the rear axle centerline. Designed to mount any air spring that uses a 3/8” bolt hole. If you choose the welded option brackets are welded to take a 1.75″ wide bushing end. Order un-welded and you can assemble to fit any bushing you have or if your bushings are smaller, add washers inside to fit.

Axle reliefs are 3.00″ or 3.25″ diam,  but will work on smaller axles (GM 10/12 bolt etc.). Just locate the side plates on your axle, tack in place, add the shock mounting plate and finish weld.

Kit is for 2 complete brackets. Made of US 3/16″ thick steel.
