55-59 Chevy Pickup Truck Power Brake Pedal Assembly




Application: 55-59 Chevy Pickup With Stock Frame

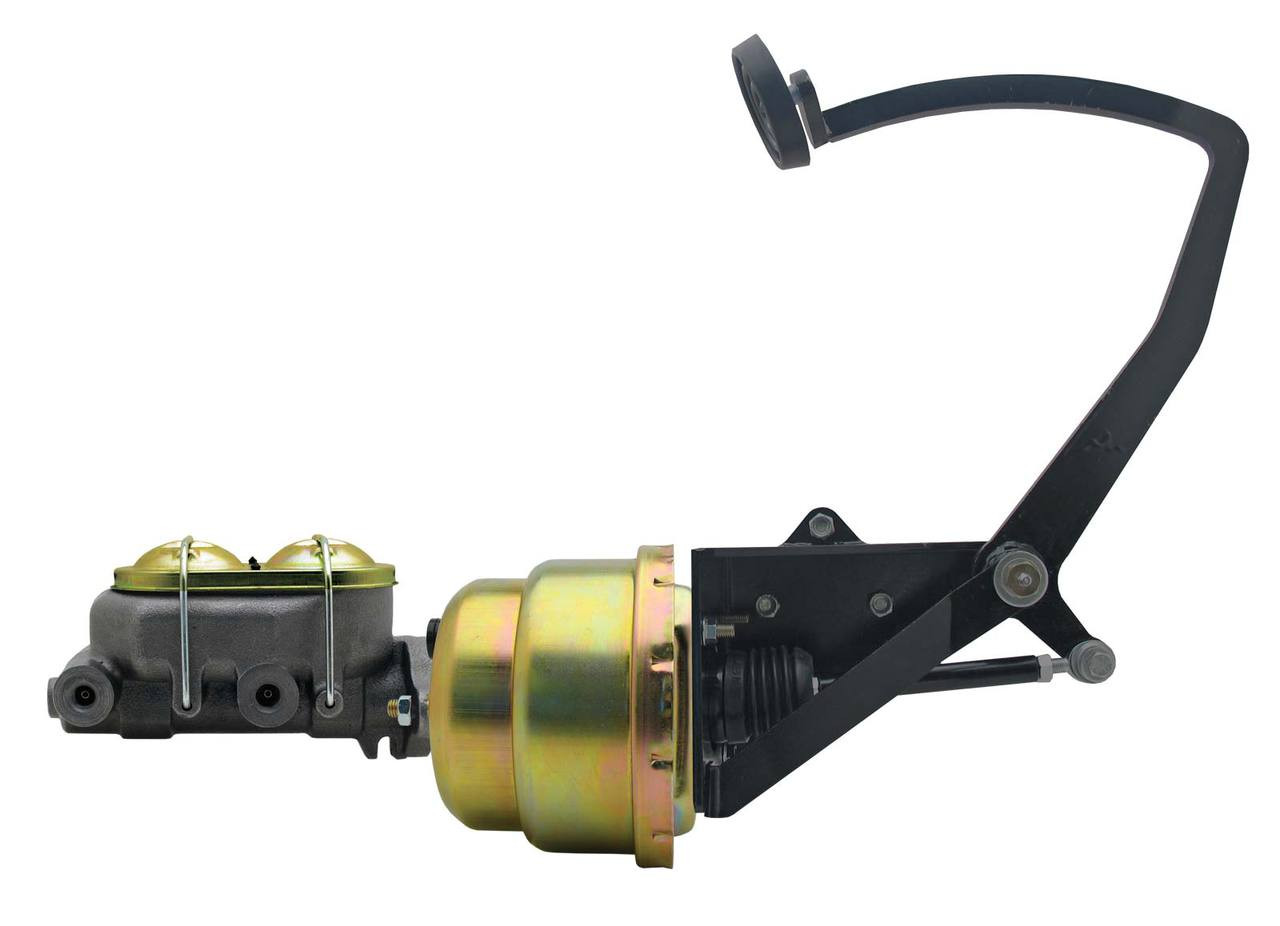

55-59 Chevy Pickup Truck Power Brake Pedal Assembly: This custom “beneath the floor” pedal bracket features an appropriate length “power assist” arm and bracket that mounts to a stock Chevy truck frame. It properly positions the booster and MC. The pedal arm will come up through your floor in the OE location.

A dual diaphragm 7″ zinc plated universal booster and new iron corvette style master cylinder are included. Non corrosive black powder coat, stainless steel and aluminum/chrome options below.

Add the proper proportioning valve and residual valves (highly recommended). Residual valves are required to stop fluid drain back from caliper or wheel cylinder into MC when your MC is below your calipers. These plumb inline and vastly improve how fast your brakes respond with under floor units.

Power booster, prop valve and master cylinder options available below.

Imported. Package weighs a hefty 34 lbs.

  • Summary
  • Details
  • Review


55 56 57 58 59 Chevy Pickup Truck Power Brake Pedal Assembly Includes Booster and Master Cylinder

Additional information

Weight 35 lbs

Upgrade Your Power Booster

Upgrade Your Master Cylinder

Add a Proportioning Valve

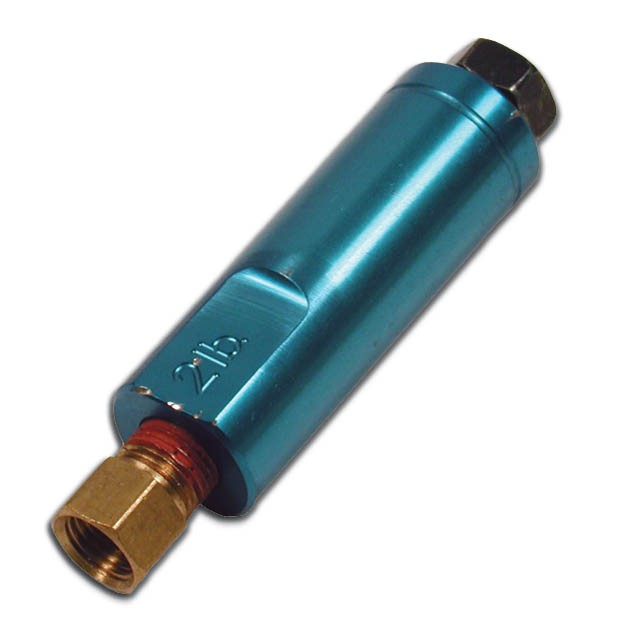

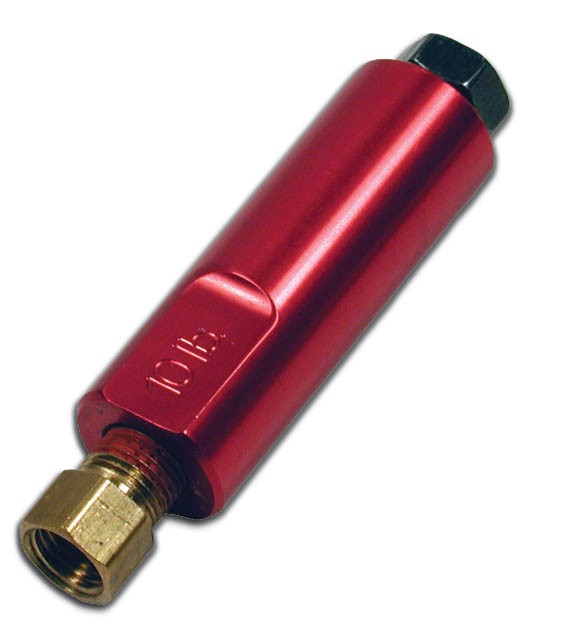

Residual Valves - Needed For All Under Floor MC Mount - Front & Rear Circuits Each Need Their Own Valve

Ship Pedal & Bracket Only - NO BOOSTER OR MC!

Product price: $262.00
Total options:
Order total:
