47-54 Chevy Truck 4 Link kit With Pan Hard From Full Tilt Street Rods

PN: RS-CT4754-P4B


Untitled document

FAB Quest New Item – US Made Kit at An Affordable Price !

Application: 47-54 Chevy Pickup Trucks 1/2 Ton & 3/4 Ton with Stock Frame

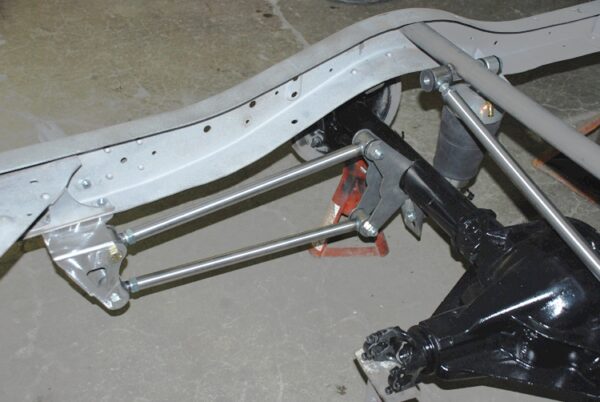

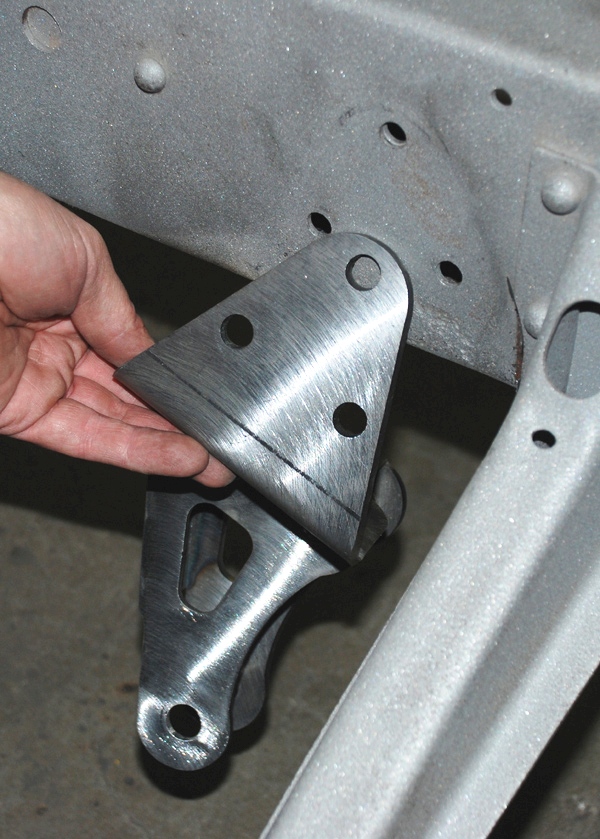

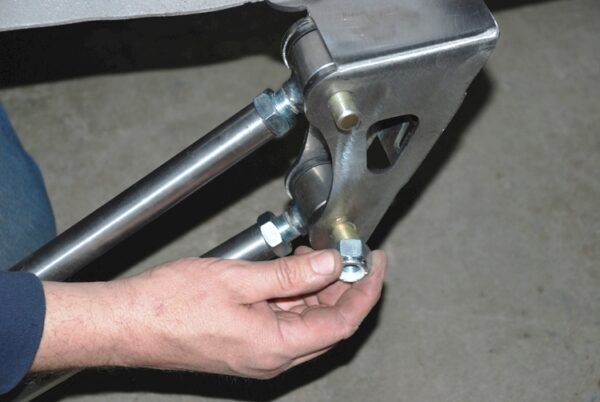

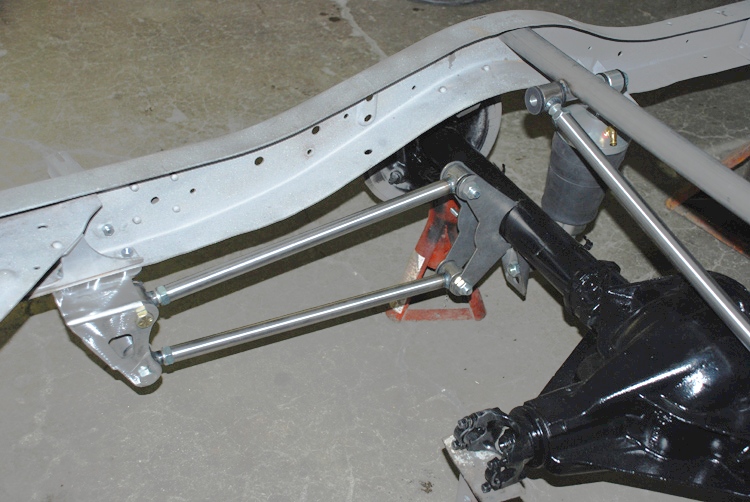

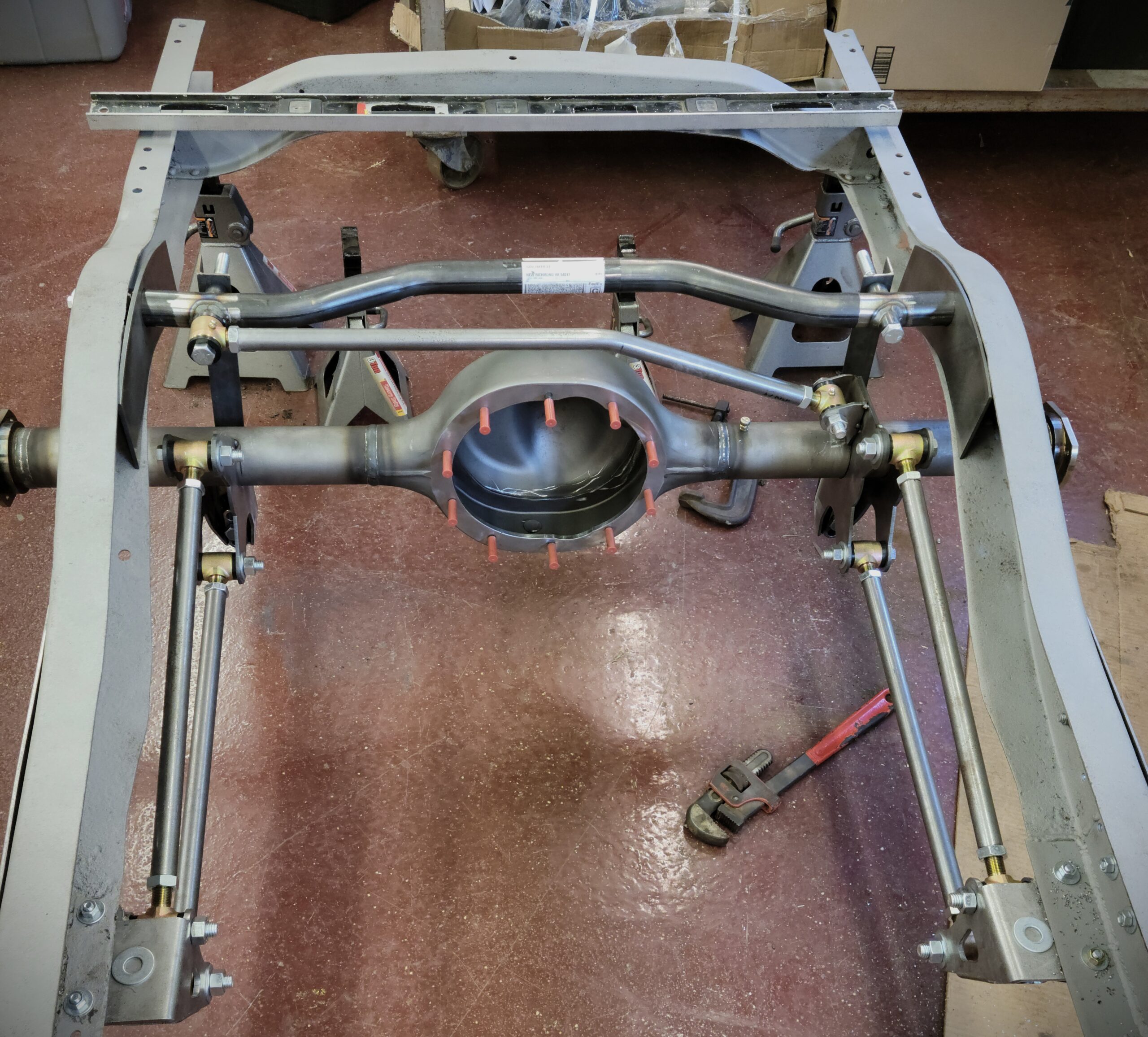

This Full Tilt Street Rods kit includes very well designed bolt on forward link bar brackets that mount to your stock frame in the old leaf spring bracket rivet holes.

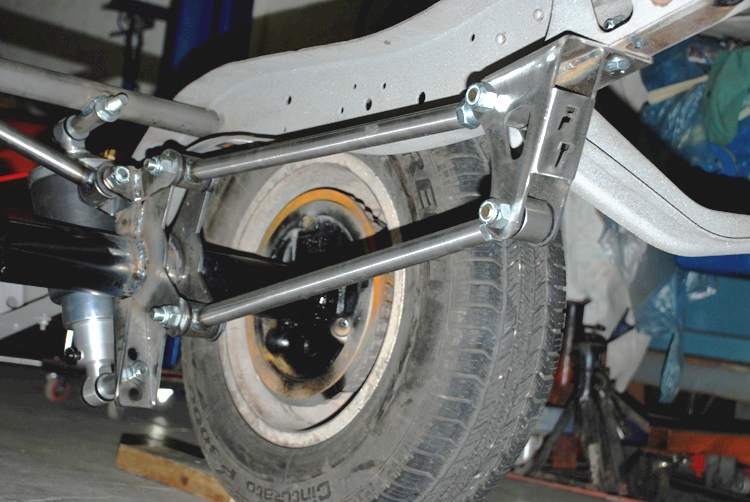

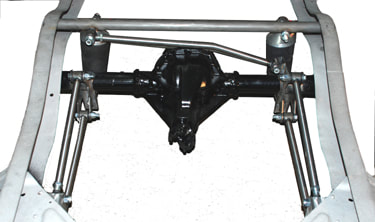

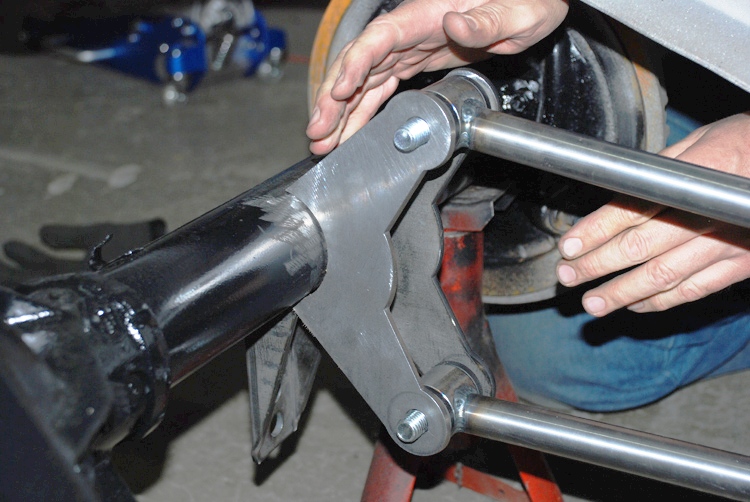

Link bars are threaded heavy 1″ diameter seamless steal (.188″ side wall), with adjusters bungs installed. Axle brackets are designed for standard coil over shocks or Shockwave type air suspension. The brackets incorporate 3 ride height mounting points that offer about 3″ of up or down static shock placement. Axle bracket holes are 5/8″ (poly bushed mount) for locating your coil overs or air suspension. The axle brackets will accommodate most axle tube diameter and does NOT require removing your axles or end flanges to mount. Kit includes long shaped pan-hard bar with bolt on  urethane bushings, inner bolt sleeves and all hardware to mount. Bar mounts from one lower shock bracket to the opposite upper shock mount. Works with both Ford or GM axles.

The included upper shock bar locates with stock frame holes but does need to be fully welded in after locating.

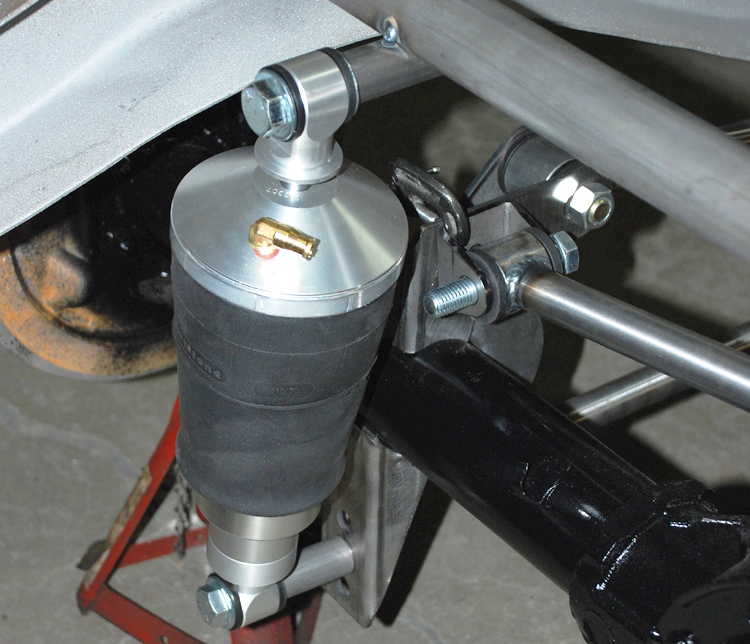

Propper 14.25″ Viking Shocks on sale below or choose Air Ride Technology’s ShockWaves if desired. All shocks ordered within the kit ship for FREE!

Choose half or 3/4 ton below.

Kit Details

  • Bolt on Forward Link Bar Brackets
  • Weld On Adjustable Ride Height Axle Brackets
  • 1″ Heavy Wall Link Bars w/Adjusters
  • Upper Shock Mount Cross Member
  • Panhard Kit
  • Hardware and Detailed Instructions


KIT DOES NOT INCLUDE SHOCKS OR SHOCKWAVES! Shock options are below and can be ordered with the kit. Kit ships as raw steel.

  • Summary
  • Details
  • Review

Additional information

Weight 49 lbs

Pleaes Tell Us About Your Truck

Add Coil Over Shocks or Shockwaves to Your Kit

Shock Options

Product price: $699.00
