47-54 Chevy PU Truck Power Brake Pedal Assembly



Untitled document


Application: 47-54 Chevy Truck Stock Frame Power Pedal Assembly

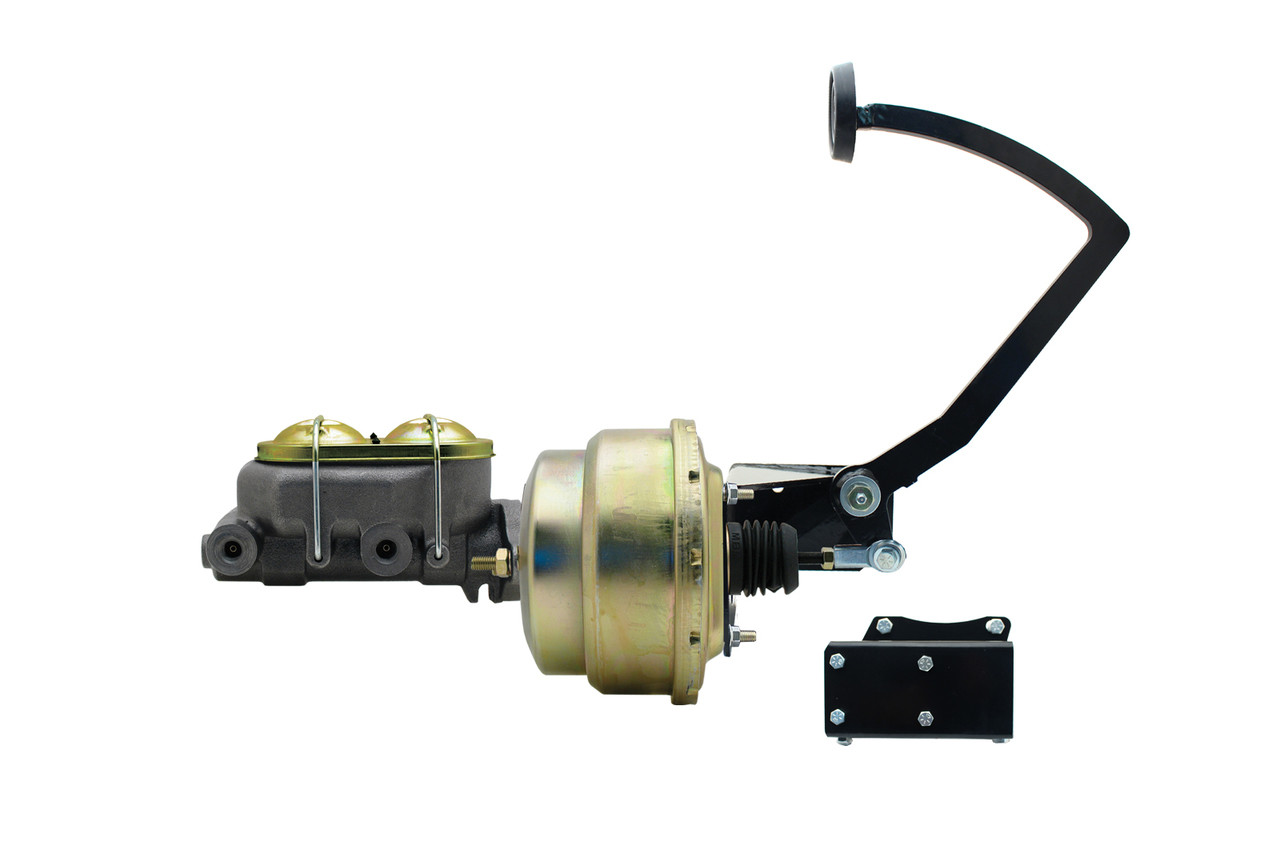

This custom “beneath the floor” pedal bracket features an appropriate length “power assist” arm and bracket that mounts to a stock Chevy pick up truck frame. It properly positions the booster and MC in the stock location. The pedal arm will come up through your floor in the OE location.

A 7″ dual diaphragm zinc plated universal booster and new iron corvette style master cylinder are included. Non corosive stainless steel and aluminum/chrome options below. Black powder coated pedal and boosters also available…please inquire

Add the proper proportioning valve and residual valves (highly recommended) if you need them. Residual valves are required to stop fluid drainback from caliper or wheel cylinder into MC. These plumb inline and vastly improve how fast your brakes respond with under floor units.

Power booster, prop valve and master cylinder options available below.

Imported. Package weighs a hefty 34 lbs.

  • Summary
  • Details
  • Review

Additional information

Weight 22 lbs

Residual Valves - Needed For All Under Floor MC Mount - Front & Rear Circuits Each Need Their Own Valve

Upgrade Your Master Cylinder

Add a Proportioning Valve

Product price: $262.00
Total options:
Order total:
