Wilwood Rear 12″ Disc Brake Conversion – Ford 9 New Torino Large Bearing

PN: 140-7140



Application: Ford 9″ New Style Large Bearing Axles Inlcuding Currie


Not sure which axle you have? Click HERE

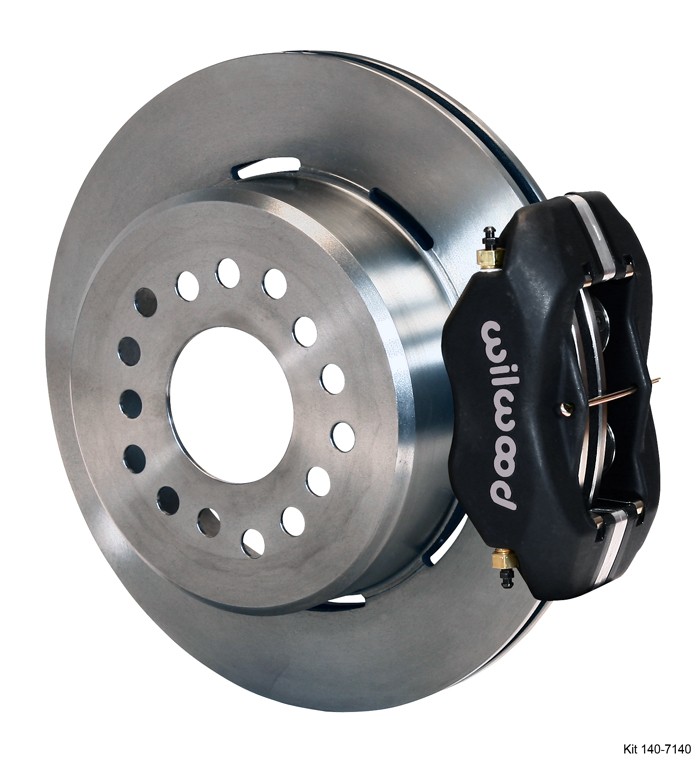

Wilwood  Rear FDLI 12″  Disc Brake Conversion Kit – Ford 9 New Style Large Bearing: Adding disc brakes to your rear axle will create the best possible braking combination for your street rod or muscle car. You will notice shortened stopping distances, reduced fade and improved brake feel. Our Wilwood Pro Series Kit utilizes a large 12.19″ vented .81″ thick iron rotor. Inside the rotor are Wildwood’s patented internal e-brake with huge holding power. This hidden mechanical e-brake is designed to easily mate with your OEM cables.  Clamping duties are accomplished with the Wilwood 4 piston Dynalite forged aluminum calipers. As the name implies, these forged billet calipers are much lighter, more rigged and very slim compared to your OEM iron calipers. Considered one to the best calipers made, these slender units incorporate stainless internals and use an “over the counter” shaped pad. This great looking package creates huge stopping power, quicker cooling and is constructed of long life components designed specifically for the heavier US muscle car.

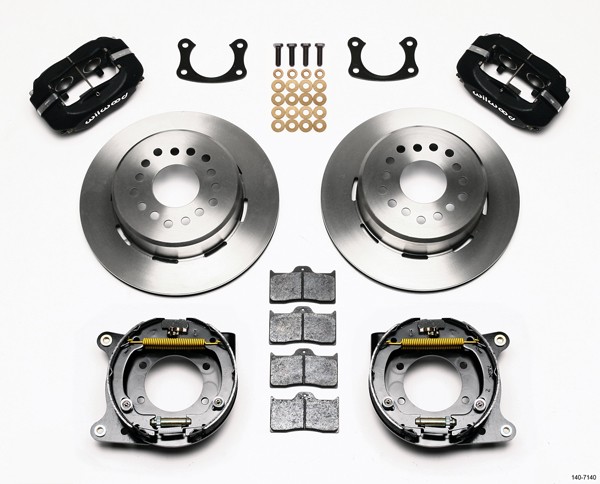

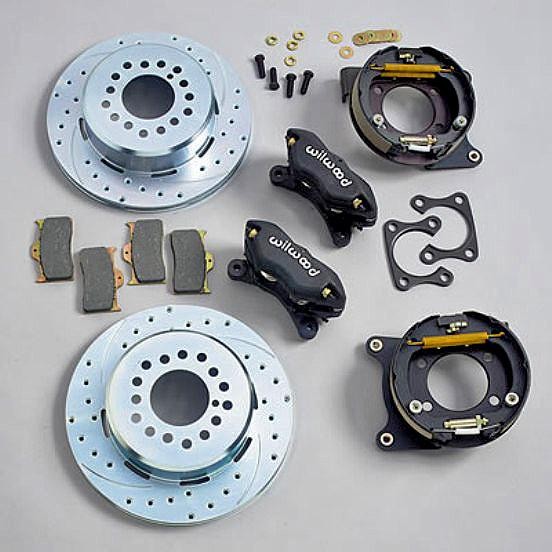

Rear Disc Kit Contents

  • 12.19″ Wilwood Iron Rotors
  • Dynalite Billet 4 Piston Calipers
  • Caliper Brackets
  • All Hardware
  • BP110 Compound Street/Race Pads
  • Internal e-brake Kit
  • Instructions

Base caliper surface is gloss black powder coat

This kit fits most 15″ wheels! Sizing chart available

Base shock configuration is parallel. Staggered “no cost” option below

Rotors are dual bolt pattern: Ford 5x 4.5″ and GM 5x 4.75″ respectively

  • Summary
  • Details
  • Review

Additional information

Weight 25 lbs
